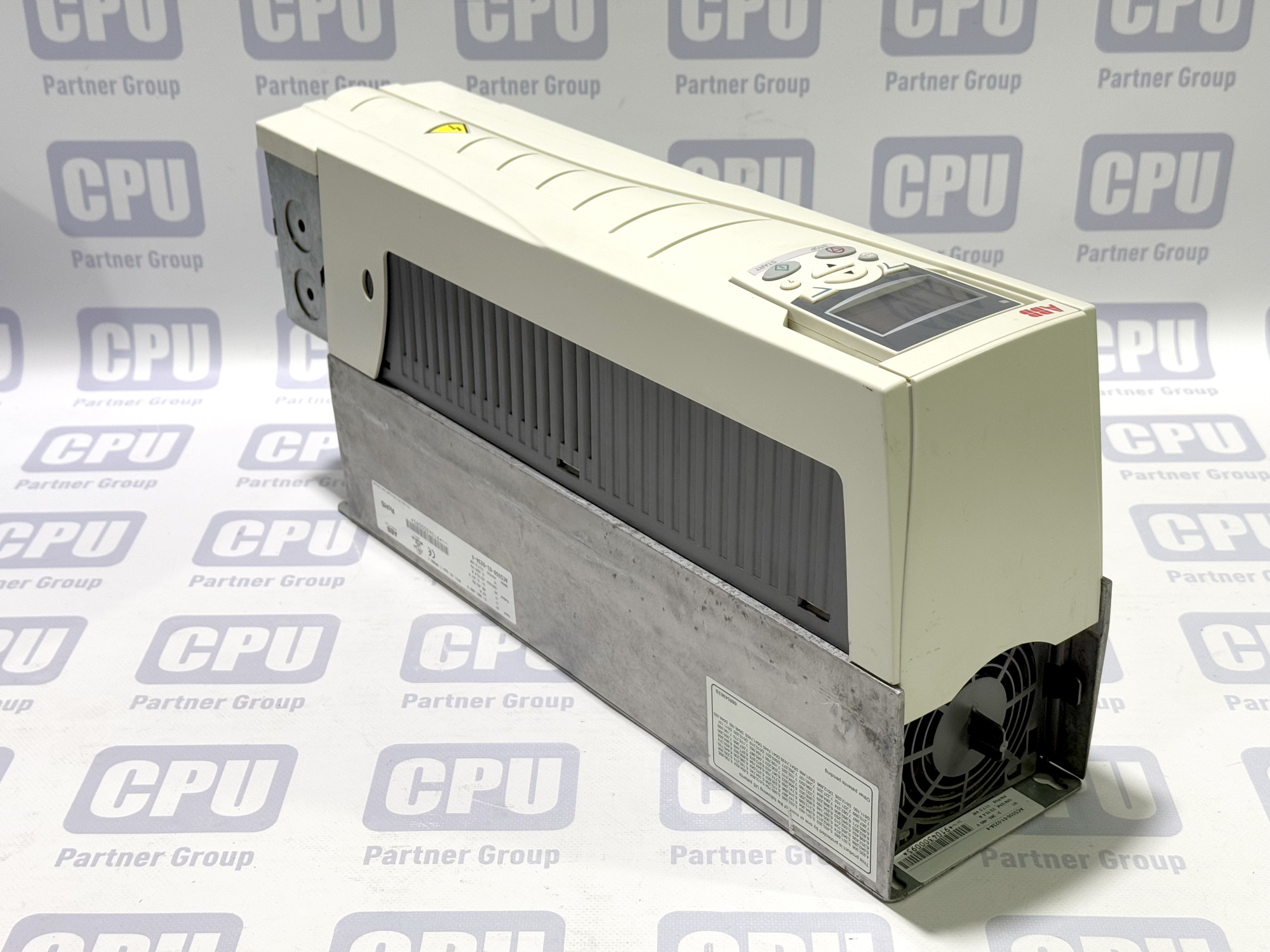

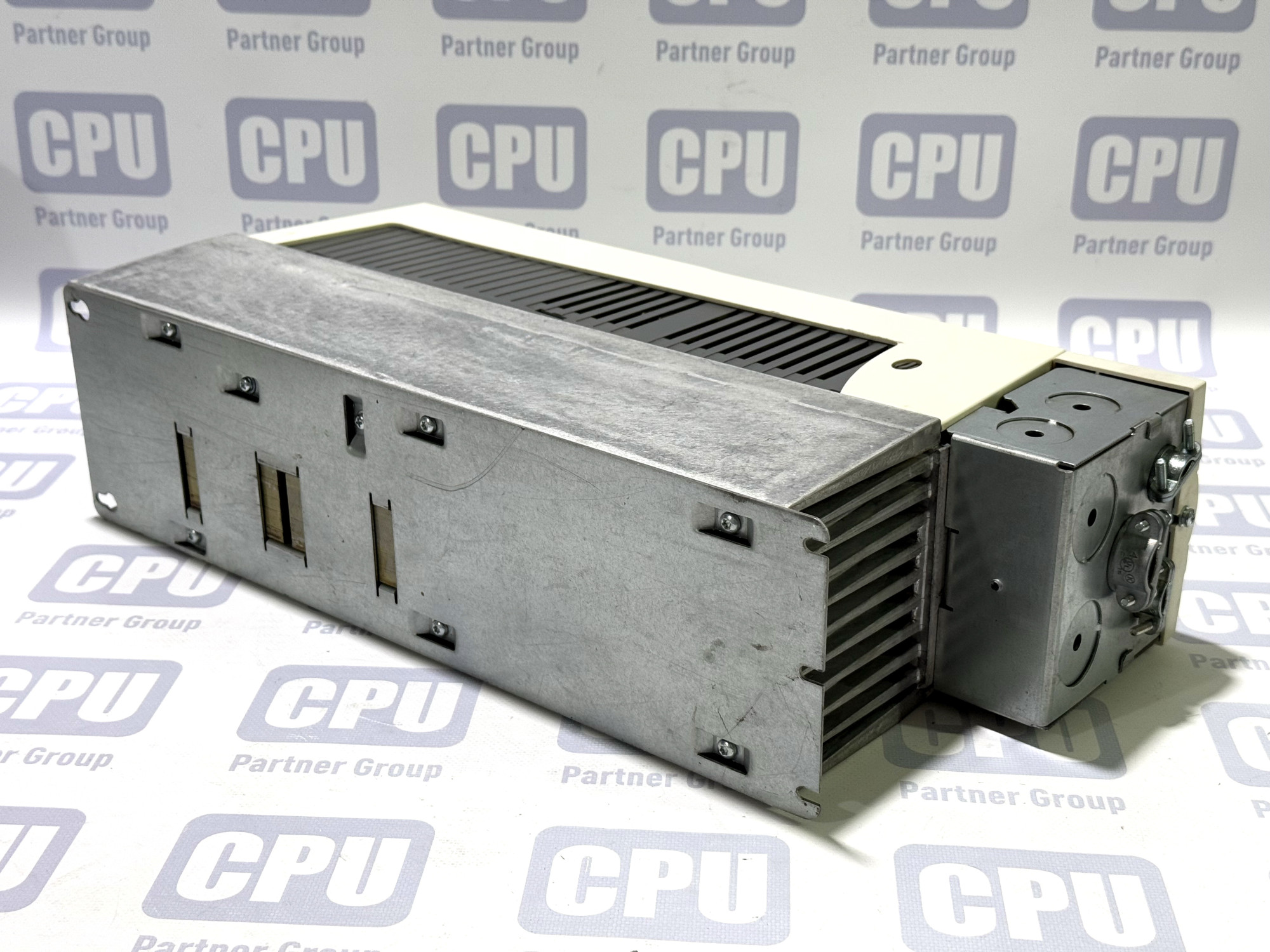

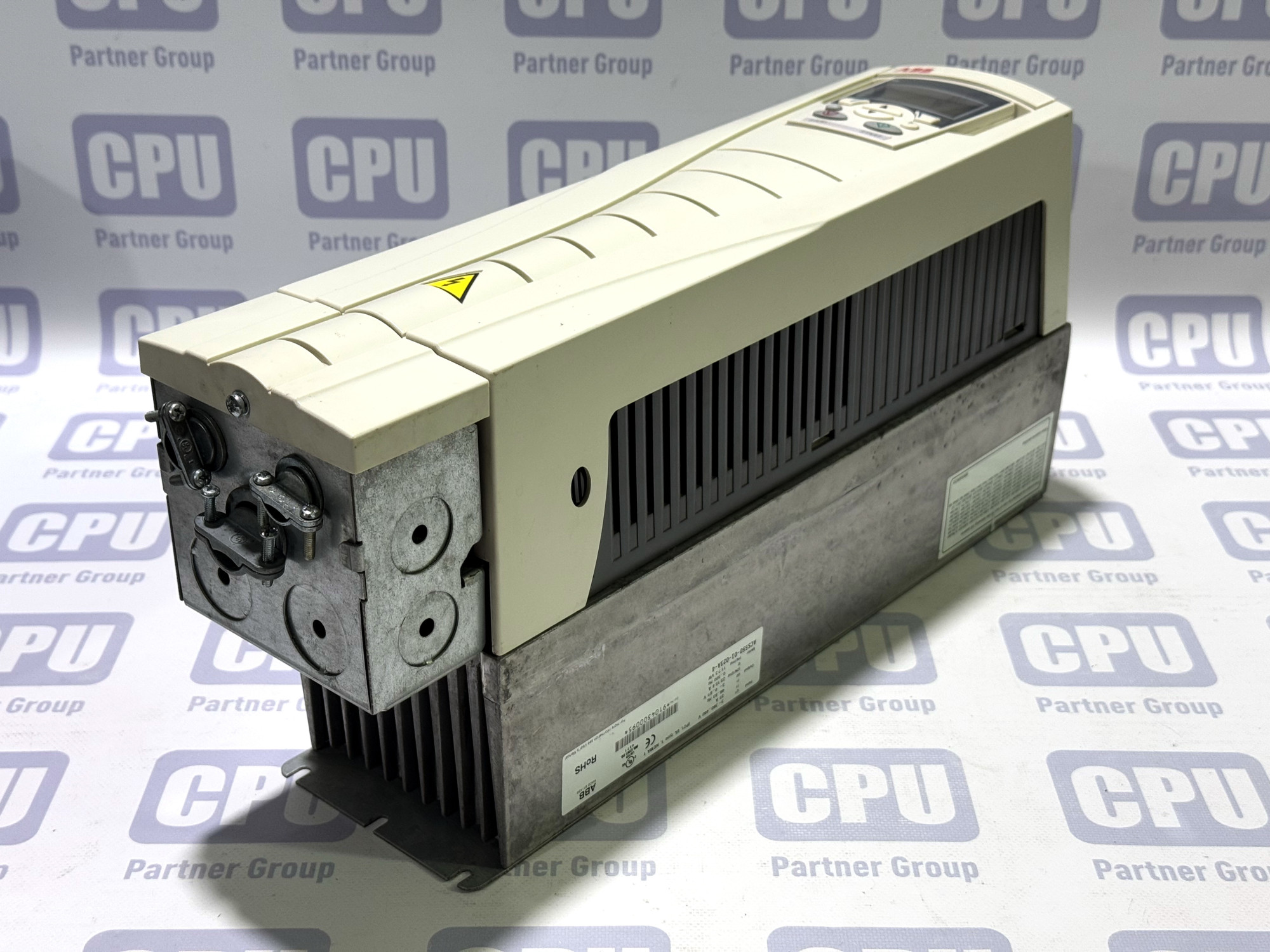

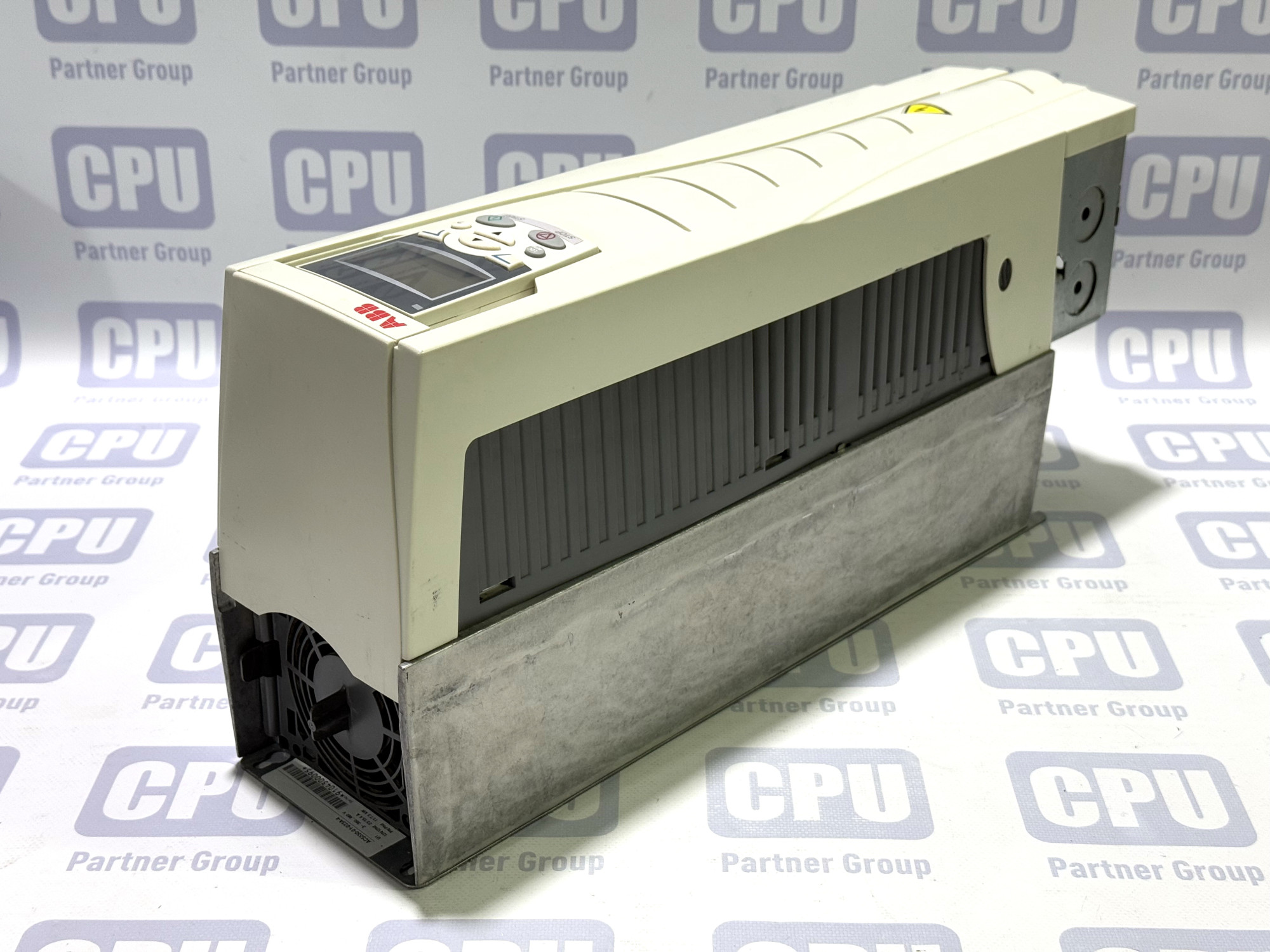

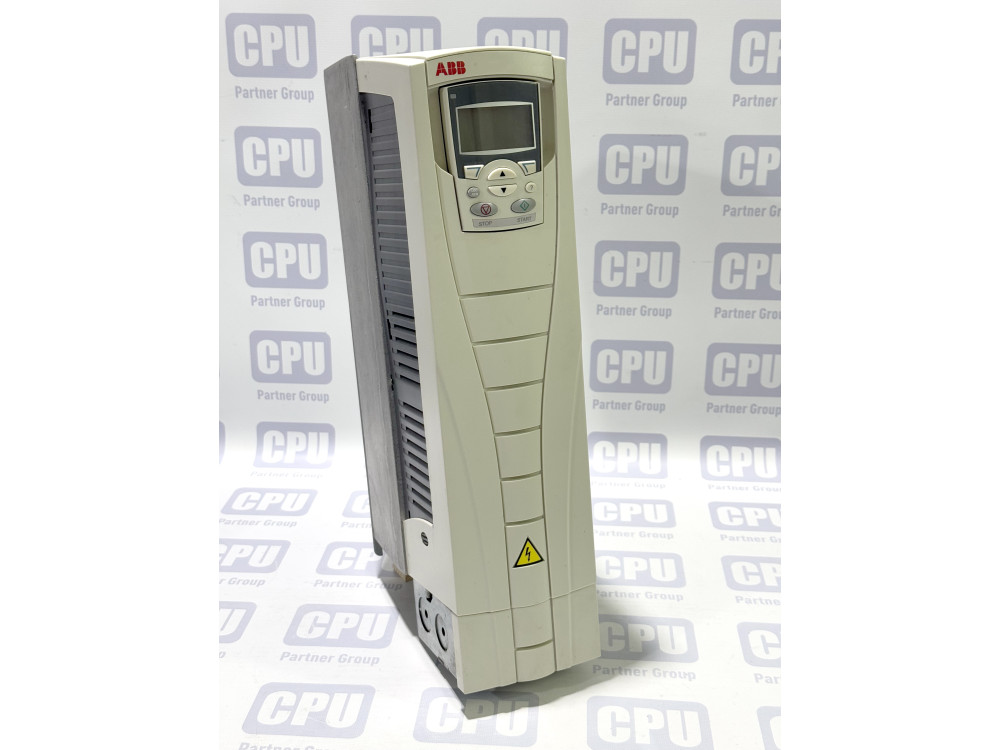

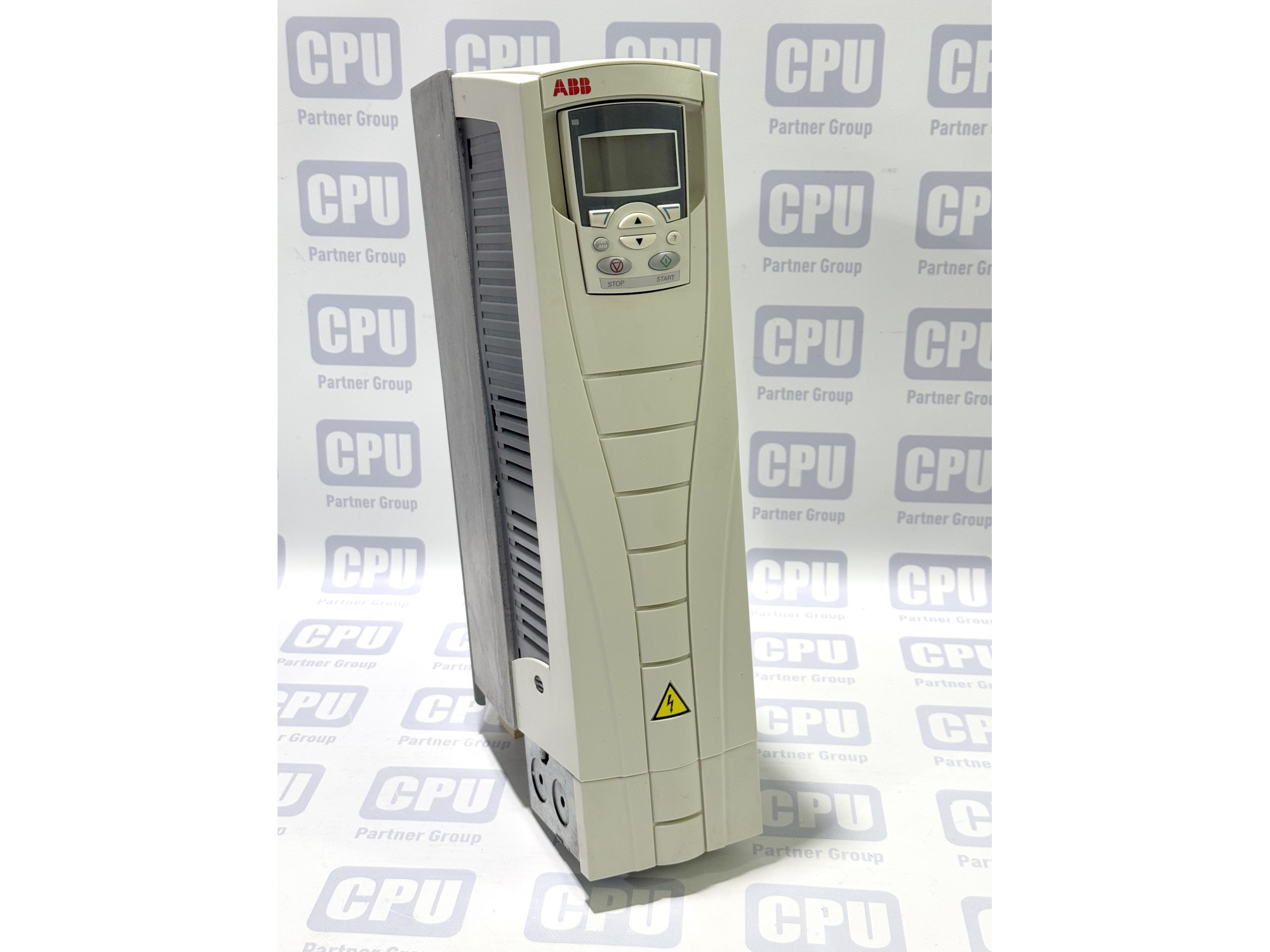

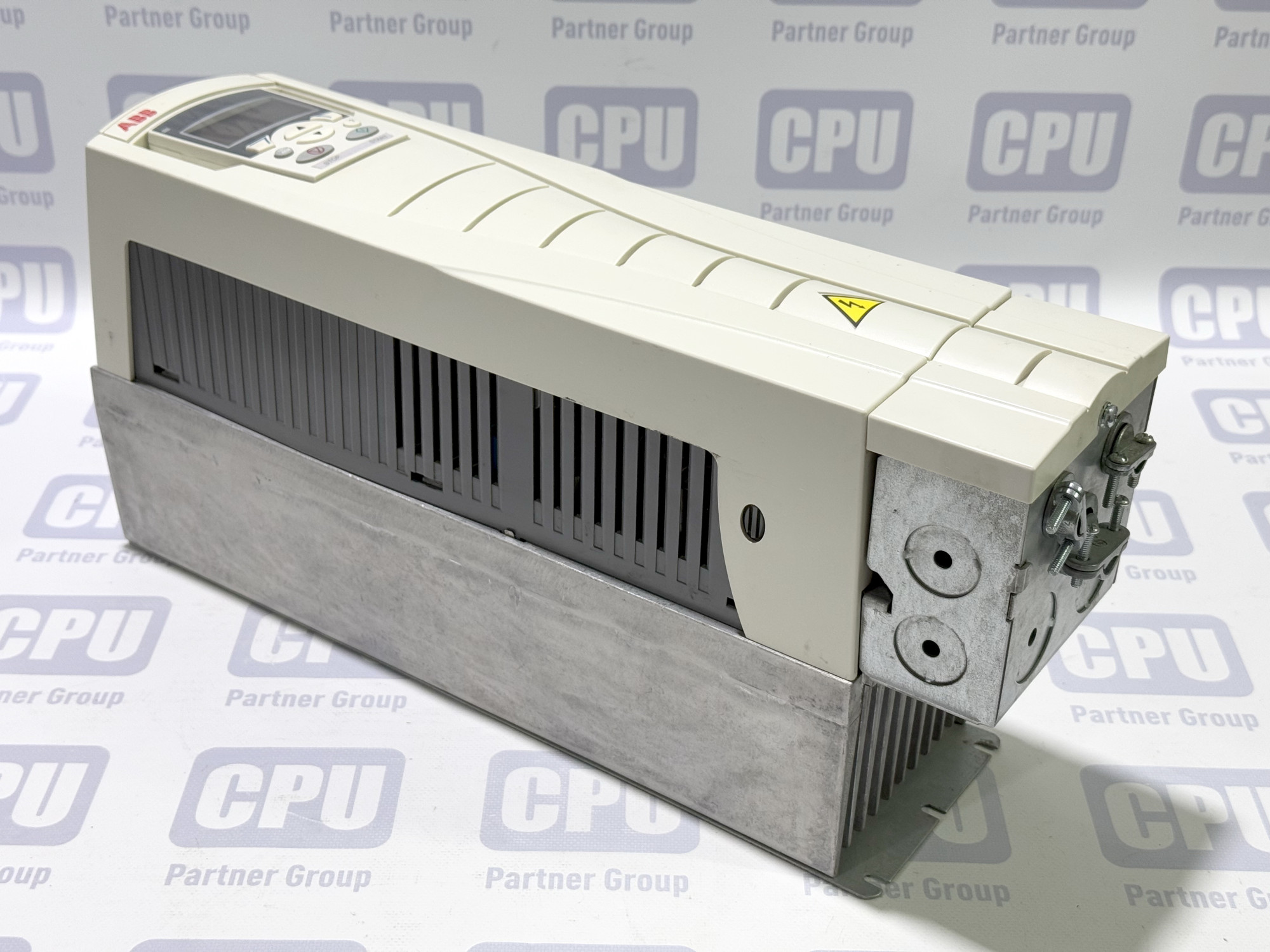

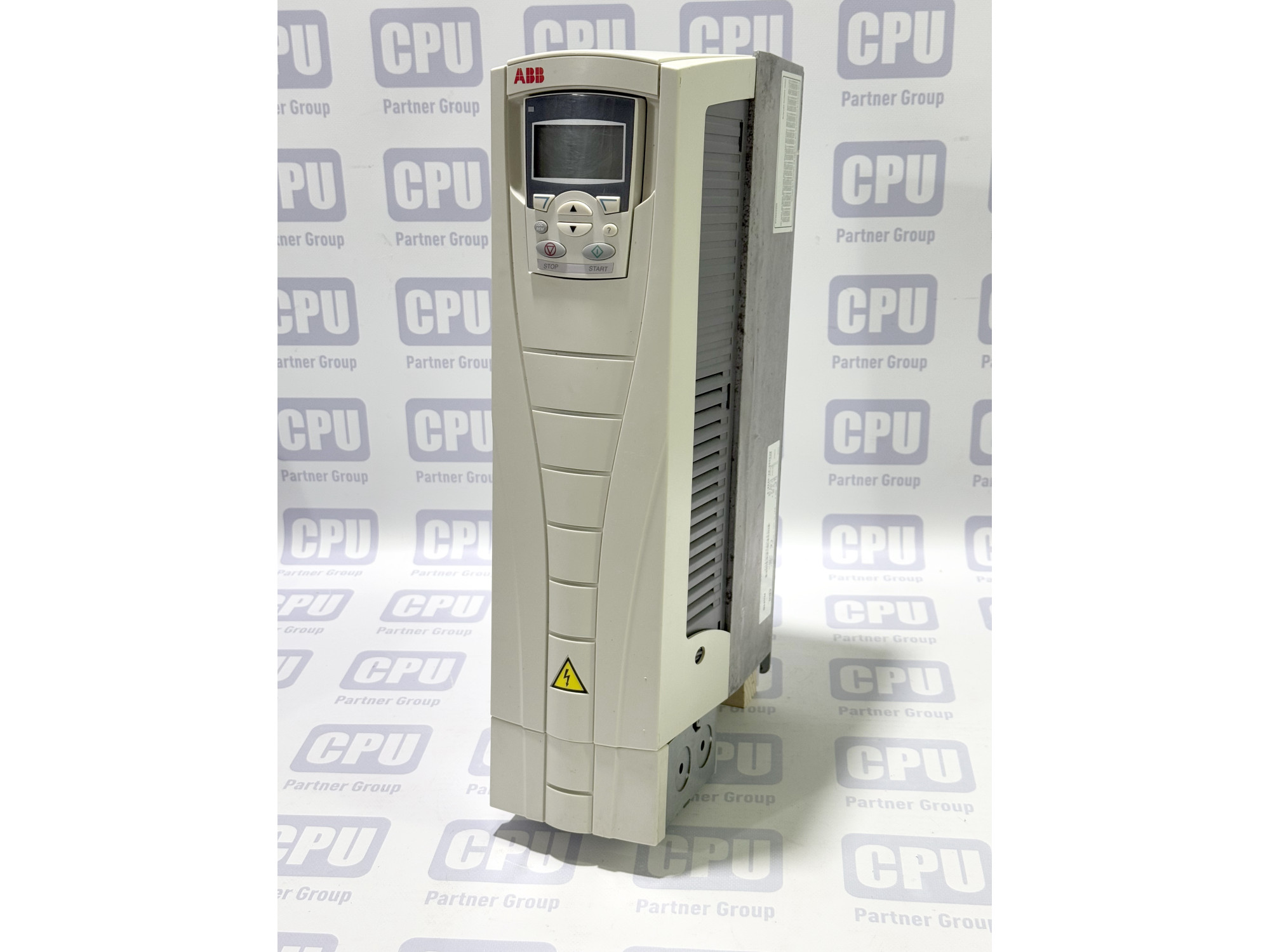

ABB ACS550-01-023A-4 - Universal Frequency Converter for Industrial Applications

The ABB ACS550-01-023A-4 is a high-performance, general-purpose frequency converter (VFD) designed for efficient control of asynchronous motors across a wide range of industrial applications. It is ideal for pumps, fans, conveyors, extruders, and other machinery requiring precise speed and torque control, providing significant energy savings and enhanced system reliability.

Key Features:

• Manufacturer: ABB

• Model: ACS550-01-023A-4

• Type: General-purpose frequency converter

• Input Voltage: 3-phase, 380...480 V AC

• Input Current (I1): 23 A

• Input Frequency: 48...63 Hz

• Output Voltage (U2): 3-phase, 0...U1 V

• Output Current (I2N/I2hd): 23 A / 15.4 A

• Output Frequency: 0...500 Hz

• Motor Power (PN/Phd): 11 kW / 7.5 kW

• Protection Class: IP21 (UL type 1, NEMA 1)

• Materials: Durable housing, high-quality electronic components.

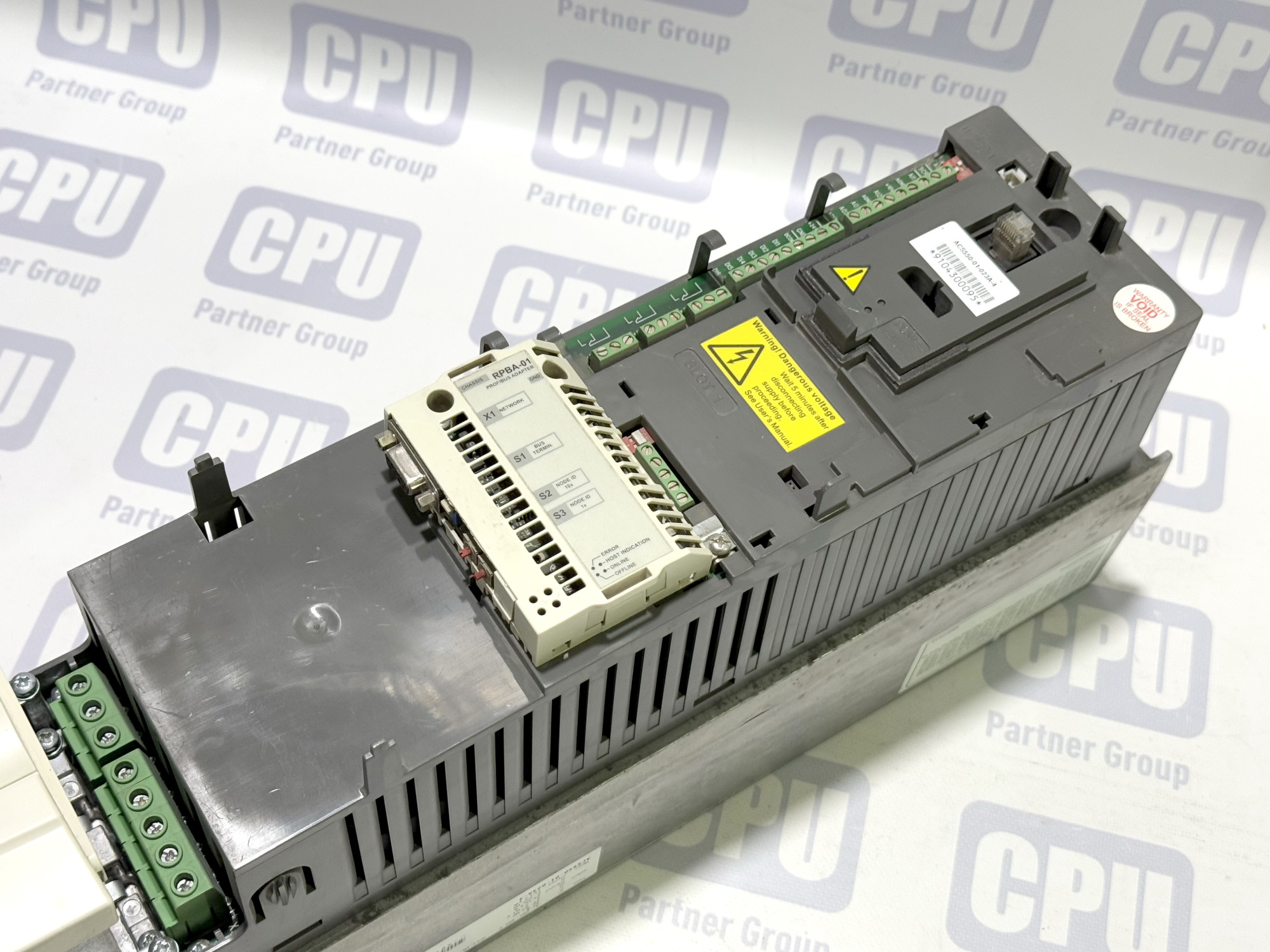

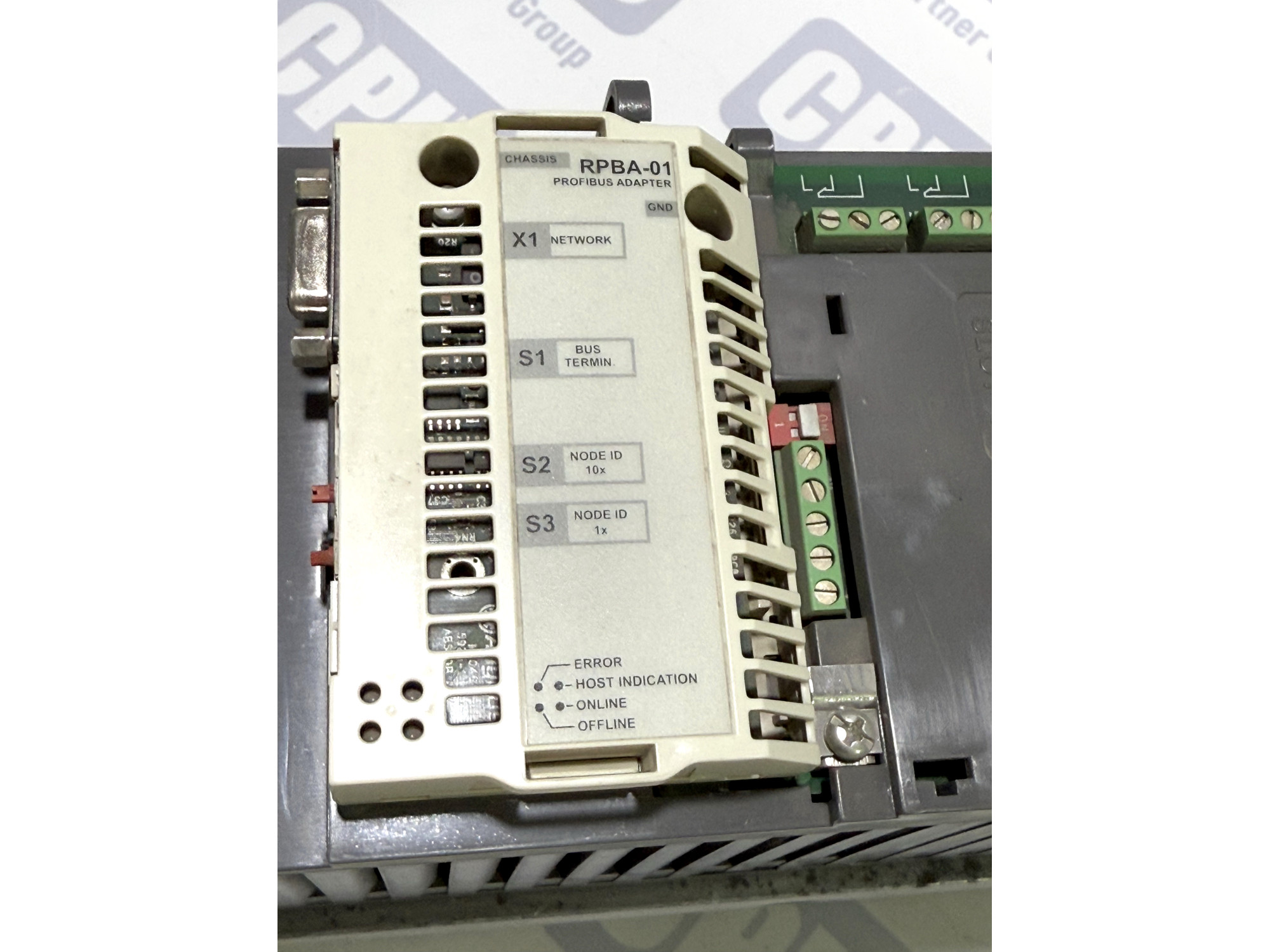

• Features: Integrated control panel with LCD display, built-in EMC filters, expandability with option modules (e.g., RPBA-01 PROFIBUS adapter for industrial network integration).

• Certifications: CE, cULus Listed. RoHS compliant.

Unique Advantages and Features:

• Energy Efficiency: Advanced motor control algorithms significantly reduce power consumption and operating costs.

• Easy Installation and Setup: Intuitive interface and built-in start-up assistants reduce commissioning time.

• Reliability and Durability: ABB manufacturing guarantees high-quality construction and long-term operation in the most demanding industrial environments.

• Versatile Application: Suitable for a wide range of tasks, from simple to the most demanding, thanks to its general-purpose design.

• Advanced Protection Functions: Integrated protection mechanisms for the motor and the converter itself ensure safe and stable equipment operation.

• Network Connectivity: Compatibility with industrial network protocols (e.g., PROFIBUS via RPBA-01 adapter) for centralized control and monitoring.

• Compact Design: Optimized dimensions allow for easy integration into existing control cabinets.

On this page you will find the user manual for ABB ACS550-01-023A-4. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for ABB ACS550-01-023A-4
