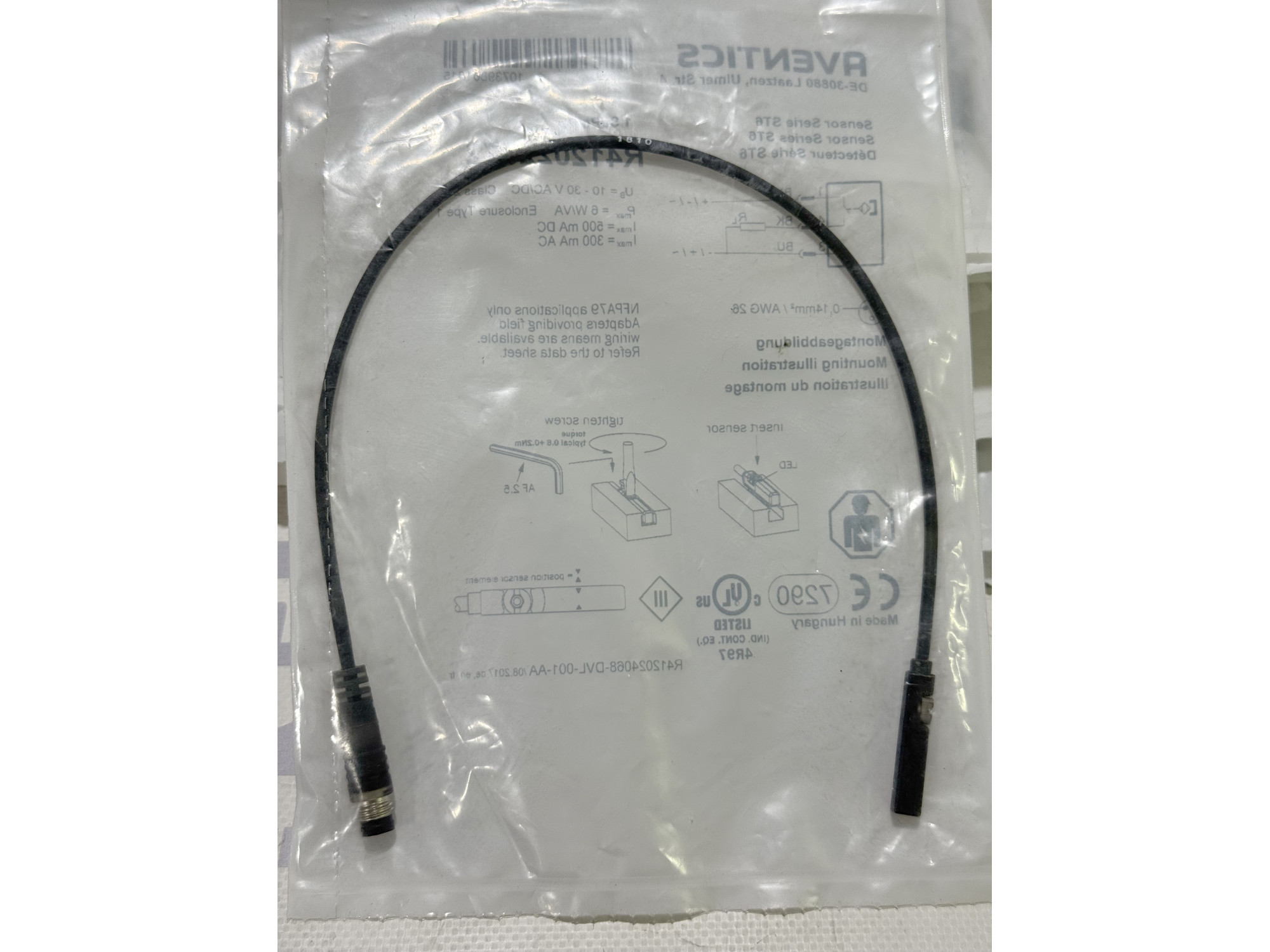

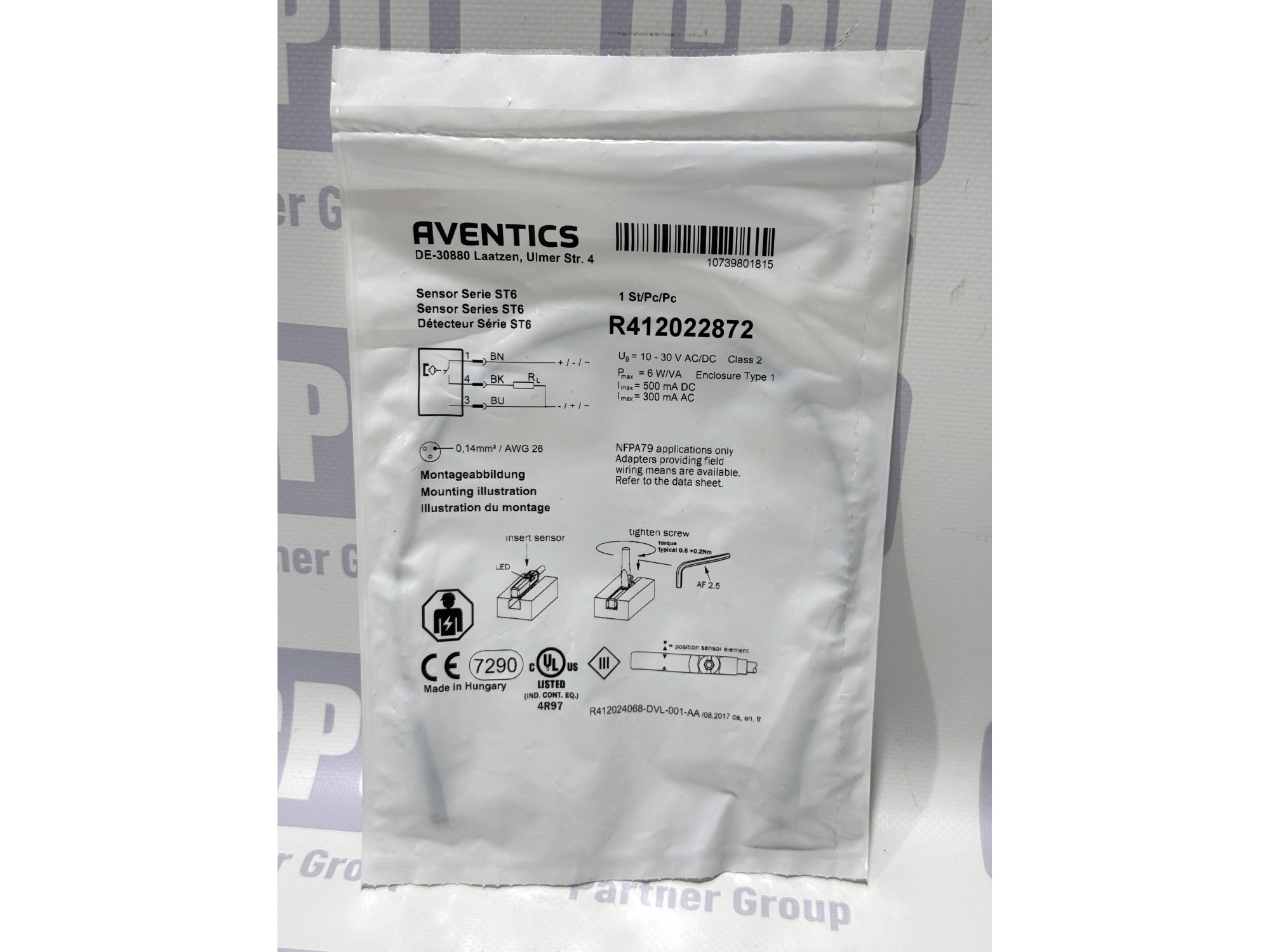

Aventics R412022872 ST6 Series Magnetic Reed Sensor

Aventics R412022872 ST6 Series Magnetic Reed Sensor

Description (SEO): The Aventics R412022872 ST6 series magnetic reed sensor is engineered for precision and reliability in tracking piston positions within pneumatic cylinders. Designed to fit directly into standard T-slots, this high-performance proximity sensor eliminates the need for complex mounting kits, saving valuable installation space. Operating within a flexible voltage range of 10-30V AC/DC, it features a rugged housing suitable for harsh industrial environments. An integrated LED status indicator offers quick visual feedback during operation. Ideal for factory automation, packaging machinery, and automotive production lines, the Aventics R412022872 sensor ensures smooth and efficient process control.

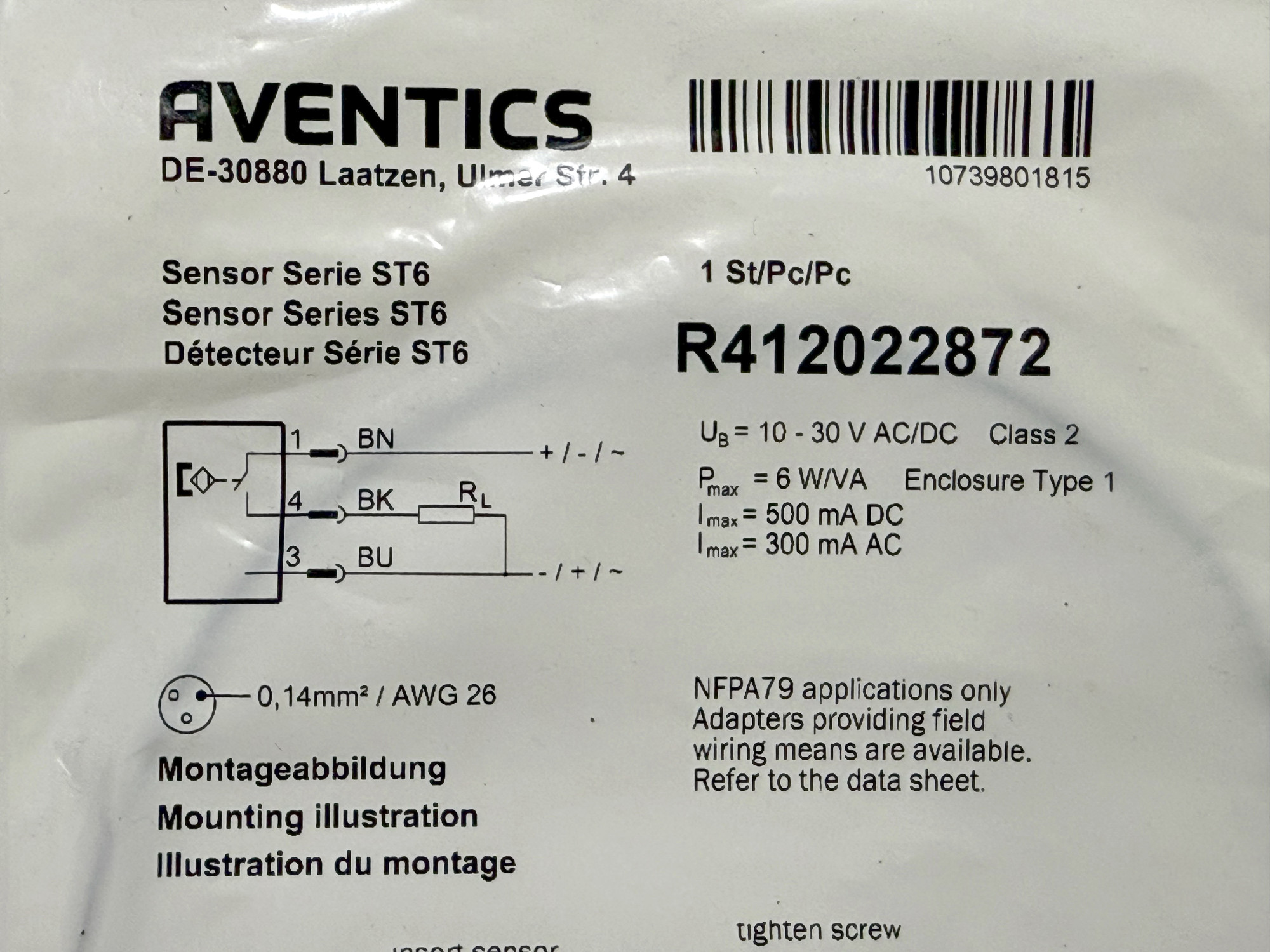

Specifications:

• Manufacturer: Aventics (Emerson Group)

• Part Number: R412022872

• Series: ST6 (Sensor Series ST6)

• Sensor Type: Magneto-resistive / Reed contact

• Operating Voltage (Ub): 10 – 30 V AC/DC, Class 2

• Maximum Power (Pmax): 6 W/VA

• Max. Current DC (Imax DC): 500 mA

• Max. Current AC (Imax AC): 300 mA

• Wire Cross-section: 0.14 mm² / AWG 26

• Connection Type: Cable with M8 circular connector

• Status Indicator: Integrated LED

• Enclosure Protection: Enclosure Type 1

• Mounting Style: Tighten screw via hex key AF 2.5 (typical torque 0.6 +0.2 Nm)

• Country of Origin: Hungary (Made in Hungary)

Application: The Aventics R412022872 position sensor is widely utilized across automated industrial lines to detect end-of-stroke or mid-stroke positions of pneumatic cylinders equipped with magnetic pistons. It is commonly implemented in automated assembly setups, material handling systems, CNC machinery, conveyor systems, and robotic pick-and-place equipment to provide reliable position feedback to the central PLC unit.
