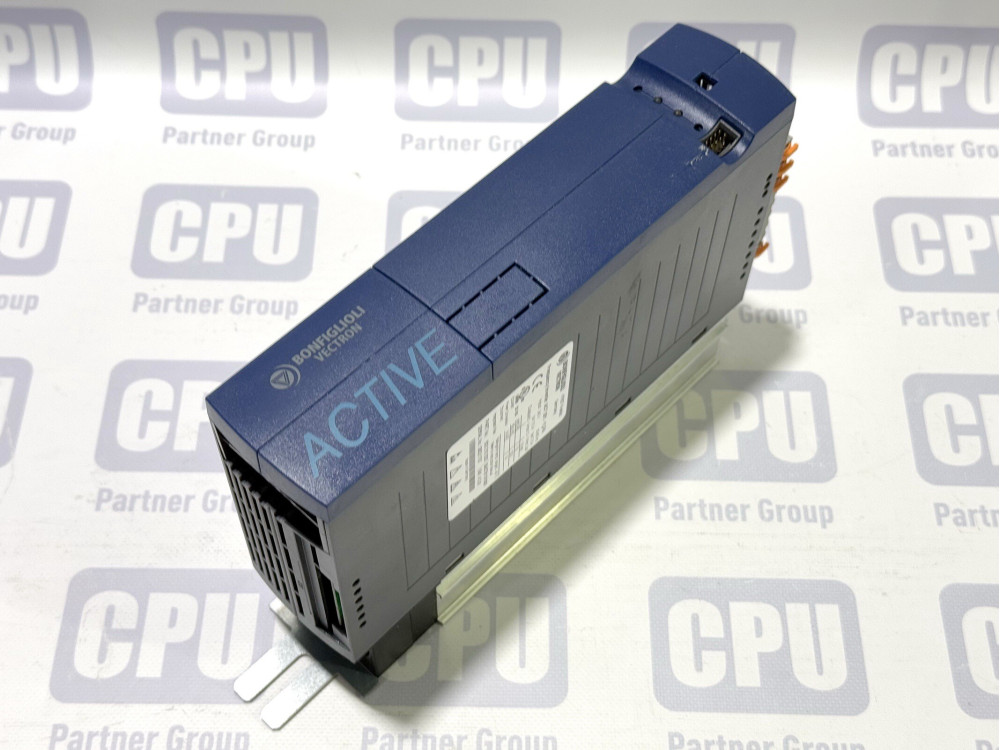

BONFIGLIOLI VECTRON Frequency Inverter ACT 201-11FA

The Bonfiglioli Vectron ACT 201-11FA is a high-performance frequency inverter from the "Active" series, designed for sophisticated industrial automation and motor control.

Technical Specifications

• Model: ACT 201-11FA
• Power Rating: 1.5 kW (2.0 HP)
• Input Voltage: 200V - 240V (Single or Three Phase)
• Rated Output Current: 7.0 A
• Input Frequency: 50/60 Hz
• Overload Capacity: 150% for 60 seconds / 200% for 1 second
• Protection Class: IP20
• Integrated Filter: Built-in EMC Filter (EN 61800-3)
• Braking Transistor: Integrated as standard
• Control Method: Scalar (V/f) or Field-Oriented Control (FOC)
• Digital Inputs: 6 programmable inputs
• Relay Output: 1 programmable relay
• Weight: Approximately 1.4 kg (3.1 lbs)

Key Features

• Modular Design: Supports various expansion modules for Fieldbus communications (CANopen, EtherCAT, PROFINET, etc.) and encoder feedback.
• Versatile Mounting: Designed for DIN rail or mounting plate installation with plug-in power and control terminals for quick wiring.
• Energy Efficiency: Features a DC link bus for energy sharing between multiple drives.
• Advanced Logic: Includes integrated PLC functions, timers, and programmable logic for autonomous operation without an external controller.
