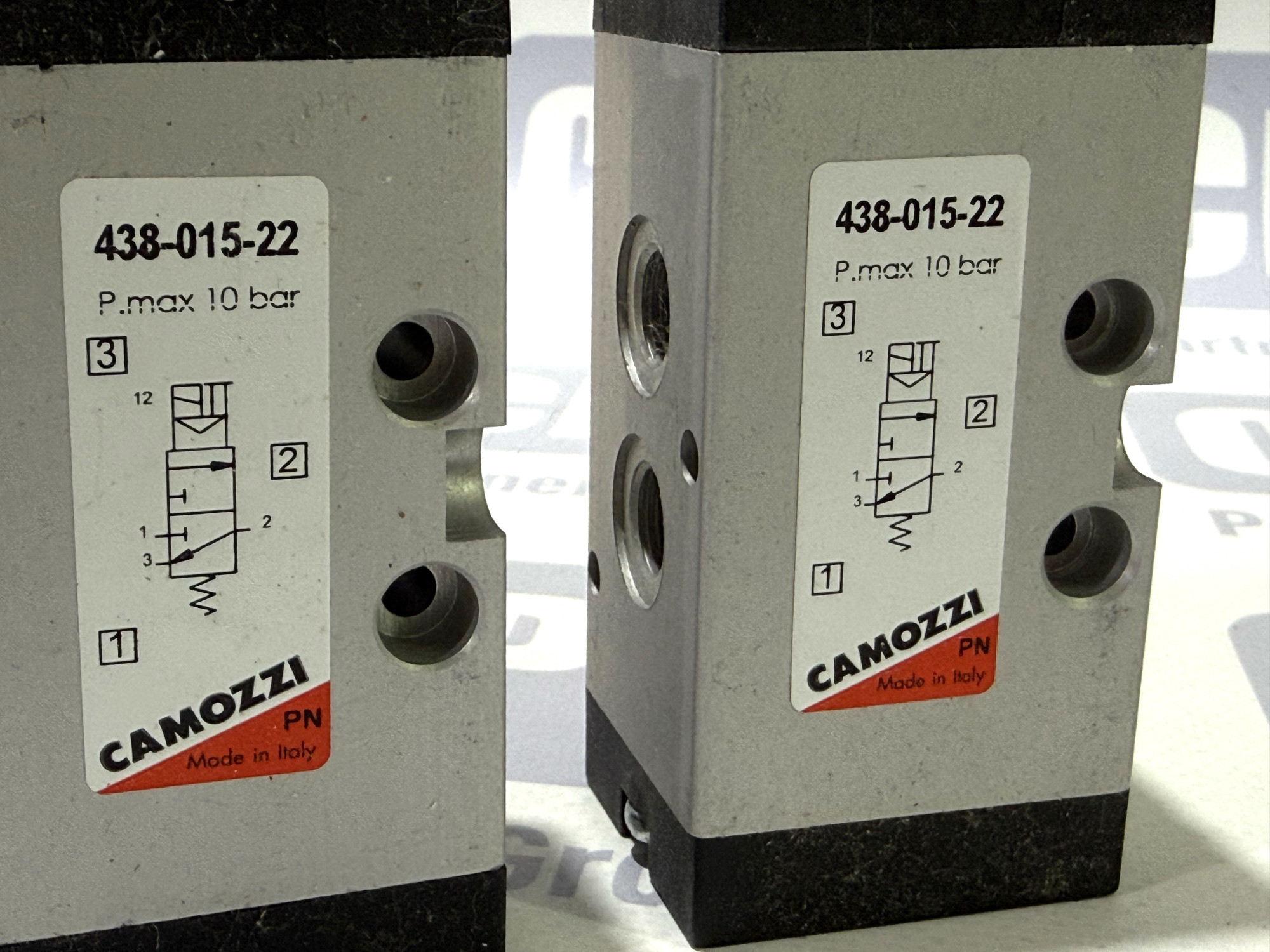

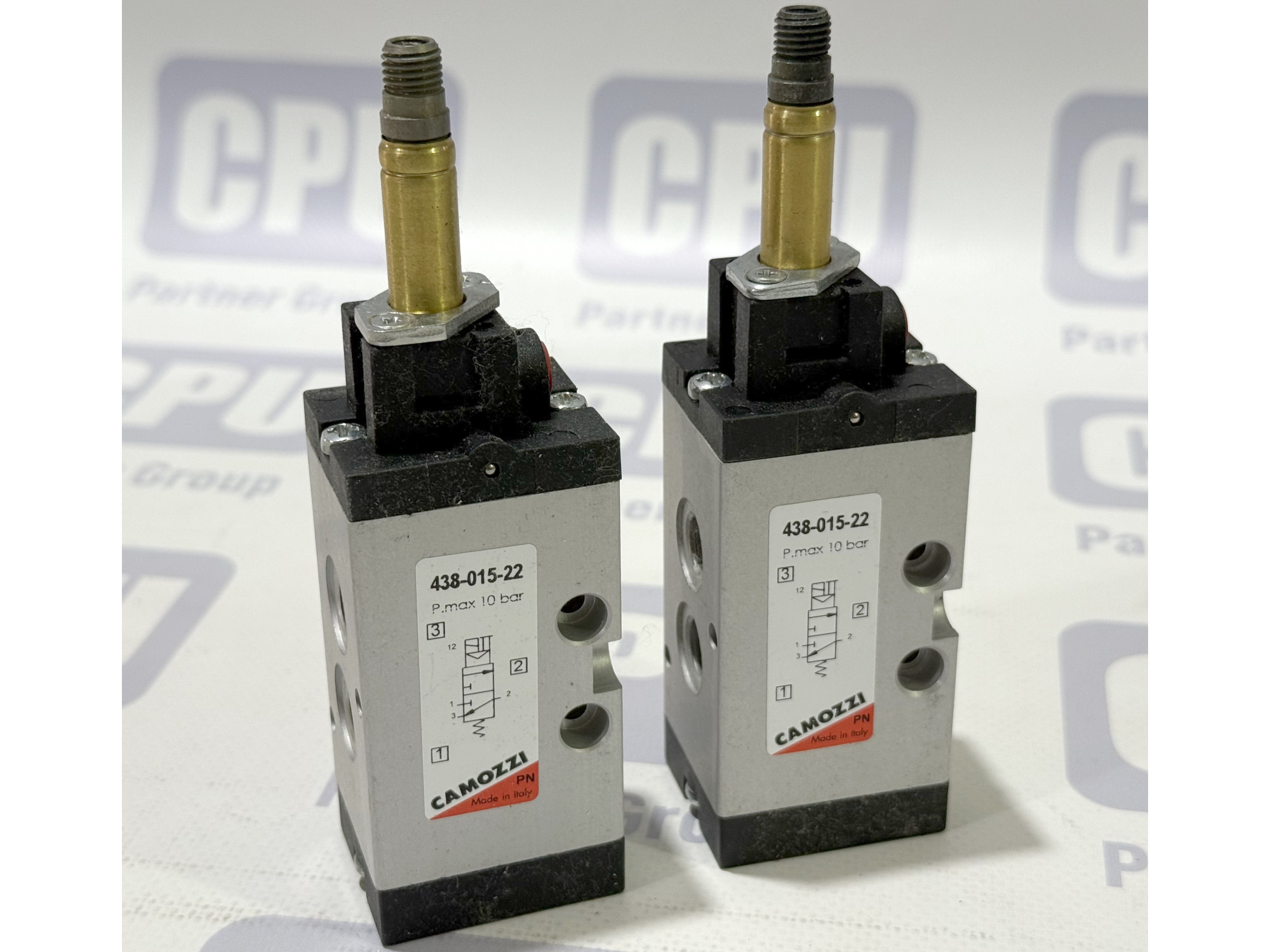

Camozzi 438-015-22 Pneumatic Solenoid Valve Series 4 (G1/8, 3/2 NC, Lot of 2 pcs)

Camozzi 438-015-22 Pneumatic Solenoid Valve Series 4 (G1/8, 3/2 NC, Lot of 2 pcs)

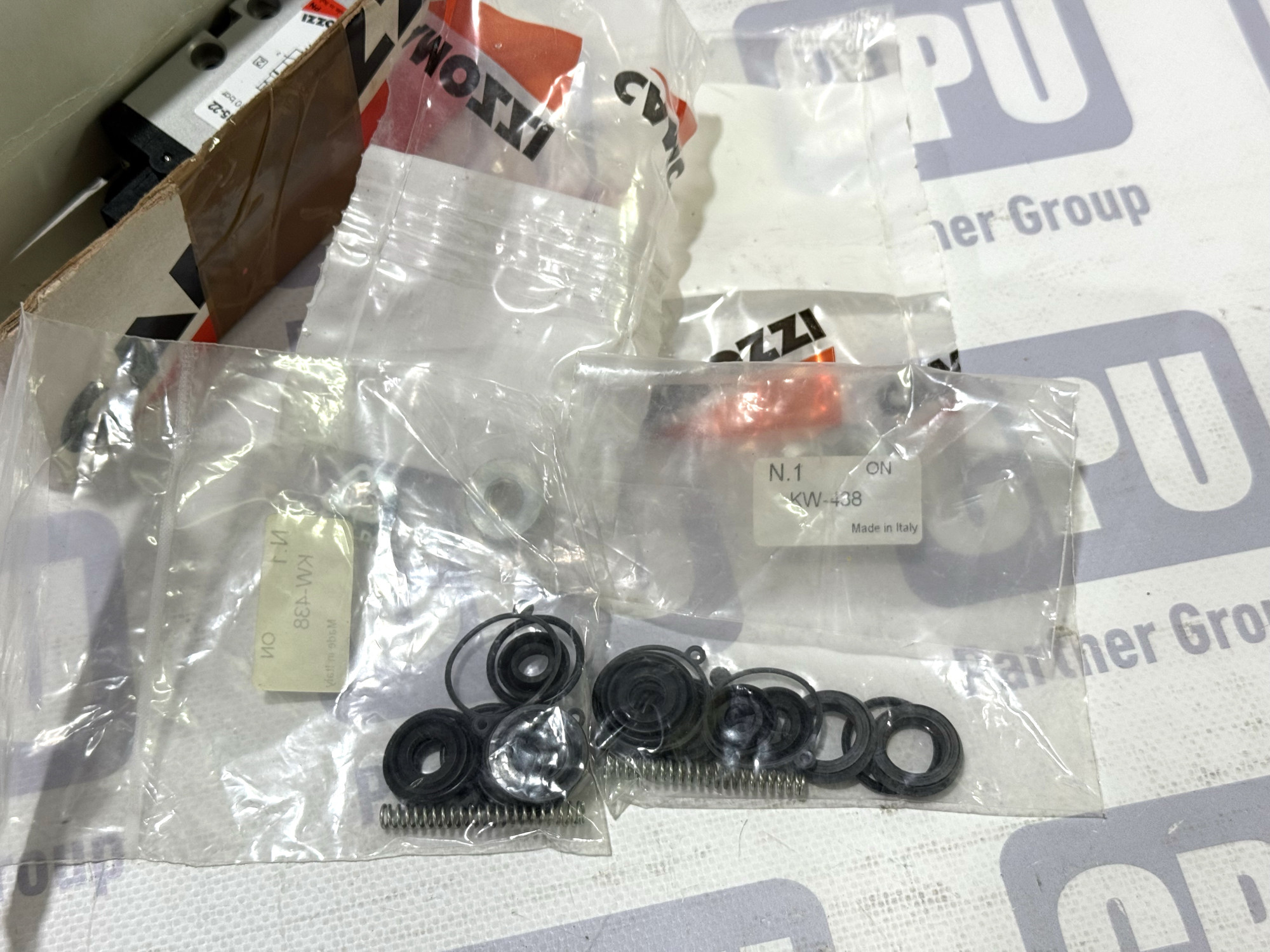

Product Description: A lot of two brand new, genuine Camozzi 438-015-22 (Series 4) industrial spool-type pneumatic solenoid valves, manufactured in Italy. This model is a monostable, 3/2-way normally closed (NC) directional control valve featuring electropneumatic actuation and a mechanical spring return. It is equipped with a bi-stable (locking) manual override for testing and commissioning purposes. Additionally, this lot includes two genuine Camozzi KW-438 seal and spring repair kits, providing everything needed for future routine maintenance. The items come in their original factory cardboard packaging.

Specifications:

• Manufacturer: Camozzi (Italy)

• Model (Part Number): 438-015-22

• Series: Series 4

• Valve Function: 3/2-way, Normally Closed (NC)

• Actuation Type: Single electropneumatic (solenoid), mechanical spring return

• Port Size (Threads): G1/8"

• Nominal Flow Rate: 650 Nl/min

• Operating Pressure Range: 2.5 to 10 bar

• Manual Override: Yes, bi-stable (locking type)

• Solenoid Interface: Mechanical interface designed for 22x22 mm coils (coils/solenoids are not included)

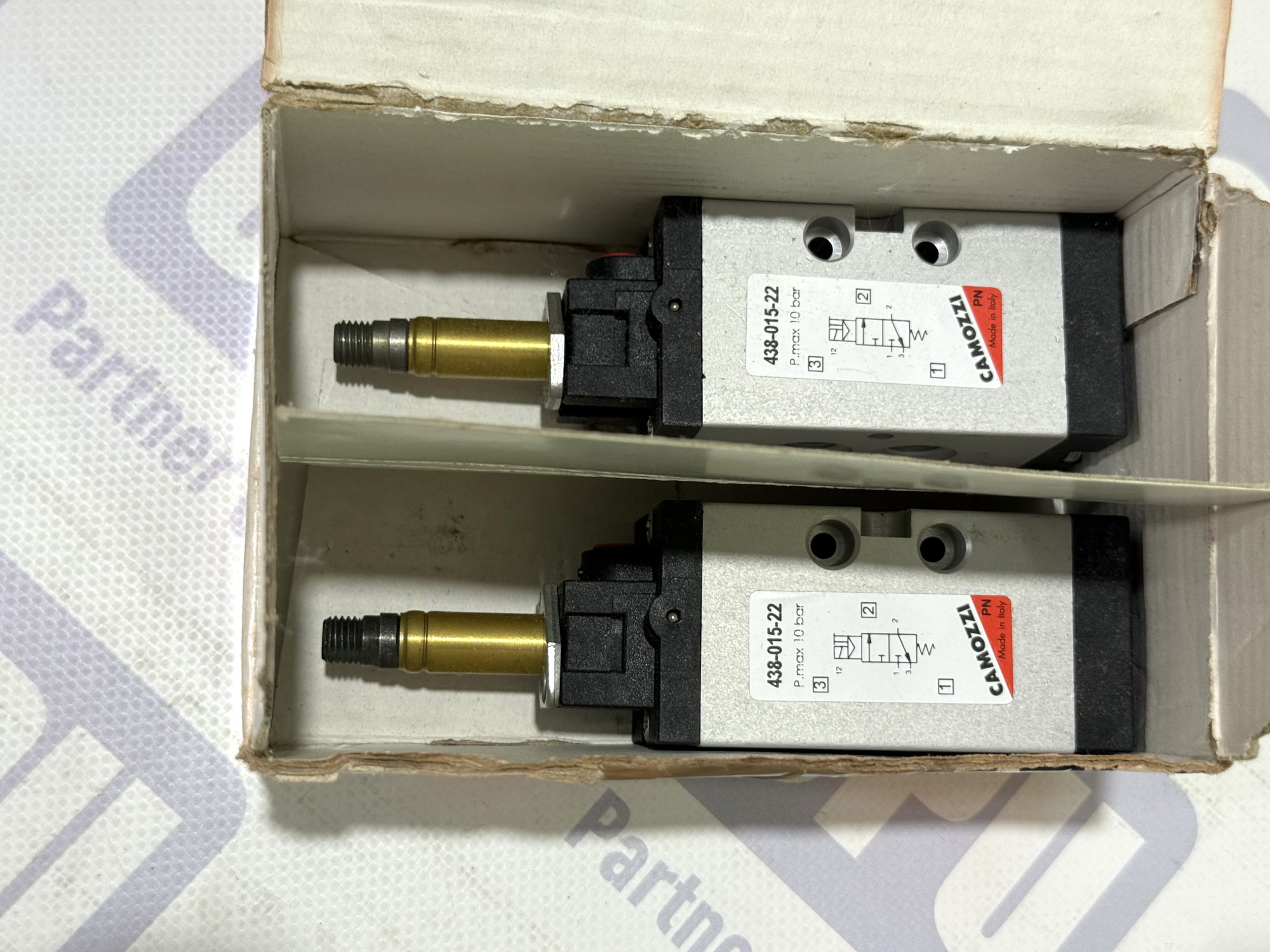

• Package Content: 2 pneumatic directional control valves, 2 original KW-438 seal repair kits, factory box

Application: Ideally suited for automated industrial systems, pneumatic drives, and machinery. It is commonly used to control single-acting pneumatic cylinders or to supply/exhaust pilot air signals in pneumatic control circuits. Perfect for metalworking, packaging, woodworking machinery, and conveyor production lines.
