Danfoss VLT® 3542

General Description: Danfoss VLT® 3542 is a frequency converter (variable speed drive) from the VLT® 3500 series manufactured by Danfoss. This series of frequency converters is designed for controlling electric motors in industrial installations and automation systems.

Main Technical Specifications:

• Device Type: Frequency converter (inverter)
• Series: VLT® 3500
• Power: Approximately 22-30 kW (depends on exact modification)
• Input Voltage: Three-phase, 380-480 V AC
• Output Voltage: 0-100% of input voltage
• Output Frequency: 0-132 Hz (typically)
• Protection Degree: IP20 (standard version)
• Control Method: Vector control or V/f (voltage-frequency)
• Overload Capacity: 110% for 1 minute (typically)

Features and Benefits:

• High reliability and durability
• Built-in PID controller
• Torque and speed control capability
• Automatic motor adaptation
• Built-in EMC filter (electromagnetic compatibility)
• Compact design
• Motor overload protection

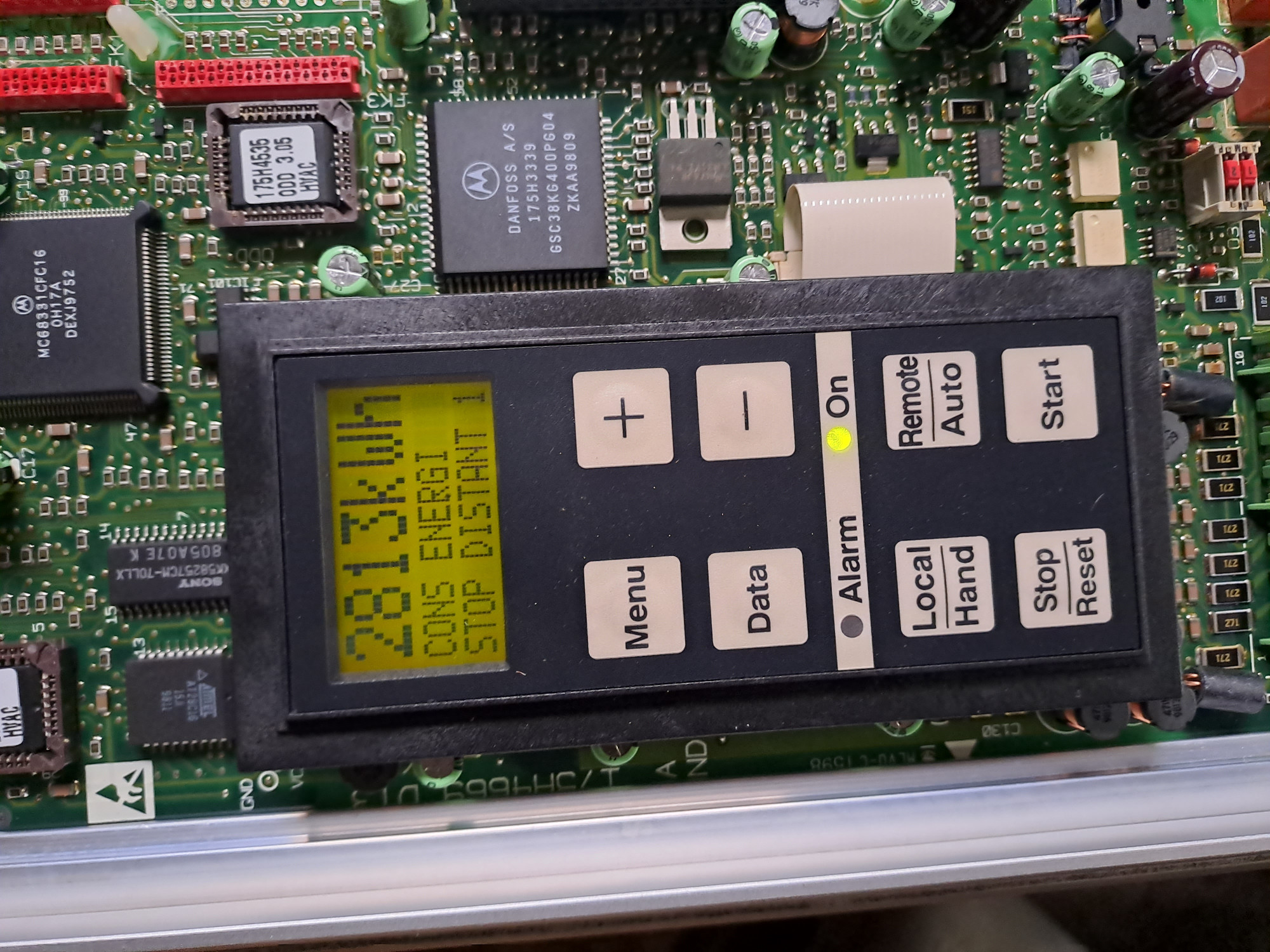

• Simple programming via control panel
• Interfaces for industrial networks (optional)

Applications:

• Pumping stations
• Ventilation systems
• Conveyor lines
• Compressors
• Production equipment
• Material handling systems
• Textile equipment
• Packaging machines

The VLT® 3500 series was one of the classic lines of Danfoss frequency converters, which was later modernized and replaced by more modern series such as VLT® FC or AQUA Drive. Drives of this series were characterized by high reliability and ease of use, which made them popular in various industrial applications.

On this page you will find the user manual for Danfoss VLT Series 3500 . Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for Danfoss VLT Series 3500
