Danfoss VLT FC-102P7K5T4E55H3 131B7039 7.5kW 400V

Name: Danfoss VLT FC-102P7K5T4E55H3 131B7039 7.5kW 400V
Brand: Danfoss
SKU: 440
Price: 630.00 UAH
Availability: OutOfStock
Rating: 5 (10 reviews)

Condition: Used
Brand: Danfoss
Product Code: VLT FC-102P7K5T4E55H3
SKU: #G1362#
Availability: 1
Warranty term: 30 days
Located in: Ukraine

️ 34

0 reviews / Write a review

Price: $630.00
Ex Tax: $630.00

Description
Reviews (0)

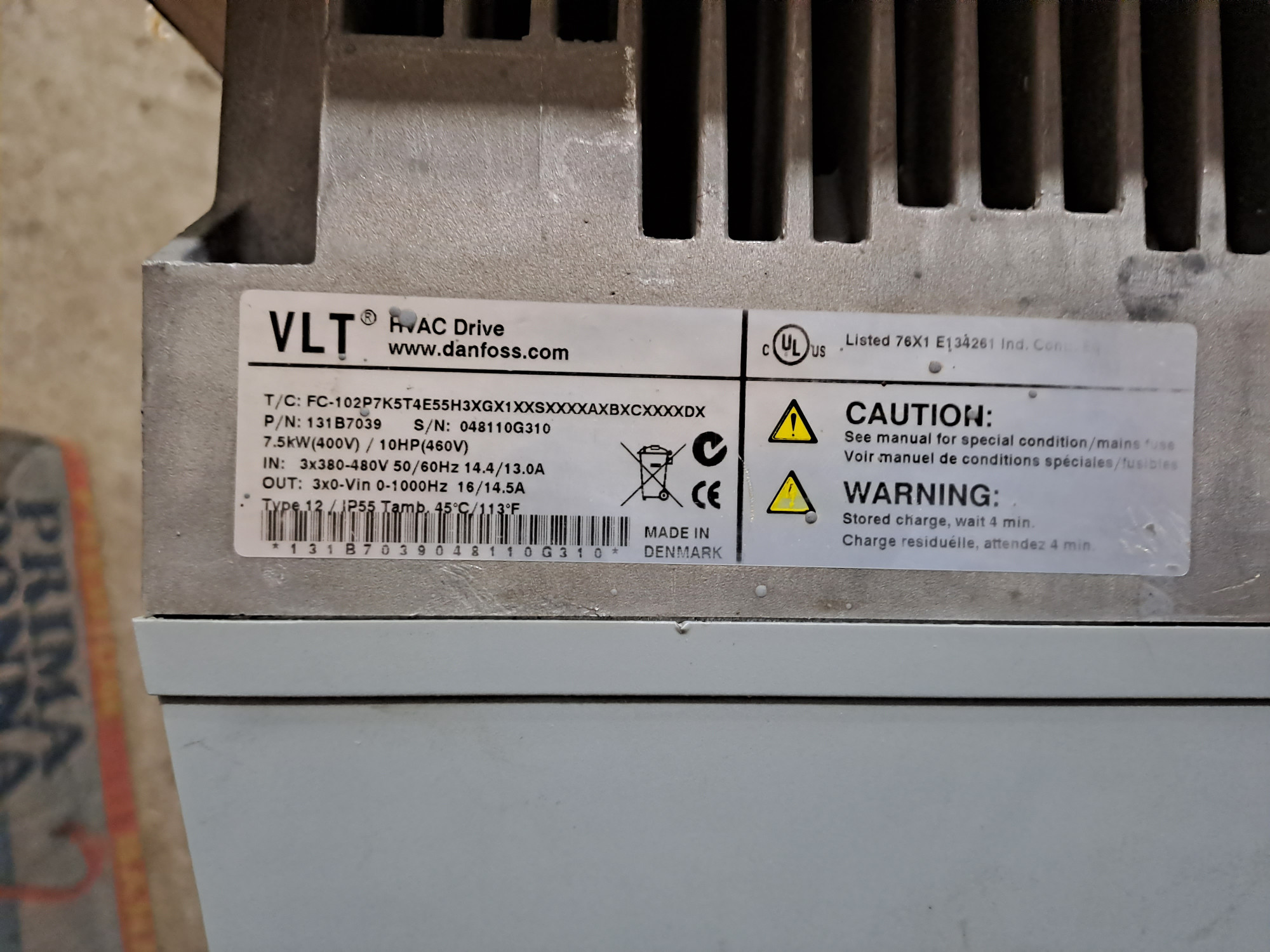

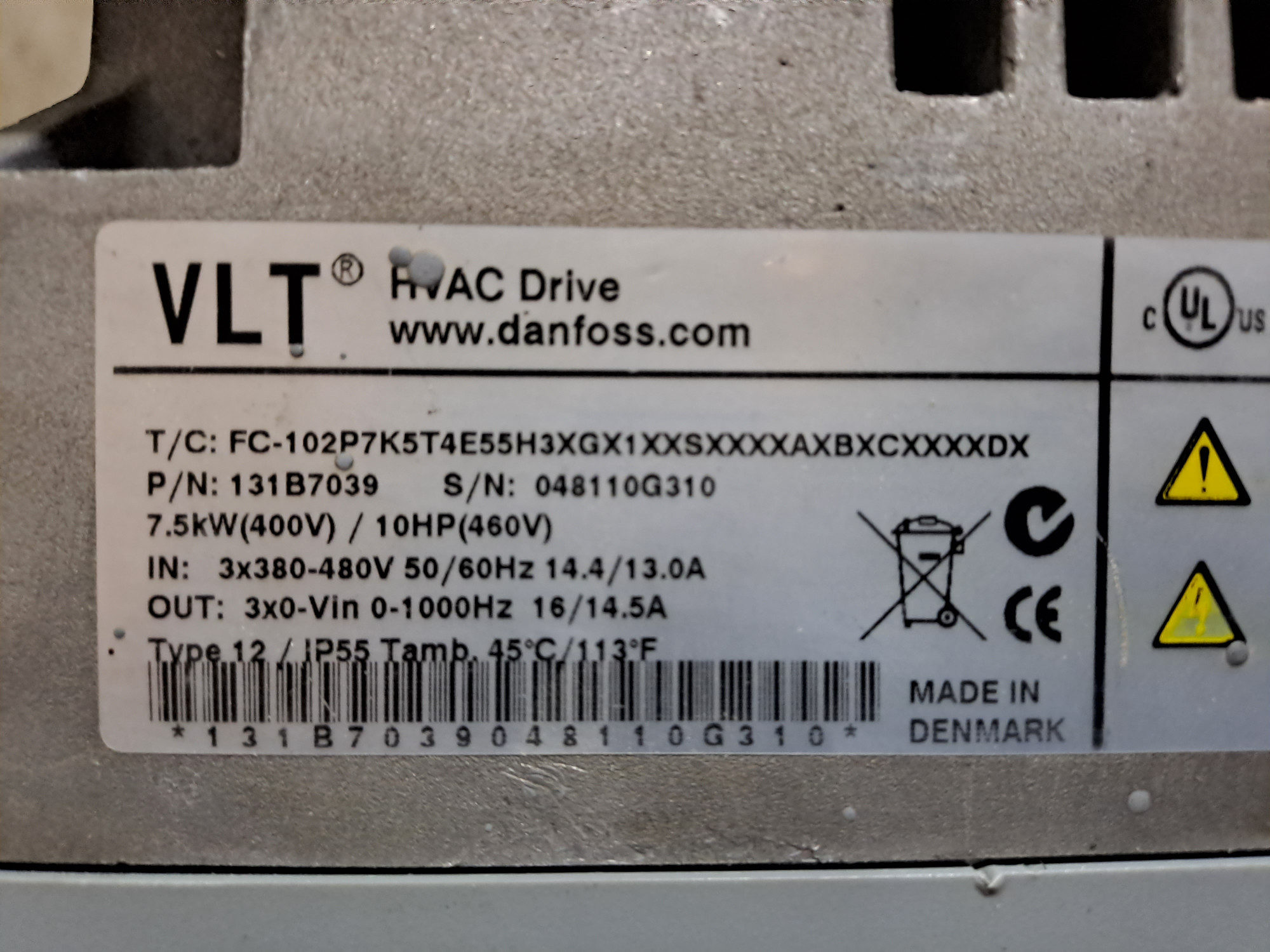

FC-102P7K5T4E55H3XGX1XXSXXXXAXBXCXXXXDX

131B7039

Frequency Converter
FC-102P7K5T4E55H3XGX1XXSXXXXAXBXCXXXXDX

VLT® HVAC Drive FC-102
(P7K5) 7.5 KW / 10 HP,
Three phase, 380 - 480 VAC, IP55 / Type 12
(H3) RFI Class A1/B (C1)
No brake chopper

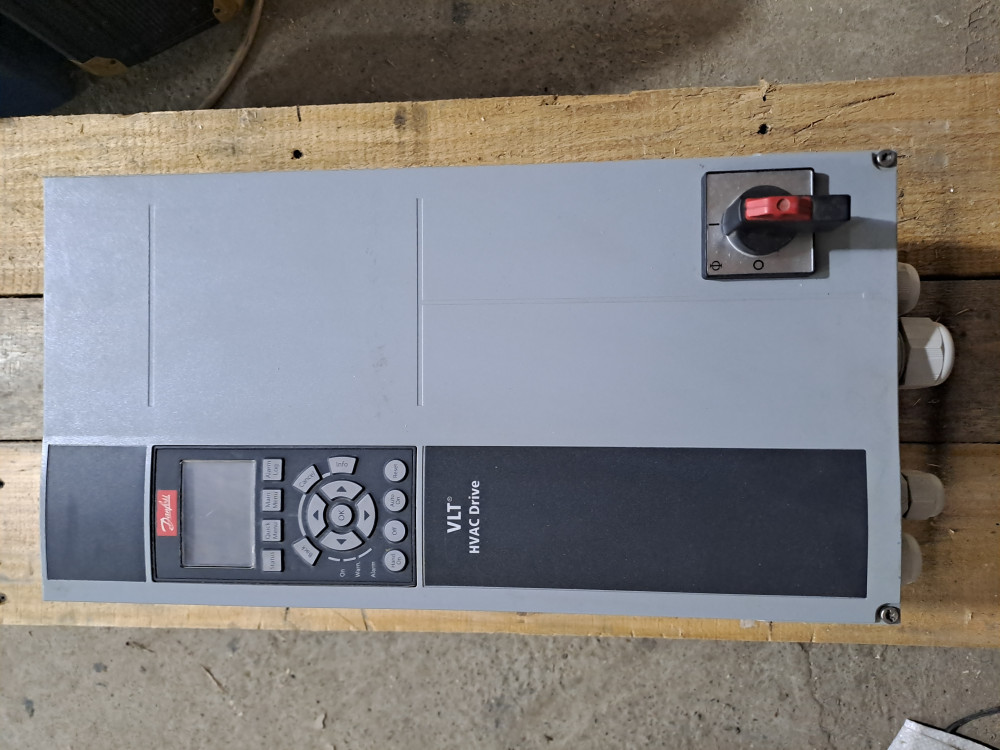

Graphical Loc. Cont. Panel
Not coated PCB, Mains Disconnect
Latest release std. SW.
Frame: A5
No A Option, No B Option
No C1 option, No D option

Other options according to Model Code

Model code:FC-102P7K5T4E55H3XGX1XXSXXXXAXBXCXXXXDX

Danfoss VLT® HVAC Drive FC-102 Drive is dedicated to ventilation, heating, and refrigeration applications. With a wide range of powerful standard and optional features, the Drive provides the lowest overall cost of ownership.

On this page you will find the user manual for Danfoss VLT FC-102. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.
