Directional Control Valve Parker D1VW004CNJW91 (NG06, CETOP 03, 24V DC)

Directional Control Valve Parker D1VW004CNJW91 (NG06, CETOP 03, 24V DC)

Product Description: The Parker D1VW series solenoid-operated directional control spool valve is a high-performance, direct-acting industrial valve. It ensures reliable switching of hydraulic fluid flow in the circuits of stationary machinery and mobile equipment. A key feature of this model is its very low pressure drop, which enhances energy efficiency, combined with high functional limits of operation. The valve is equipped with two 24V DC wet-pin solenoids featuring manual override and DIN-standard connectors (without LEDs, equipped with clear protective shipping caps). Manufactured at the Parker Hannifin facility in Germany.

Specifications:

• Manufacturer: Parker Hannifin

• Country of Origin: Germany (DE)

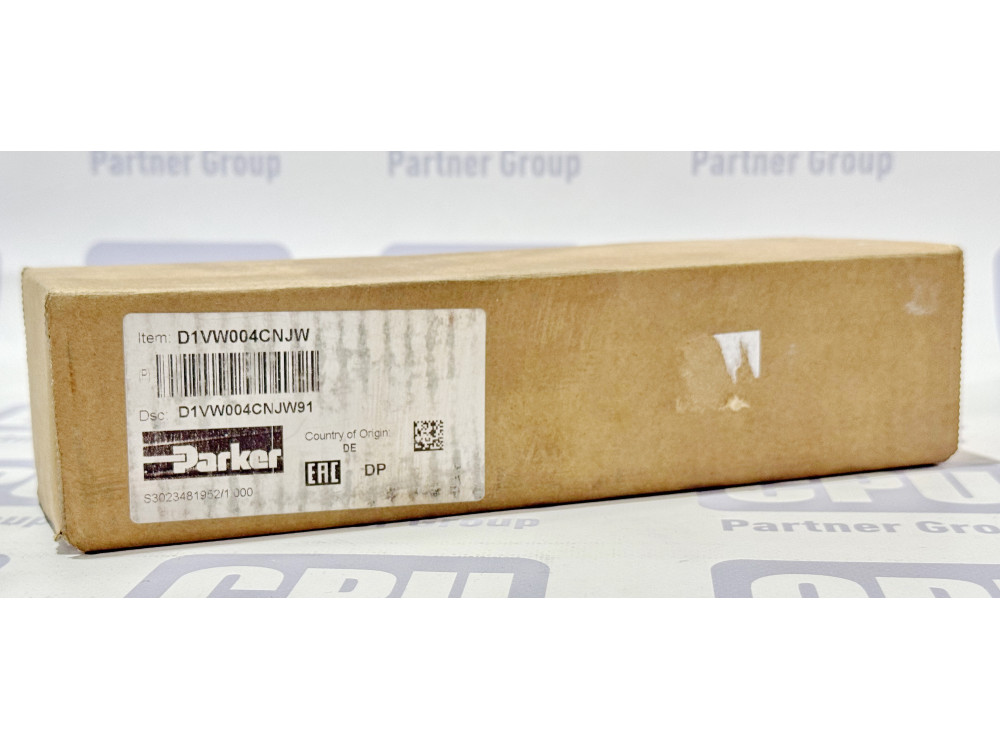

• Product Code (Item/Dsc): D1VW004CNJW / D1VW004CNJW91

• Size (Nominal Diameter): NG06 / CETOP 03

• Actuation Type: Double solenoid (solenoids with manual override)

• Supply Voltage: 24 V DC

• Current Consumption: 1.29 A

• Hydraulic Schema (Spool Type): Type C (3-position, 4-way, spring-centered, all ports blocked in the neutral position)

• Maximum Pressure at Ports P, A, B: 350 bar

• Maximum Pressure at Tank Port T: 210 bar

• Duty Cycle (ED): 100% (designed for continuous operation)

• Electrical Connection: DIN 43650 connector (Form A)

Application: This directional control valve is widely used in industrial hydraulic systems: metalworking and woodworking machine tools, hydraulic presses, injection molding machines (plastic machinery), drilling rigs, as well as a pilot valve for controlling larger hydraulic valves. It is ideal for hydraulic lines with both automatic and semi-automatic operation cycles.
