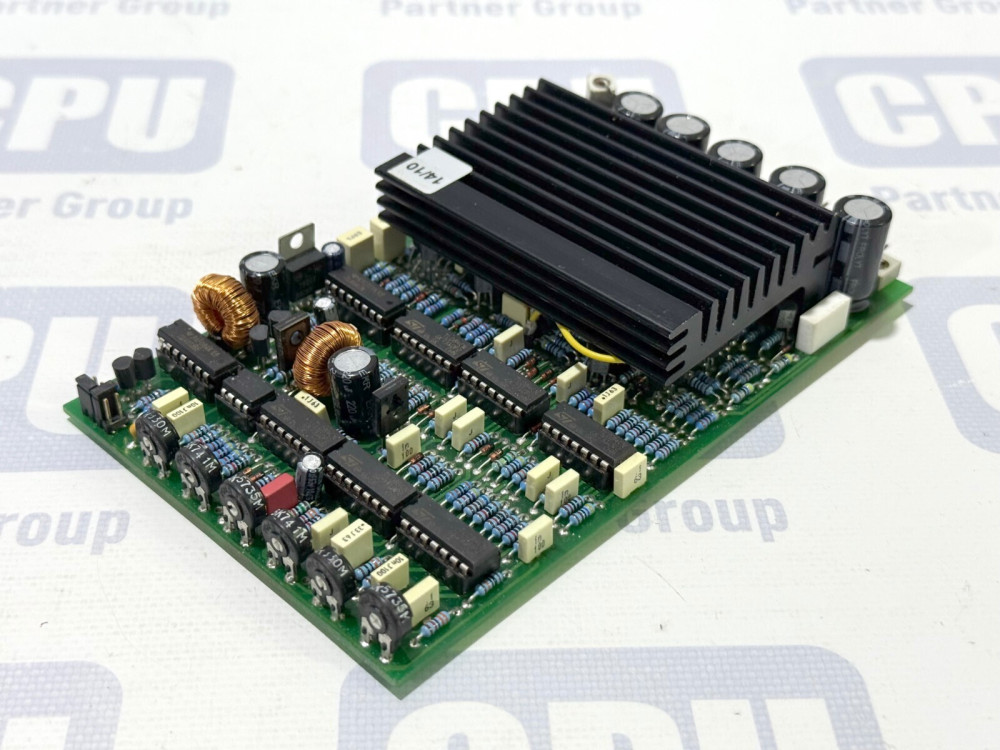

DUNKERMOTOREN RS200 servo-controller

Description:
The Dunkermotoren RS200 is a compact and versatile servo controller designed for controlling brushless DC motors and servo drives in industrial automation applications. It provides precise speed, torque, and position control, making it suitable for demanding motion control tasks. With integrated communication interfaces and advanced control algorithms, the RS200 enables flexible integration into machine and system environments.

Technical Specifications:

• Model: RS200

• Type: Servo controller for brushless DC motors and servo drives

• Supply Voltage: 24 V DC to 60 V DC (depending on motor requirements)

• Continuous Output Current: Up to 20 A (version-dependent)

• Peak Output Current: Higher peak current available for short durations

• Control Modes:

  • Speed control

  • Torque control

  • Position control

• Communication Interfaces:

  • CANopen

  • RS232 (depending on configuration)

  • Optional fieldbus interfaces depending on version

• Inputs/Outputs:

  • Digital inputs for enable and control signals

  • Analog inputs for reference values

  • Digital outputs for status feedback

• Protection Features:

  • Overvoltage protection

  • Overcurrent protection

  • Thermal shutdown

  • Short-circuit protection

• Operating Temperature Range: 0 °C to +40 °C (depending on cooling conditions)

• Cooling: Natural convection or forced cooling, depending on installation

• Mounting: Compact housing for panel or machine integration

• Typical Applications: Packaging machinery, conveyor systems, medical equipment, robotics, and general automation

✅ Summary:
The Dunkermotoren RS200 Servo-Controller is a robust and compact control unit providing high-performance motion control with integrated safety and communication features. It is an ideal solution for precise speed, torque, and position regulation in industrial automation systems.

On this page you will find the user manual for DUNKERMOTOREN RS200. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for DUNKERMOTOREN RS200
