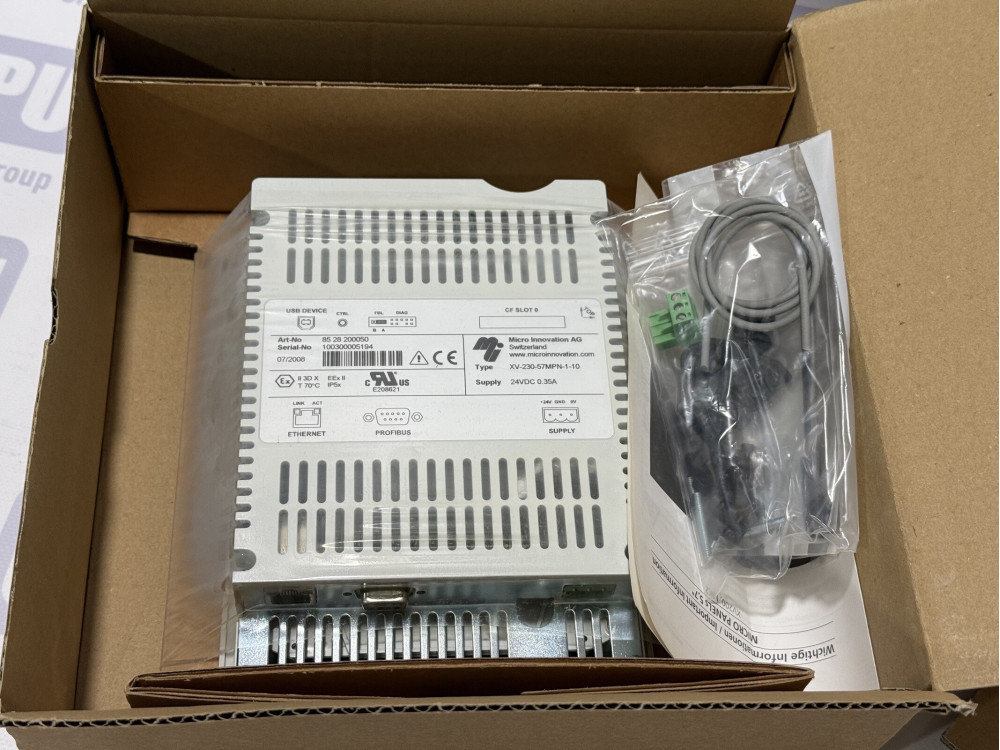

Eaton, Micro Innovation AG XV-230-57MPN-1-10 Operator Panel XV200 MICRO PANEL

Eaton, Micro Innovation AG XV-230-57MPN-1-10 Operator Panel

General Description
The Eaton XV-230-57MPN-1-10 is an industrial HMI panel with a 5.7-inch color CSTN display and a resistive touchscreen, designed for use in automation and control applications. The panel runs Windows CE and can support PLC functionality via licensing.

Display and Input

• Display: 5.7 inches (320 × 240), CSTN, up to 256 colors, brightness approx. 150 cd/m²

• Touchscreen: 4-wire resistive or optional infrared

• Backlight: CCFL, lifespan approx. 50,000 hours, software-controlled

Hardware Platform

• Processor: 32-bit RISC, 200 MHz

• Memory: 32 MB DRAM, approx. 1.5 MB Flash for data, 100 bytes NVRAM

• Memory Slot: CompactFlash I for OS, applications, and data

• Real-Time Clock: up to 10 years of autonomous operation without external power

Communication Interfaces

• 2× Ethernet 10/100 Mbps

• 1× RS-232 (Sub-D 9-pin)

• 1× PROFIBUS/MPI (Sub-D 9-pin)

• 1× USB 1.1 (device), without galvanic isolation

Power and Consumption

• Voltage: 24 V DC (range 19.2–30 V, short-term tolerance up to 35 V)

• Power consumption: 8 W (heat dissipation also 8 W)

• Protection: reverse polarity and self-resetting fuse

Operating Conditions

• Protection rating: IP65 front, IP20 rear

• Storage temperature: –20 °C to +60 °C

• Humidity: 10–95%, non-condensing

• Resistance: compliant with shock and vibration standards per IEC 60068-2-27 and IEC 60068-2-6

Software and Licensing

• Operating System: Windows CE (licensed)

• HMI software: GALILEO / EPAM

• PLC functionality: supported through CoDeSys 2 license activation

• Licensing: license-based system for PLC and other modules

Key Specifications

Conclusion
The Eaton XV-230-57MPN-1-10 is a fully functional 5.7" HMI/PLC panel with a color display, PLC capability, and versatile communication interfaces including Ethernet, RS-232, and PROFIBUS. It is a reliable choice for standard industrial automation tasks.
