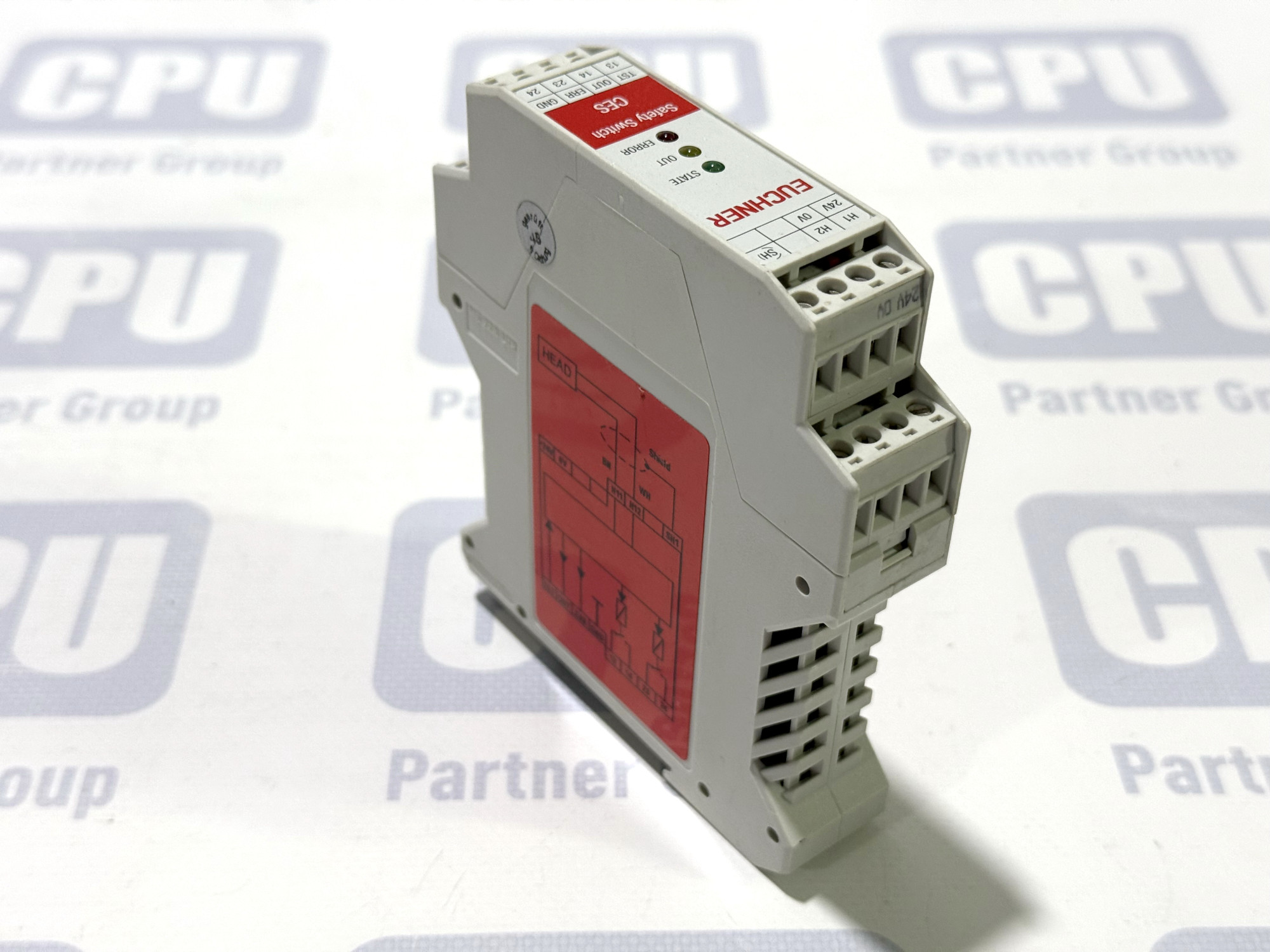

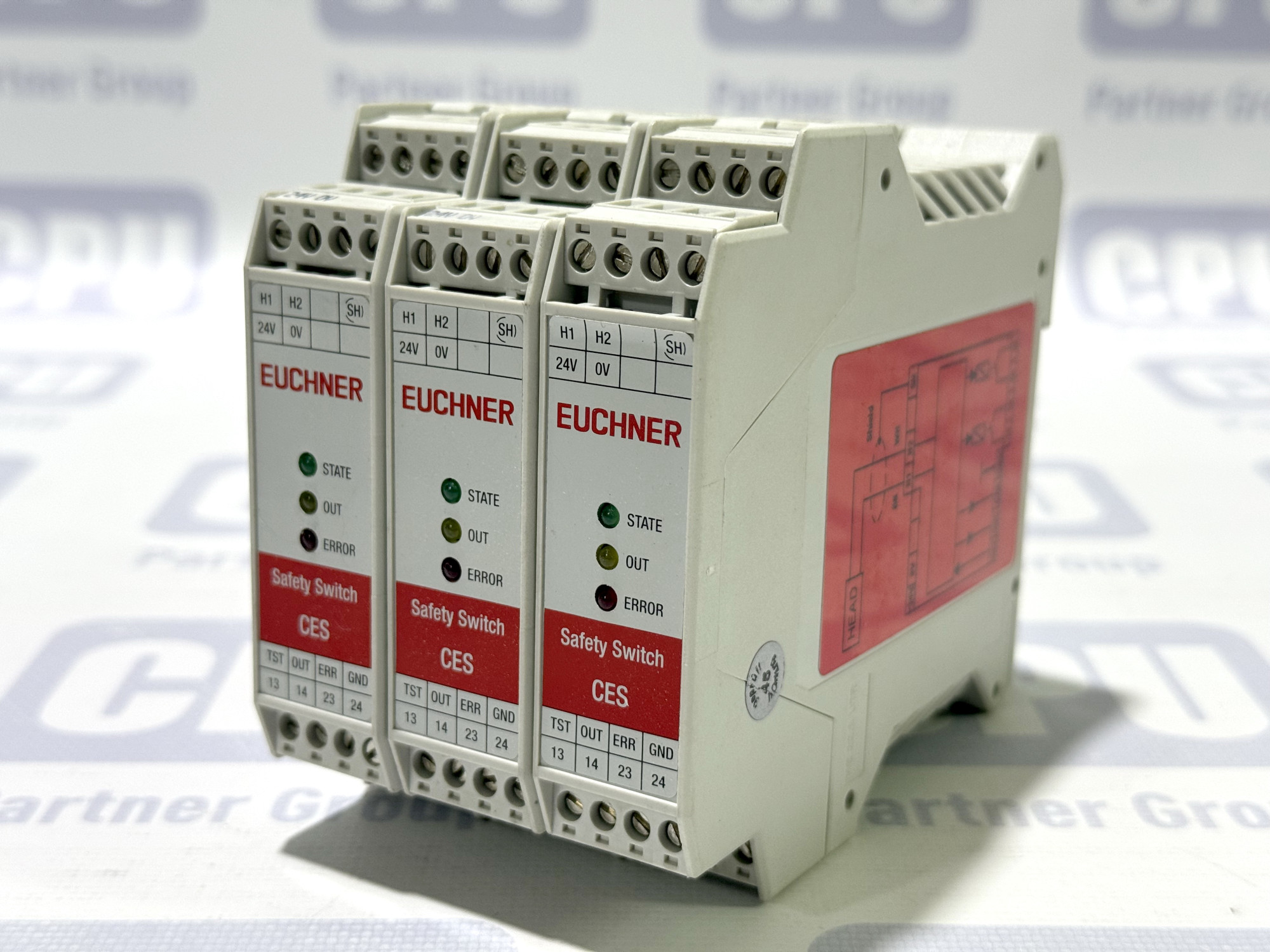

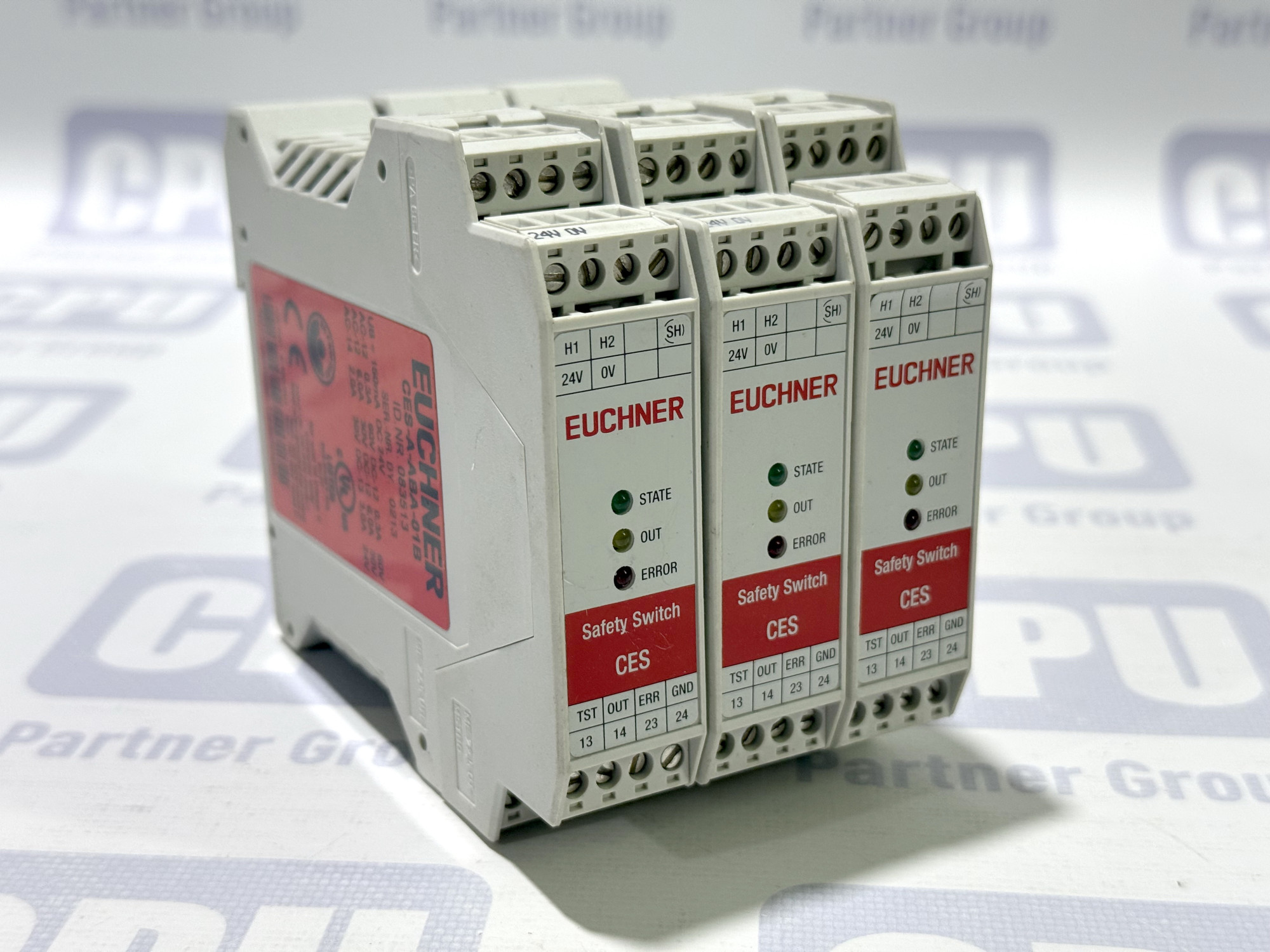

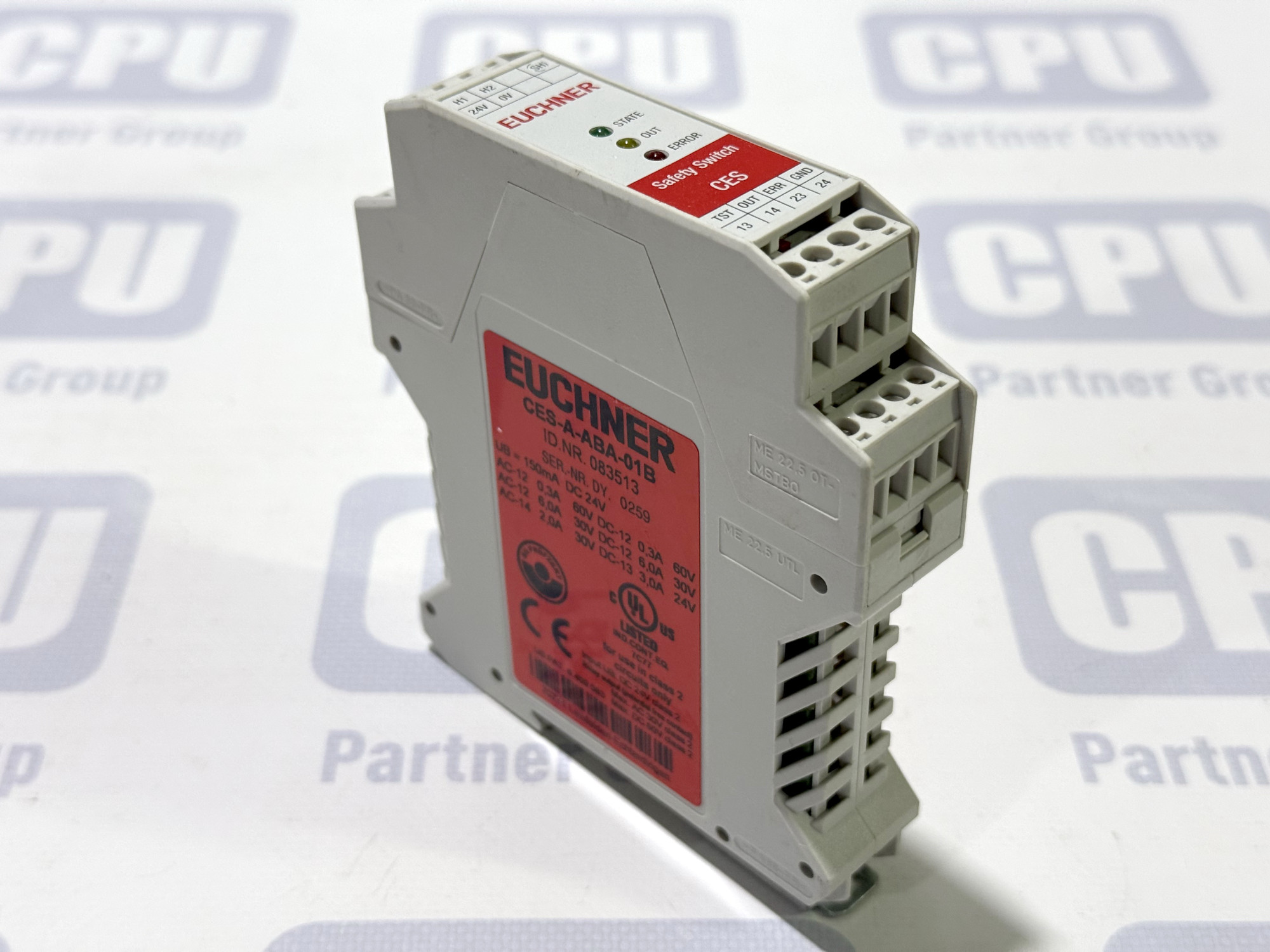

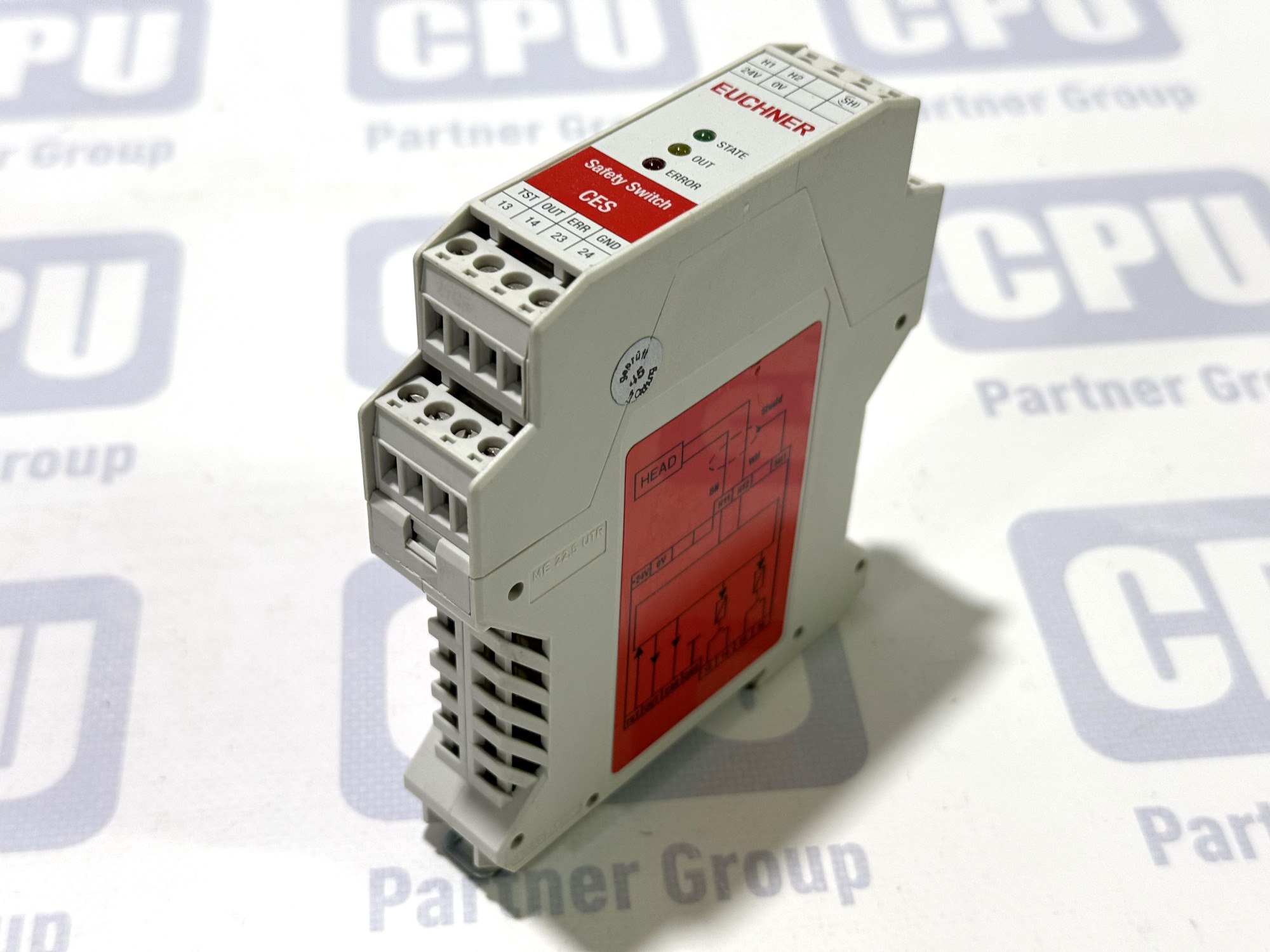

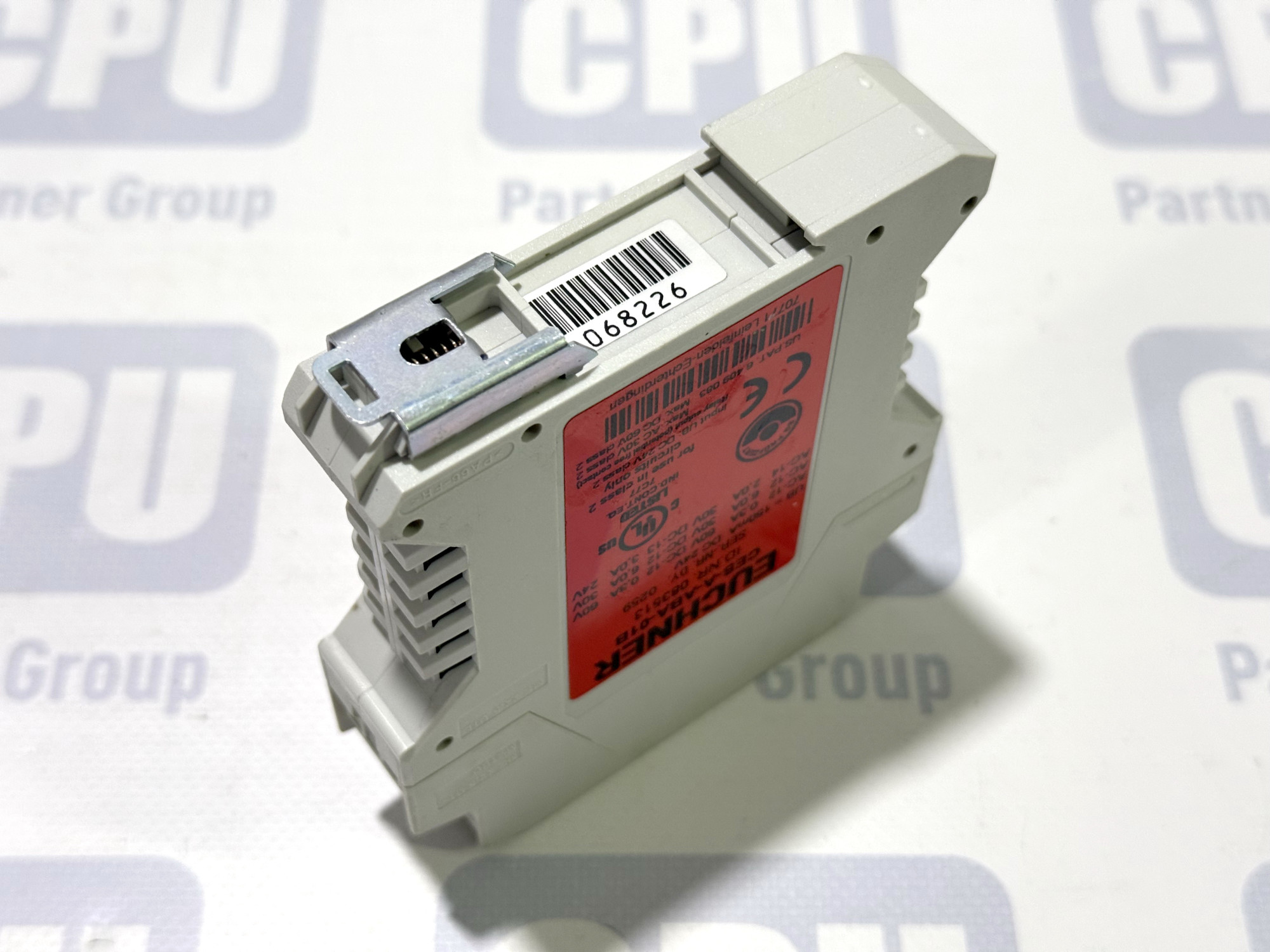

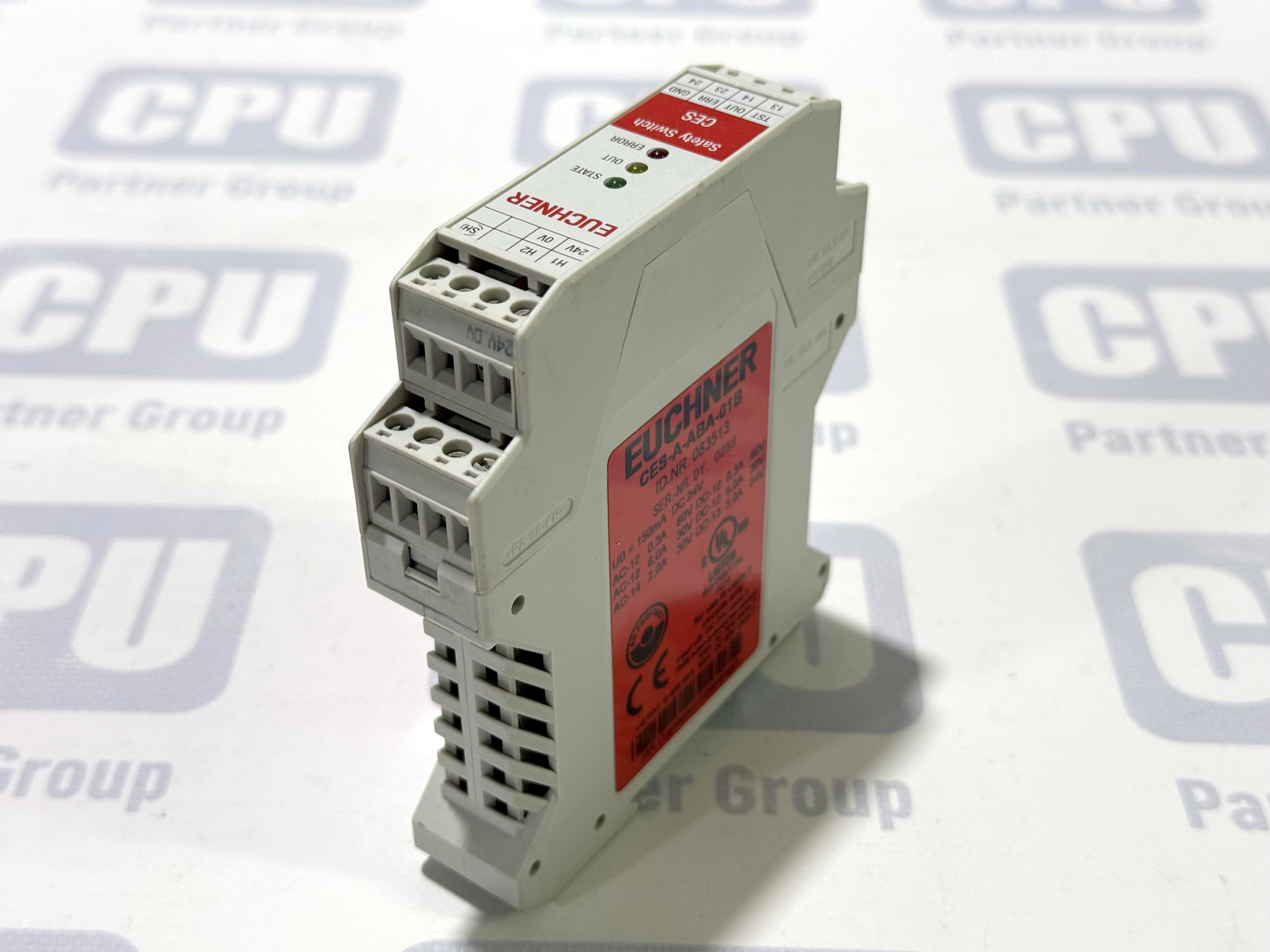

Euchner CES-A-ABA-01B 083513 Safety relay
- Condition: Used
- Brand: EUCHNER
- Product Code: CES-A-ABA-01B
- SKU: #EV/59#
- Availability: 3
- Warranty term: 30 days
- Located in: Ukraine
-
Price: $70.00
- Ex Tax: $70.00

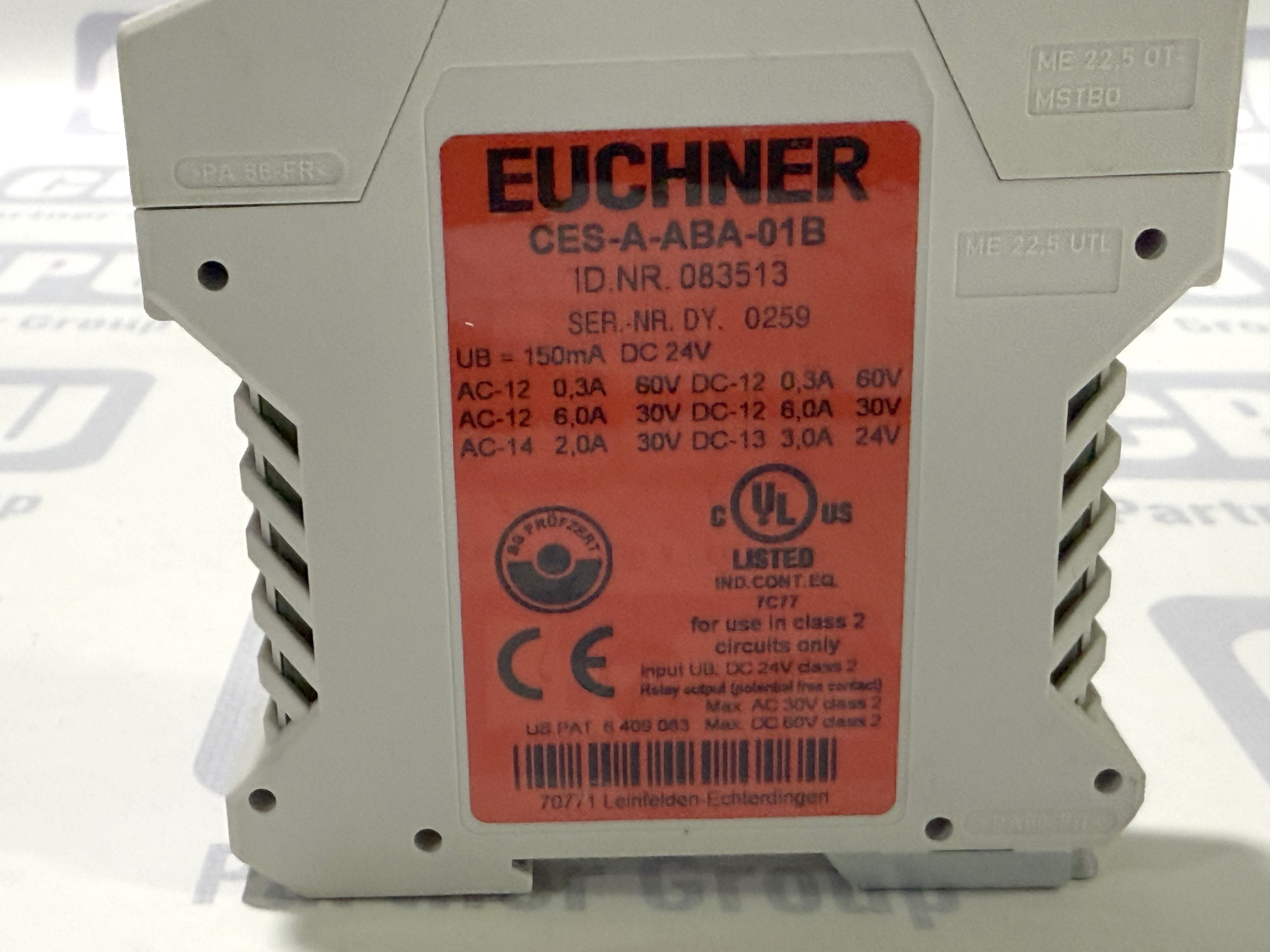

CES-A-ABA-01B (Order no. 083513)
Evaluation unit CES-A-ABA-01 / CES-A-ABA-01B (for 1 read head)
- 1 read head can be connected
- 2 safety contacts (relay contacts)
- 1 internal normally open contact per safety contact
- Unicode evaluation unit
- Category 3 / PL e according to EN ISO 13849-1
Unicode evaluation unit
Each actuator is highly coded (unicode). The evaluation unit detects only actuators that have been taught-in. Max. 8 actuators can be taught-in.
Only the last actuator taught-in is detected.
Category according to EN ISO 13849-1
Due to two redundant relay outputs (safety outputs) with internally monitored contacts, suitable for:
- Category 3 / PL e according to EN ISO 13849-1
To achieve the stated category, both safety contacts must always be evaluated.
Actuating range
The standard version of the evaluation unit (CES-A-…-01B) has a large actuating range that, e.g., permits larger tolerances in the alignment of read head and actuator. Wherever a smaller actuating range is required, the version with reduced actuating range (CES-A-…-01) can be used.
TST | Input for self-test |
OUT | Monitoring output (semiconductor) |
ERR | Diagnostic output |
GND | Connected internally to 0V (not for high currents) |
