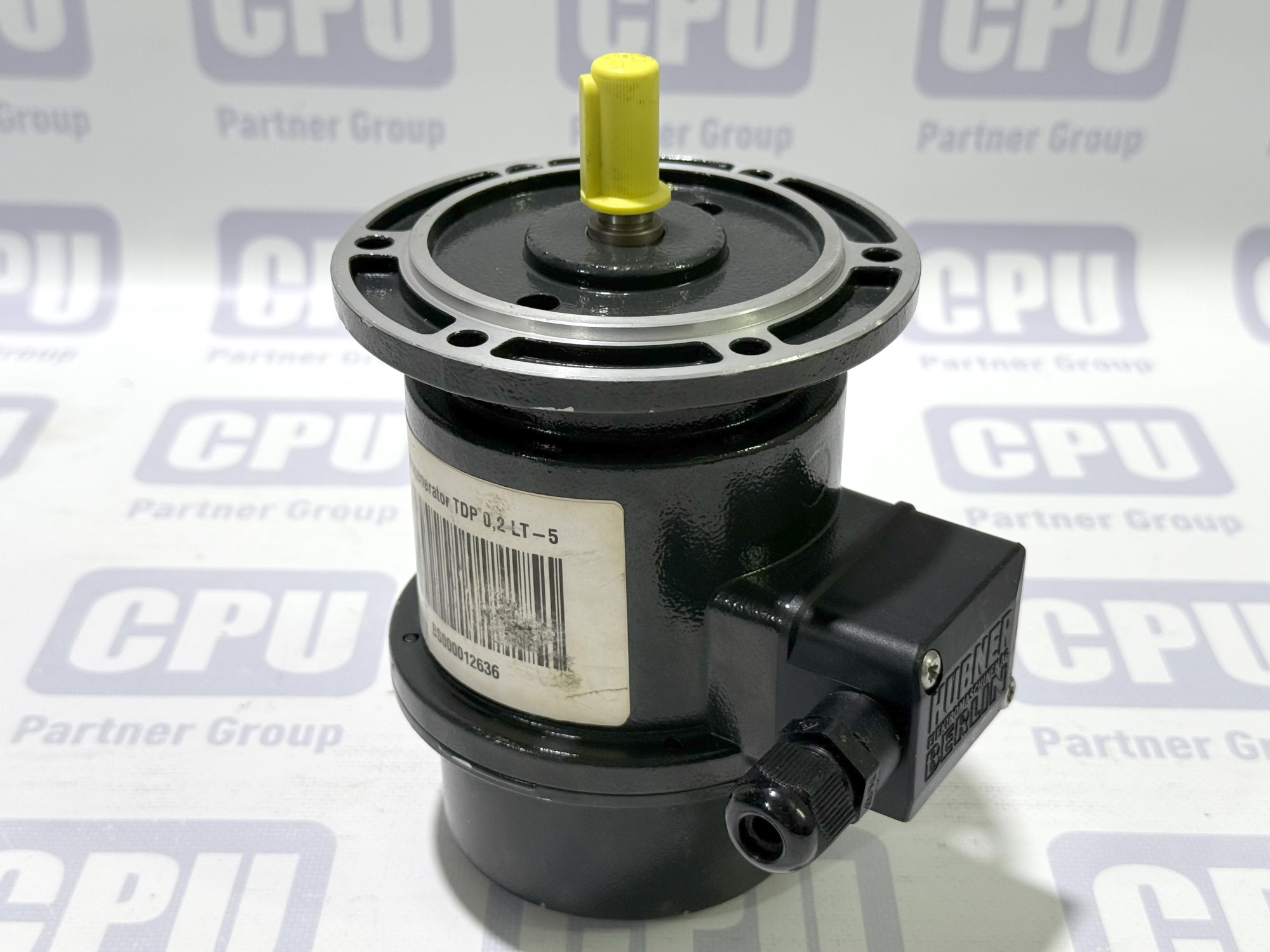

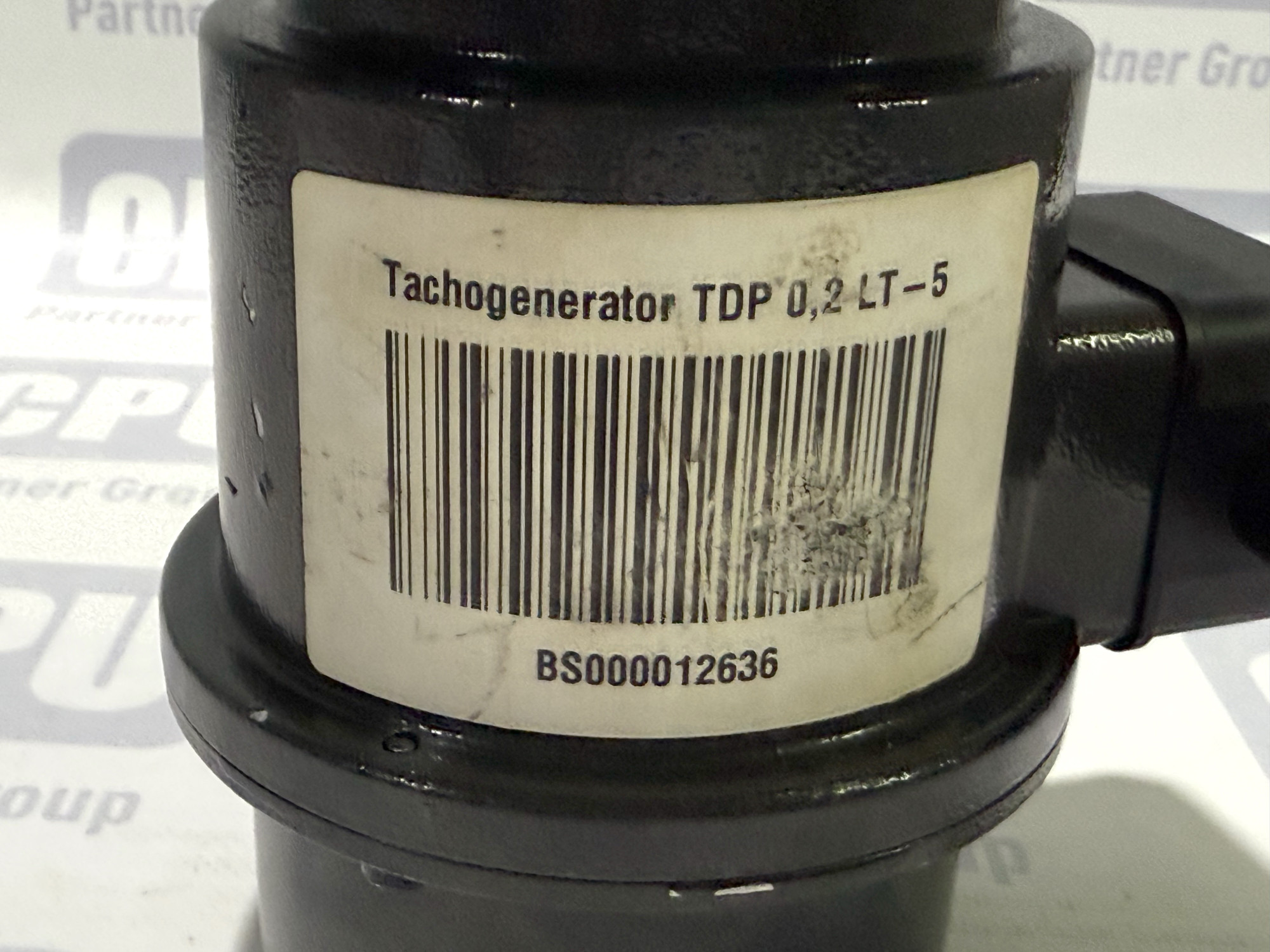

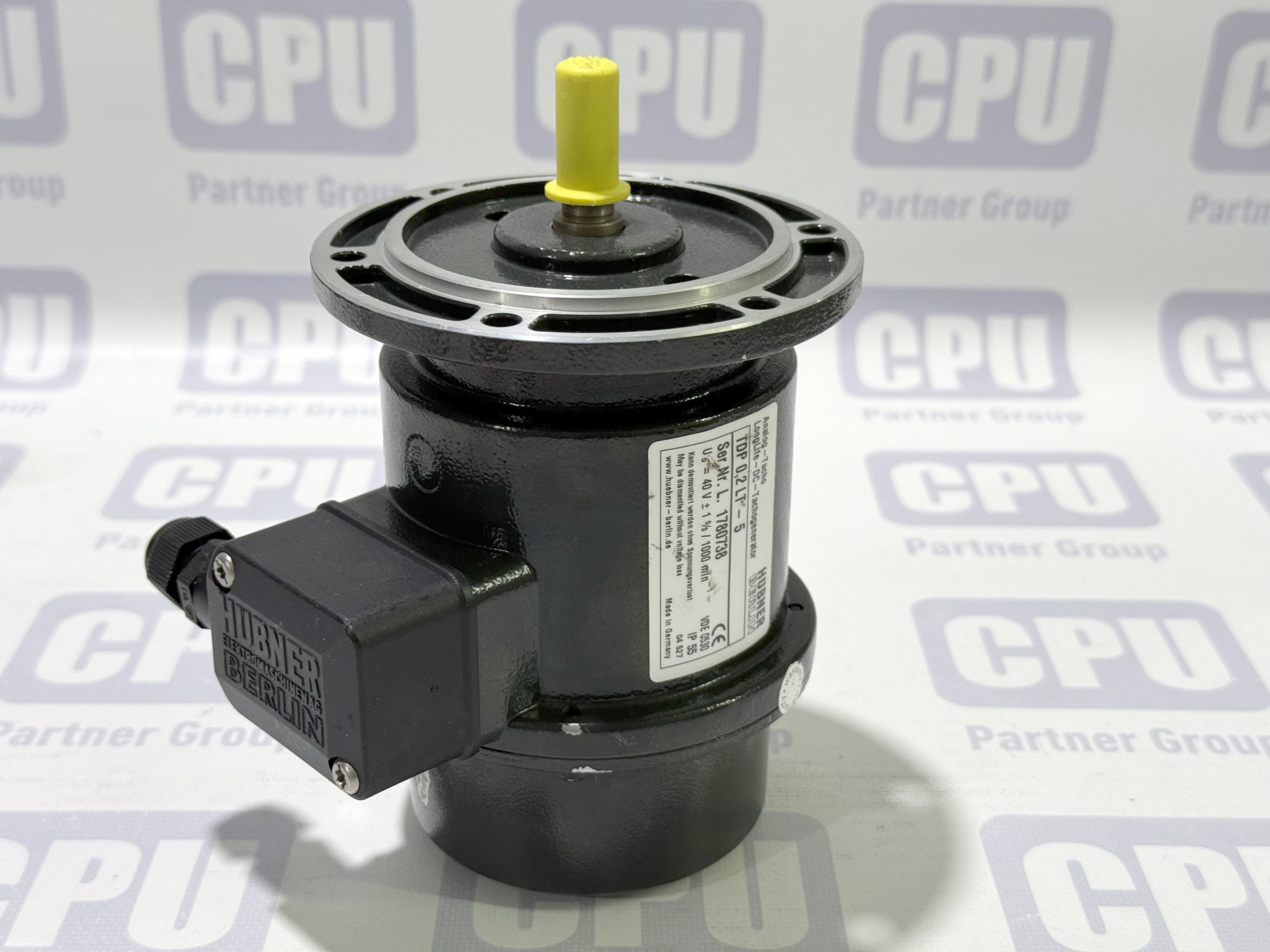

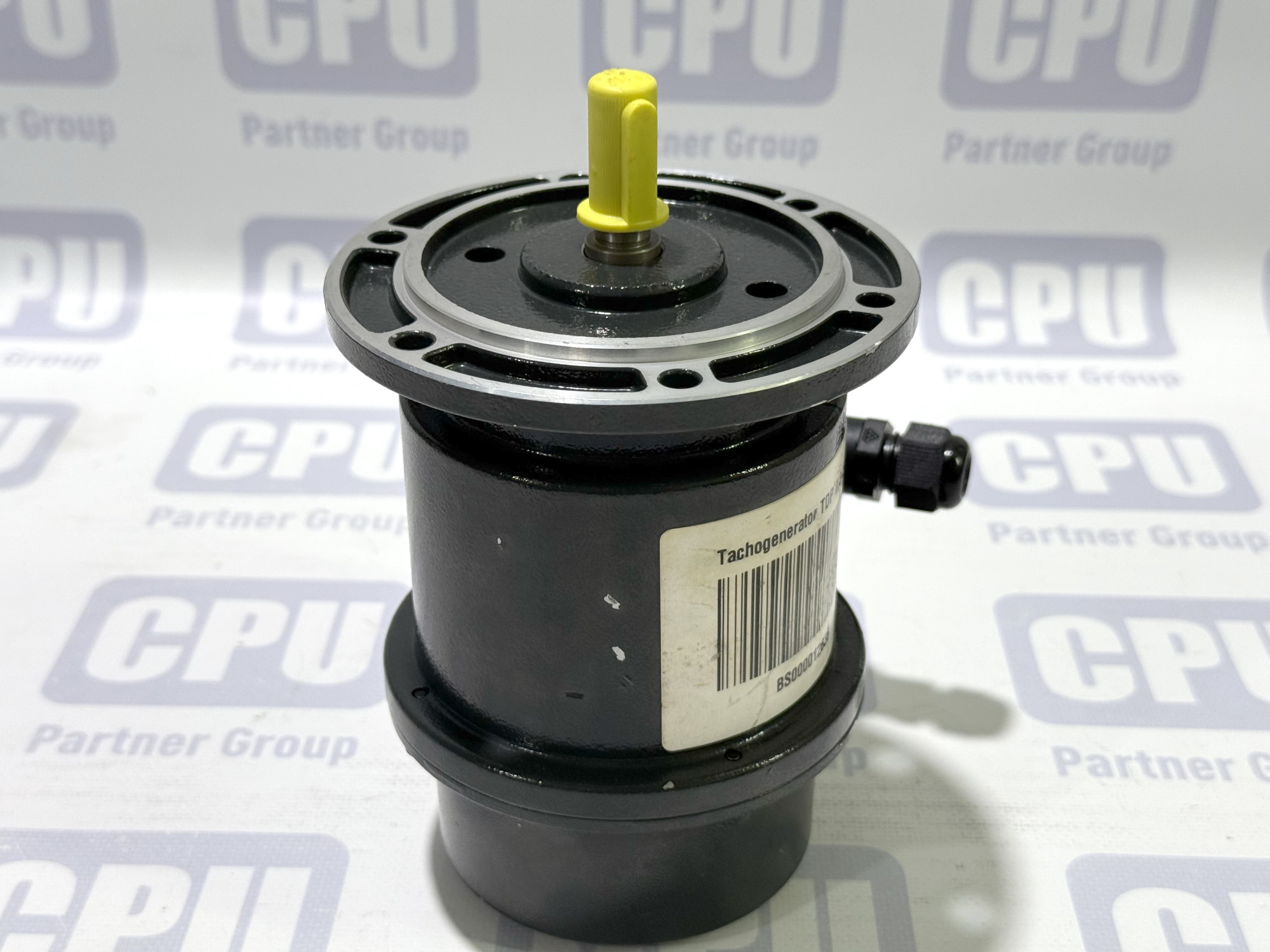

Hubner Berlin Tachogenerator TDP 0.2 LT-5
- Condition: Open Box - New
- Brand: Hübner
- Product Code: TDP 0,2 LT-5
- SKU: #D7809/21#
- Availability: 1
- Warranty term: 30 days
- Located in: Ukraine
-
Price: $500.00
- Ex Tax: $500.00
Tachogenerator TDP 0,2 LT-5
Overview
The TDP 0.2 LT-5 is a high-quality, durable analog tachogenerator (also known as a DC tacho machine with permanent excitation) designed for precise rotational speed control in industrial drive systems. It is built for demanding environments and utilizes LongLife technology for high wear resistance and extended service life.
Electrical Characteristics
-
Output voltage (no load): 40 mV per 1000 rpm
-
Optional version available with 60 mV/1000 rpm (model LT-4/B3)
-

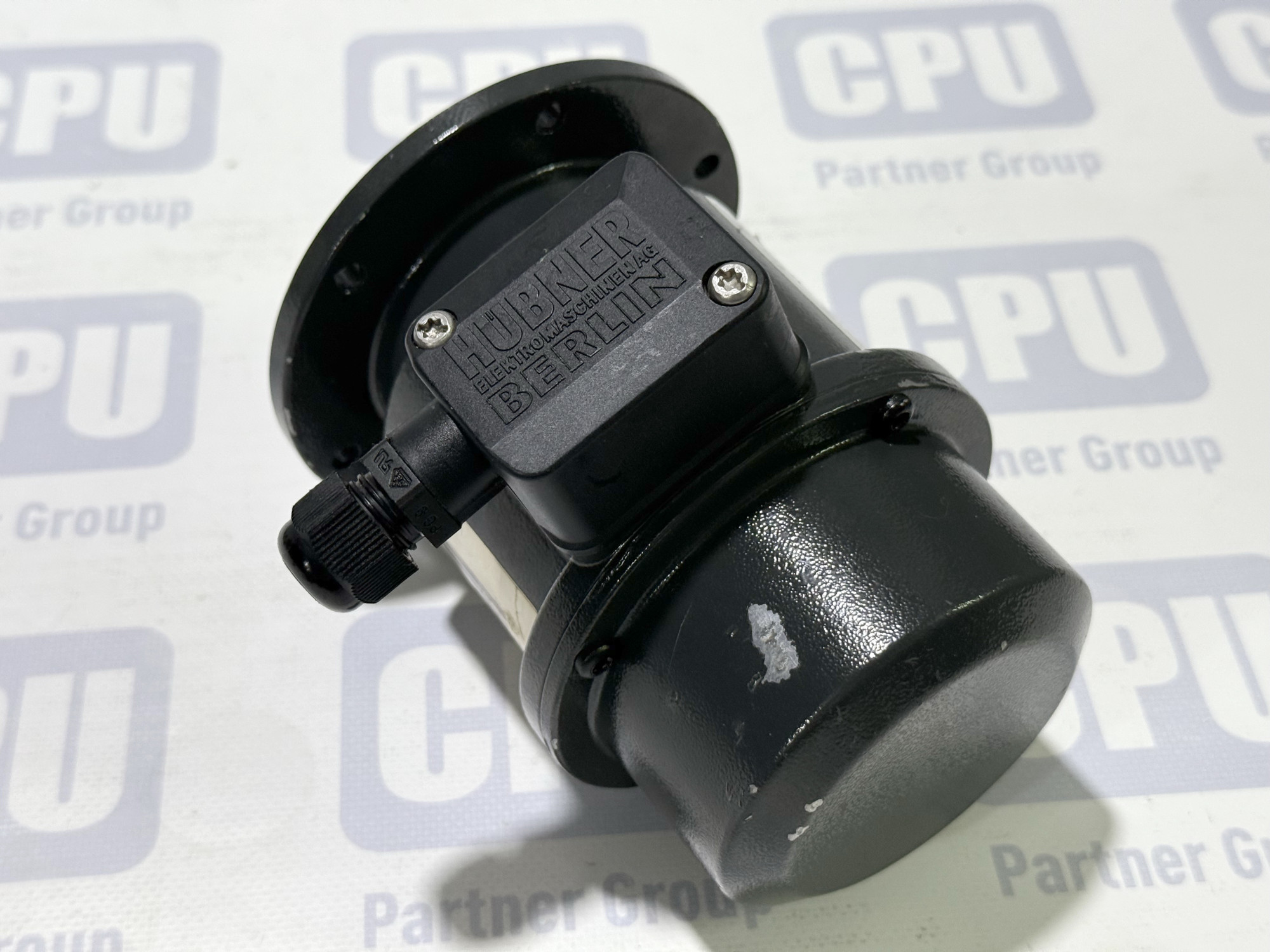

Connection via terminal box
-
Signal type: single-channel DC analog output
Mechanical Characteristics
-

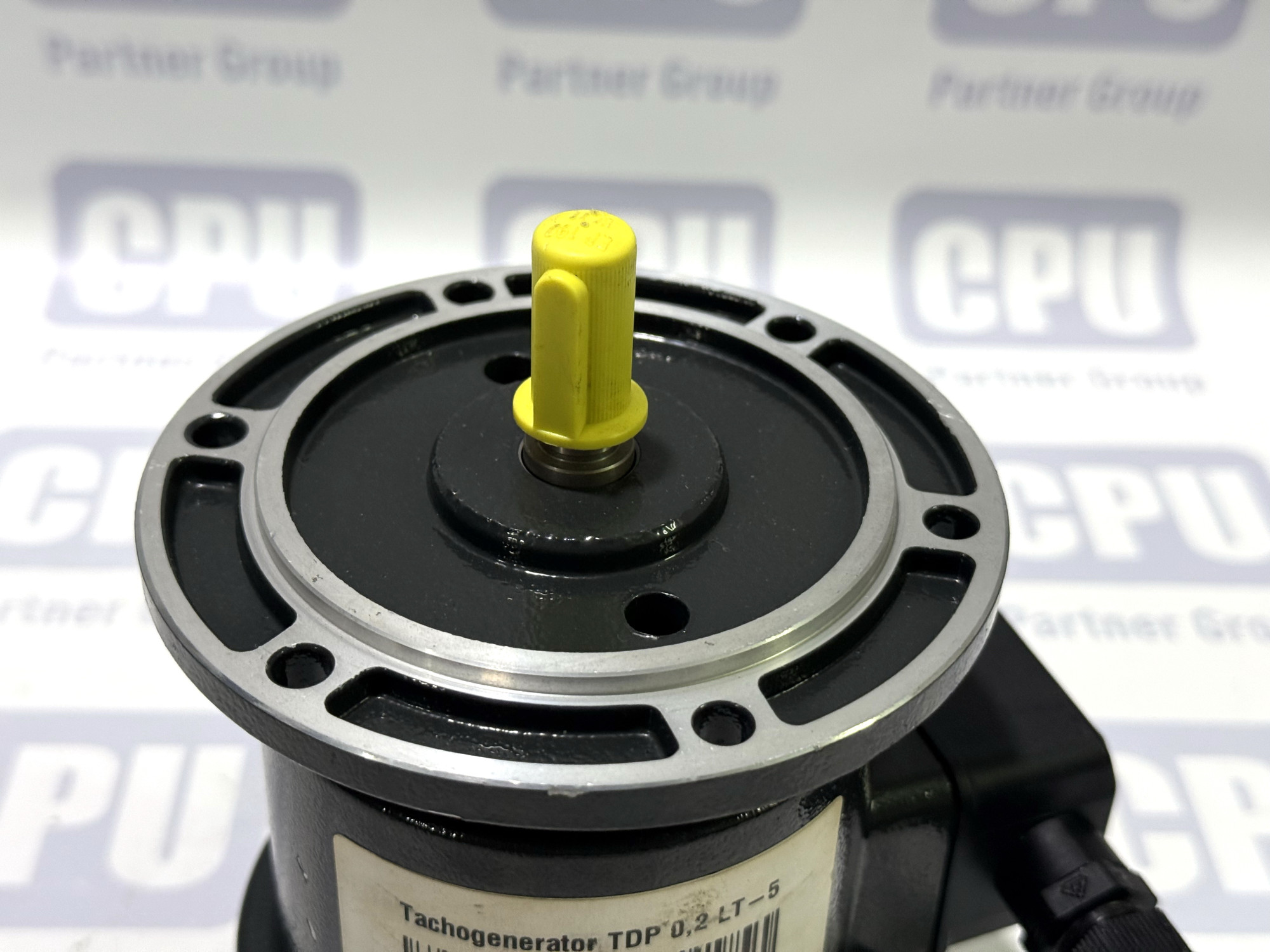

Flange: EURO B10, diameter 115 mm, PCD 100 mm
-
Shaft type: solid, 11 mm diameter (11k6 × 30 mm length)
-
Mounting: B10 flange; optional B3 foot mounting or dual shaft extension
-
Housing material: cast aluminum; shaft: stainless steel
-
Maximum speed: up to 9000 rpm
-
Starting torque: approximately 1.5 N·cm
Environmental Conditions
-
Protection rating: IP55 (versions up to IP67 available)
-
Operating temperature range: –30 °C to +130 °C
-
High shock and vibration resistance due to LongLife technology
Features and Options
-
LongLife technology with silver track commutator ensures a significantly extended lifespan under heavy load
-
Direction of rotation recognition
-
Options include: marine and tropical protection, second shaft end, B3 foot mounting, dual-output version (TDPZ)
-
Designed for industrial applications requiring precise and reliable speed monitoring
Quick Summary
| Parameter | Value |
|---|---|
| Output voltage | 40 mV/1000 rpm (LT-5) |
| Max. speed | up to 9000 rpm |
| Starting torque | approx. 1.5 N·cm |
| Shaft dimensions | 11 mm diameter × 30 mm length |
| Flange / Mounting | B10 (Ø115 mm), B3 optional |
| Protection class | IP55 (up to IP67 optional) |
| Temperature range | –30 to +130 °C |
| Weight | approx. 2.4 kg |
Conclusion
The Hubner Berlin TDP 0.2 LT-5 is a reliable, precise, and long-lasting tachogenerator developed for harsh industrial environments and continuous operation. It provides a linear analog output signal, high resistance to mechanical stress, wide operating temperature range, and flexible mounting options. Ideal for speed control in drives, generators, and heavy-duty equipment where reliability is critical.
