Klockner-Moeller NZMH4-40-CNA Motor Circuit Breaker / Disconnect Switch 1 pcs

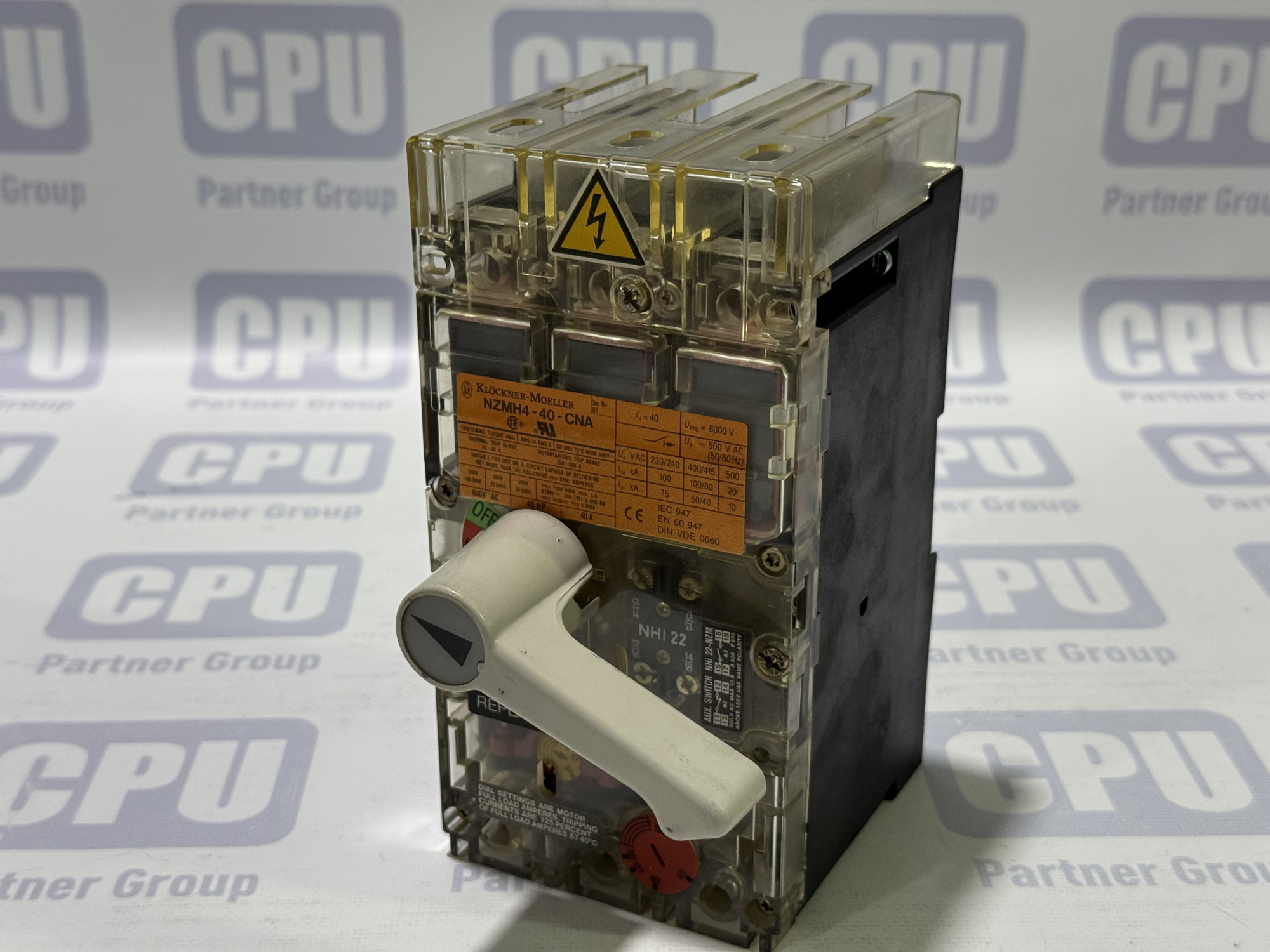

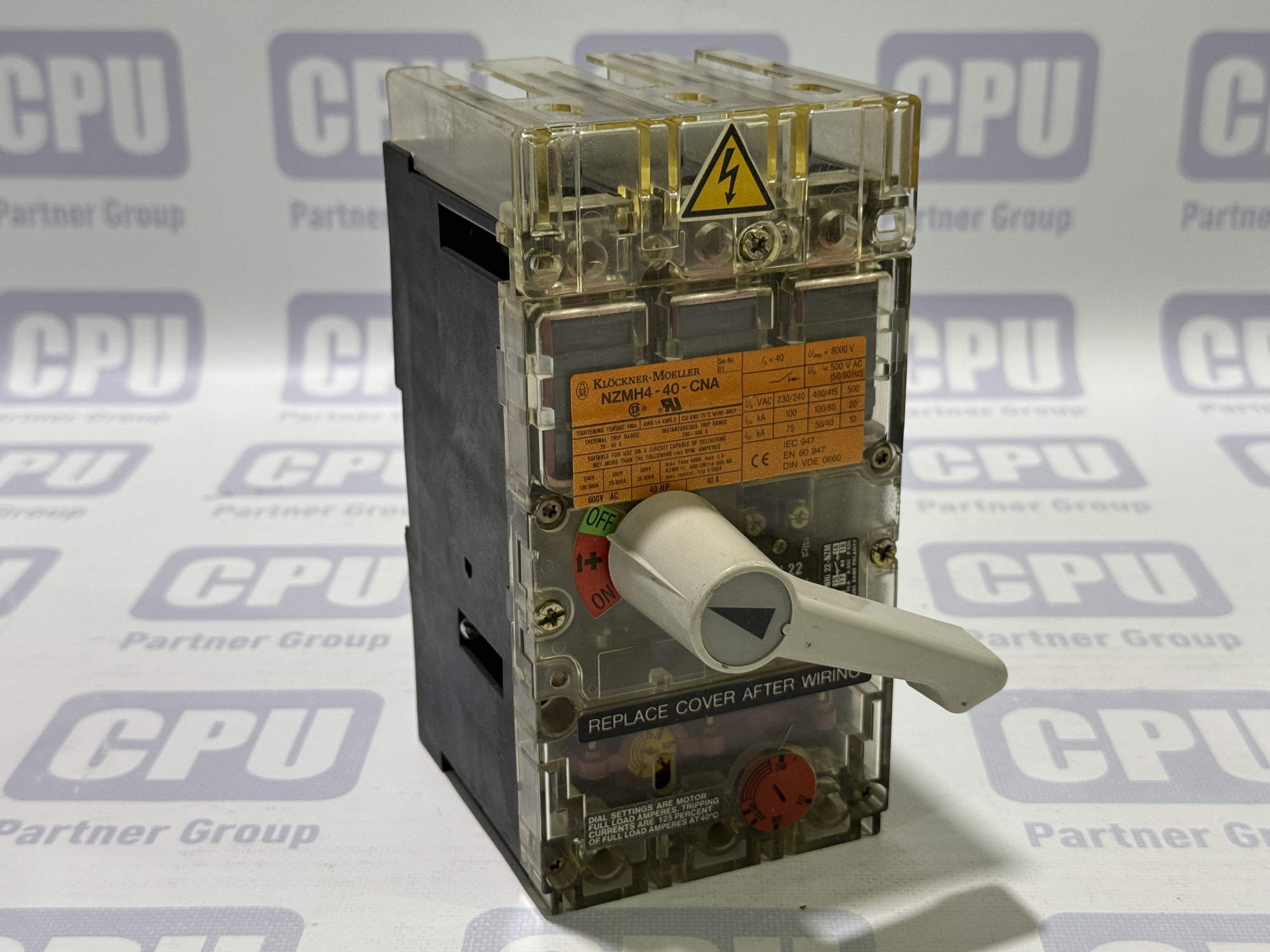

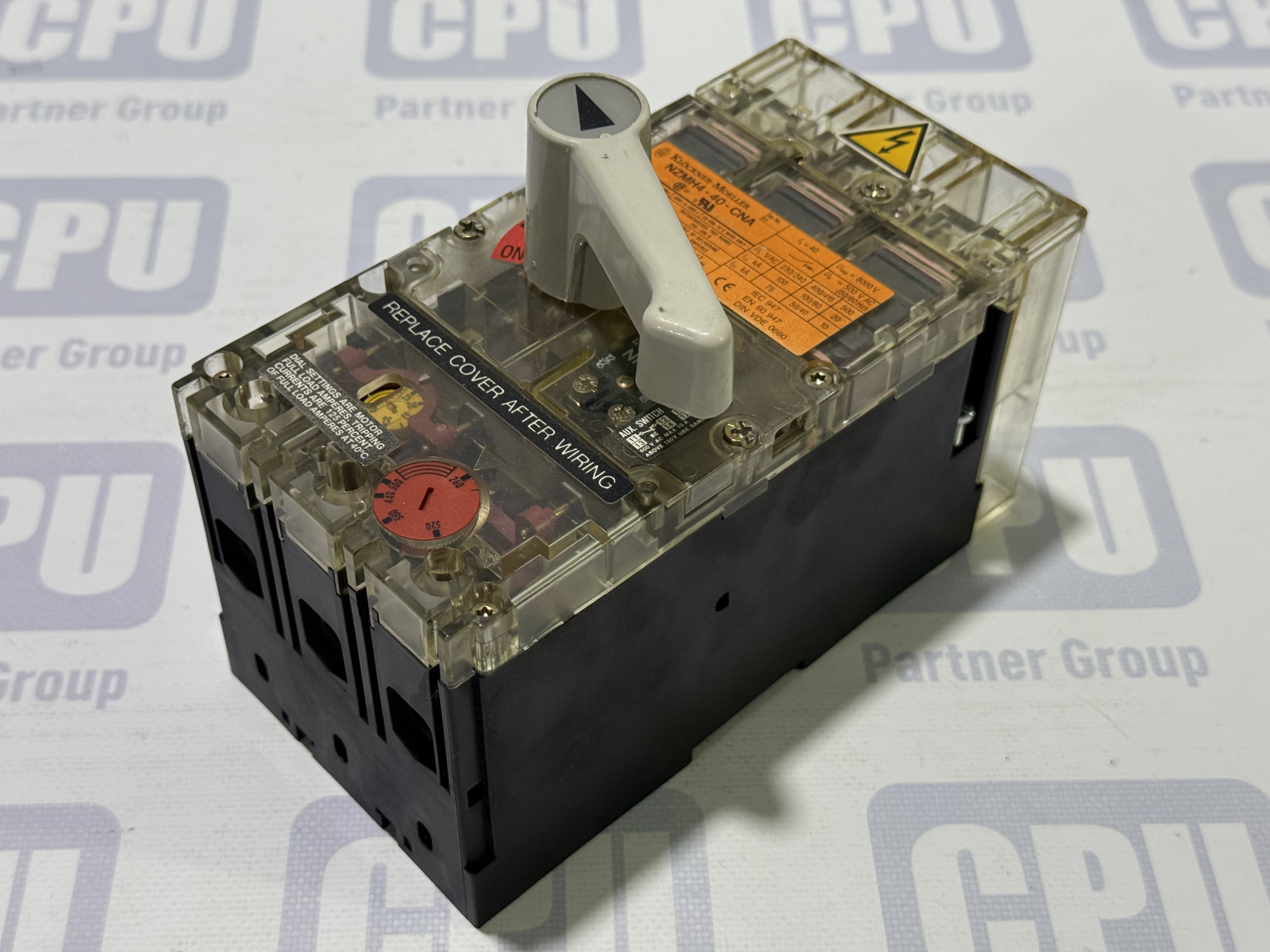

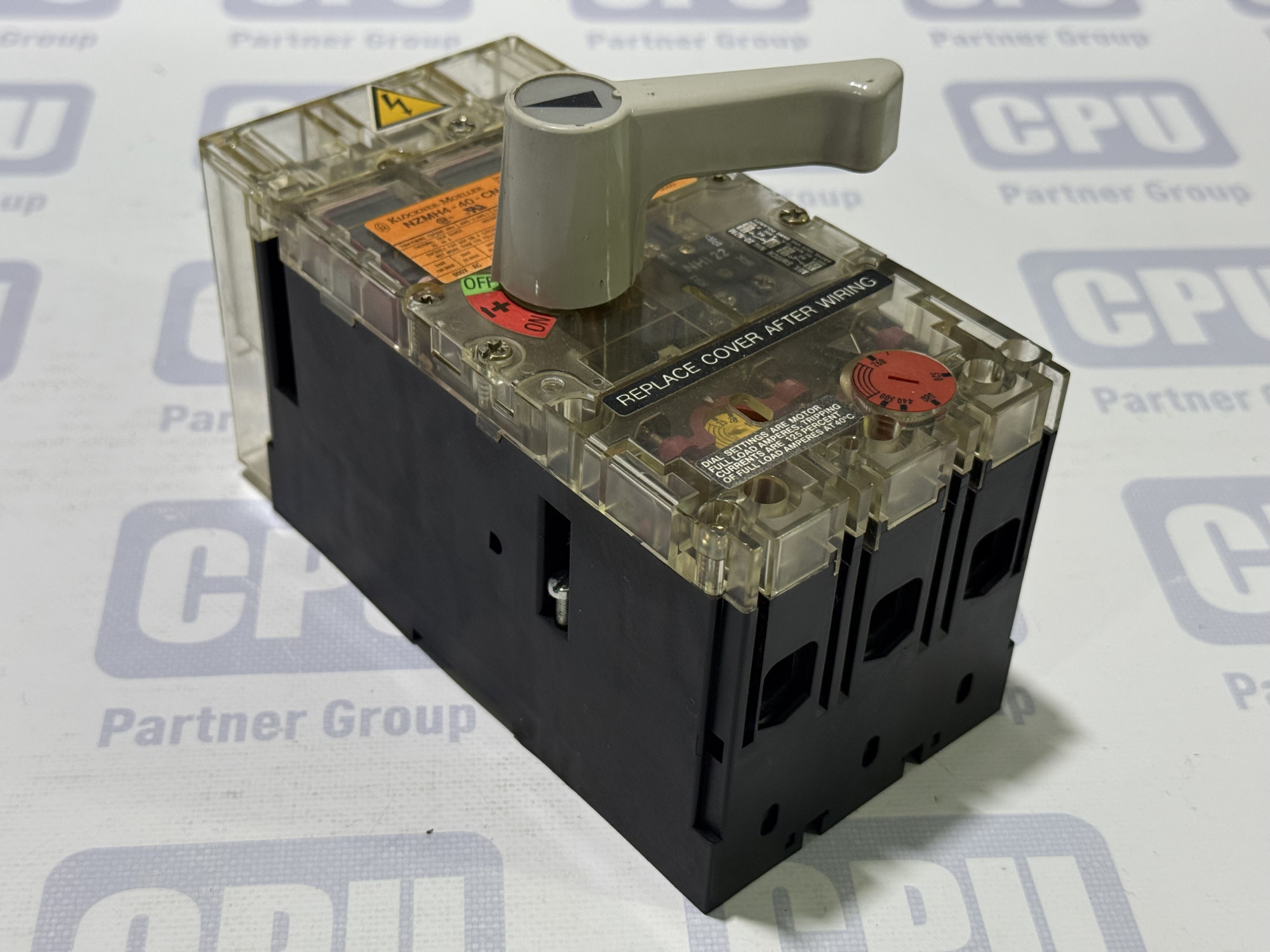

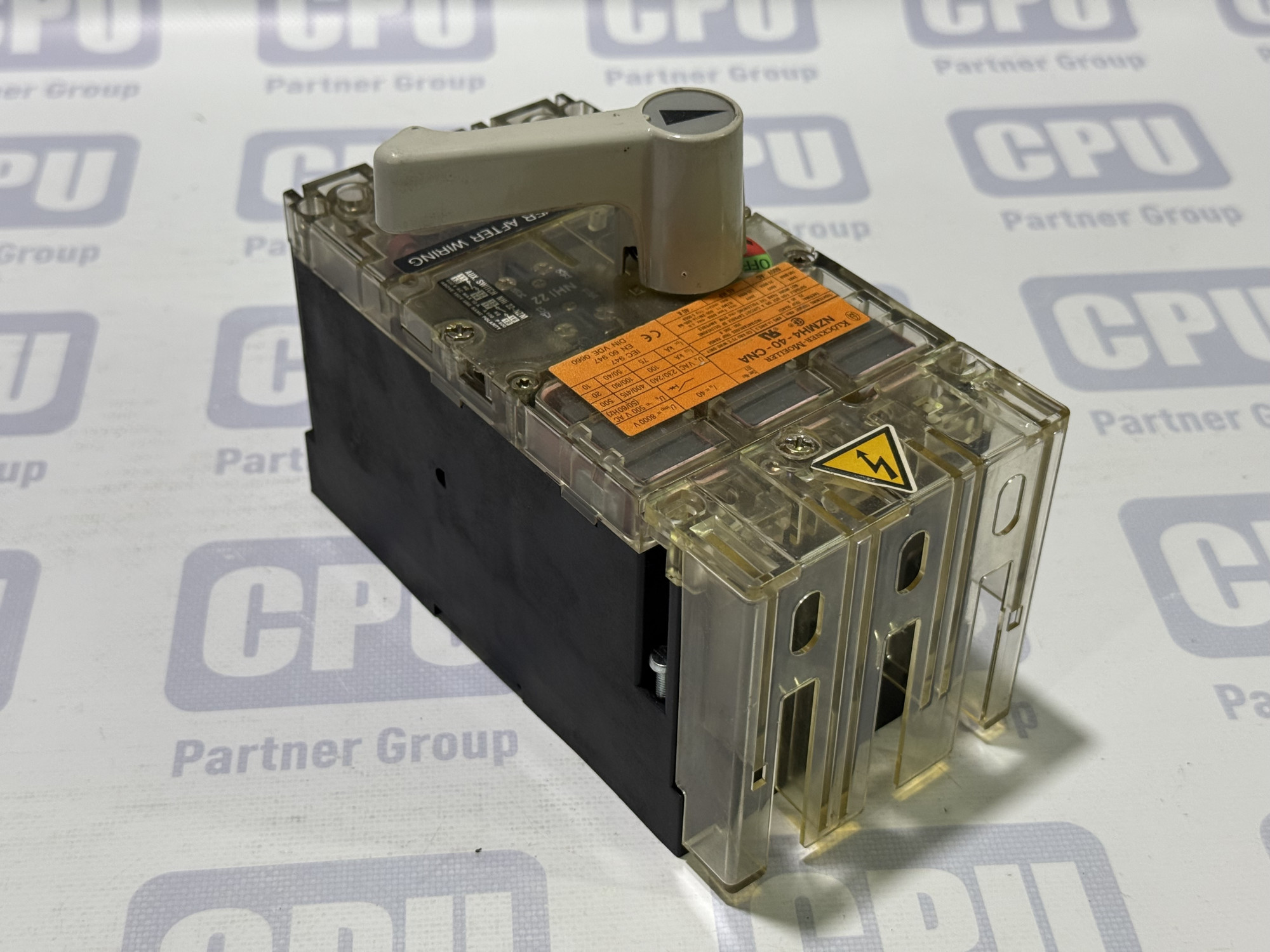

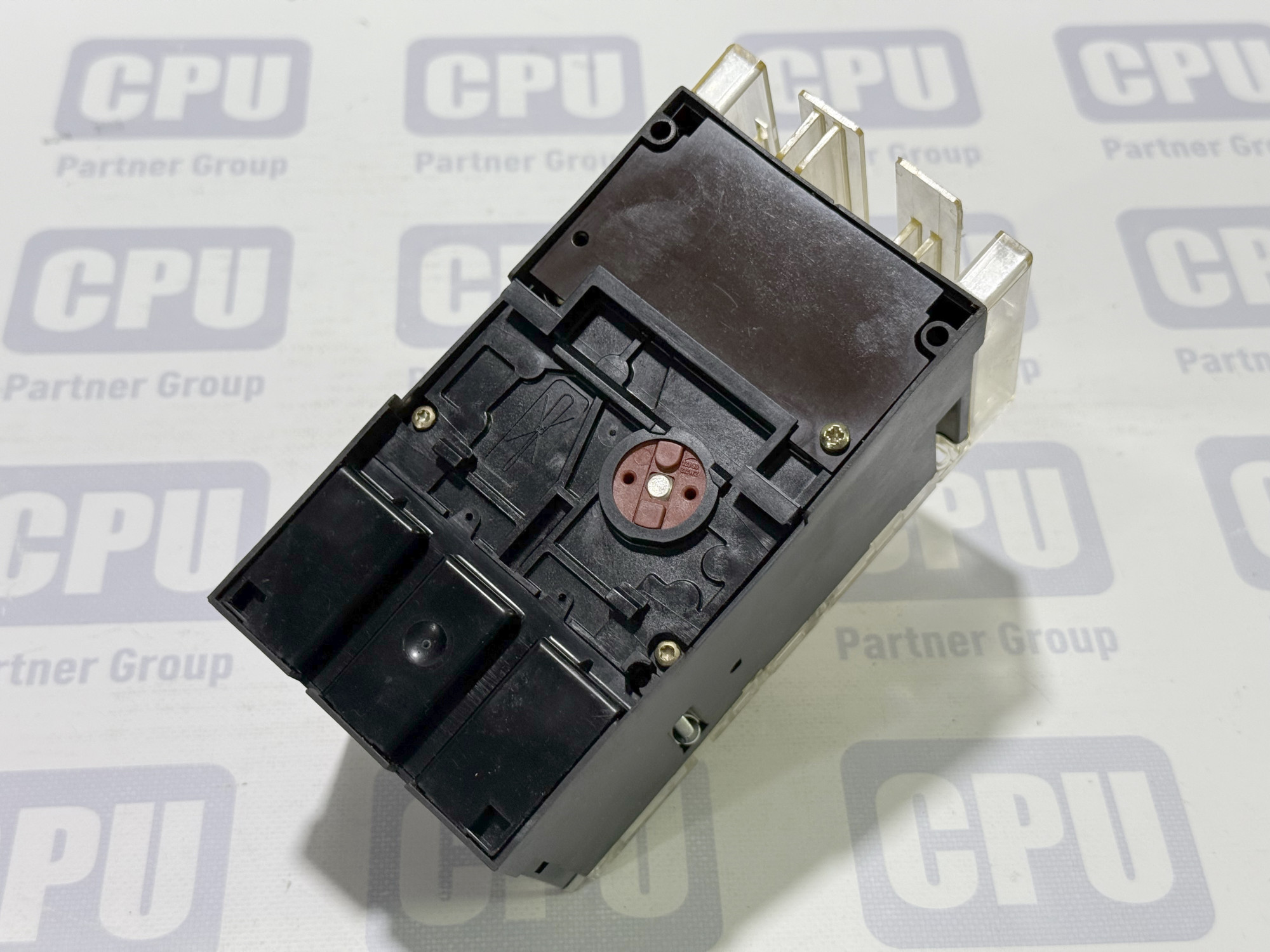

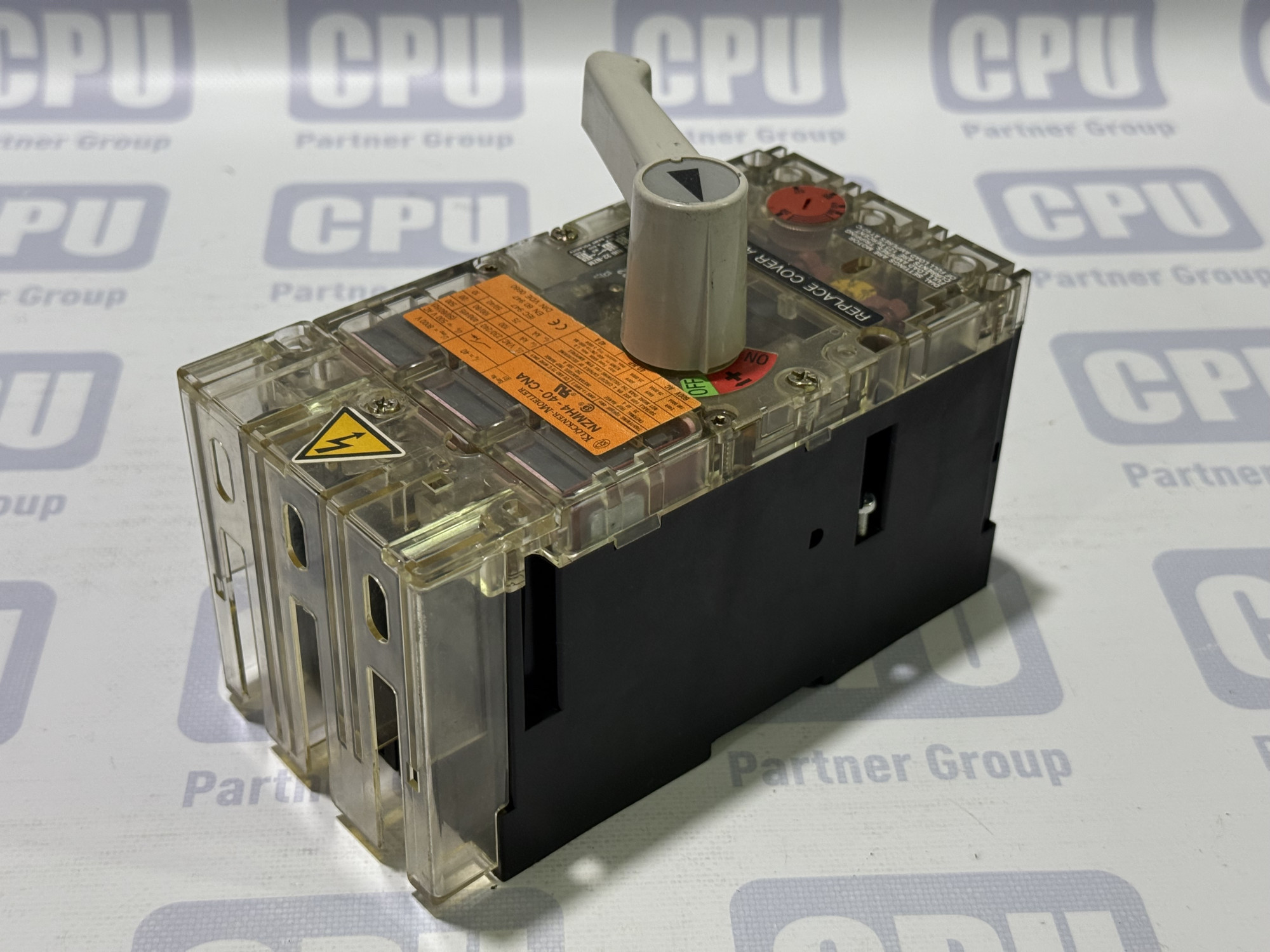

Klöckner-Moeller NZMH4-40-CNA Motor Circuit Breaker / Disconnect Switch

Introducing the Klöckner-Moeller NZMH4-40-CNA – a highly reliable and versatile industrial electrical component designed for comprehensive motor protection and control. This device serves dual functions as both a manual motor disconnect switch and an advanced circuit breaker, consolidating essential safety and operational features into a single, compact unit. Ideally suited for a wide range of industrial applications, this particular unit is available in a dependable used condition, offering a cost-effective solution without compromising performance or safety standards. The integration of disconnect and circuit breaker functionalities into one device significantly streamlines electrical installations and reduces panel space requirements, representing a substantial advantage in industrial design. The availability of this unit in a used state makes it an attractive choice for maintaining or upgrading existing systems, providing substantial cost savings.

1. Core Functionality and Advanced Protection

1.1. Integrated Motor Overload Protection with Adjustable Thermal Trip

The NZMH4-40-CNA features a built-in thermal tripping mechanism, which is crucial for protecting motors from sustained overcurrents that can lead to overheating and damage. This thermal protection is adjustable, allowing for precise calibration to the specific Full Load Current (FLC) rating of the connected motor. The ability to adjust the thermal trip within a range of 25 to 40 Amperes provides flexibility for various motor sizes within its capacity.

The adjustability of the thermal trip is a key factor as it allows a single device to protect a range of motors, reducing the need for a large inventory of different devices for system integrators or maintenance departments. It also enables precise tuning of the protection to prevent nuisance tripping while still ensuring robust safeguarding. If the setting is too low, the device will trip unnecessarily; if too high, the motor may be damaged. The 25-40A range covers common industrial motor sizes, enabling precise protection that prevents motor damage and minimizes downtime.

1.2. Precise Magnetic Short-Circuit Protection

Beyond overload protection, the device provides critical short-circuit protection – sudden, high-current faults capable of causing immediate and severe equipment damage and posing significant safety risks. The adjustable magnetic trip ensures rapid interruption of these short-circuit currents, safeguarding the electrical system. The magnetic trip adjustment range for the NZMH4-40-CNA is 260 to 500 Amperes. This broad range allows for customization based on the specific short-circuit current characteristics of the installation.

The adjustability of the magnetic trip is equally critical. While thermal trips handle overloads, magnetic trips respond instantaneously to the very high currents typical of short circuits. The wide 260-500A range allows engineers to set the trip point above normal inrush currents (e.g., motor startup) but below destructive short-circuit currents, optimizing protection without nuisance tripping. This ensures immediate protection, preserves system integrity, and significantly enhances safety from catastrophic failures.

2. Versatility, Standard Compliance, and Applications

2.1. Global Certifications and Standards for Broad Application

The Klöckner-Moeller NZMH4-40-CNA is designed to meet stringent international safety and performance standards, ensuring its suitability for various global markets and applications.

Certifications:

• UL Recognized (UL 508) and CSA Certified (22.2 Nr. 14): Recognized as a 3-pole, HP-rated manual motor disconnect switch with integrated thermal trip units for motor overload protection, making it suitable for North American markets.
• CE Marking: Confirms compliance with European safety directives.
• Conformity with IEC/EN 60 947-2 (Circuit Breakers): This standard specifically designates the NZMH4-40-CNA as an inverse time molded case circuit breaker with adjustable thermal and magnetic trips, suitable for international use.

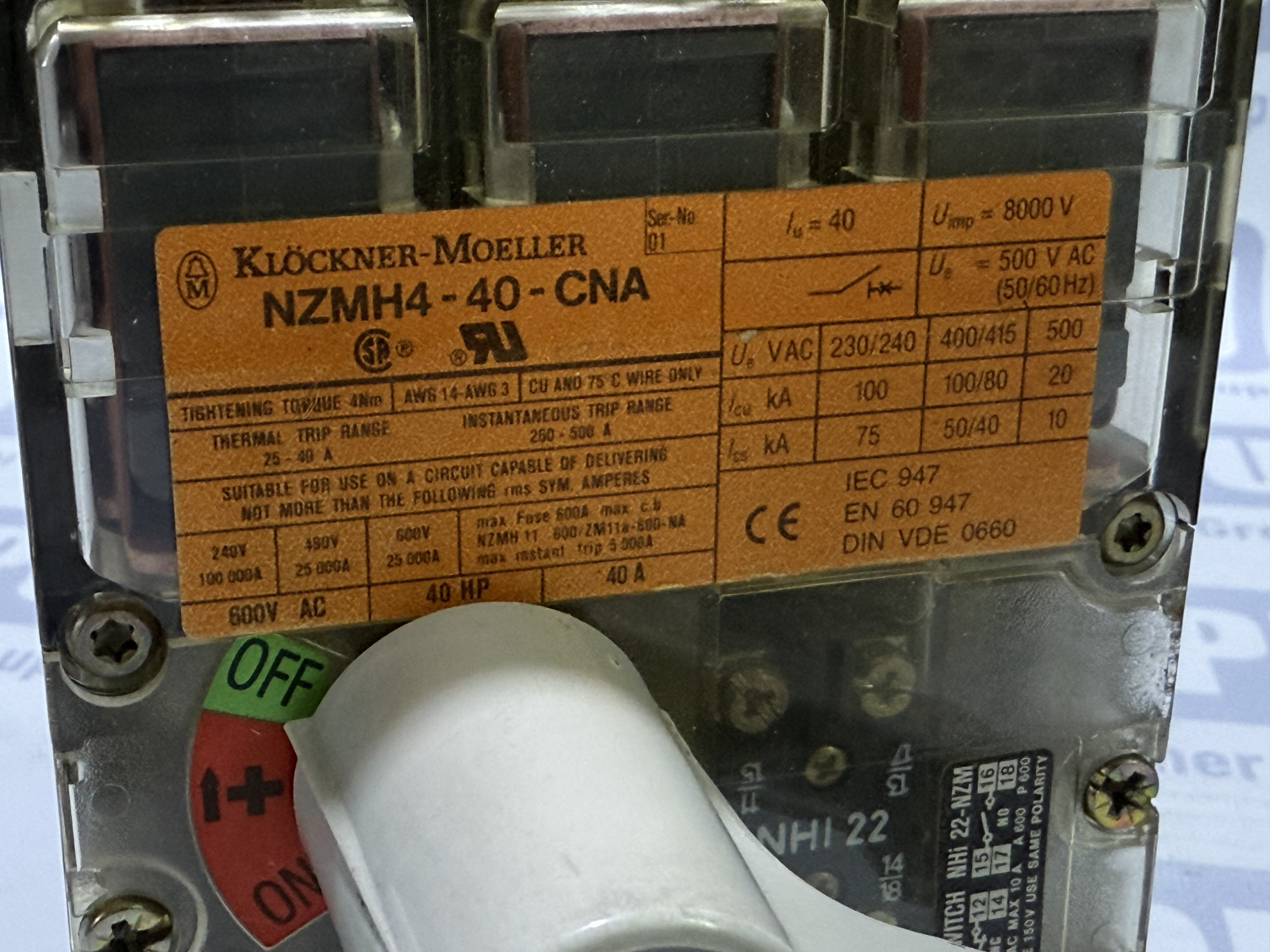

• Additional Standards: Also conforms to IEC 947, EN 60 947, and DIN VDE 0660 [Image 3 reference], further validating its robust design and international acceptance.

The extensive array of certifications (UL, CSA, CE, IEC/EN) is a strong indicator of the manufacturer's commitment to quality and universal market access. This reduces regulatory barriers for businesses operating internationally or exporting machinery, making the component highly attractive for global supply chains. It also implies that the design and testing procedures are robust enough to satisfy numerous, often differing, national and international requirements, ensuring uncompromised safety and simplified global deployment.

2.2. Suitability for Group Applications

This disconnect switch is specifically engineered for group applications, conforming to NEC 430-53 and CEC Part 1, Rule 28-206 guidelines. This capability allows for the protection of multiple motors or loads with a single branch circuit protective device (e.g., a fuse or circuit breaker), optimizing panel space and potentially reducing overall installation costs.

Suitability for group applications is a significant design advantage. Instead of requiring individual protective devices for each motor, which can be costly and space-intensive, this feature allows for a more centralized and efficient protection scheme. This is particularly beneficial in complex industrial setups with numerous motors, leading to cost savings, space optimization, and simplified wiring in multi-motor installations.

2.3. Typical Industrial Applications

Given its robust construction and protective capabilities, the NZMH4-40-CNA is ideally suited for a wide range of industrial motor control applications, including:

• Motor starters and control panels.
• HVAC (Heating, Ventilation, and Air Conditioning) systems.
• Pumps and compressors.
• Conveyor systems.
• Machine tools and automation equipment.
• Any application requiring reliable manual motor disconnection and overcurrent protection.

3. Detailed Technical Specifications

3.1. Motor Horsepower (HP) Ratings

The NZMH4-40-CNA is rated for various motor horsepower capacities across different voltage levels, reflecting its versatility.

Specifications:

• 200 V HP: 10 HP
• 230 V HP: 10 HP
• 460 V HP: 30 HP
• 575 V HP: 40 HP

Motor horsepower ratings are critical for correctly sizing the device to the motor. The significant jump in horsepower at higher voltages (e.g., 10 HP at 230V versus 40 HP at 575V for the NZMH4-40-CNA) is a direct consequence of the inverse relationship between current and voltage for a given power output. This implies that at higher voltages, less current is drawn for the same power, allowing for higher horsepower ratings within the device's current carrying capacity. This detail is vital for engineers designing systems for diverse voltage standards, ensuring voltage-appropriate performance and accurate sizing for optimal motor protection.

3.2. UL/CSA Short Circuit Current Ratings (SCCR)

The device demonstrates robust short-circuit current withstand capabilities, which is paramount for safety and system integrity in high-fault current environments.

Specifications:

• 240 VAC: 100 kA
• 480 VAC: 25 kA
• 600 VAC: 25 kA

The high Short Circuit Current Rating (SCCR) values, especially 100 kA at 240 VAC, indicate that this device is engineered for demanding industrial applications where significant fault currents can occur. This capability ensures that the circuit breaker can safely interrupt a short circuit without destructive failure or causing further damage, a critically important safety and reliability factor often overlooked by non-specialists. This directly contributes to the overall safety of personnel and the protection of valuable equipment, providing enhanced safety, system resilience, and suitability for high-energy industrial environments.

Table 1: Key Technical Specifications of Klöckner-Moeller NZMH4-40-CNA

Conclusion

The Klöckner-Moeller NZMH4-40-CNA represents a highly efficient and reliable solution for motor protection and control in industrial environments. Its integrated functions as a manual disconnect and circuit breaker, coupled with adjustable thermal and magnetic trip units, provide precise and adaptable protection against overloads and short circuits. A broad spectrum of international certifications, including UL, CSA, and CE, affirms its compliance with global safety and performance standards, making it suitable for worldwide deployment. The device's capability for group applications further enhances its value, offering space and cost efficiencies in complex electrical systems. Even though this particular unit is in used condition, its robust construction and proven performance from Klöckner-Moeller ensure a cost-effective yet dependable option for maintaining or upgrading critical industrial operations.
