MEAN WELL DRP-240-24 DIN Rail Power Supplies, №2

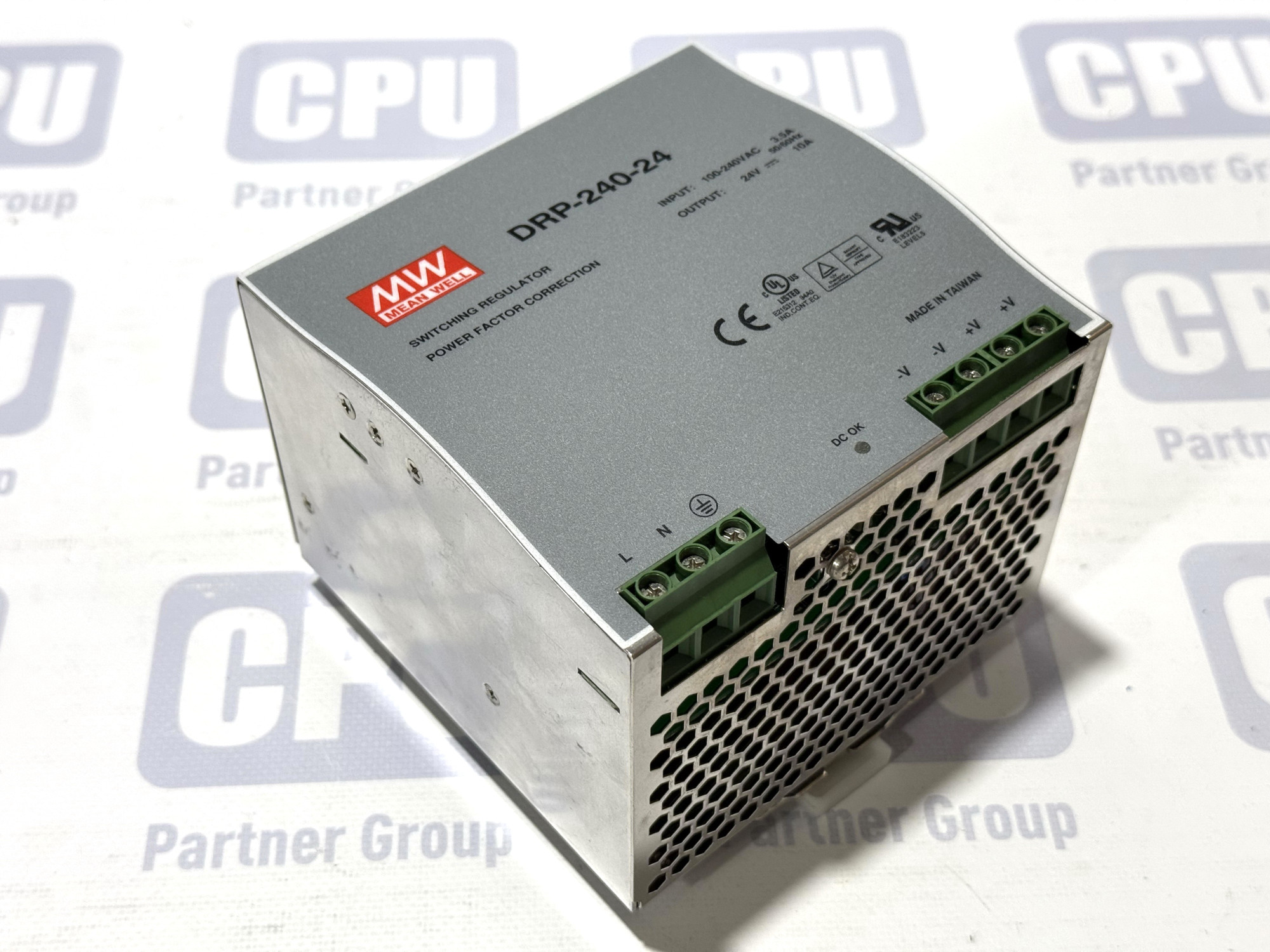

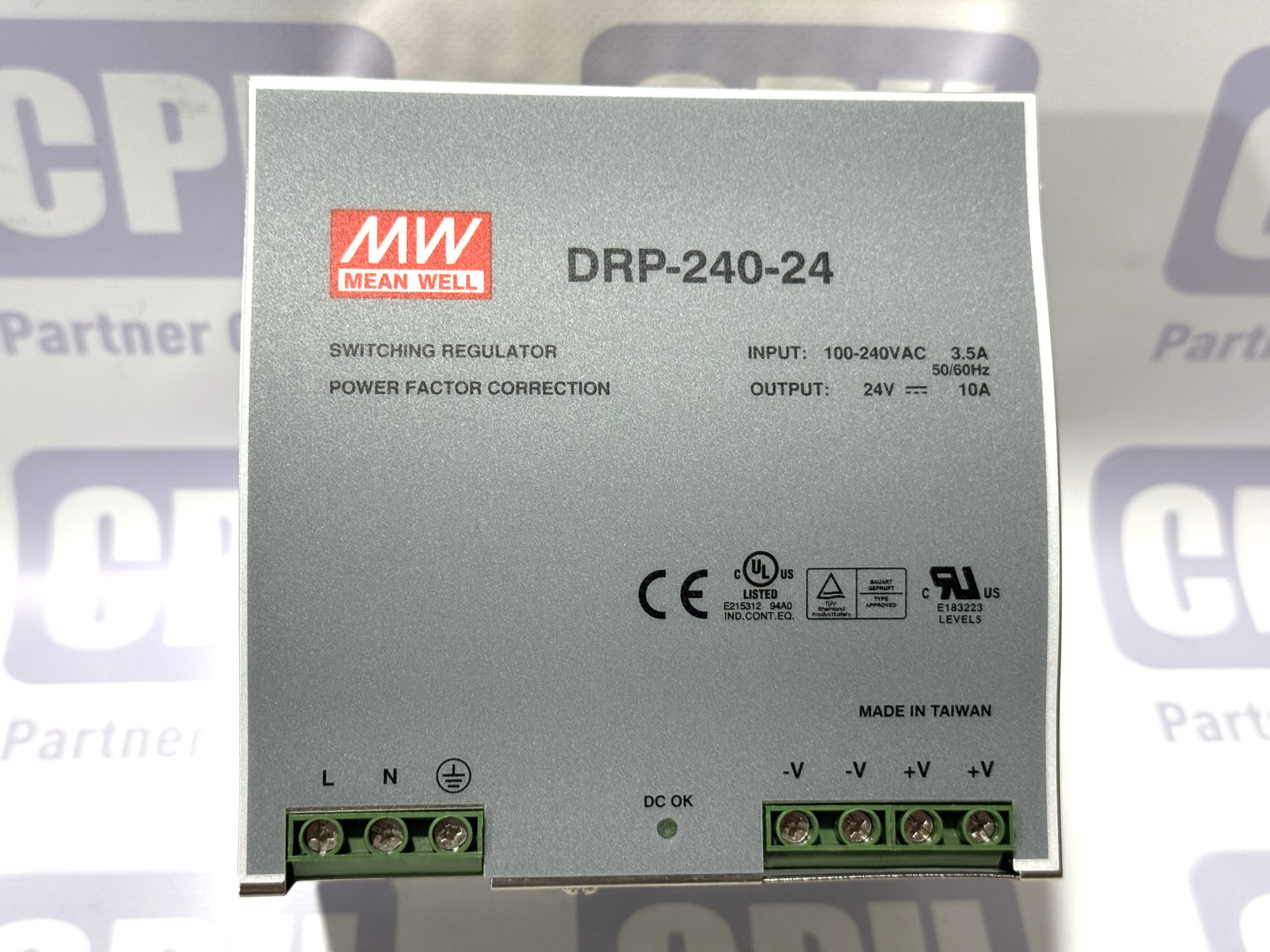

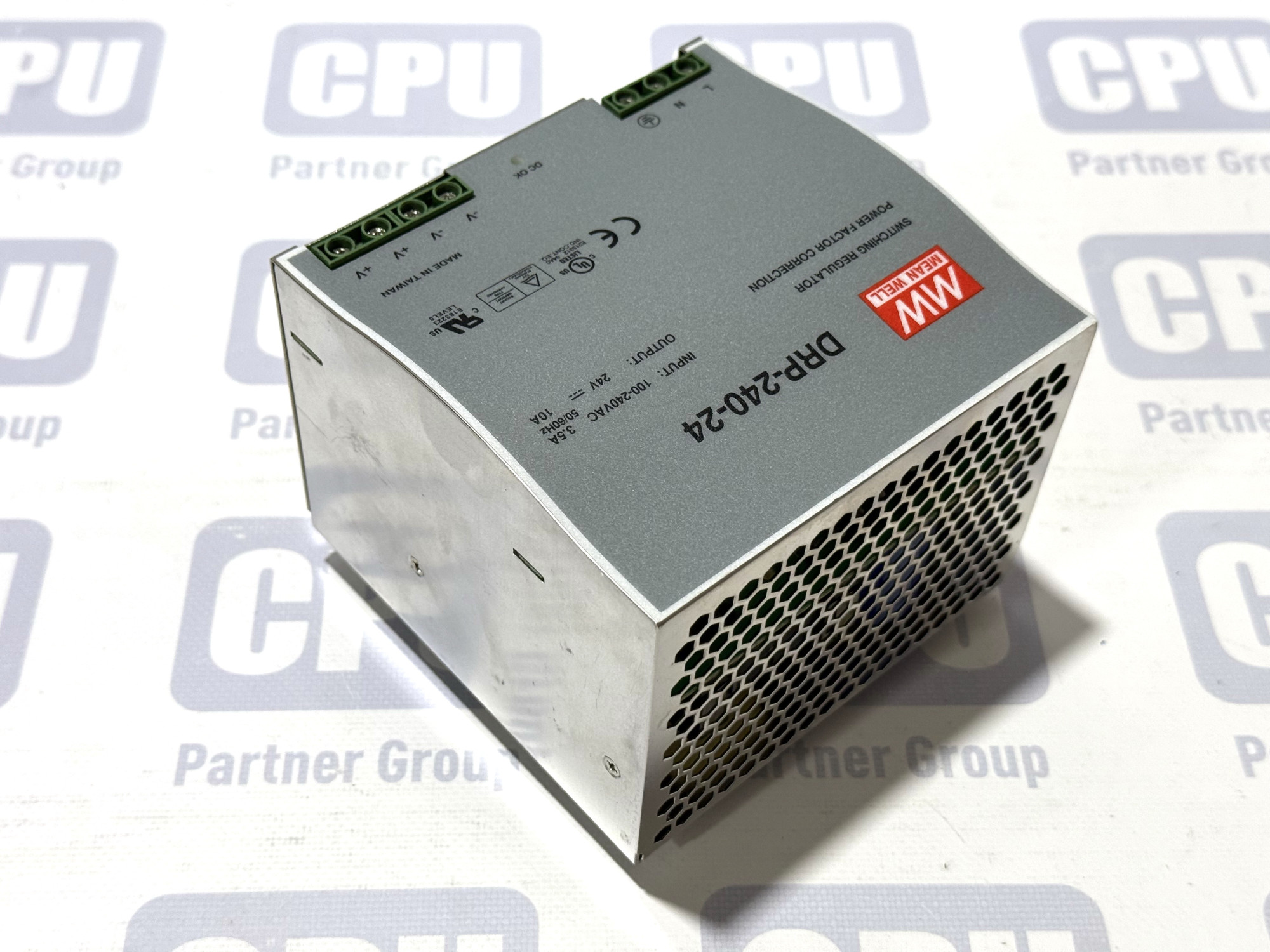

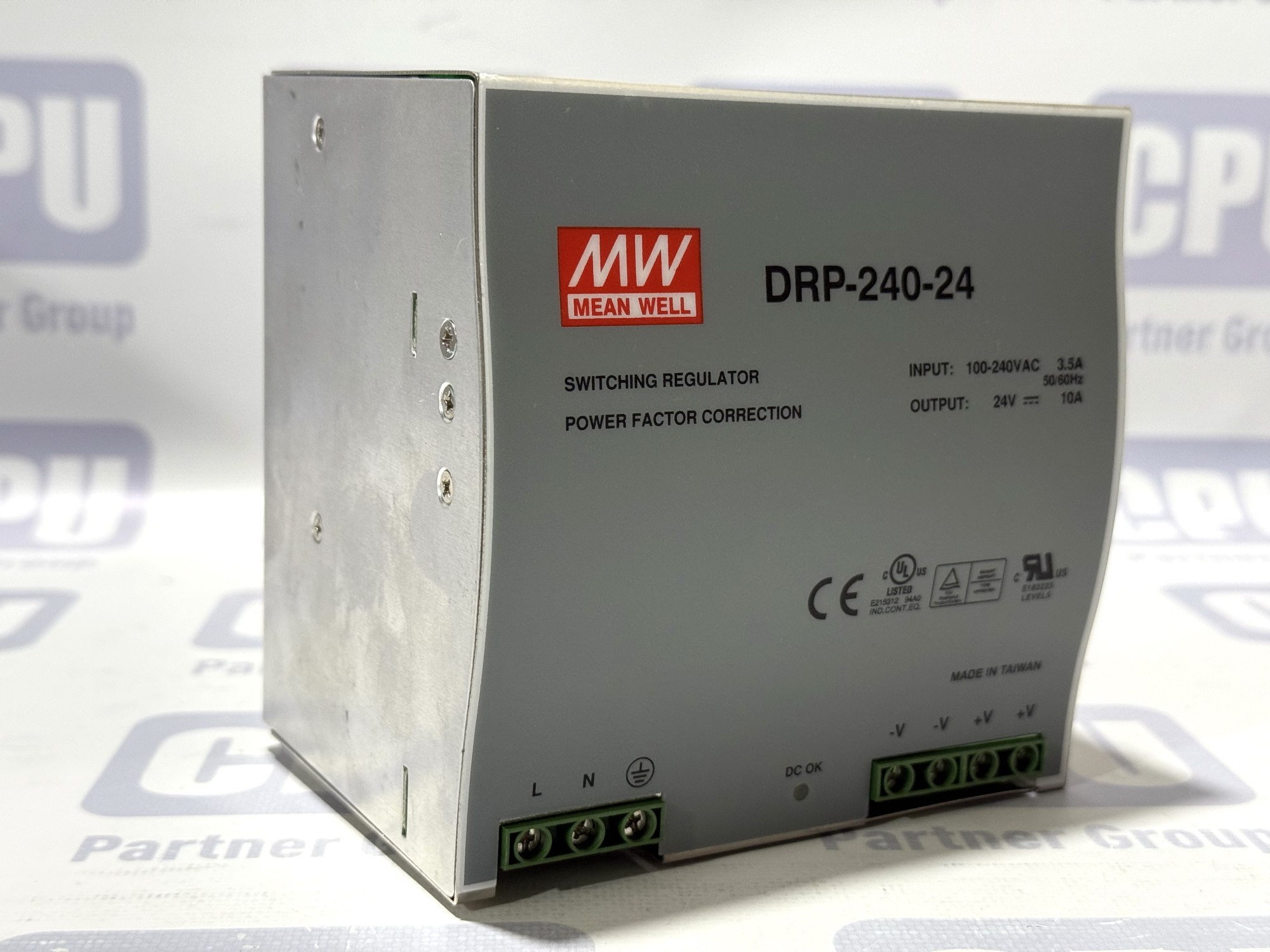

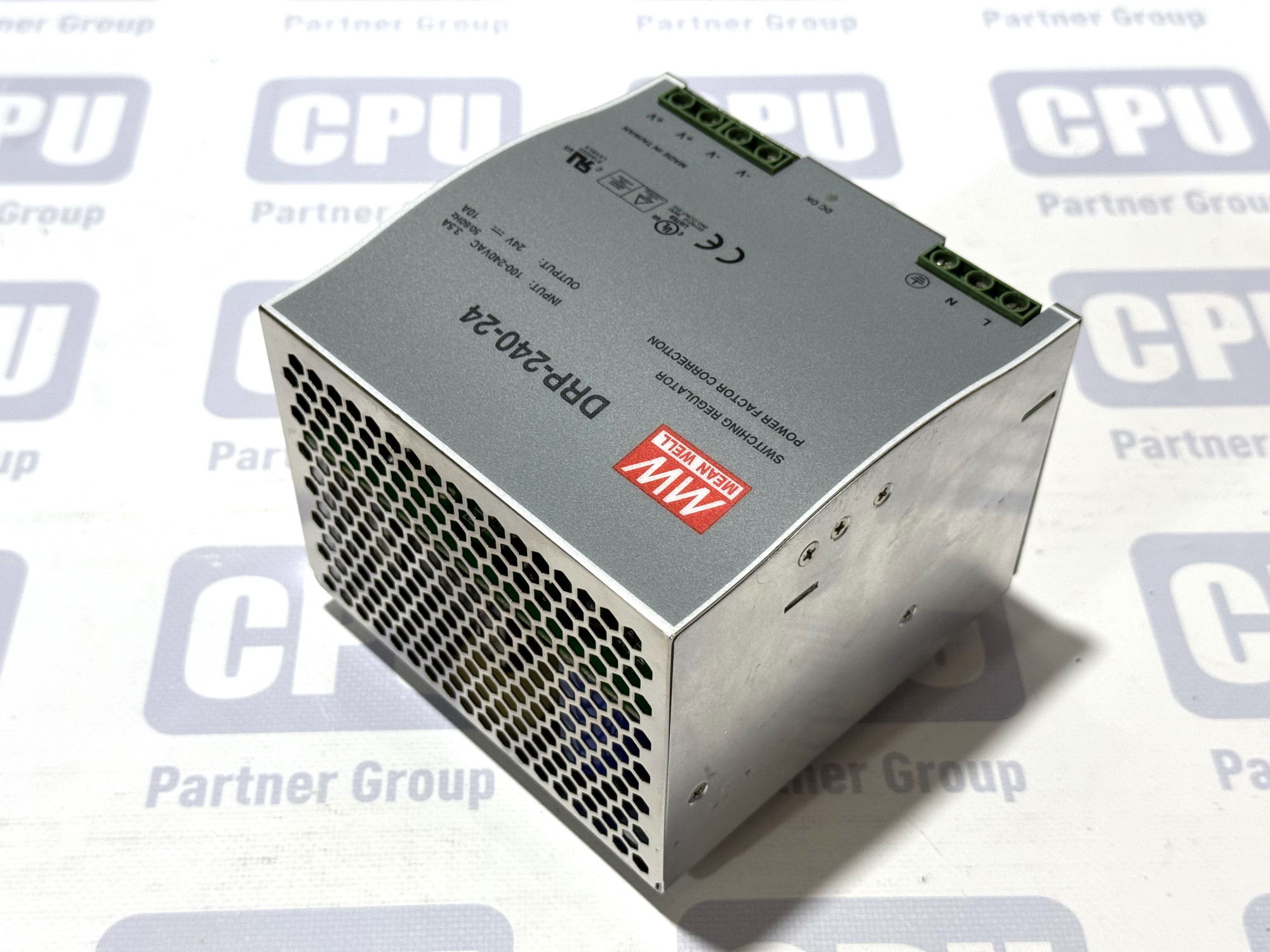

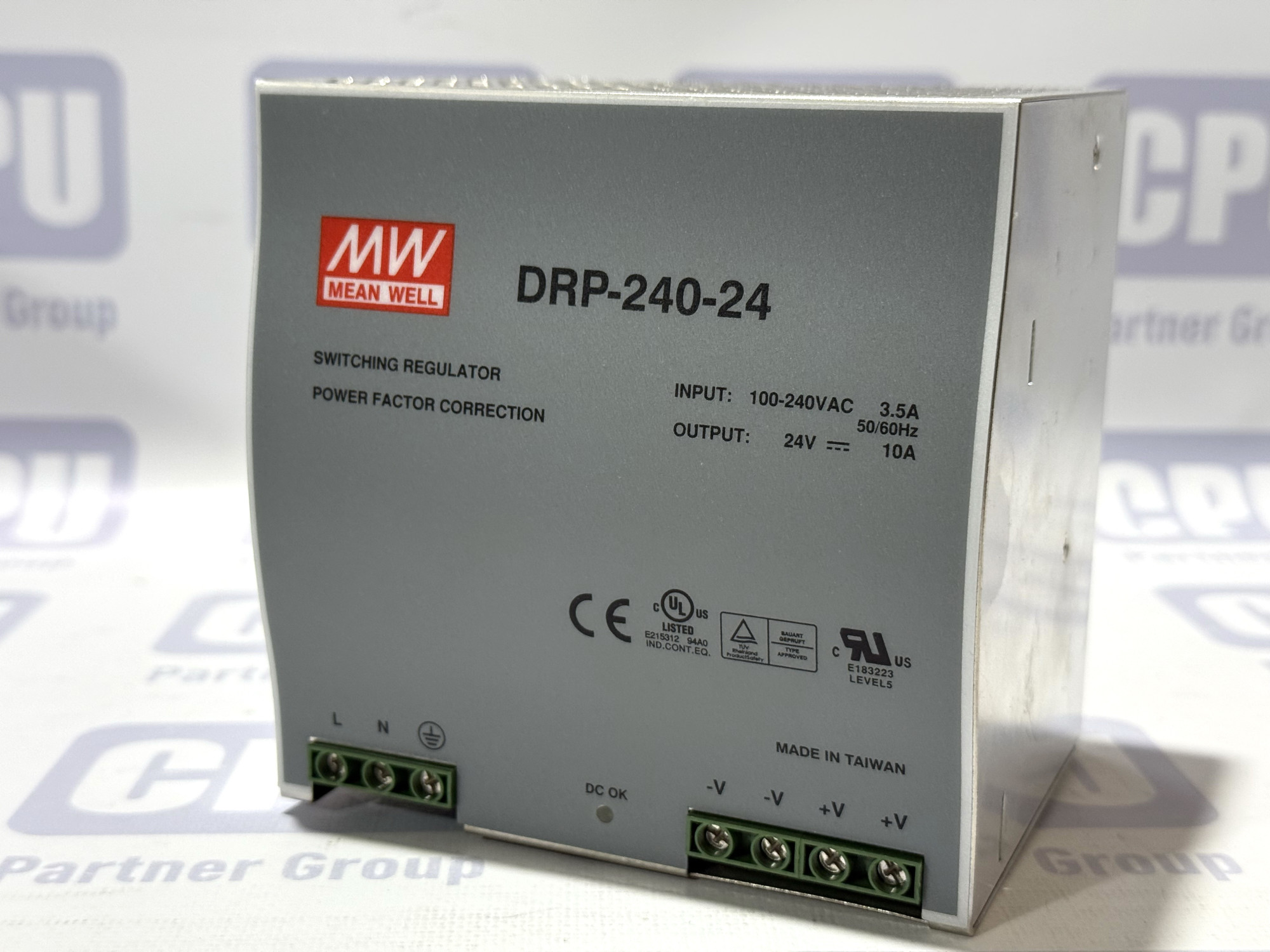

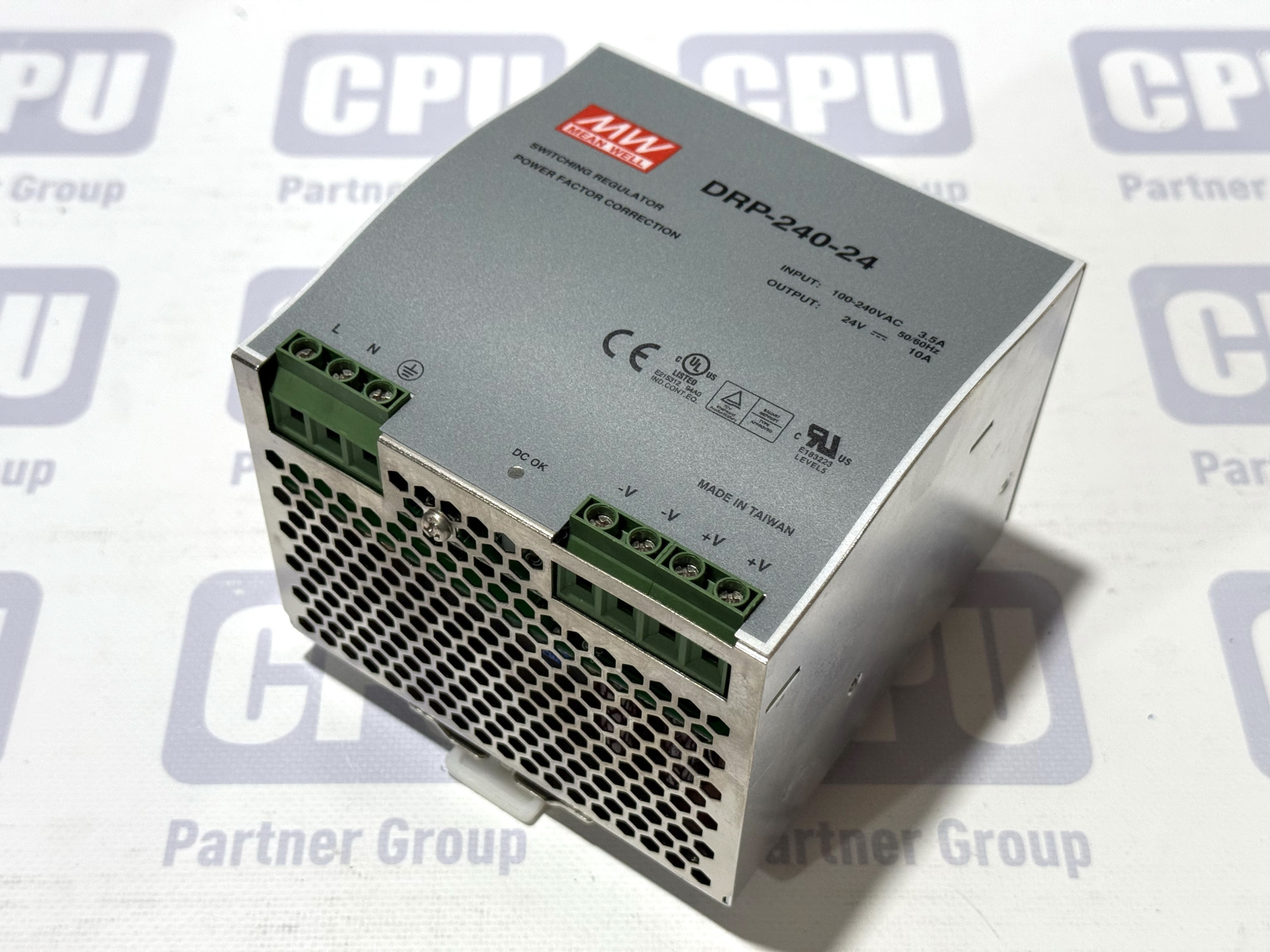

MEAN WELL DRP-240-24 DIN Rail Power Supplies

This is a 240W industrial switching power supply designed for DIN rail mounting. It provides a 24V output voltage and up to 10A current, making it suitable for various industrial applications.

Key Features:

• Output Voltage: 24 V DC

• Output Current: 10 A

• Power: 240 W

• Input Voltage Range: 85–264 V AC / 120–370 V DC

• Efficiency: up to 84%

• Adjustable Output Voltage: 24 to 28 V

• Protections: Short circuit, overload, overvoltage, and overtemperature

• Cooling: Natural air convection

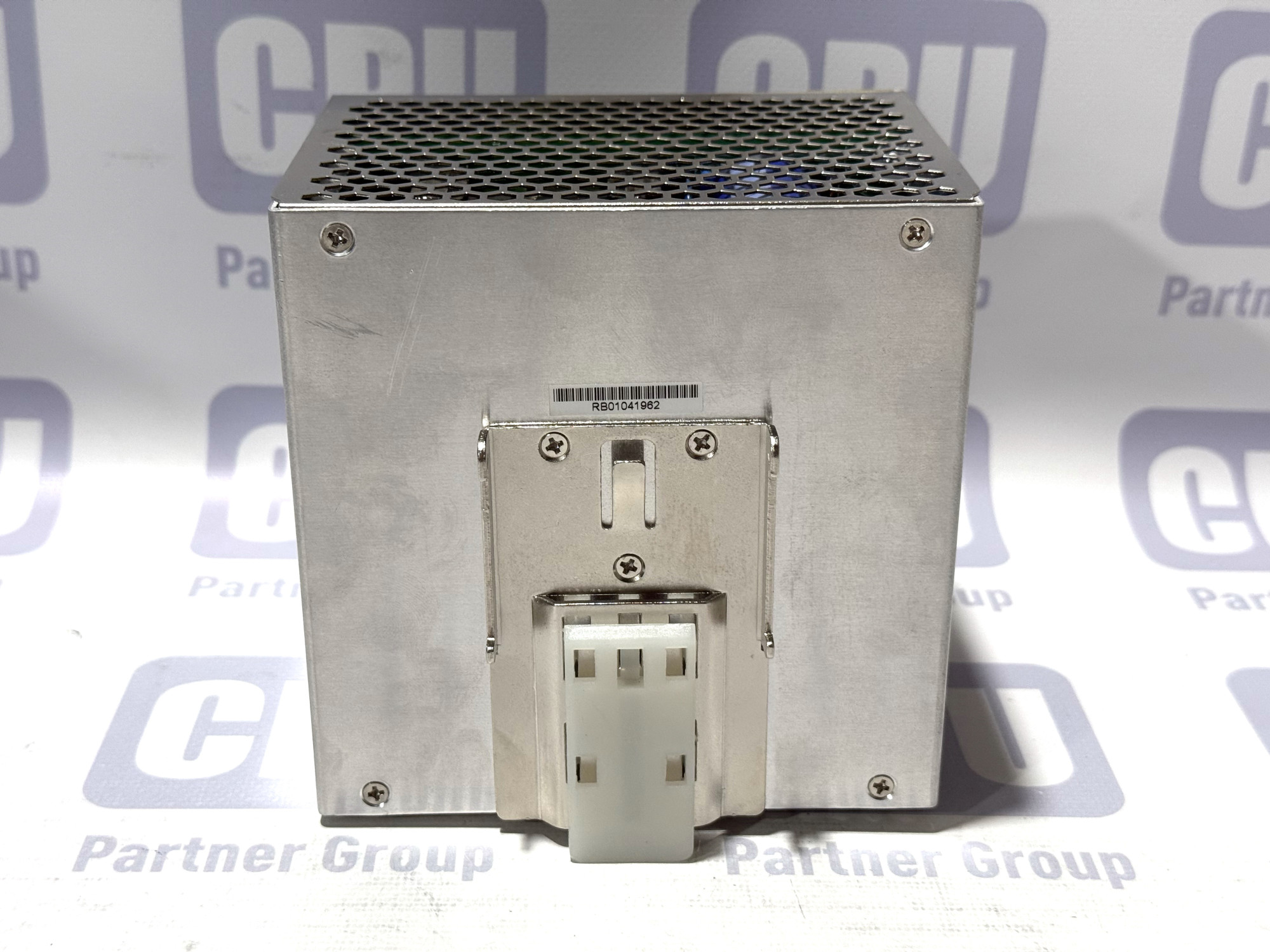

• Mounting: DIN rail TS-35/7.5 or 15

• Certifications: UL508, TUV EN60950-1, CE

• Dimensions: 125.5 × 125.2 × 100 mm

• Weight: 1.2 kg

This power supply includes an active Power Factor Correction (PFC) function to improve energy efficiency and reduce harmonic distortion in the power grid. It also features an LED indicator to show power status.
