Omron S82K-10024 Power Supply 24V 4.2A 100W DIN-Rail Mount

Omron S82K-10024 Power Supply 24V 4.2A 100W DIN-Rail Mount

Description

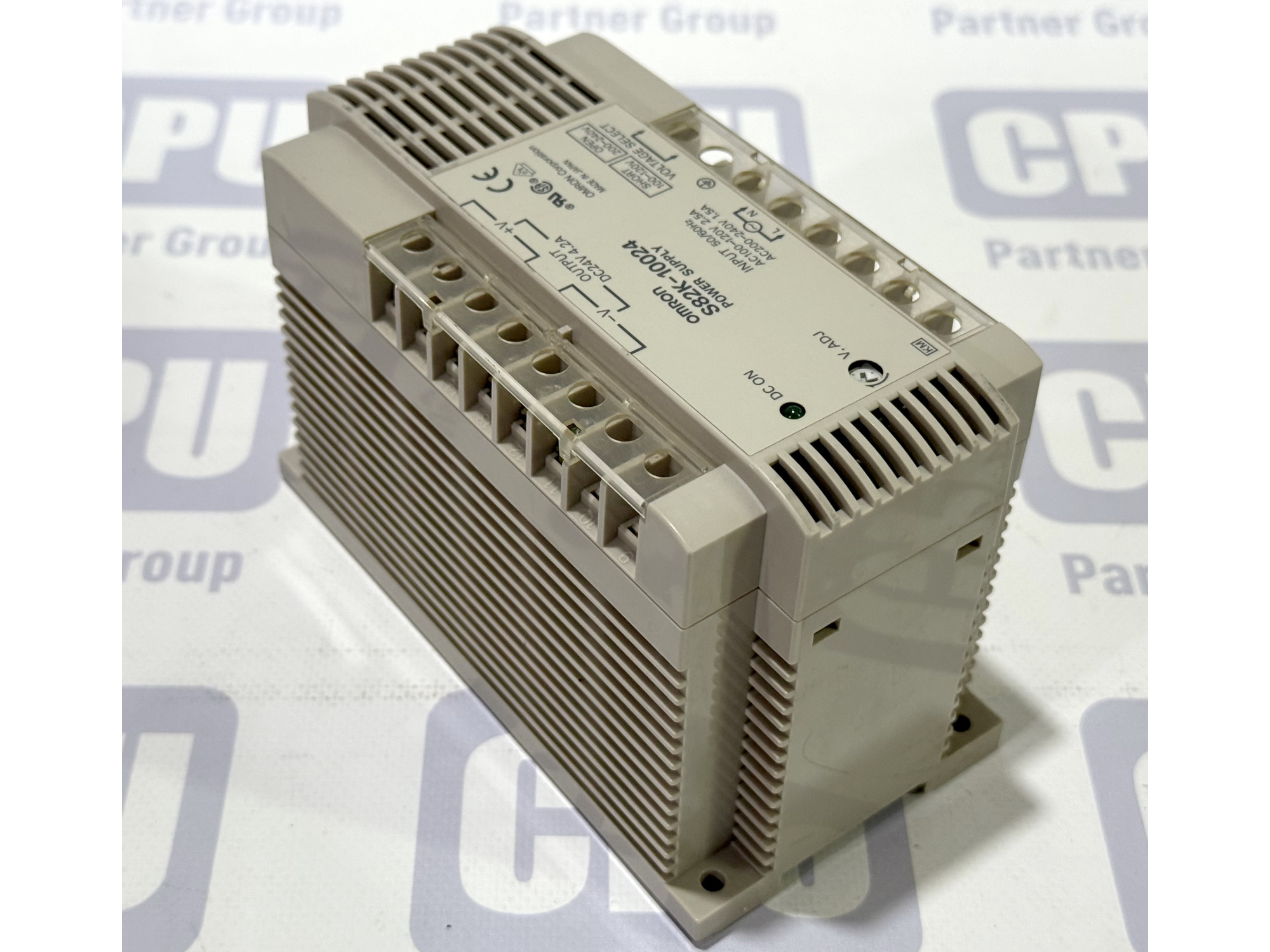

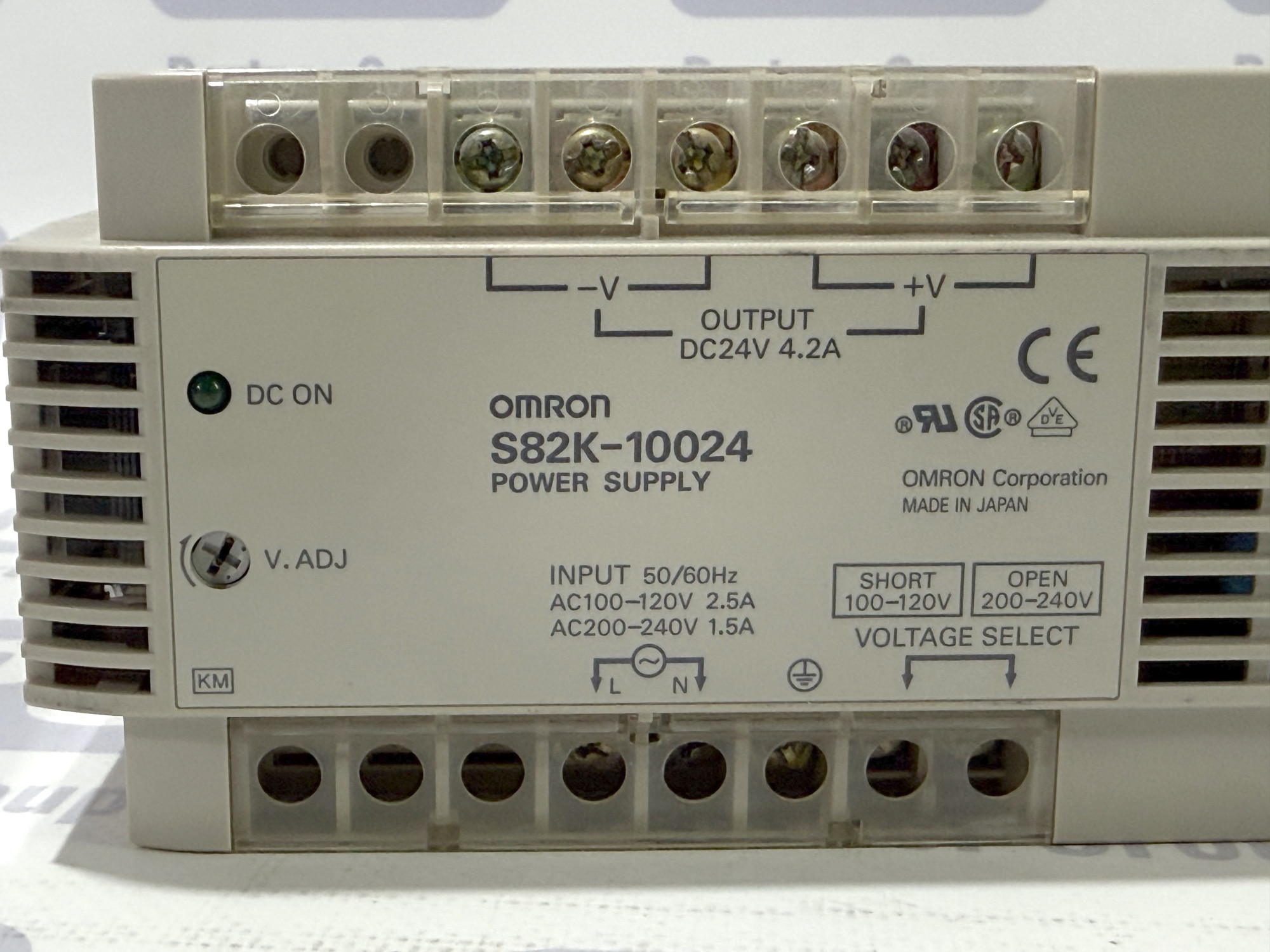

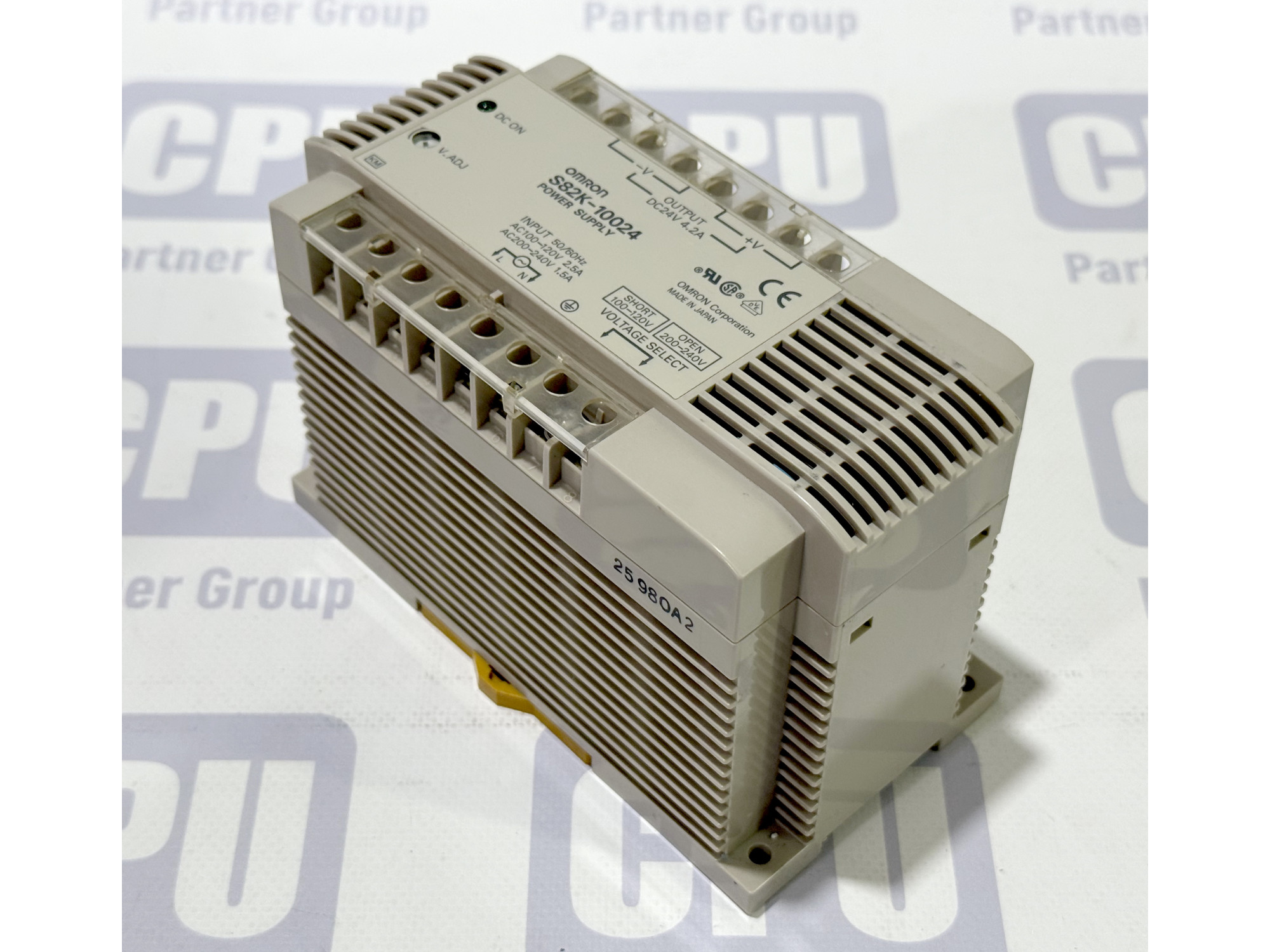

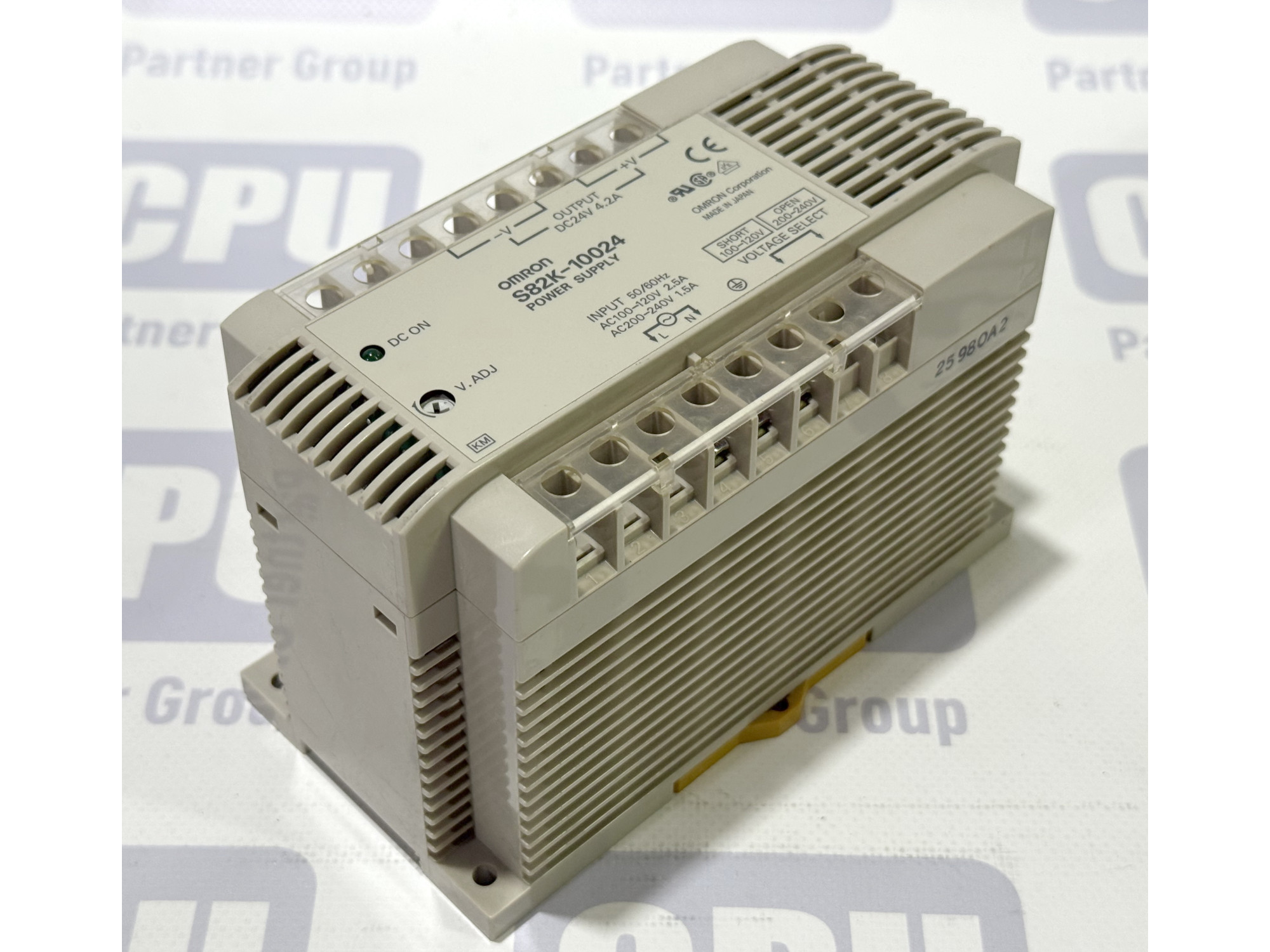

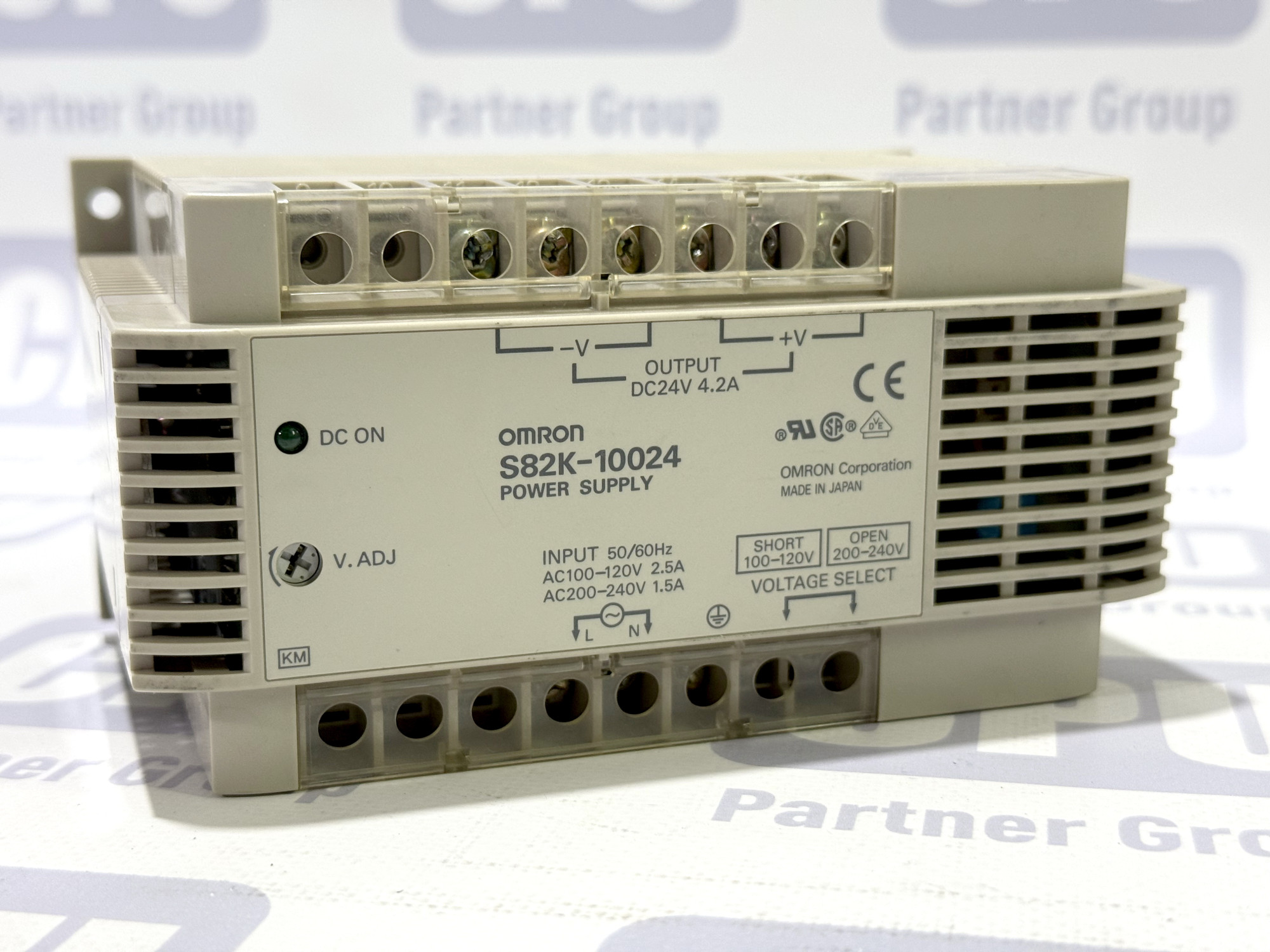

The Omron S82K-10024 is a rugged, industrial-grade switch-mode power supply designed to provide a stable and reliable 24V DC output for automation systems, control panels, and various low-voltage devices. Encased in a compact, durable plastic housing with integrated ventilation slots, it ensures efficient passive cooling and fits seamlessly onto standard DIN rails. The front panel features a clear green operation LED indicator (DC ON) and a voltage adjustment potentiometer (V. ADJ) for fine-tuning the output voltage to match specific system requirements. Equipped with heavy-duty screw terminal blocks protected by transparent flip-up covers, this unit guarantees secure and safe wiring connections. Made in Japan, this power supply delivers exceptional build quality and long-term durability for demanding industrial environments.

Technical Specifications

• Manufacturer: Omron Corporation

• Country of Origin: Made in Japan

• Model / Manufacturer Part Number (MPN): S82K-10024

• Device Type: Switch-Mode Power Supply (SMPS)

• Input Voltage (Manually selectable via Voltage Select jumper): AC 100–120V (2.5A) or AC 200–240V (1.5A)

• Input Frequency: 50/60 Hz

• Output Voltage: 24V DC

• Output Current: 4.2A

• Rated Power: 100W

• Output Voltage Adjustment: Yes, via V. ADJ potentiometer on the front panel

• Status Indicator: Green LED (DC ON)

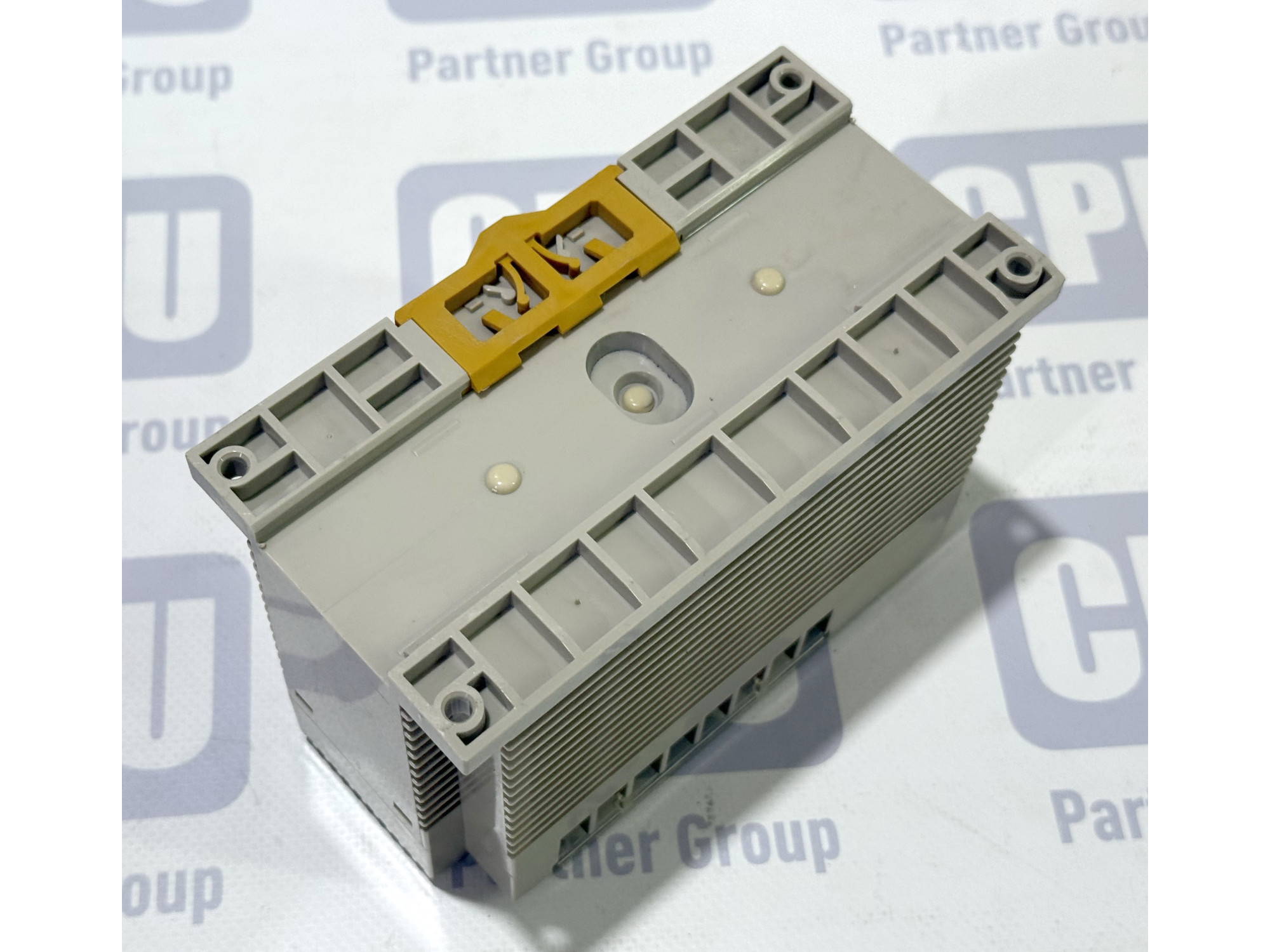

• Mounting Options: Standard DIN-rail mount (yellow snap-on clip on the back) or surface screw mount

• Connection Type: Screw terminals under a transparent protective cover

• Certifications & Standards: CE, UL, CSA, VDE

Applications

The Omron S82K-10024 power supply is ideal for powering programmable logic controllers (PLCs), input/output modules, human-machine interfaces (HMIs), industrial relays, proximity and photoelectric sensors, actuators, and low-voltage signaling systems. It is perfectly suited for installation in automation enclosures, control cabinets, and distribution boards across manufacturing lines, machine building, HVAC systems, water treatment facilities, and conveyor setups.
