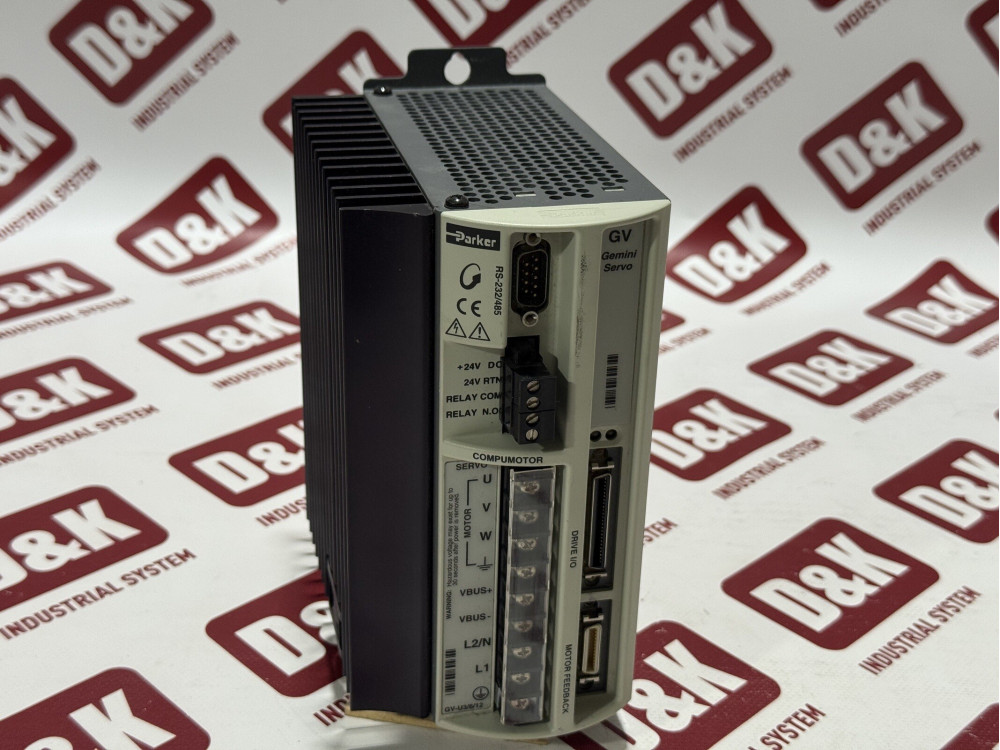

Parker CP*GV-U12ENK-13163 Gemini GV Series AC Servo Drive GV-U12 ENK-13163
- Condition: Used
- Brand: Parker
- Product Code: GV-U12ENK-13163
- SKU: #BEV#
- Availability: 1
- Warranty term: 30 days
- Located in: Ukraine
-
Price: $770.00
- Ex Tax: $770.00
Parker GV-U12ENK-13163 Gemini GV Series Servo Drive
Description:
The GV-U12ENK-13163 is part of the Parker Gemini GV family of digital AC servo drives. It is designed for precision motion control, providing accurate regulation of servo motors in position, velocity, and torque modes. The “NK” designation indicates it supports single-phase input voltage (e.g. 120/240 VAC) and is suitable for use in compact automation systems.
Technical Specifications
| Parameter | Value / Feature |
|---|---|
| Model | GV-U12ENK-13163 |
| Series | Gemini GV |
| Input Voltage | Single-phase, 120 VAC or 240 VAC (L/N or L1/L2) |
| Rated Current | 12 A continuous |
| Output Power | Approximately 3.5 kW |
| Control Modes | Position control, speed control, torque control |
| Feedback Support | Encoder or resolver feedback |
| PWM Frequency | Selectable (varies by configuration) |
| Protection Functions | Overcurrent, overvoltage, undervoltage (brown-out), motor overtemperature, short circuit protection |
| Mounting / Housing | Panel or machine-mountable compact form factor |
| Cooling | Forced air / internal cooling design (depending on installation) |
| Operating Temperature Range | Typically 0 °C to +40 °C (may vary depending on ambient cooling) |
| Certifications / Standards | CE, UL, etc. (depending on version and region) |
Typical Applications:
-
Multi-axis automation systems
-
Robotics and handling equipment
-
Packaging and labeling machines
-
Semiconductor and electronics manufacturing
-
General industrial automation requiring high-performance servo control
Summary:
The Parker GV-U12ENK-13163 is a robust digital AC servo drive from the Gemini GV series, optimized for single-phase input environments. With 12 A continuous current and about 3.5 kW output, it offers full servo control capabilities (position, speed, torque), protection features, and flexible feedback support, making it suitable for demanding industrial motion tasks.
On this page you will find the user manual for Parker GV. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.
Manual for Parker
