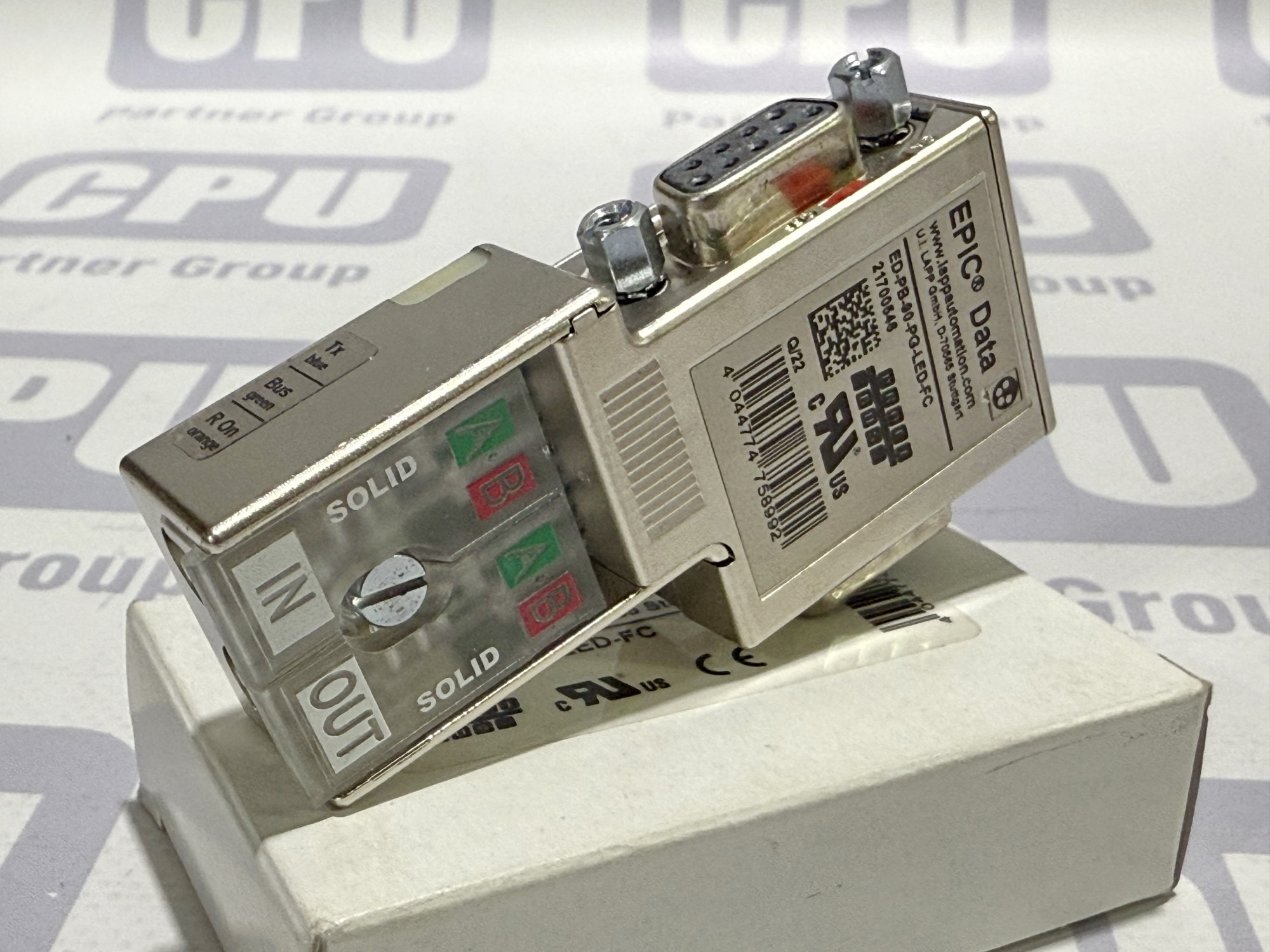

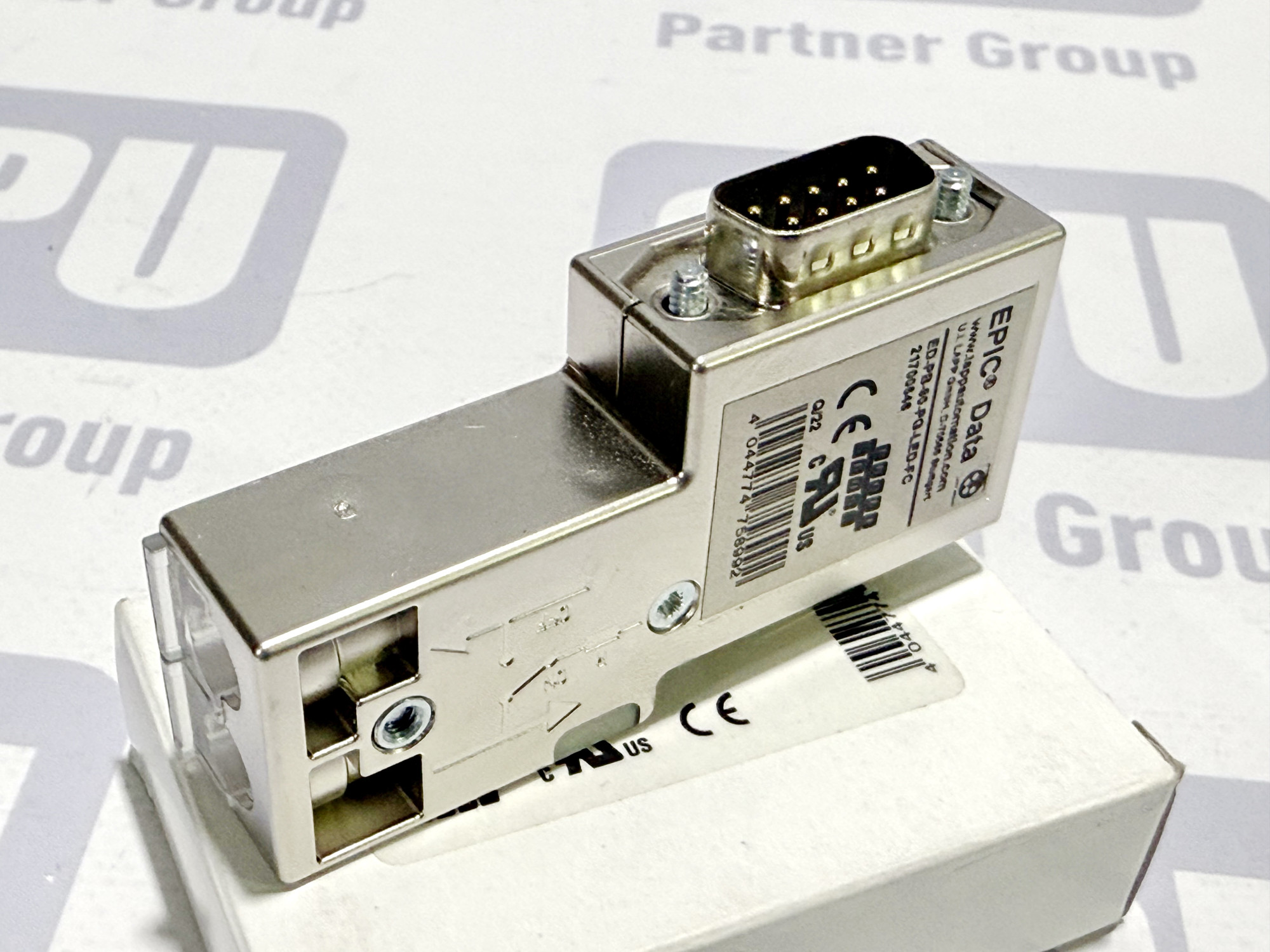

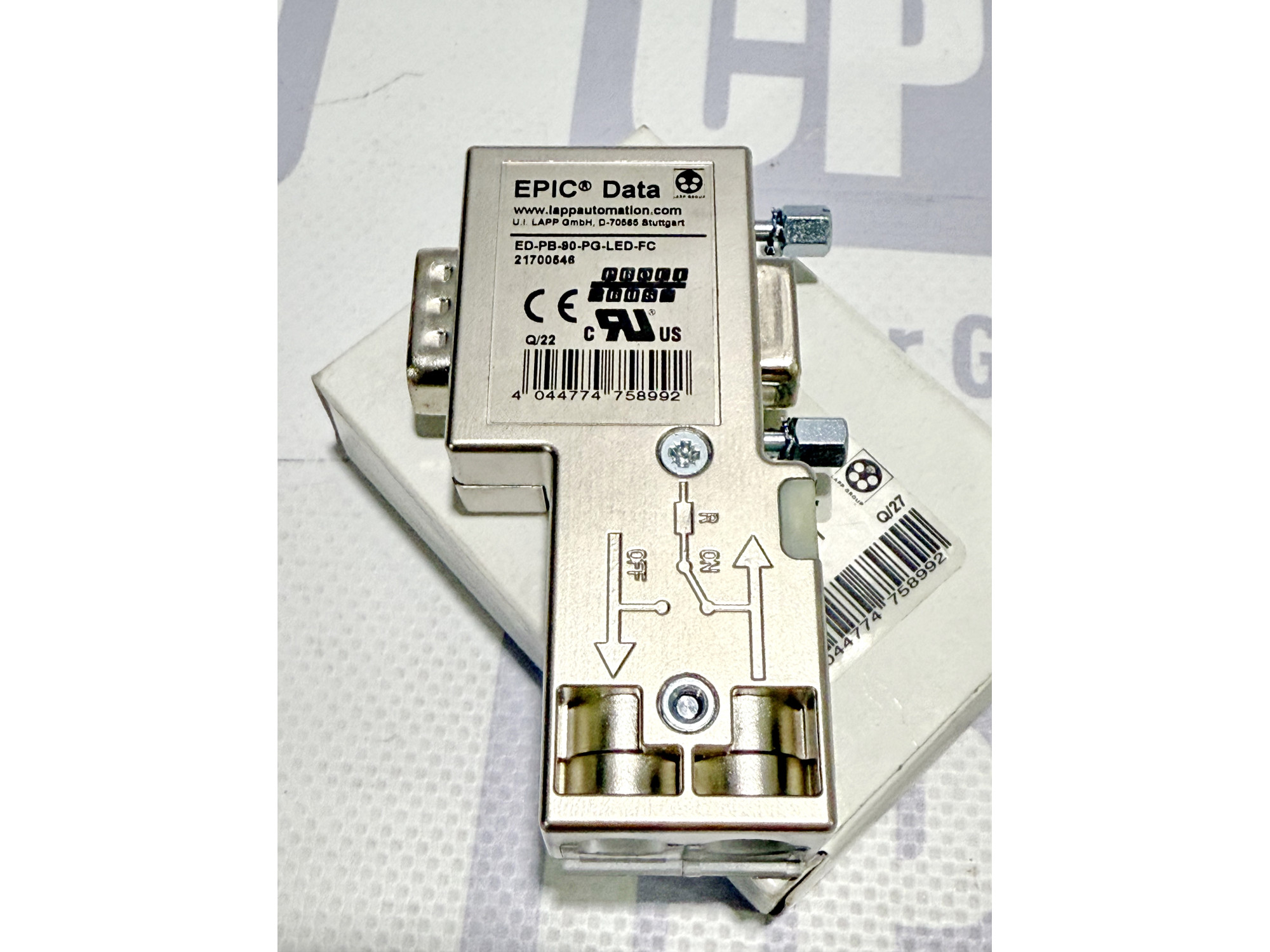

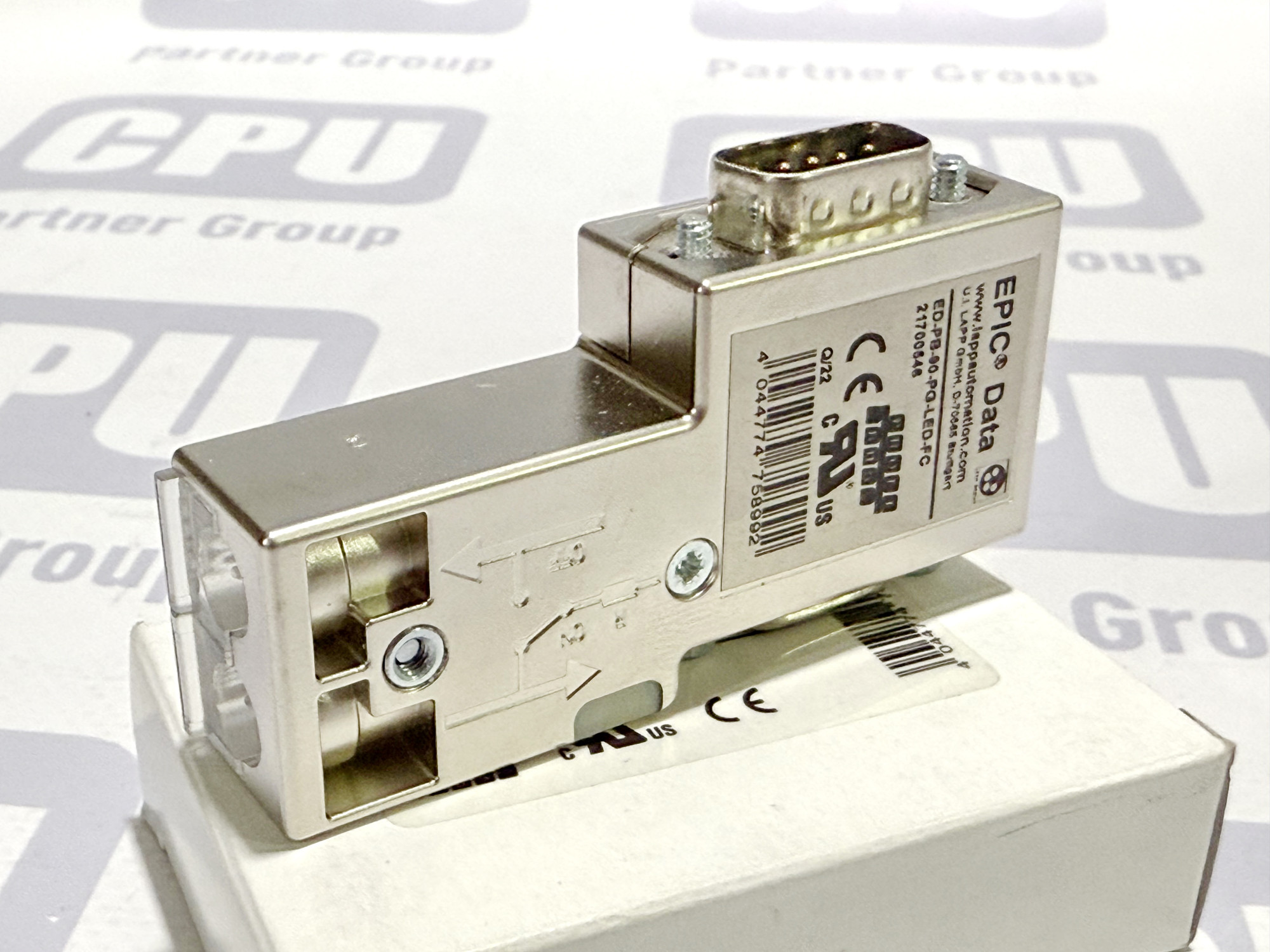

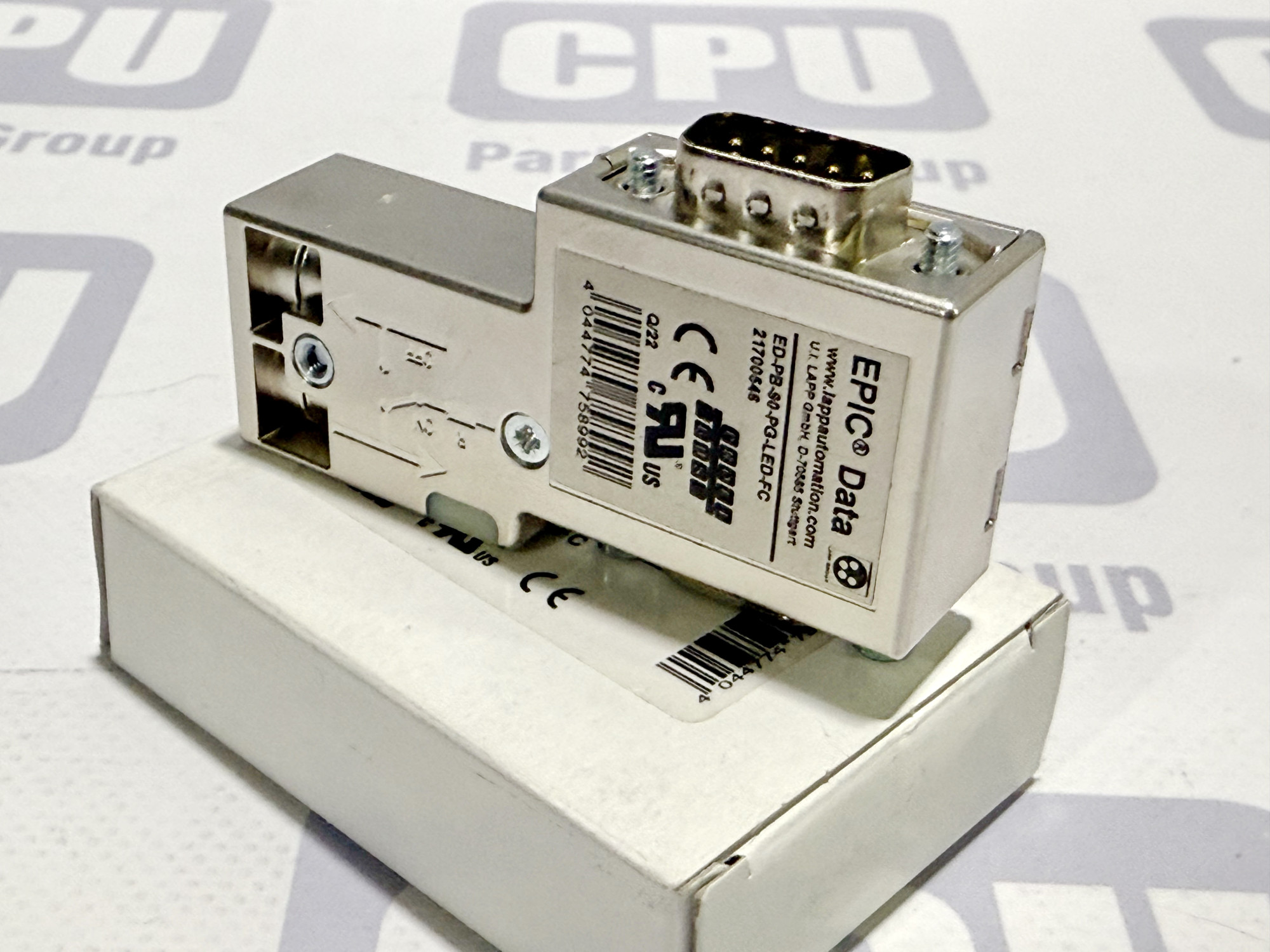

Product Description (SEO Block) The professional LAPP EPIC Data ED-PB-90-PG-LED-FC Profibus connector (part number 21700546) is engineered for fast, secure, and error-free installation in industrial automation networks. Thanks to its innovative Fast Connect (FC) displacement technology, cable stripping is completely eliminated, which dramatically reduces installation times and minimizes assembly mistakes. This connector features a 90-degree cable outlet angle, making it an ideal choice for space-restricted environments inside control cabinets and low-profile enclosures. A key feature of this model is the integrated 3-LED diagnostic display that provides real-time status of data transmission and terminating resistor activity, making network troubleshooting effortless without external tools. The heavy-duty metallized housing ensures superior electromagnetic compatibility (EMC) and shielding against harsh industrial noise. Equipped with an additional PG interface (integrated Sub-D programming socket), it allows direct connection of diagnostic tools or programming devices without interrupting the running network line. The built-in terminating resistor is easily activated via a user-friendly slide switch, isolating the subsequent bus segment for quick troubleshooting. Choose the original LAPP industrial connector to maximize network stability and prevent costly downtime on your production floor.

Specifications

• Manufacturer: U.I. LAPP GmbH (Germany)

• Series: EPIC Data Profibus Connector

• Model / Marking: ED-PB-90-PG-LED-FC

• Part Number: 21700546

• Connection Interface: Sub-D, 9-pin (male plug + additional female PG diagnostic socket)

• Cable Outlet Angle: 90 degrees

• Termination Method: Fast Connect (FC) / IDC knife contacts (no stripping required)

• Data Transmission Rate: up to 12 Mbit/s

• Terminating Resistor: Integrated, manual slide switch (ON/OFF)

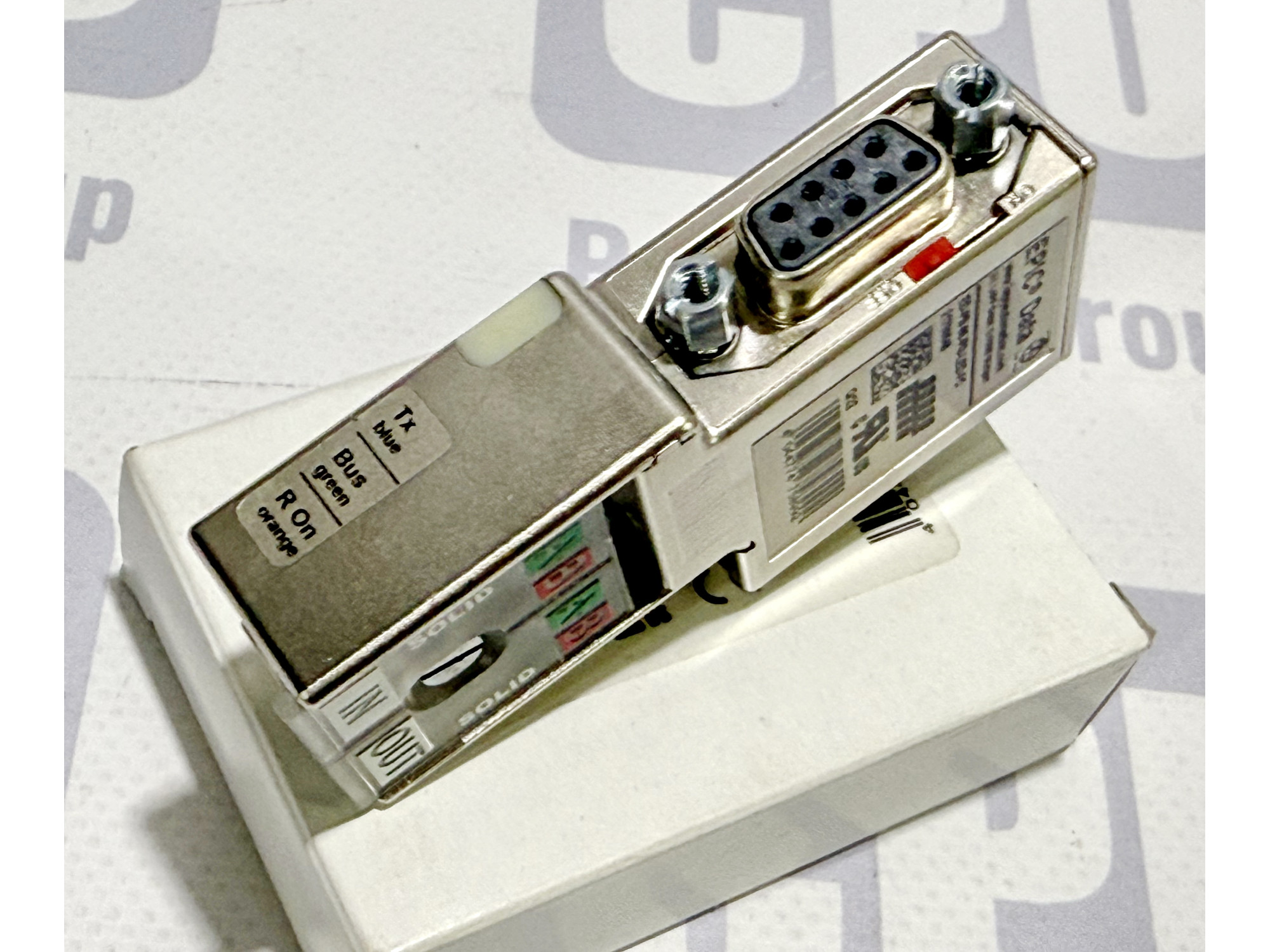

• Diagnostic LEDs: 3 status indicators (Tx, Bus, R On)

• Housing Material: Metallized plastic / zinc die-cast for optimal EMC shielding

• Protection Rating: IP20

• Operating Temperature: -20°C to +75°C

• Certifications: CE, cURus, Profibus Organization approved

Application This connector is widely utilized to interface field devices, programmable logic controllers (PLCs), sensors, drives, and human-machine interfaces (HMIs) with a industrial Profibus DP network. It is ideally suited for factory automation, machinery manufacturing, conveyor systems, packaging, woodworking, and food processing applications. The 90° angled body is vital for installations where tight bending radii prevent the use of straight connectors. The supplementary PG interface allows field engineers to seamlessly attach bus analyzers and service laptops for real-time diagnostic checks without disrupting the active fieldbus loop.
