RAFI Control Panel with PCB (5.40 552.359-001) 1 PCS
- Condition: Used
- Brand: RAFI
- Product Code: 5.40 552.359-001
- SKU: #D7809/ст#
- Availability: 1
- Warranty term: 30 days
- Located in: Ukraine
️ 28
-
Price: $774.00
- Ex Tax: $774.00
RAFI Control Panel with PCB (5.40 552.359-001)
- This RAFI control panel is designed for use in various industrial and mechanical engineering applications where an intuitive and reliable operator interface is required. It serves to control equipment functions, input commands, and monitor system status through a set of buttons, switches, rotary actuators, and illuminated indicators. The integrated printed circuit board (PCB) provides the control logic and interaction with the main equipment, making this panel a complete automation component.
Key Features:
- Manufacturer: RAFI
- Model / PCB Part Number: 5.40 552.359-001

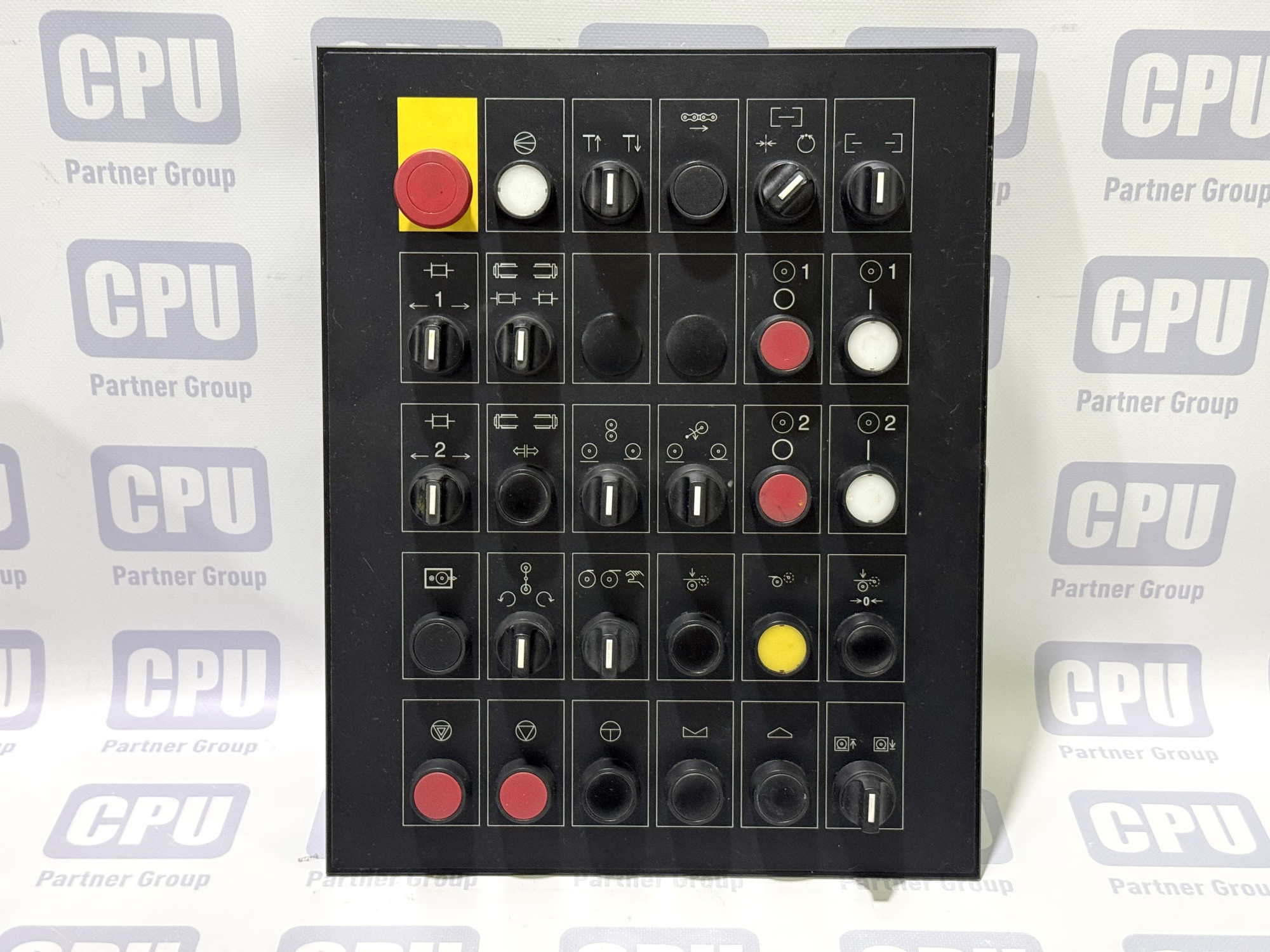

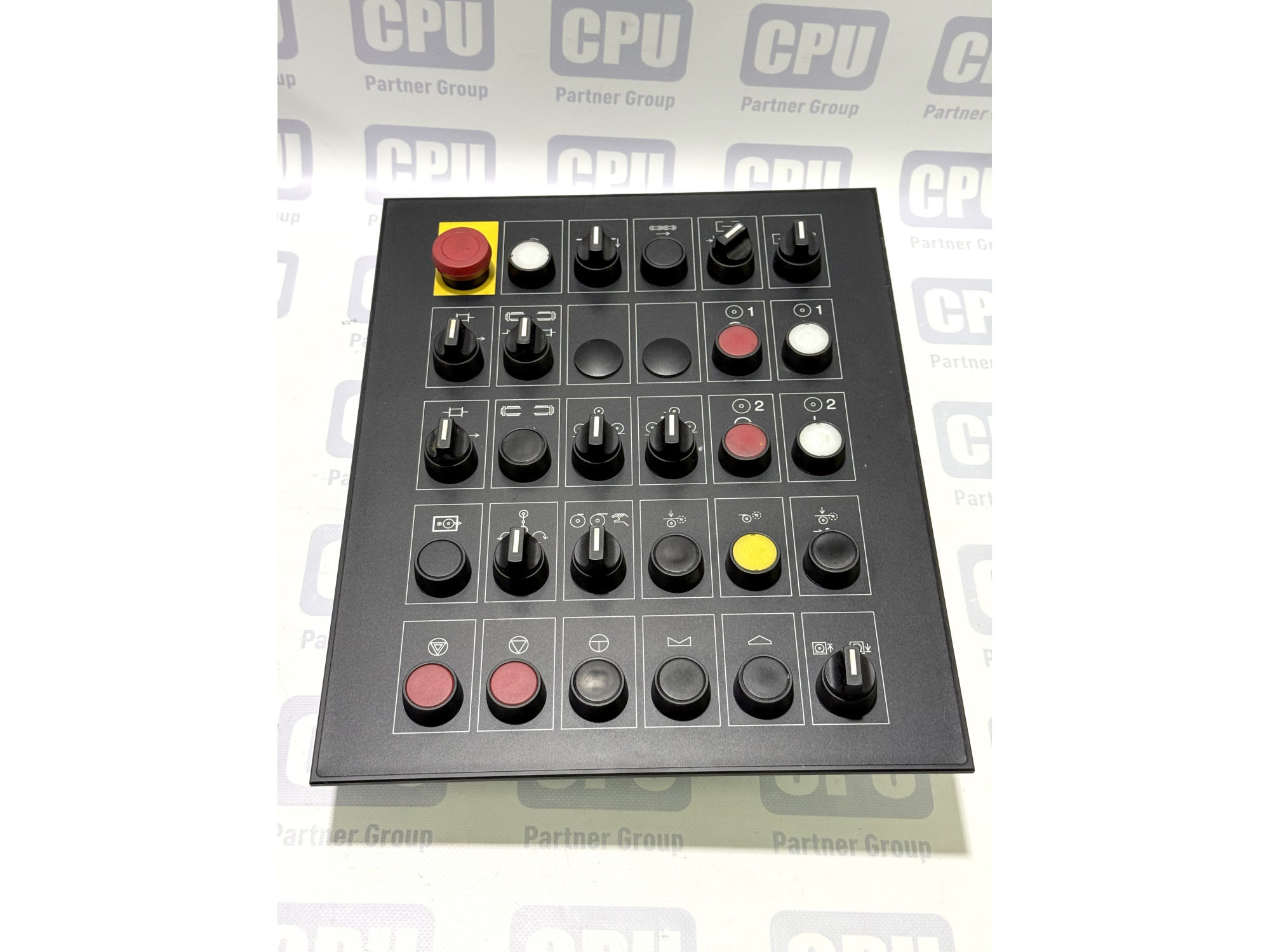

- Control Elements: Includes a wide range of buttons (red, white, black, yellow), rotary switches with various symbols and fixed positions, as well as illuminated indicators (red, white, yellow).
- Visual Indicators: Symbols on the buttons and around the rotary switches indicate their functions (e.g., arrows, numerical designations, operating mode symbols).

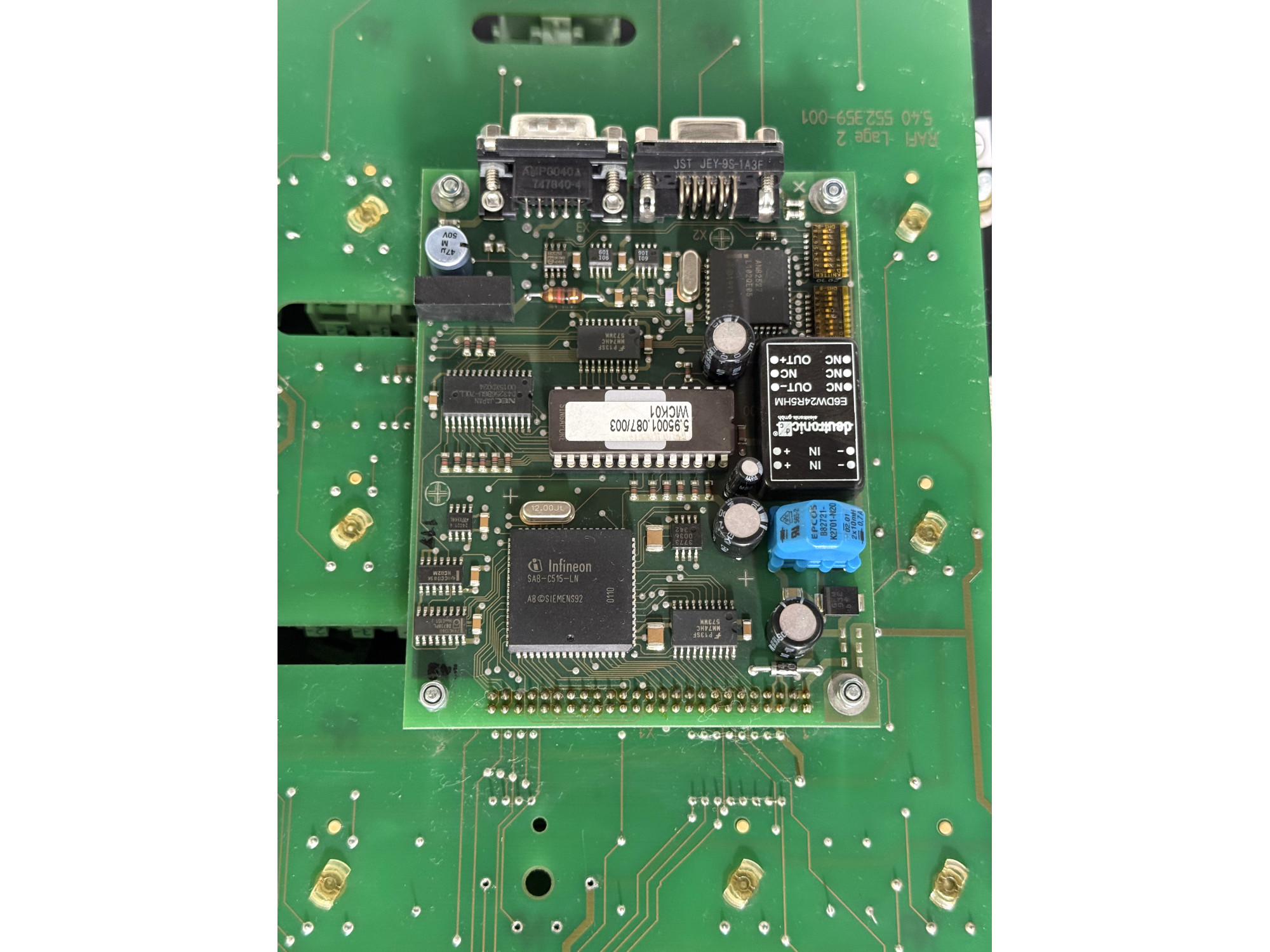

- Internal Configuration: The rear of the panel houses the main green printed circuit board, to which a daughterboard is attached. Key components such as Infineon SAB-C515-LM microcontrollers and Deutronic E6DW24R5HM modules are located on the daughterboard.
- Connection Interfaces: Various connectors (including JST and D-sub connectors), screw terminals, and contact pads are visible on the board, ensuring flexible connection to control systems.
Unique Advantages or Features:
- All-in-One Integrated Solution: The integration of a highly intelligent control board directly into the panel simplifies mounting and connection, offering a ready-to-use HMI solution with built-in logic.
- High RAFI Quality: RAFI products are known for their reliability, durability, and adherence to industrial standards, which is critical for operation in harsh conditions.
- Multifunctionality: The variety and thoughtful arrangement of control elements allow for the implementation of complex control functionalities and provide high flexibility for the operator.
- Reliable Electronics: The use of reputable components such as Infineon and Deutronic underscores the high level of reliability and performance of the integrated electronics.
- Intuitive Design: Clear symbols and color-coded buttons facilitate operator interaction with the panel and reduce the likelihood of errors.
- Flexible Integration: Thanks to a wide range of connectors and a well-designed PCB, the panel can be easily integrated into existing or new automated systems.
