Schmersal IFL 2-6,5M-10P Inductive Proximity Sensor (1112854)

Schmersal IFL 2-6,5M-10P Inductive Proximity Sensor (1112854)

Product Description

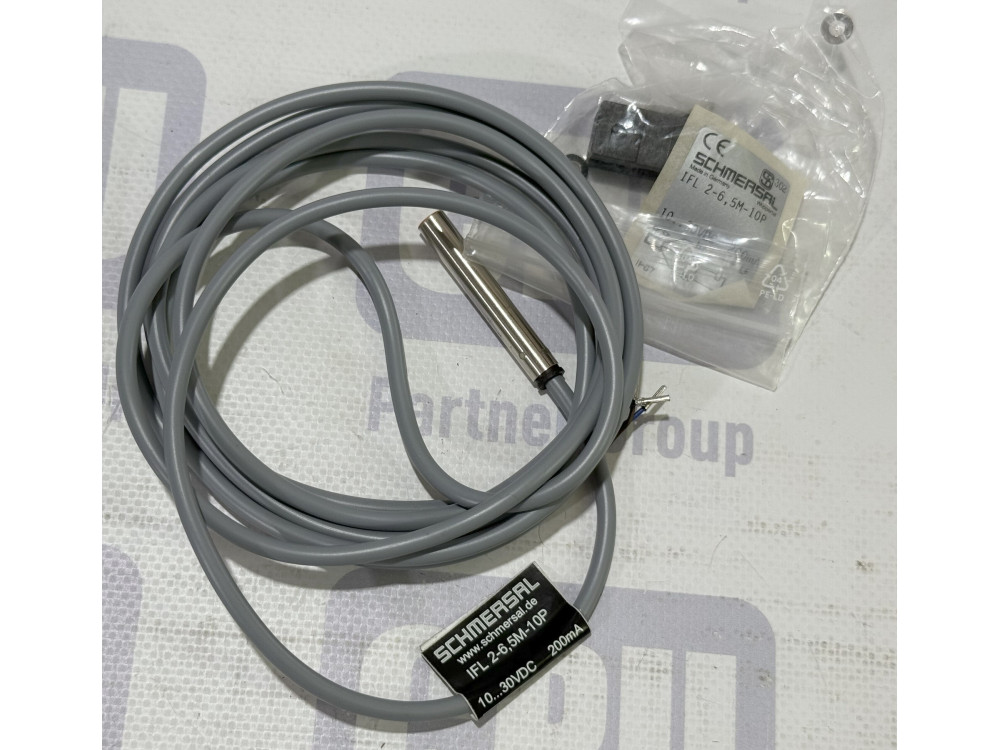

The German-made Schmersal IFL 2-6,5M-10P inductive proximity sensor is engineered for the non-contact detection of metallic objects within its sensing range. This heavy-duty device features a highly compact, smooth cylindrical metal housing with a 6.5 mm diameter and comes equipped with a long integrated connection cable. Renowned for its industrial-grade reliability, precise switching, and exceptional environmental resistance, it boasts an IP67 rating against dust and water ingress. The package includes a dedicated mounting block and securing screws.

Specifications

• Manufacturer: Schmersal (Germany)

• Model / Part Number: IFL 2-6,5M-10P / 1112854

• Sensor Type: Inductive proximity sensor

• Housing Design: Smooth cylindrical

• Housing Diameter: 6.5 mm

• Rated Operating Distance: 2 mm

• Operating Voltage: 10...30 VDC (Direct Current)

• Maximum Switching Current: 200 mA

• Switching Output / Function: PNP, Normally Open (NO)

• Degree of Protection: IP67 (dust-tight and water-resistant)

• Connection Type: 3-wire cable

• Compliance Standard: IEC 60947-5-2

Application

This proximity sensor is widely utilized across factory automation systems, assembly lines, and conveyor machinery. It is ideal for monitoring the position of moving metallic machine components, counting metal parts or workpieces, serving as a limit switch (end-stop control), and integrating into automated control systems for CNC machines and packaging equipment.
