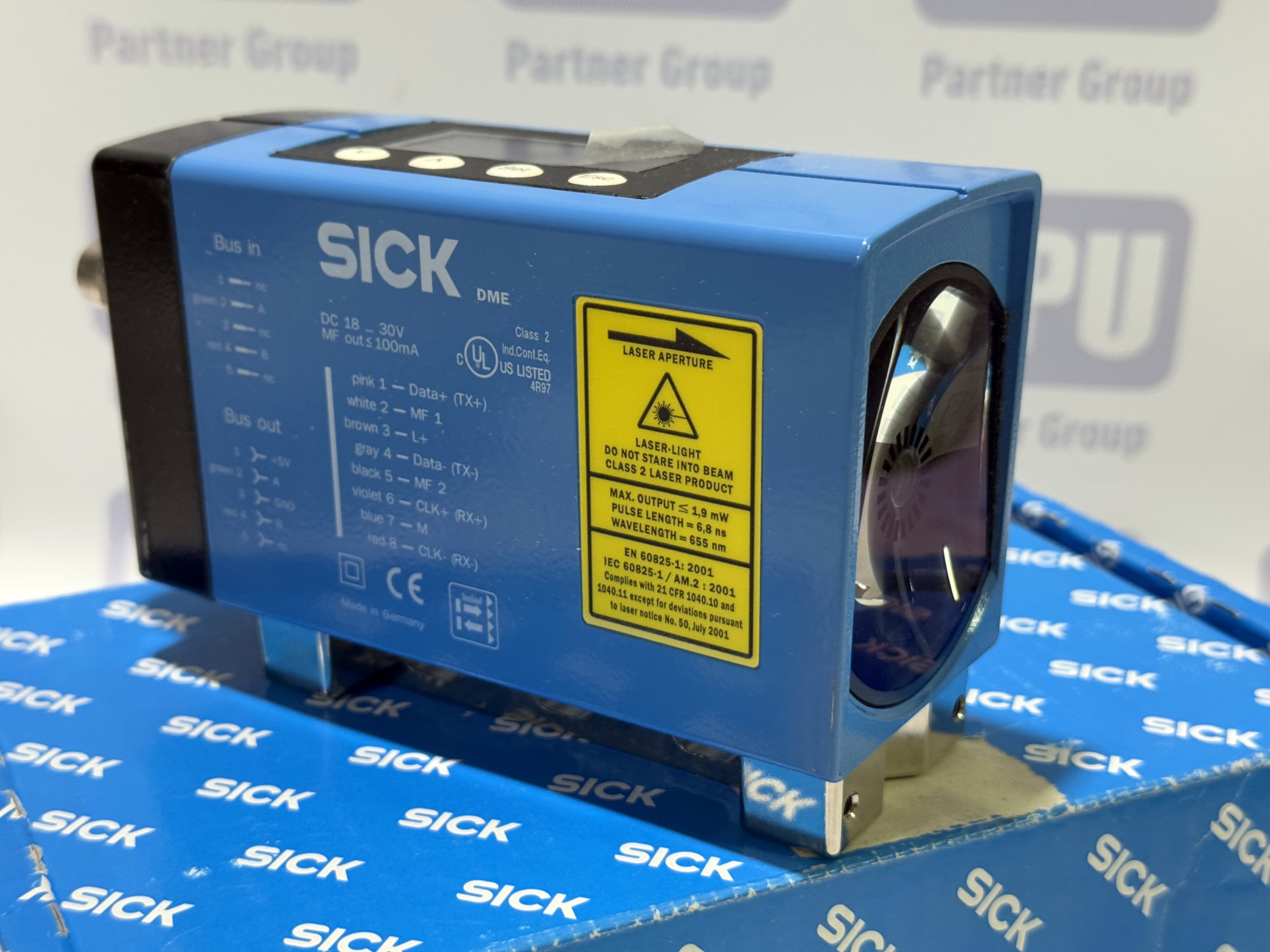

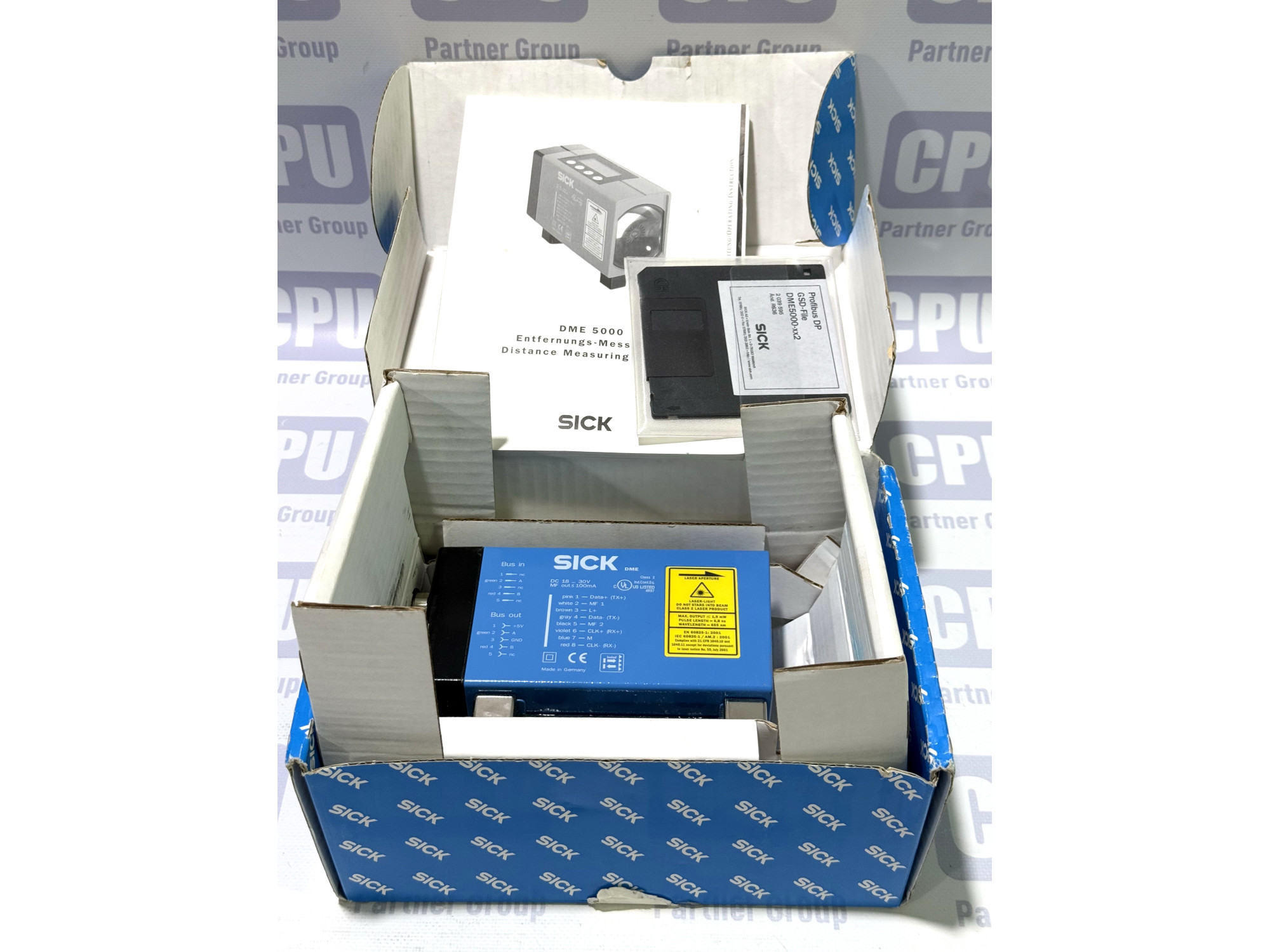

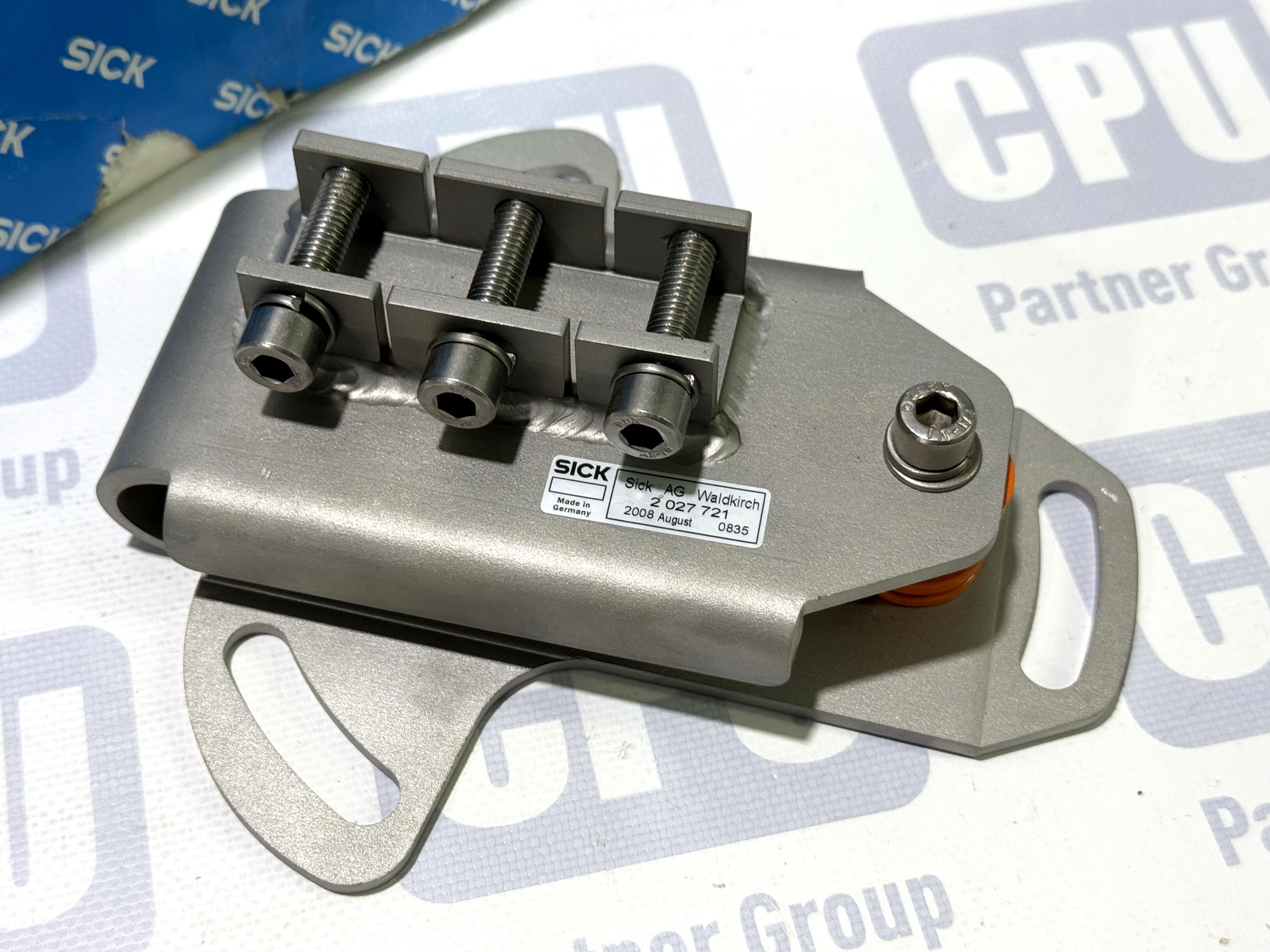

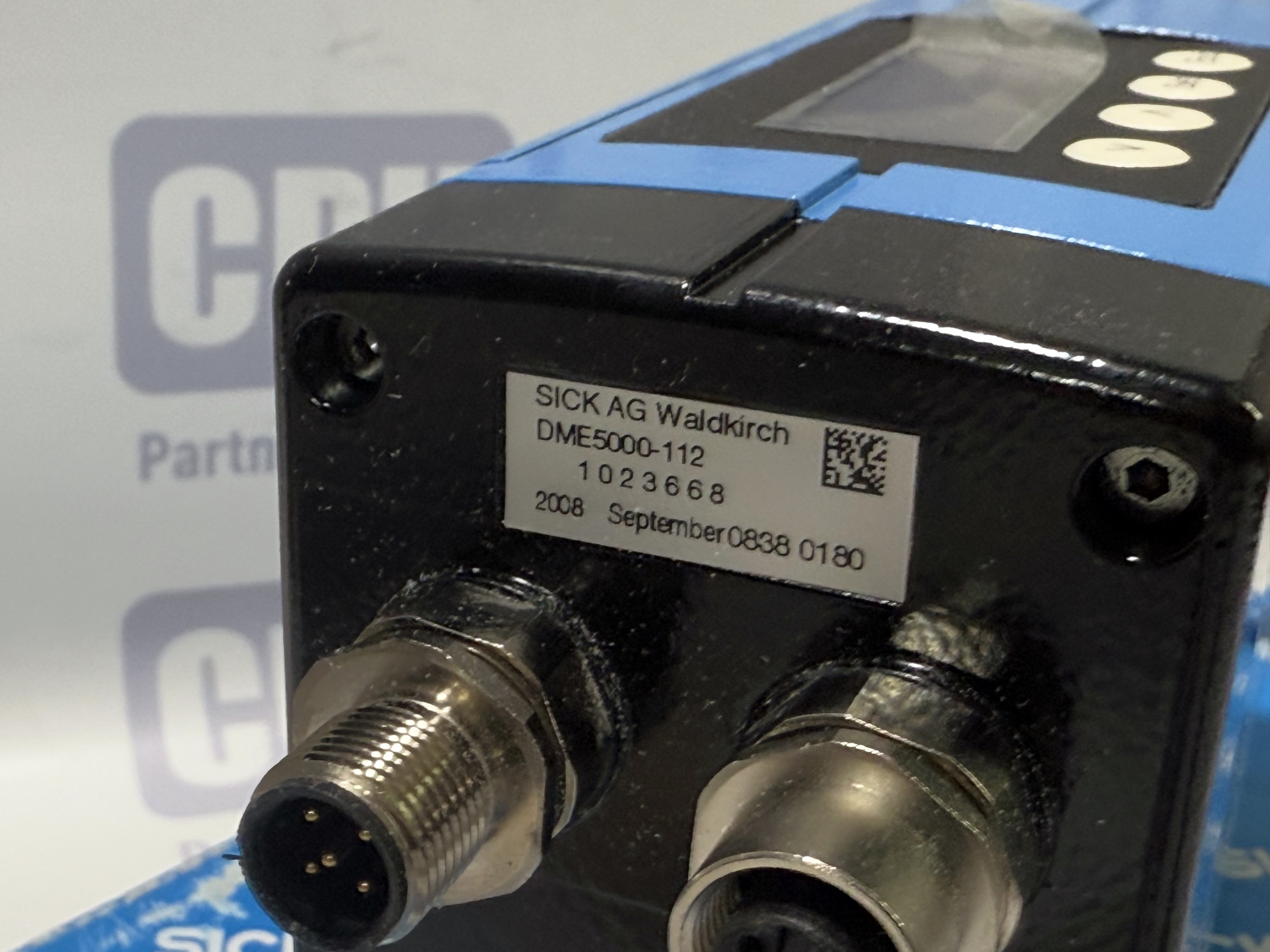

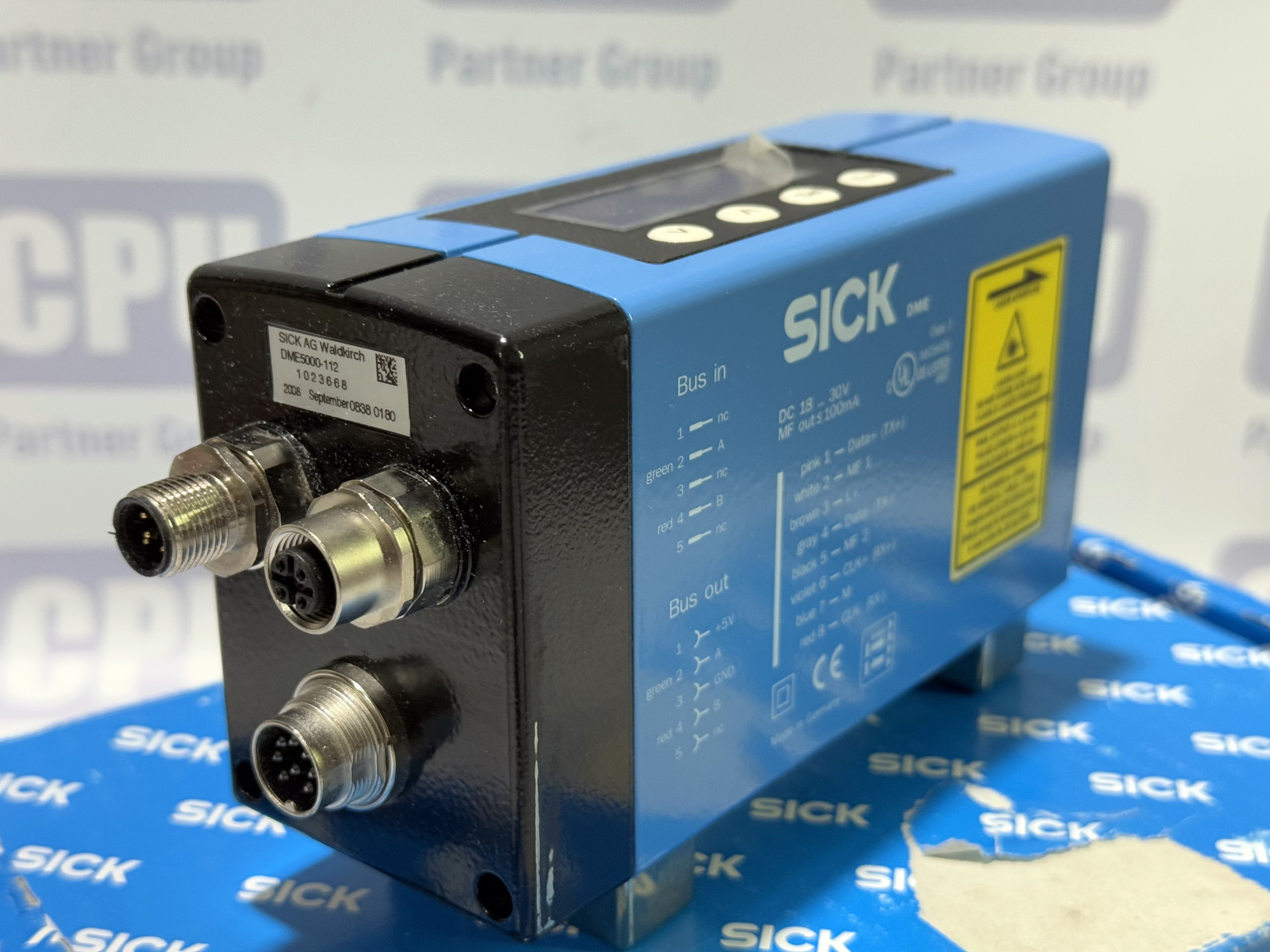

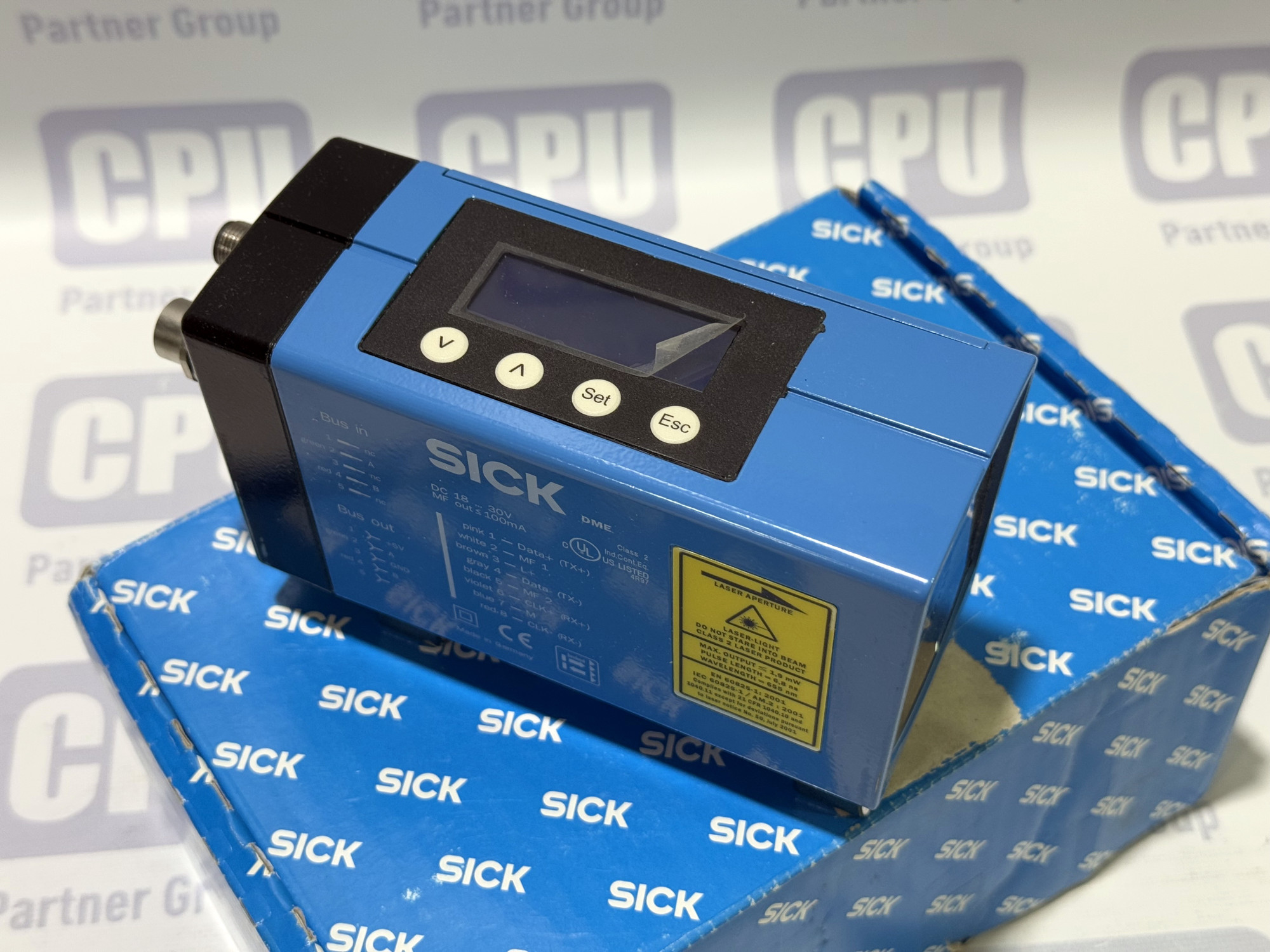

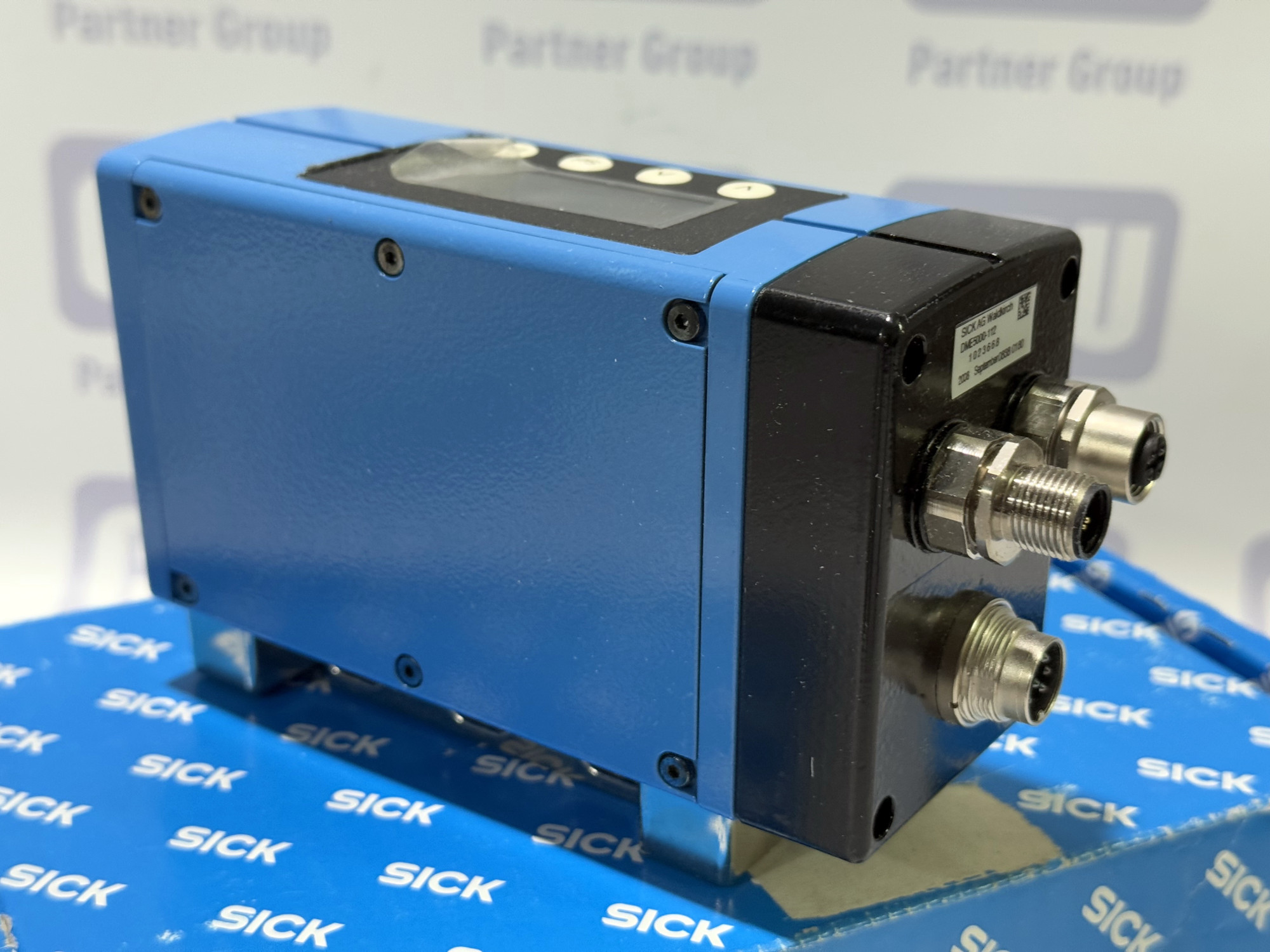

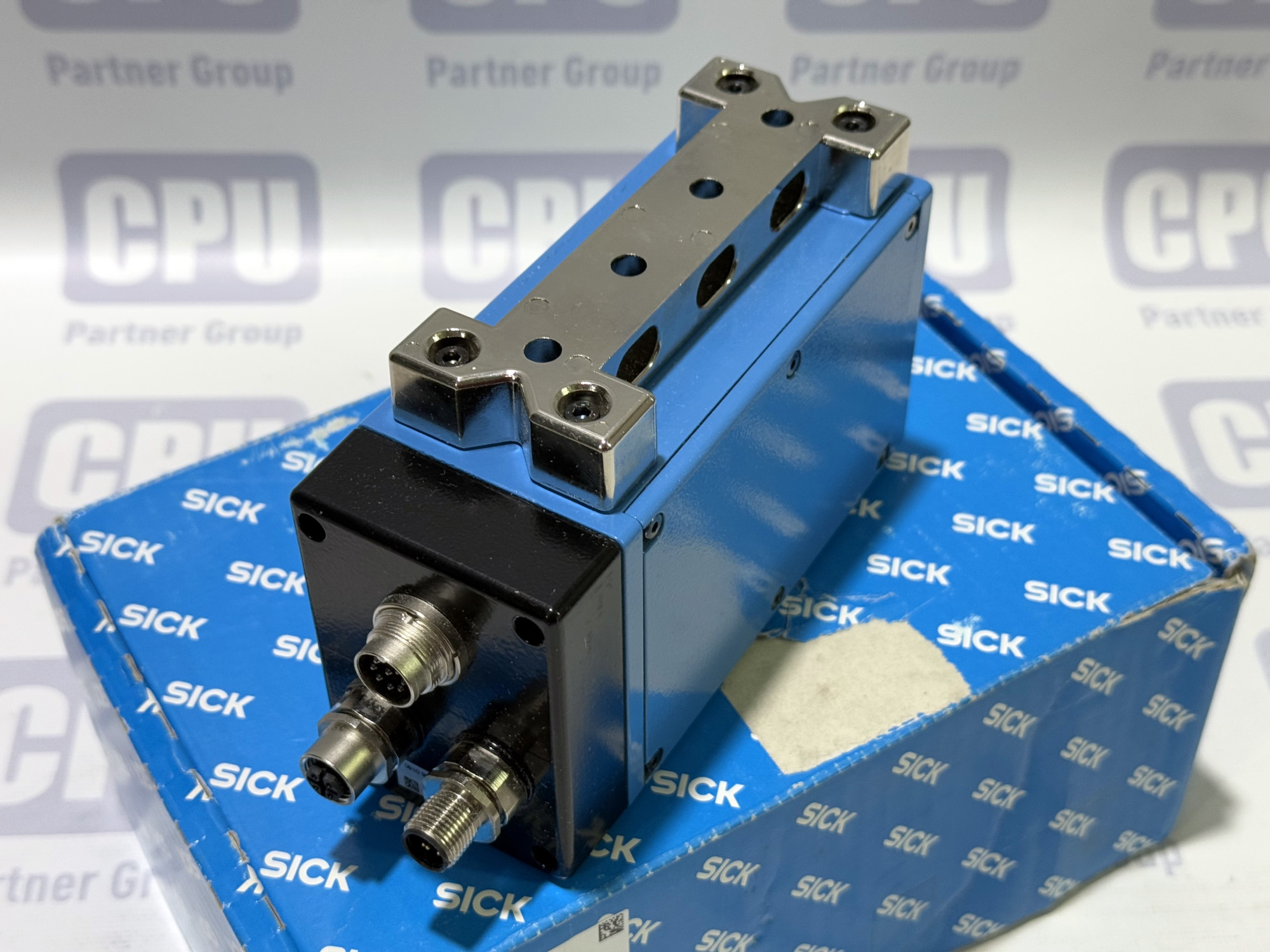

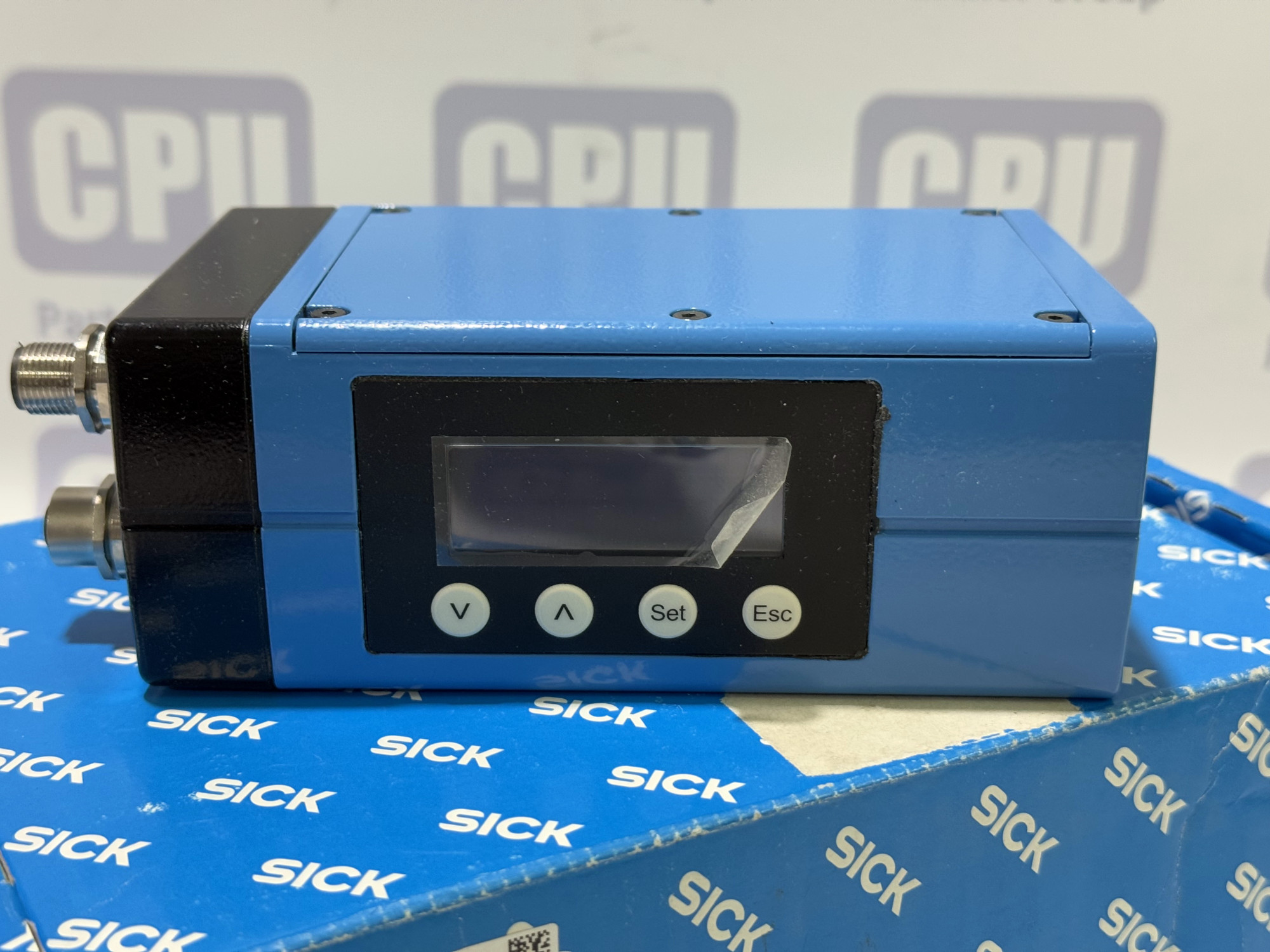

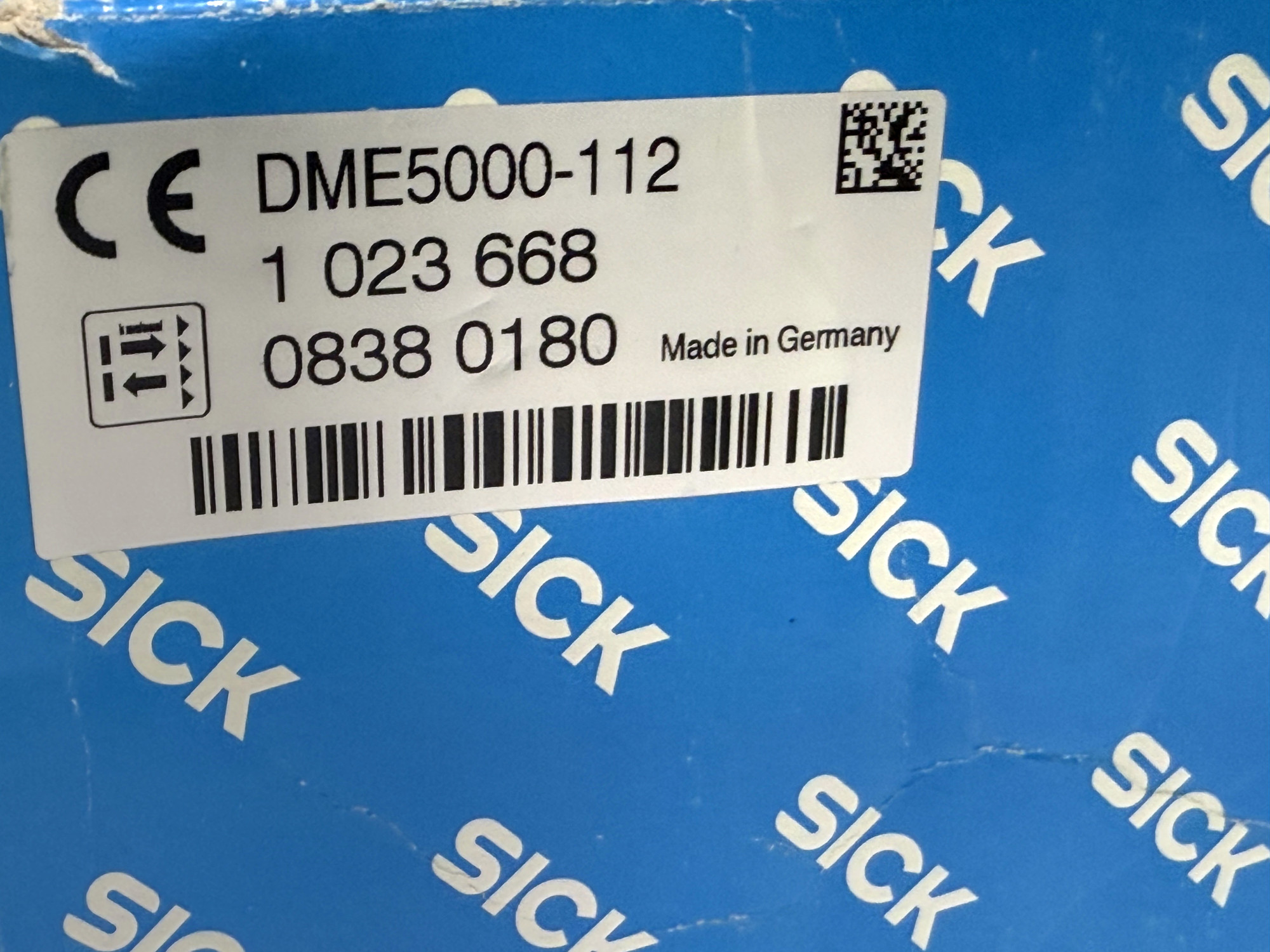

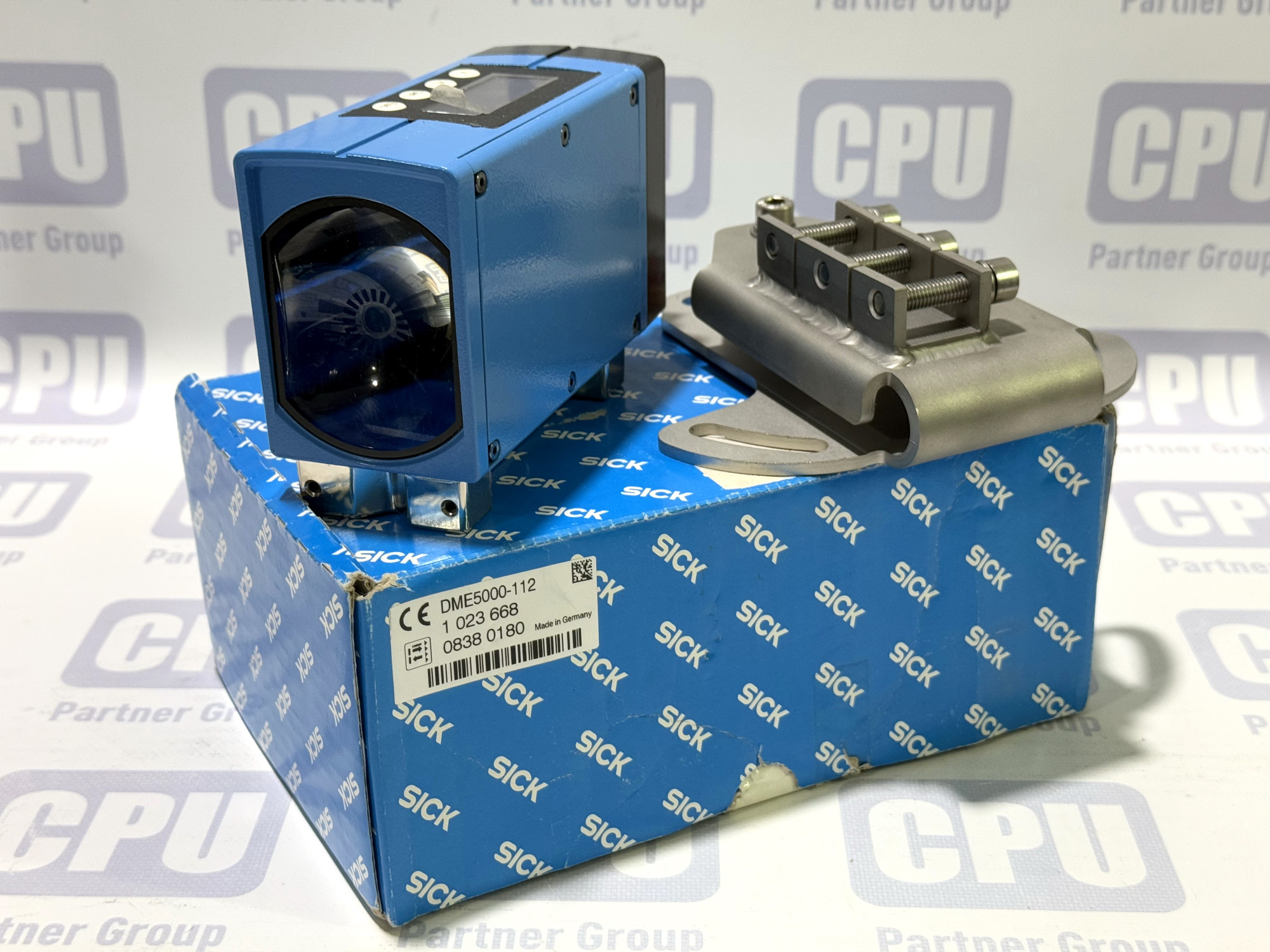

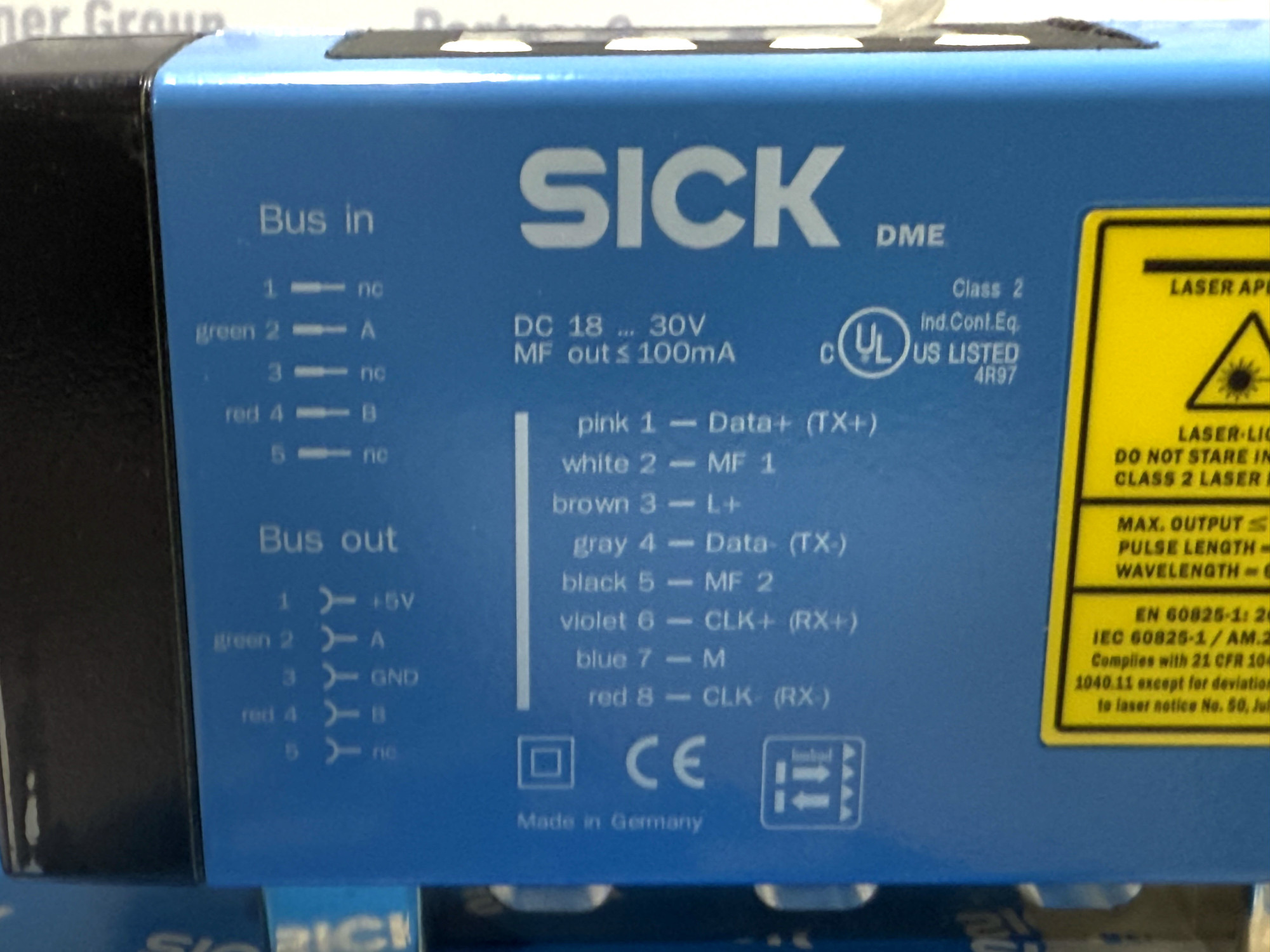

Sick AG Waldkirch DME5000-112 + Sick AG Waldkirch 2 027 721 Laser distance sensor
- Condition: New
- Brand: Sick
- Product Code: DME5000-112
- SKU: #EV1972/1/39#
- Availability: 1
- Warranty term: 30 days
- Located in: Ukraine
-
Price: $3,150.00
- Ex Tax: $3,150.00
Sick AG Waldkirch DME5000-112 + Sick AG Waldkirch 2 027 721 Laser distance sensor
|
Measuring range |
0.15 m ...
70 m, on “diamond grade” reflective tape 1) |
||||||
|
Target |
Reflector |
||||||
|
Resolution |
0.05 mm ...
5 mm |
||||||
|
Repeatability |
0.5 mm 1) 2) |
||||||
|
Measurement accuracy |
± 2 mm |
||||||
|
Response time |
6 ms |
||||||
|
Output time |
2 ms |
||||||
|
Light source |
Laser, red 3) |
||||||
|
Type of light |
Visible red light |
||||||
|
Laser class |
2, complies with
21 CFR 1040.10 and 1040.11 except for the conformance
according to “Laser Notice No. 50” from June 24,
2007 (IEC 60825-1:2014, EN 60825-1:2014) |
||||||
|
Typ. light spot size (distance) |
130 mm (at
70 m) 270 mm (at
150 m) 360 mm (at
220 m) |
||||||
|
Max. movement speed |
10 m/s |
||||||
|
|||||||
1) On “diamond
grade” reflective tape.
2) Statistical
error 1 σ, environmental conditions constant, min. warm-up time
10 min.
3) Average service
life of 50,000 h at TA = +25 °C.
Mannual for Sick DME5000-112
