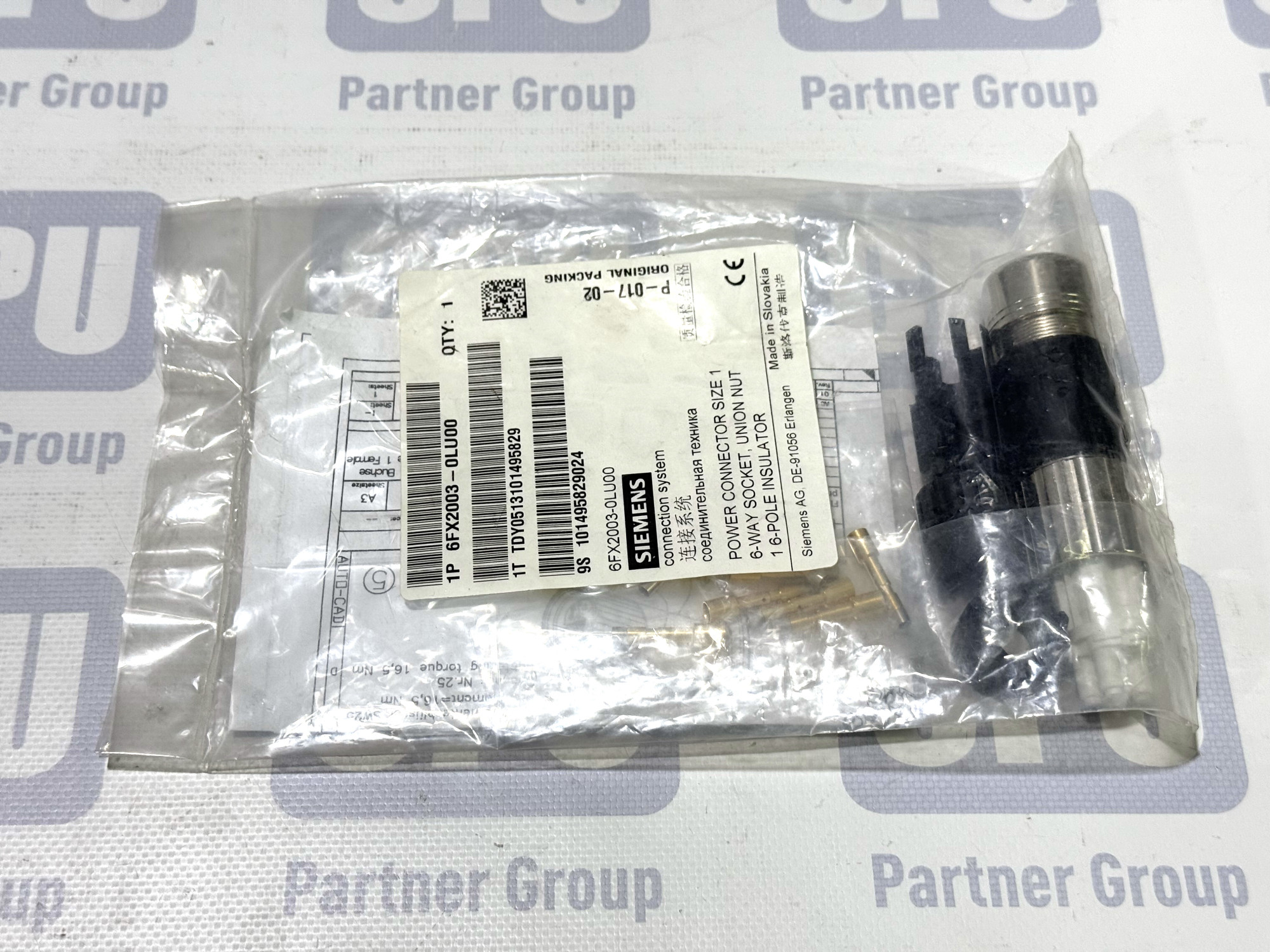

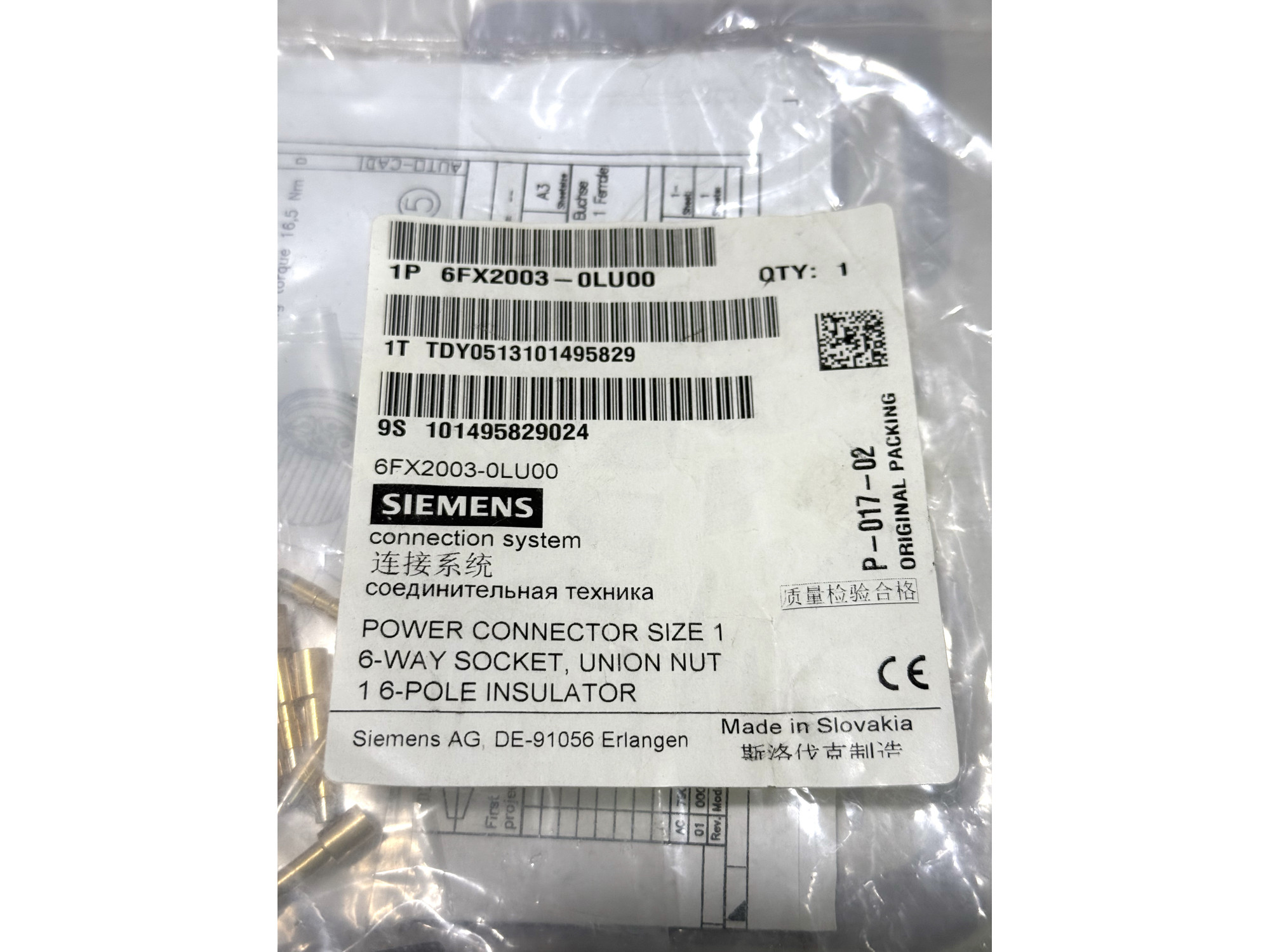

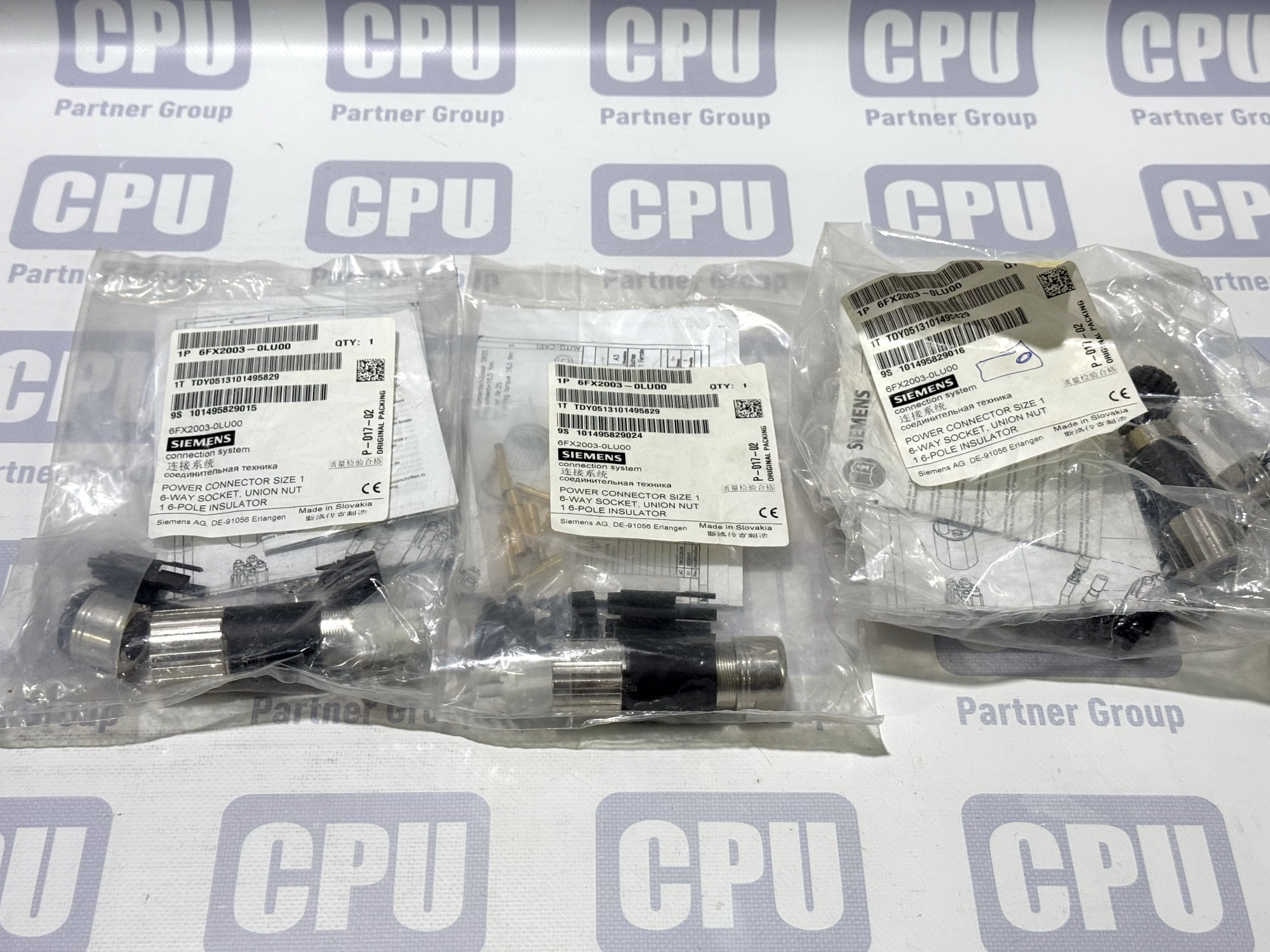

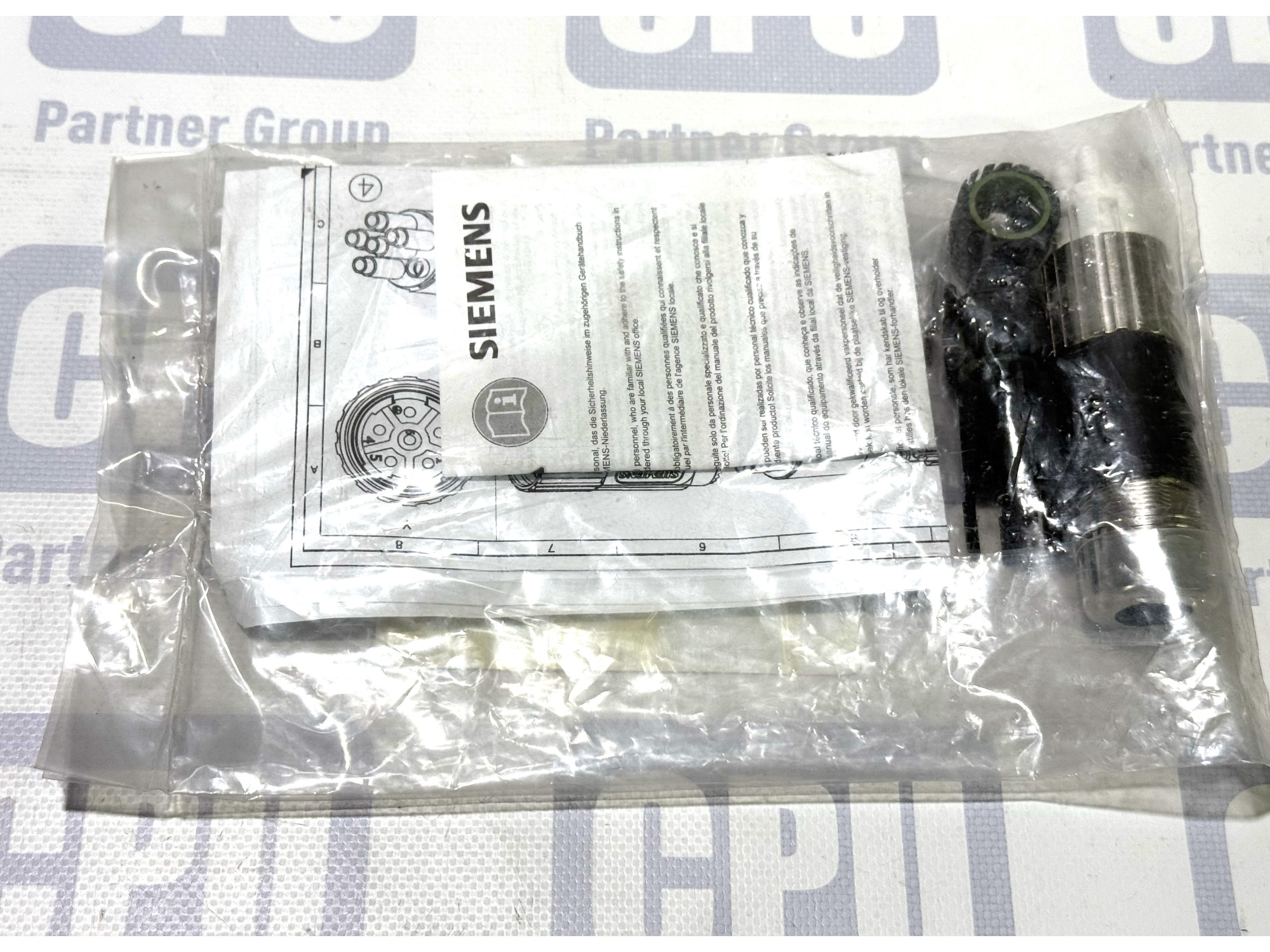

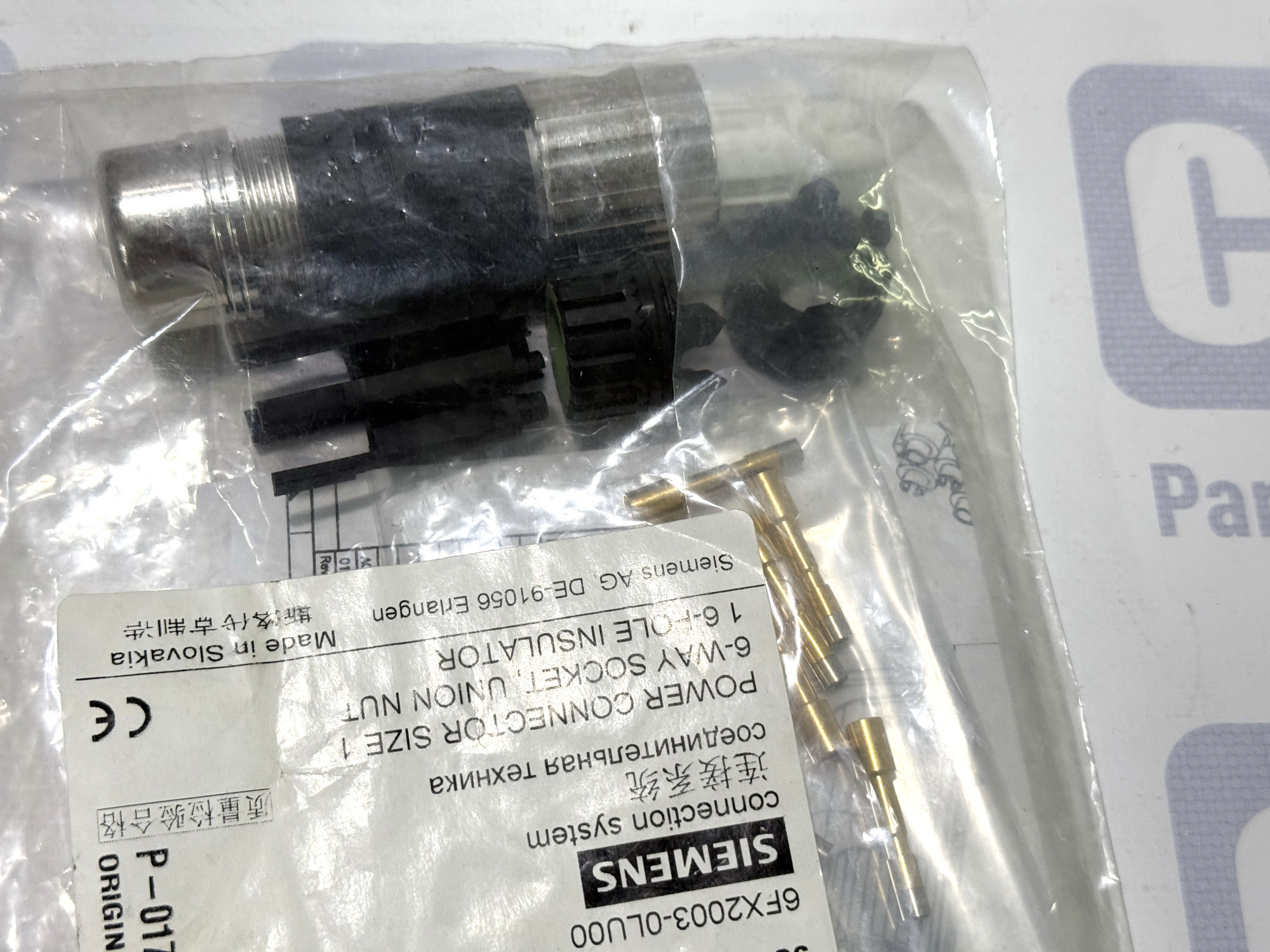

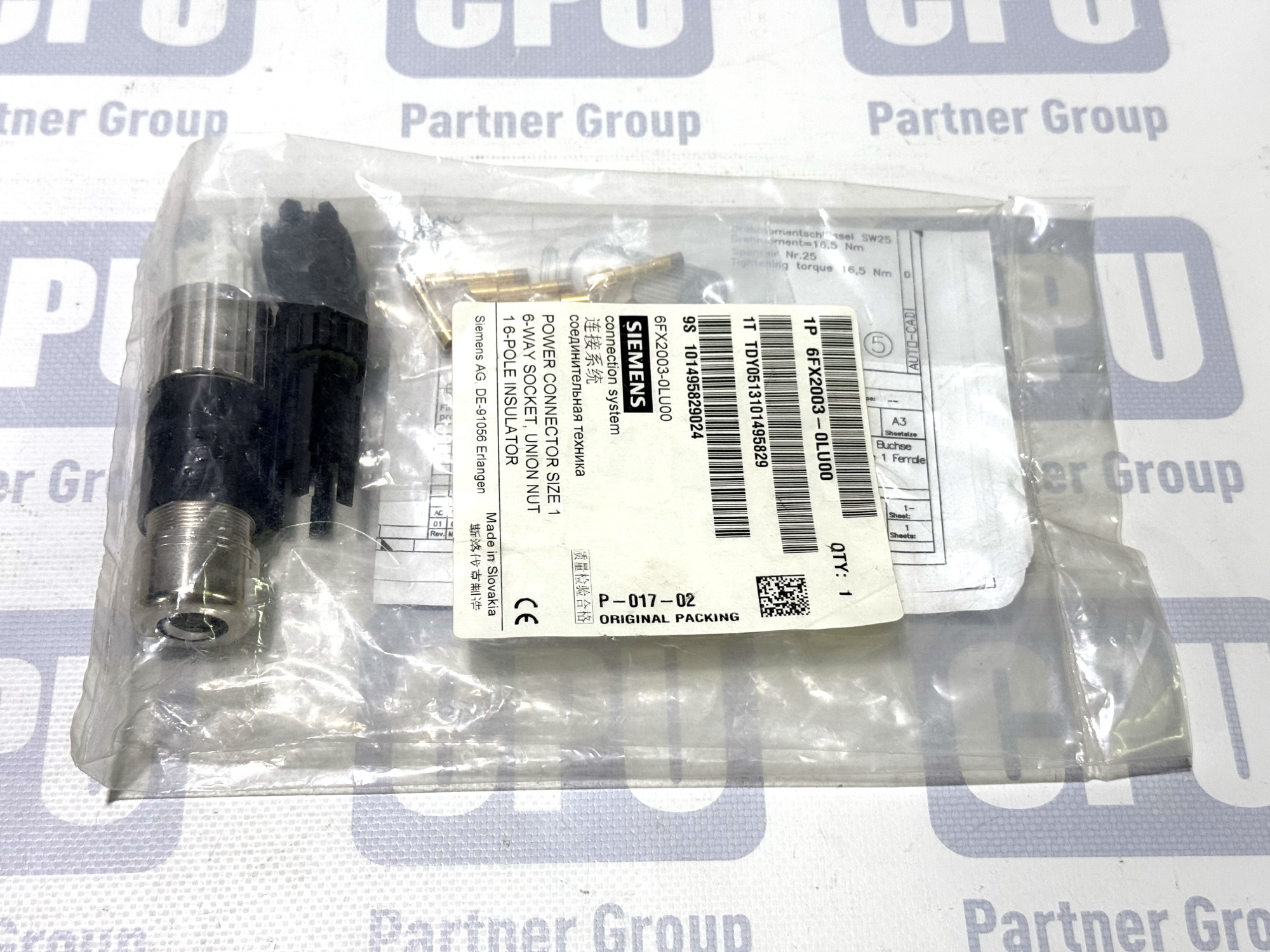

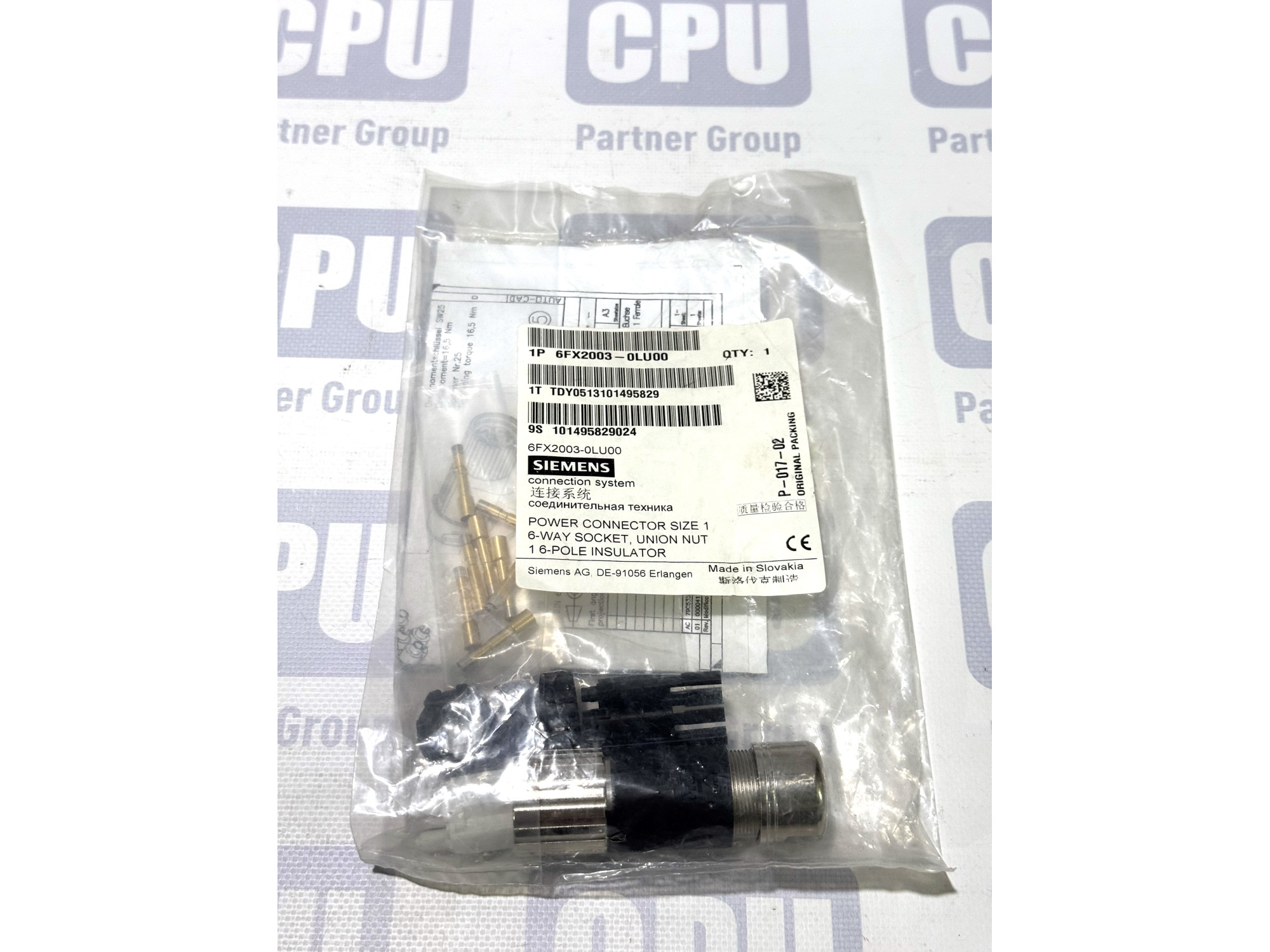

Siemens 6FX2003-0LU00 Power Connector

General Description: Siemens 6FX2003-0LU00 is a power connector manufactured by Siemens, designed for connecting power cables in automation systems and industrial equipment. This connector belongs to the Siemens series of industrial connectors for reliable electrical connections.

Main Technical Specifications:

• Device Type: Power connector/plug
• Series: 6FX2003 (Siemens industrial connectors)
• Rated Current: Depends on specific modification (typically from 16A to 63A)
• Rated Voltage: Up to 690 V AC/DC
• Number of Contacts: Multi-contact (exact number depends on modification)
• Mounting Type: Panel or cable mounting
• Protection Degree: IP65/IP67 (when assembled)
• Housing Material: High-quality plastic or metal
• Operating Temperature: -40°C to +125°C (typically)

Features and Benefits:

• High connection reliability in industrial conditions
• Protection against dust and moisture (high IP rating)
• Quick and safe connection/disconnection
• Resistance to vibrations and mechanical loads
• Color coding for easy identification
• Locking mechanism against accidental disconnection
• Compliance with international safety standards
• Durability under frequent connection/disconnection cycles

Applications:

• Industrial machines and equipment
• CNC (Computer Numerical Control) systems
• Robotic systems
• Servo motors and drives
• Production automation systems
• Power equipment
• Power cable connections in distribution panels
• Mobile industrial equipment

Design Features:

• Robust housing resistant to chemical influences
• Gold-plated contacts to minimize resistance
• Ergonomic design for installation convenience
• Suitable for use in harsh industrial conditions

The 6FX2003 series connectors from Siemens are widely used in industrial automation due to their reliability, durability, and compliance with strict industrial quality and safety standards.

On this page you will find the user manual for Siemens 6FX2003-0LU00. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for Siemens 6FX2003-0LU00
