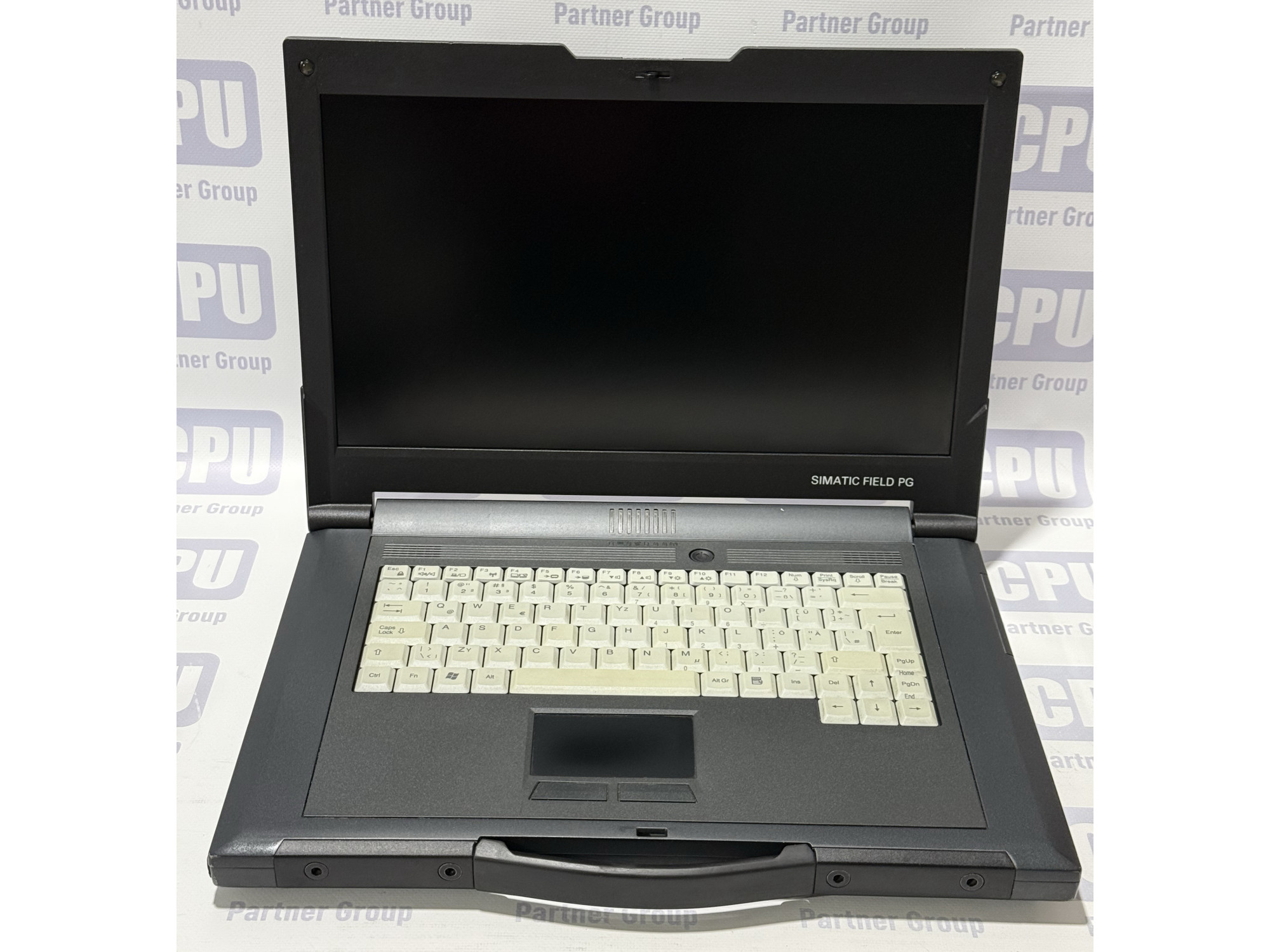

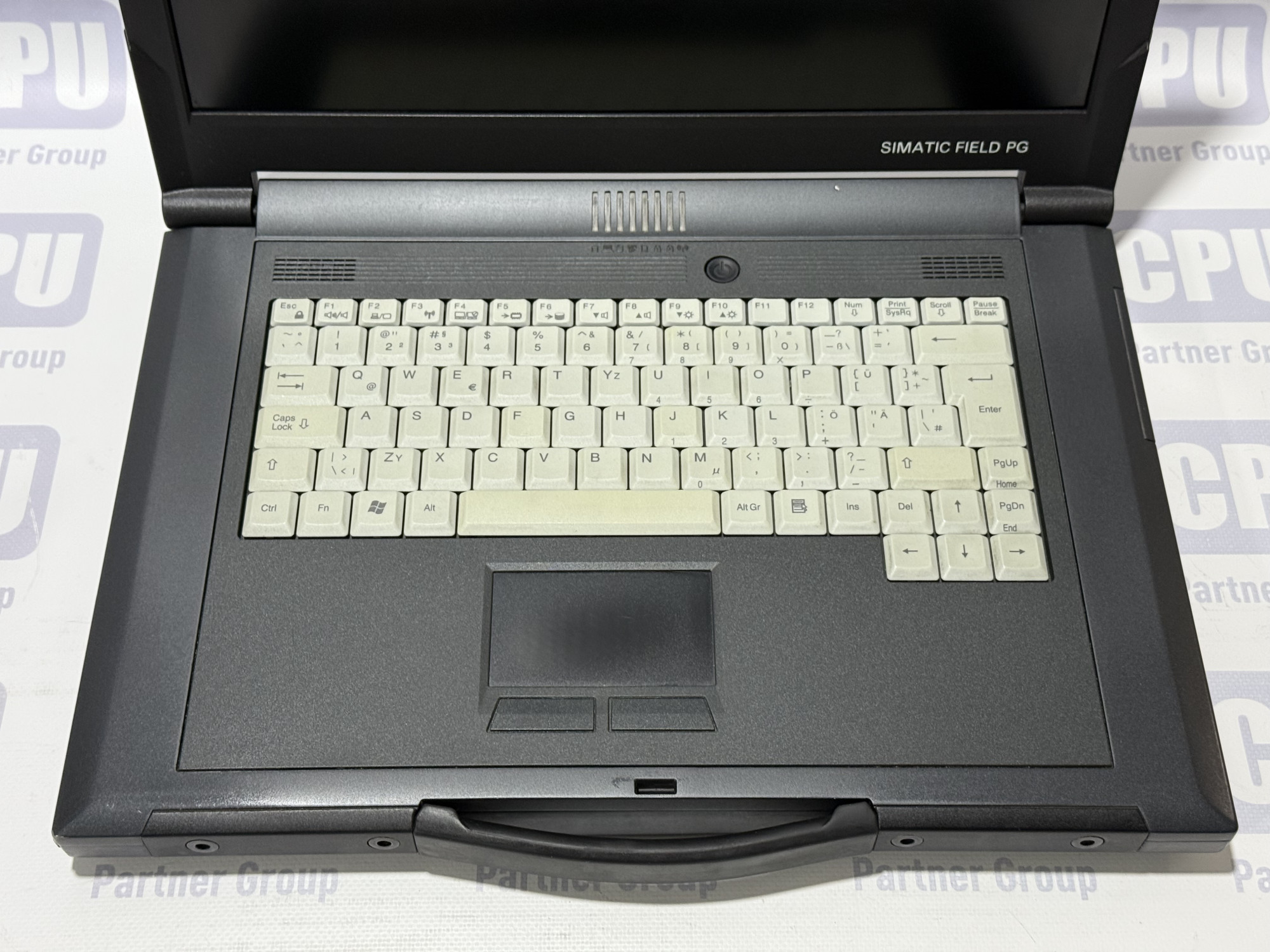

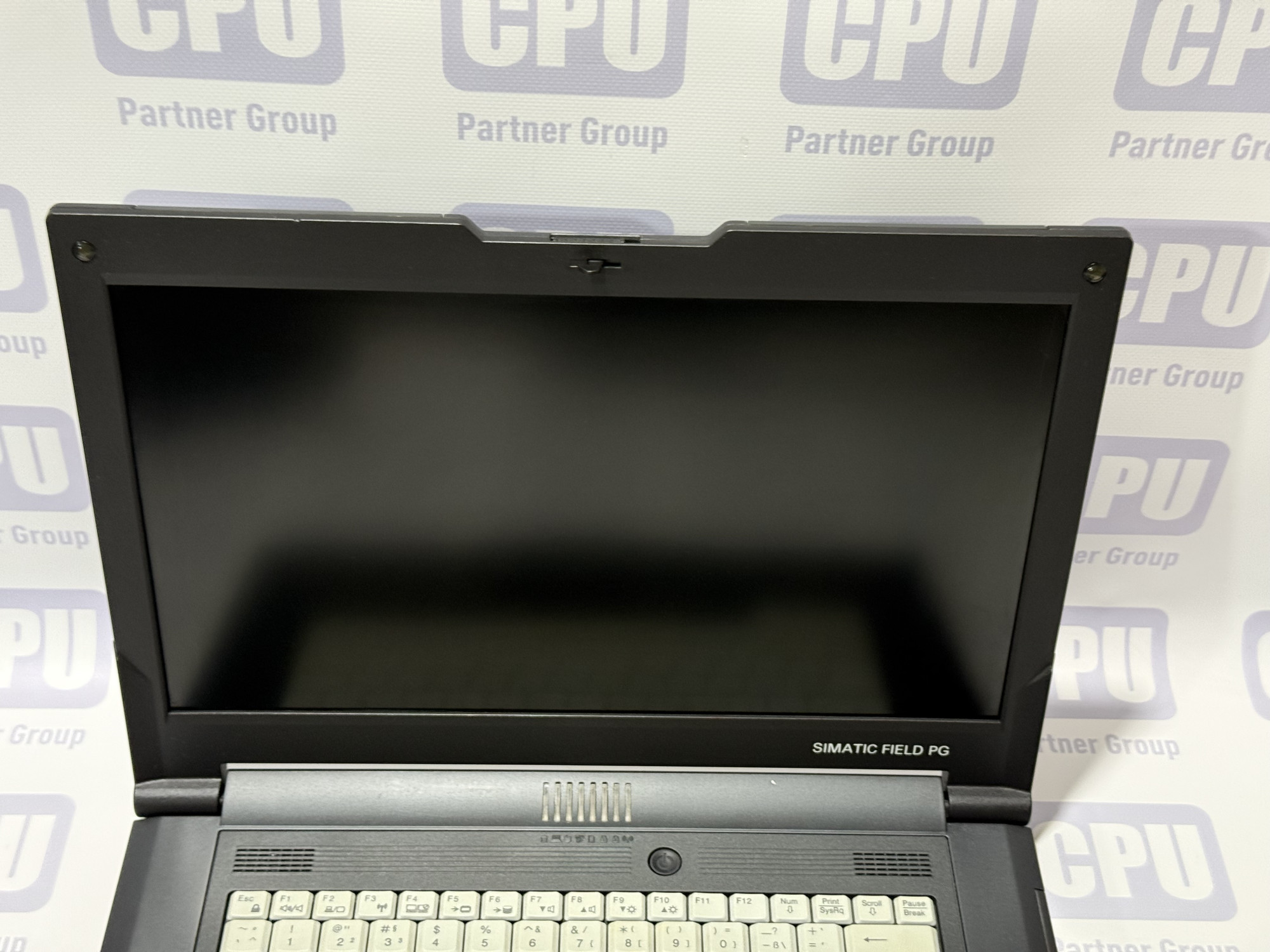

Siemens AG SIMATIC Fiegld PG M3 6ES7715-1CC20-0AE0 industrial laptop, №1

General Description of Siemens SIMATIC Field PG M3

The Siemens SIMATIC Field PG M3 is a ruggedized mobile programming system (industrial laptop) specifically designed for working with Siemens SIMATIC automation systems, such as SIMATIC S7 PLCs and WinCC flexible Human Machine Interfaces (HMIs). It's intended for engineers and technicians who need to perform programming, diagnostics, commissioning, and maintenance of Siemens equipment directly in industrial environments or in the field.

Key Features (Likely Applicable to 6ES7715-1CC20-0AE0)

• Robust Design: Resistant to shock, vibration, and an extended temperature range, typical of industrial environments.
• High Electromagnetic Compatibility (EMC): Protection against electromagnetic interference, which is crucial in industrial settings.
• Integrated Interfaces: Built-in industrial interfaces such as MPI/DP (Multi Point Interface/Distributed I/O), PROFIBUS, PROFINET (via Ethernet), COM ports, USB ports, etc., for direct connection to SIMATIC equipment without additional adapters.
• Software: Shipped with pre-installed Siemens automation software, such as:
  • STEP 7 Professional: For programming SIMATIC S7-300/400 PLCs.
  • WinCC flexible Advanced: For HMI application development.
  • STEP 5: For working with older SIMATIC S5 systems (if it's the "Premium/S5" version).
  • STEP 7-Micro/WIN: For SIMATIC S7-200 PLCs.
• Autonomous Operation: Equipped with a high-capacity lithium-ion battery for working without an external power source.
• Display: Typically a 15.6-inch display, often with Full HD (1920x1080) resolution.

Approximate Technical Specifications (Based on Similar Field PG M3 Series Models, as Exact Ones for -0AE0 are Hard to Find)

• Processor: Often mentioned are Intel Core i5 (e.g., i5-520M, 2.4 GHz) or Pentium Dual-Core (e.g., P4500, 1.86 GHz) depending on the "Standard" or "Premium" version.
• Random Access Memory (RAM):
  • Standard configuration: 2 GB DDR3 RAM (1x 2 GB).
  • Premium configuration: 3 GB DDR3 RAM (1x 1 GB, 1x 2 GB).
  • Upgrade potential up to 8 GB (2 x 4 GB) via service centers (e.g., as part of maintenance).
• Hard Drive (HDD/SSD):
  • HDD: 250 GB or 500 GB SATA HDD.
  • Possibility of installing an SSD for improved performance.
• Optical Drive: DL Multi-Standard DVD RW.
• Interfaces:
  • S5-interface (for "Premium/S5" version).
  • S5-EPROMMER (EPROM programmer for S5).
  • EPROM adapter and S5-AG cable (often included for S5 versions).
  • Ethernet (RJ45).
  • USB.
  • Serial ports (COM).
  • PC Card slot (possibly).
• Display: 15.6" Full HD (1920x1080).
• Keyboard: QWERTY (with additional German layout).
• Operating System: Often Windows XP Professional or Windows 7 Ultimate (32-bit), usually with a multilingual interface (English, German, French, Spanish, Italian).
• Dimensions (W x H x D): Approximately 385 x 53 x 275 mm.
• Weight: Without battery approx. 3 kg, with battery approx. 3.4 kg.
• Power Supply: 100 V to 240 V AC (±10%), 50 - 60 Hz.
• Noise Level: < 45 dB(A).
• Protection Class: IP30 (with closed covers) according to IEC 60529.
• Standards Compliance: EMC (EN 61000-6-3, EN 61000-3-2), safety (IEC 60950-1, VDE 0805).

On this page you will find the user manual for Siemens SIMATIC Fiegld PG M3. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Mannual for Siemens SIMATIC Fiegld PG M3
