Siemens Sinamics G120 Power Module PM230 (6SL3210-1NE14-1UL1) and Line Filter Class B (6SL3203-0BE17-7BA0) 1 pcs

Siemens Sinamics G120 Power Module PM230 (6SL3210-1NE14-1UL1) and Line Filter Class B (6SL3203-0BE17-7BA0)

These components form the foundation for building a reliable and high-performance system for controlling asynchronous electric motors within the Siemens Sinamics G120 frequency converter. The PM230 power module ensures efficient energy conversion for precise control of motor speed and torque, while the Class B line filter is critical for suppressing electromagnetic interference, guaranteeing stable equipment operation and compliance with international EMC standards.

Key Features:

• Manufacturer: Siemens AG

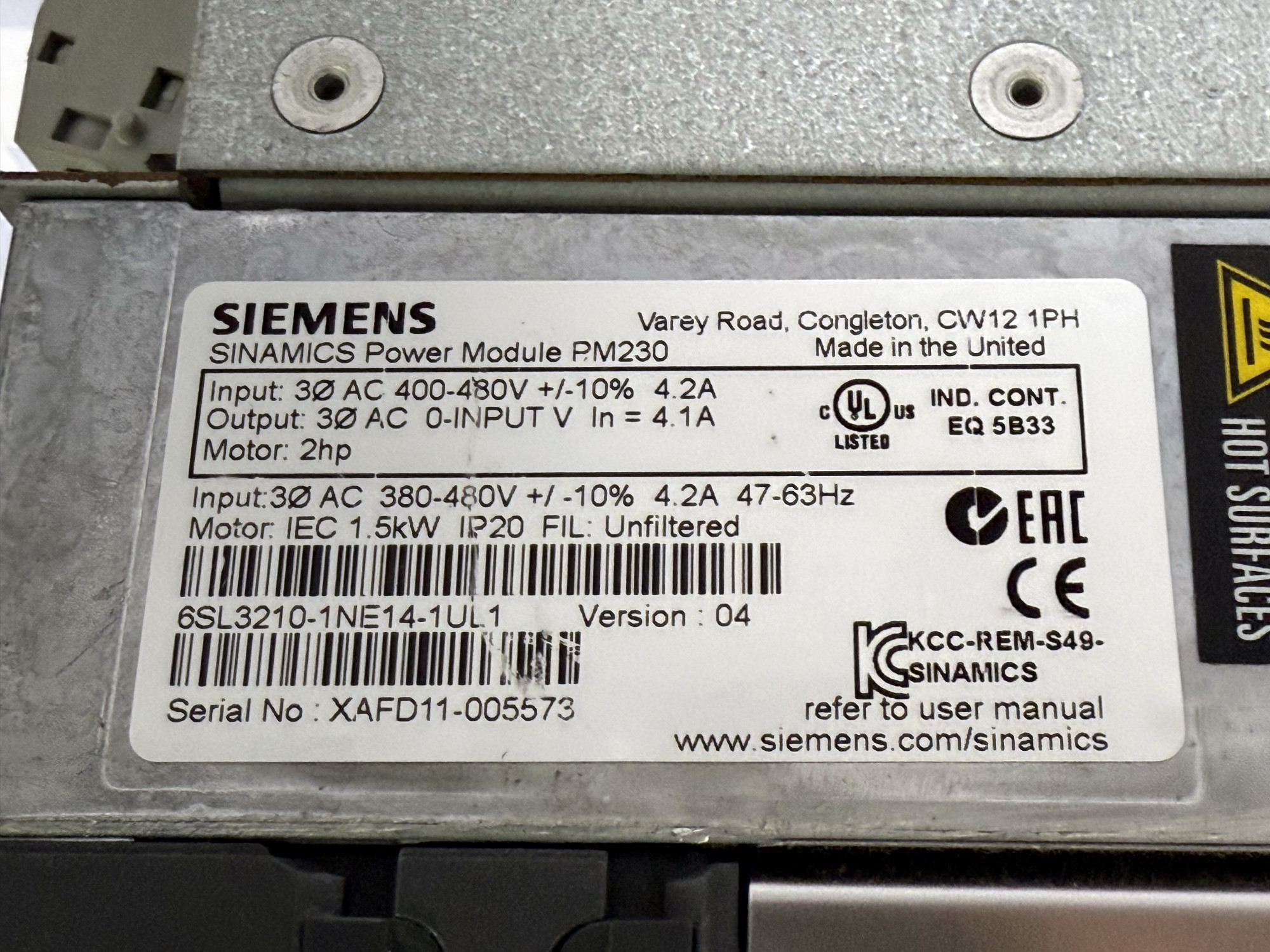

• Siemens Sinamics Power Module PM230 (Model: 6SL3210-1NE14-1UL1):
  • Input Voltage:
    • 3-phase AC 400-480V +/-10% (rated current 4.2A)
    • 3-phase AC 380-480V +/-10% 4.2A 47-63Hz
  • Output Voltage: 3-phase AC 0-Input V (rated current 4.1A)
  • Motor Power: 2 hp (1.5 kW IEC)
  • Protection Class (FIL): IP20 (unfiltered)
  • Manufacturing Location: Made in the United Kingdom

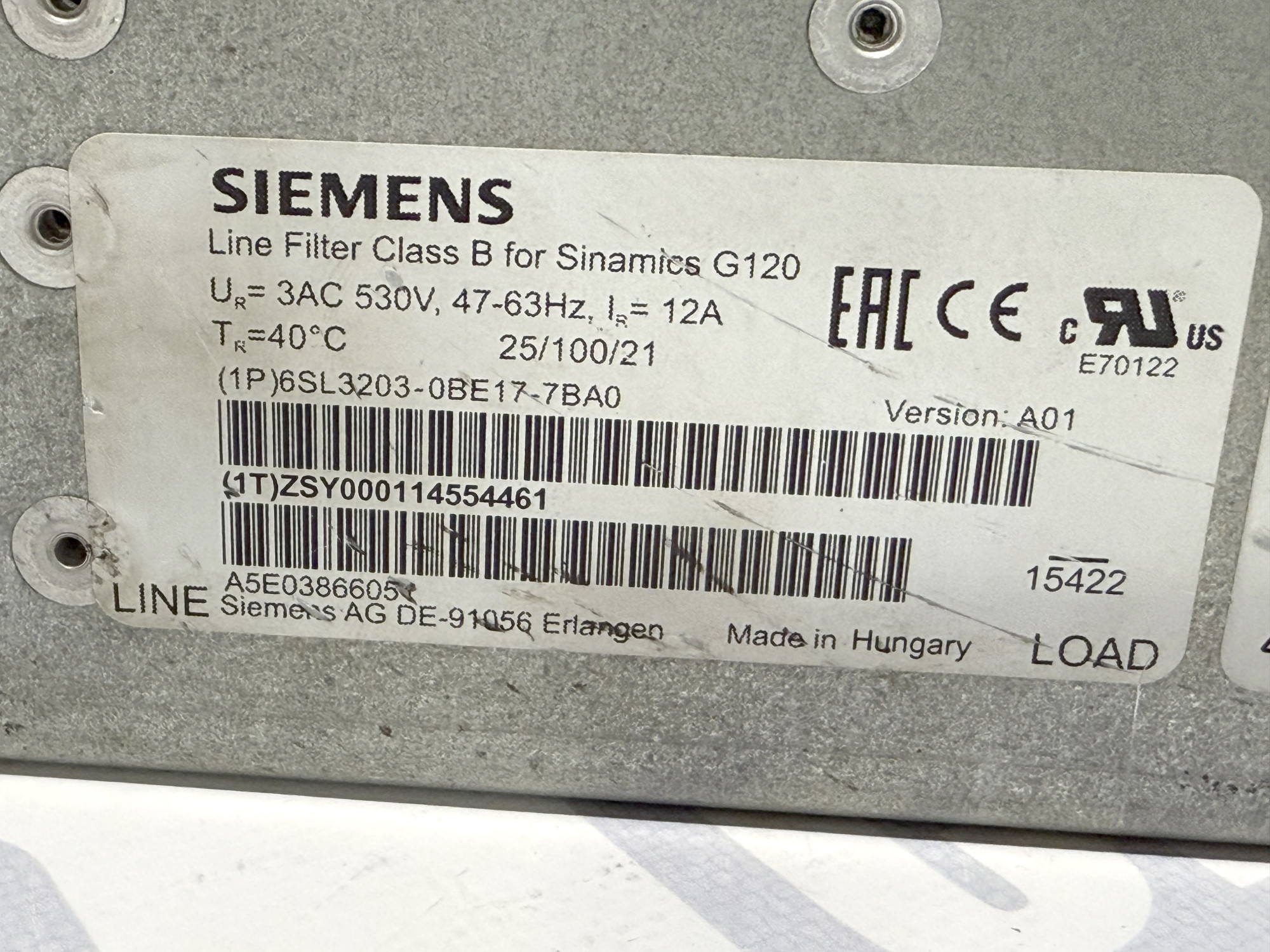

• Siemens Sinamics G120 Line Filter Class B (Model: 6SL3203-0BE17-7BA0):
  • Rated Voltage (U_R): 3-phase AC 530V, 47-63Hz
  • Rated Current (I_R): 12A
  • Operating Temperature (T_R): Up to +40°C
  • Manufacturing Location: Made in Hungary
• Compatibility: Both devices are designed for full compatibility and optimal performance within the modular Siemens Sinamics G120 system.

Unique Advantages or Features:

• High Efficiency and Precise Control: The PM230 power module provides precise control of asynchronous motors, which is critical for processes requiring high accuracy.
• EMC Compliance and System Stability: The integration of the Class B line filter ensures effective suppression of electromagnetic interference, preventing disruptions to other sensitive equipment and adhering to strict industrial standards.
• Siemens Reliability: Both components are manufactured by Siemens, guaranteeing the highest quality, durability, and compliance with the most stringent industrial automation standards.
• Application Flexibility: These components are suitable for a wide range of industrial tasks requiring reliable motor control up to 1.5 kW (2 hp).
• Easy Integration: The modular concept of Sinamics G120 facilitates straightforward mounting, wiring, and configuration of these devices in existing or new systems.

Data sheet for SINAMICS Power module PM230
