Siemens SINAMICS S120 6SL3120-1TE23-0AA3 Single Motor Module

Siemens SINAMICS S120 Single Motor Module 6SL3120-1TE23-0AA3

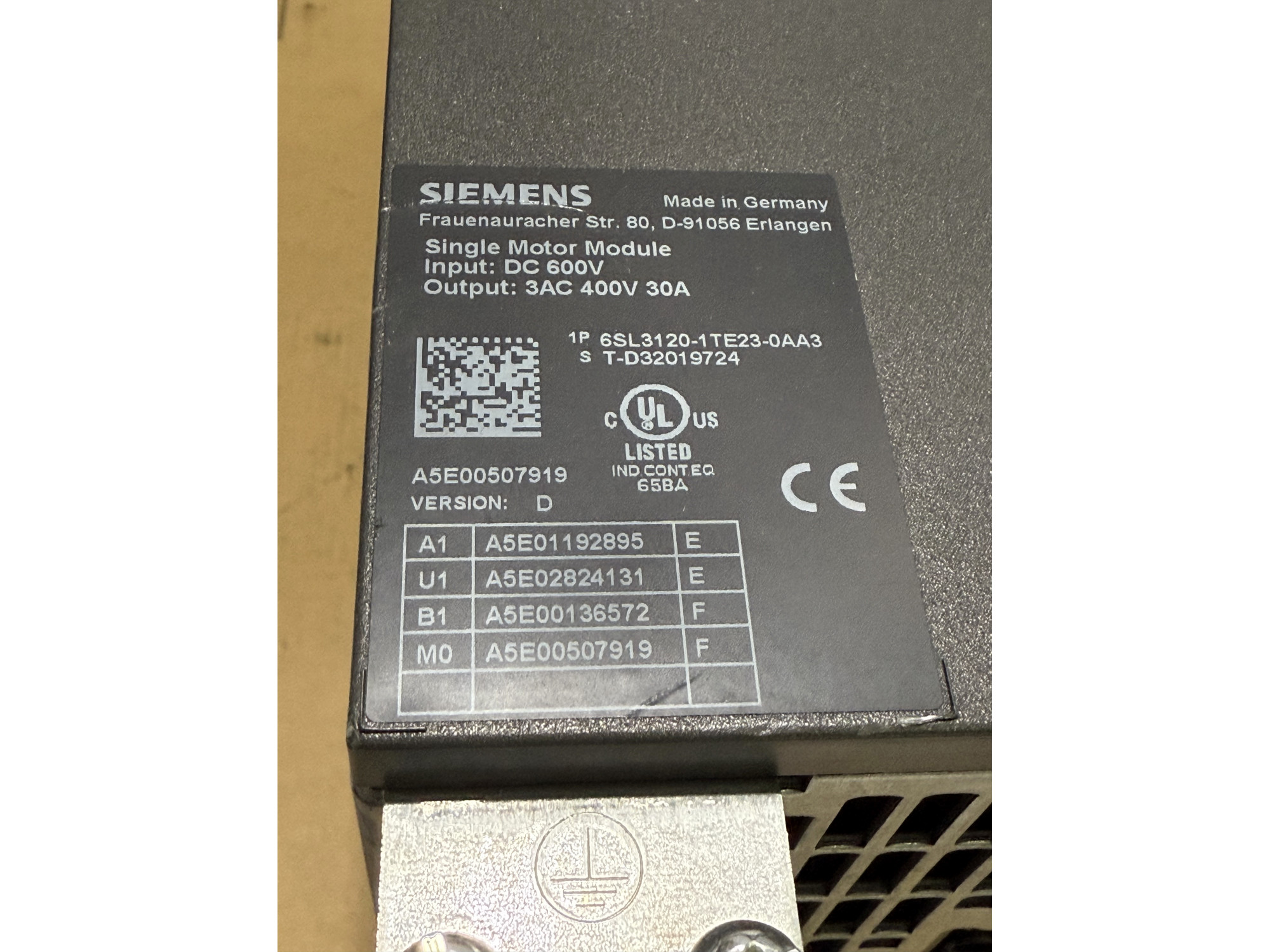

Output Power/Current: Approximately 16 kW / 30 A (at 400V output)

Input Voltage: DC 600V

Output Voltage: 3AC 400V

The Siemens SINAMICS S120 Single Motor Module (6SL3120-1TE23-0AA3) is a high-performance component within the modular SINAMICS S120 drive system. Designed for dynamic multi-axis applications, this motor module provides precise and reliable control for individual motors.

Key Features:

Output: Delivers up to 16 kW of power with a rated output current of 30 A (at 400V AC).

System Integration: Designed for integration into the SINAMICS S120 system, working in conjunction with a Control Unit (CU) and other system components.

DC Link Connection: Connects to a common DC link (600V DC input) shared by multiple motor modules and a line infeed.

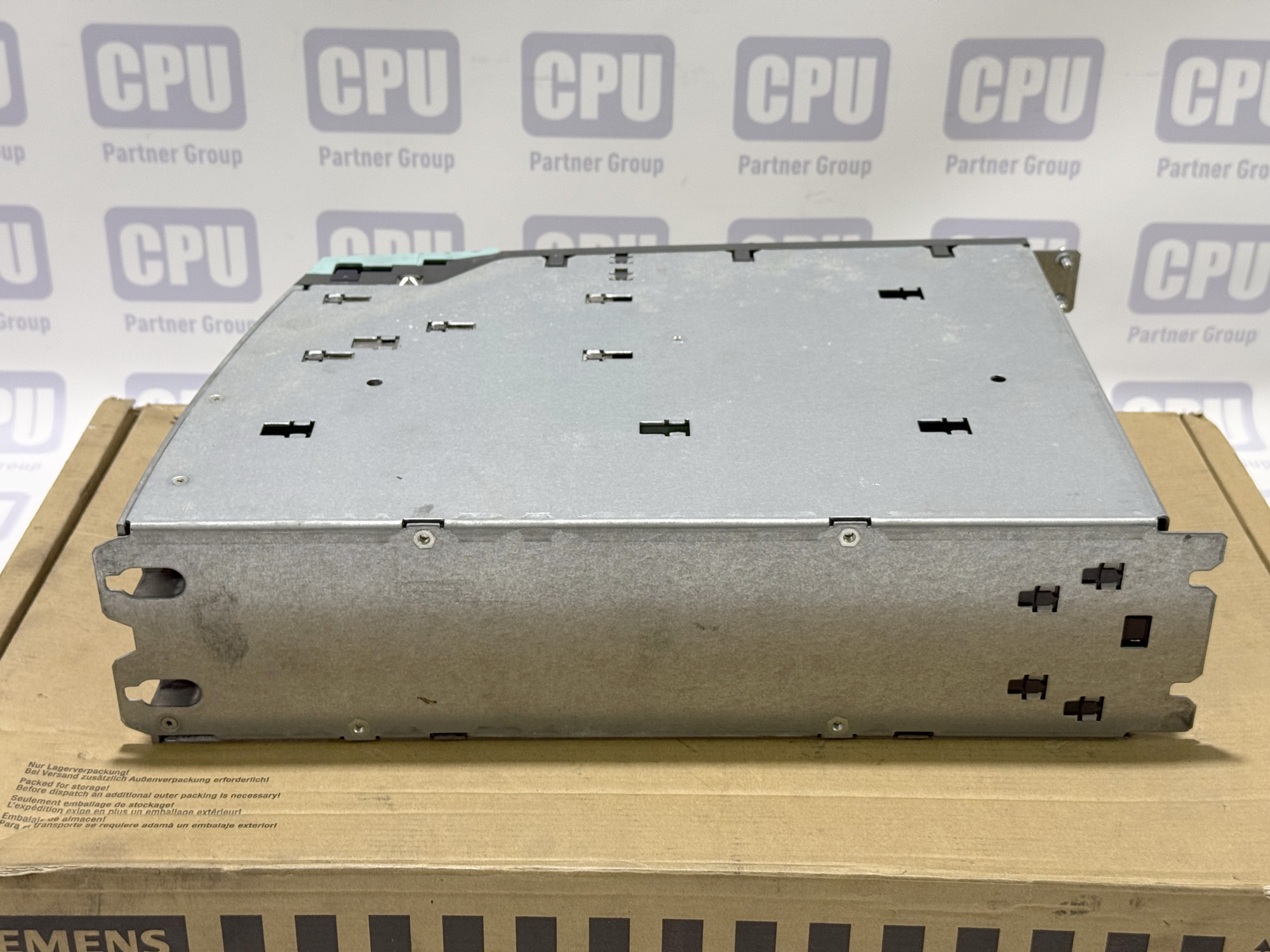

Booksize Format: Features a compact Booksize construction for efficient cabinet mounting.

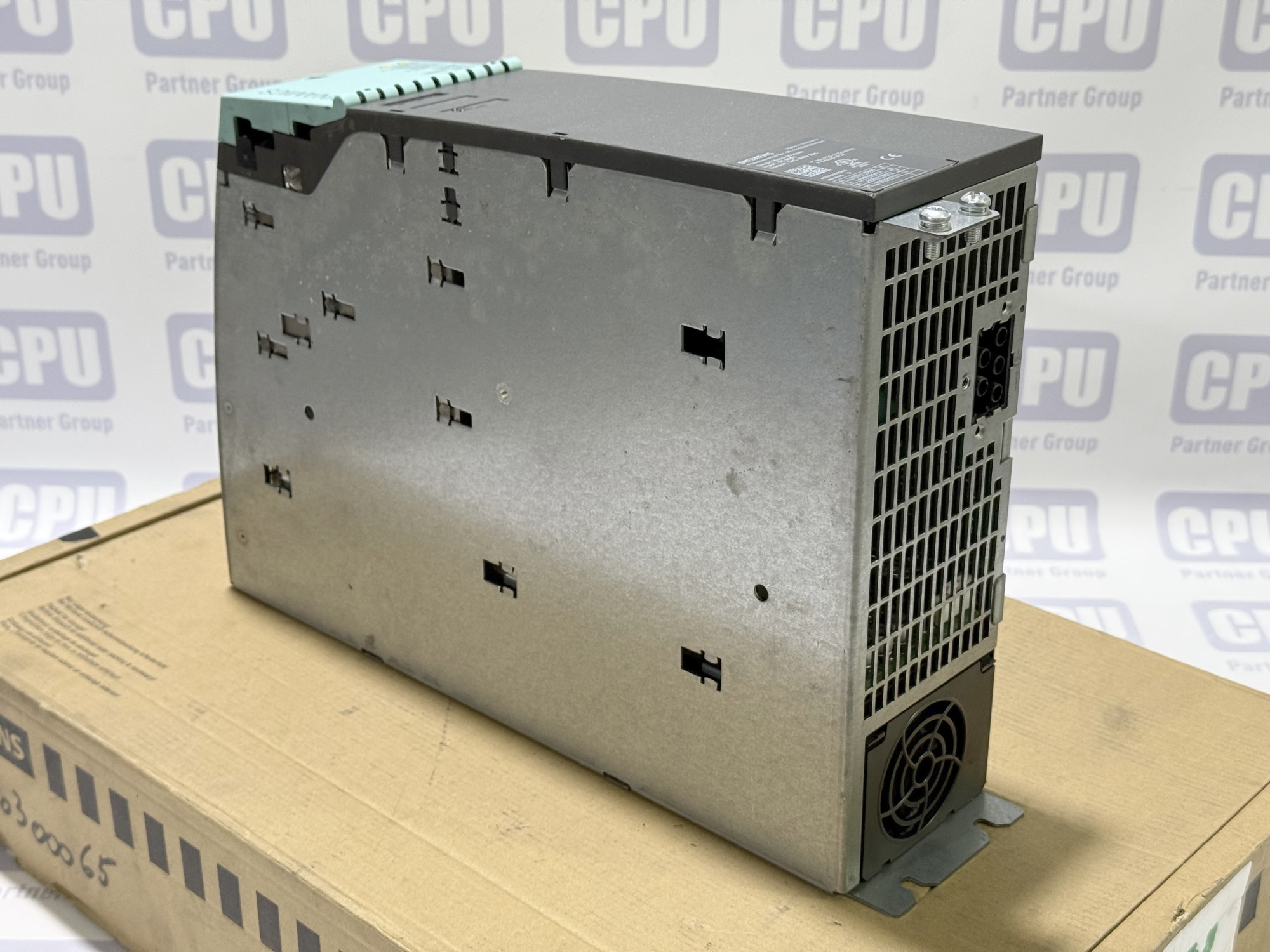

Internal Air Cooling: Equipped with internal air cooling for thermal management.

Integrated Safety: Supports extended Safety Integrated functions for enhanced machine safety.

DRIVE-CLiQ Interface: Includes a DRIVE-CLiQ system interface for communication with the Control Unit and other components.

Optimized Performance: Utilizes optimized pulse patterns for excellent control characteristics.

This Single Motor Module is a critical element for building flexible and powerful multi-axis drive systems in various industrial automation scenarios. It is often used as a spare part for existing SINAMICS S120 installations.
