Siemens SINAMICS S120 6SL3120-1TE24-5AA1 Single motor module

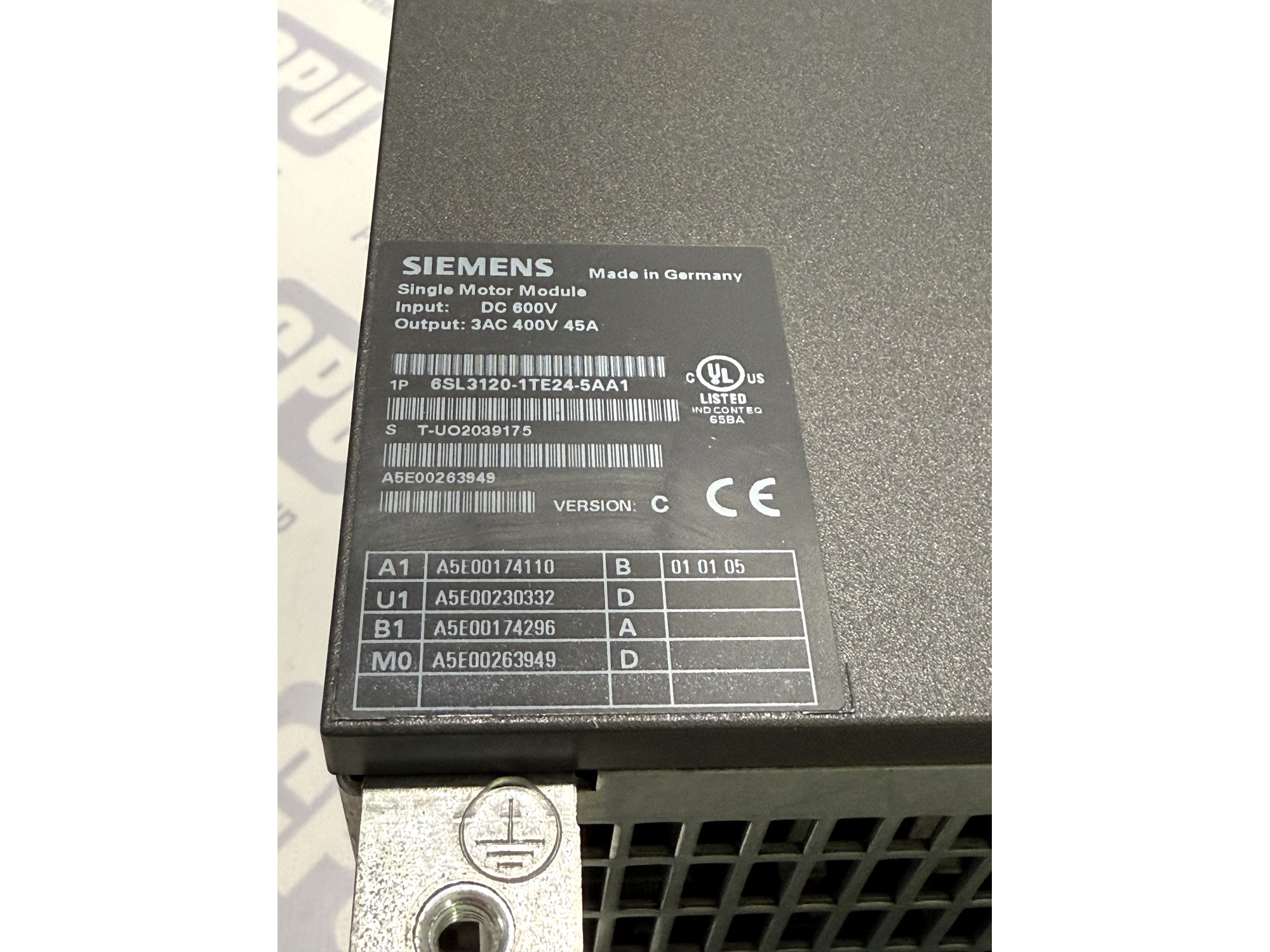

Siemens SINAMICS S120 Single Motor Module 6SL3120-1TE24-5AA1

• Output Current: 45 A
• Approximate Power Output: Approximately 22 kW (at 400V output)
• Input Voltage: DC 600V
• Output Voltage: 3AC 400V

Siemens SINAMICS S120 Single Motor Module, 22 kW (6SL3120-1TE24-5AA1)

The Siemens SINAMICS S120 Single Motor Module (6SL3120-1TE24-5AA1) is a robust component within the modular SINAMICS S120 drive system, designed for controlling individual motors in demanding industrial applications. This module provides precise and dynamic control for a single axis.

Key Features:

• High Current Output: Delivers a rated output current of 45 A for controlling motors with power ratings up to approximately 22 kW.
• System Integration: Designed to integrate into the SINAMICS S120 system, connecting to a central Control Unit (CU) and a shared DC link (600V DC input).
• DC Link Powered: Operates from the common DC link voltage of 600V DC.
• Booksize Format: Features a compact Booksize construction, optimizing space in the control cabinet.
• Internal Air Cooling: Equipped with internal air cooling for reliable thermal performance.
• Safety Integrated: Supports integrated safety functions for enhanced machine safety.
• DRIVE-CLiQ Interface: Includes the DRIVE-CLiQ interface for seamless communication within the drive system.

This Single Motor Module is suitable for a variety of applications requiring accurate speed and torque control, such as in machine tools, textile machinery, and handling systems.

On this page you will find the user manual for SINAMICS S120. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for Siemens SINAMICS S120
