Siemens SINAMICS S120 6SL3120-2TE15-0AA3 Double Motor Modul

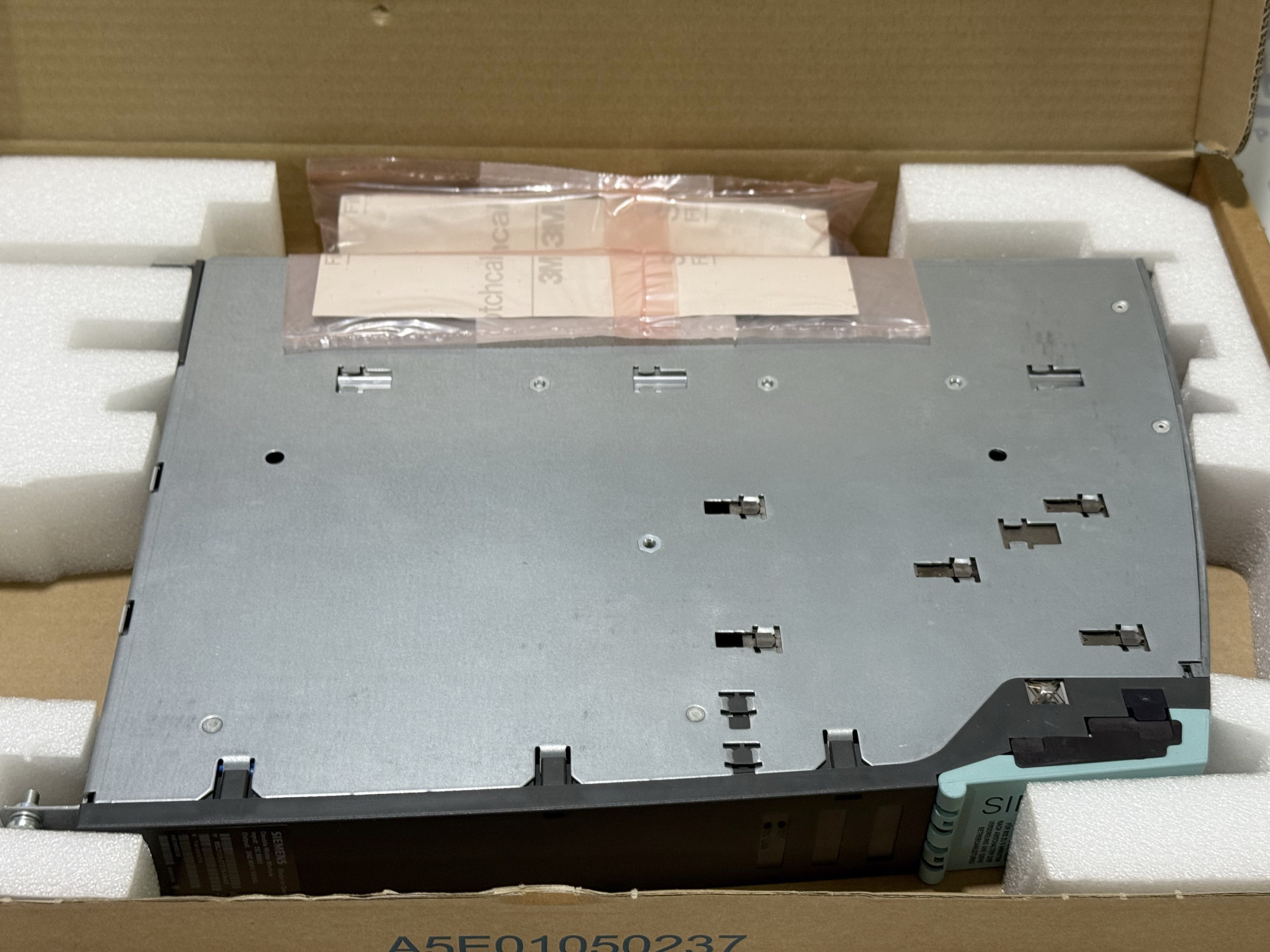

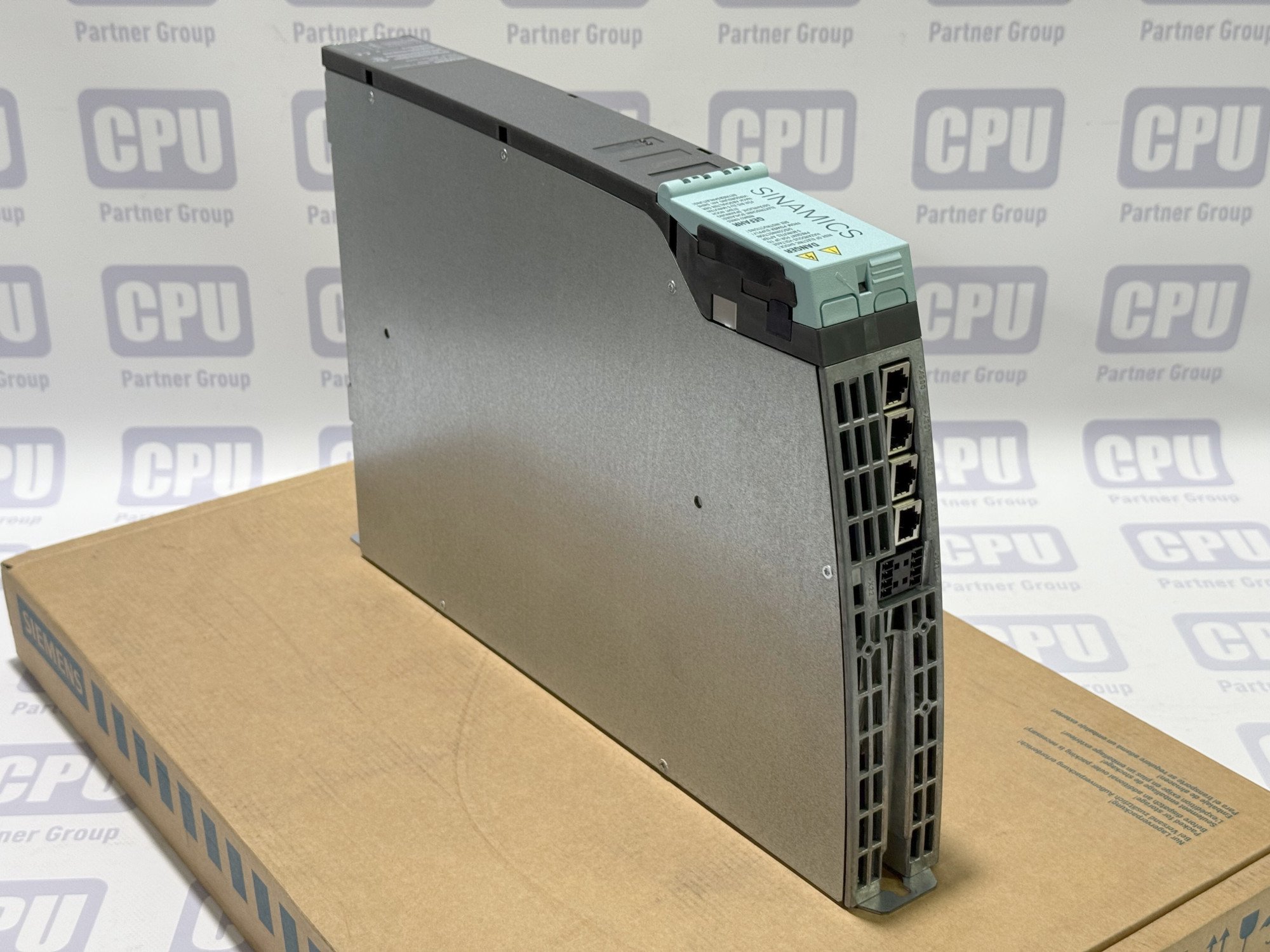

Siemens SINAMICS S120 Double Motor Module (6SL3120-2TE15-0AA3)

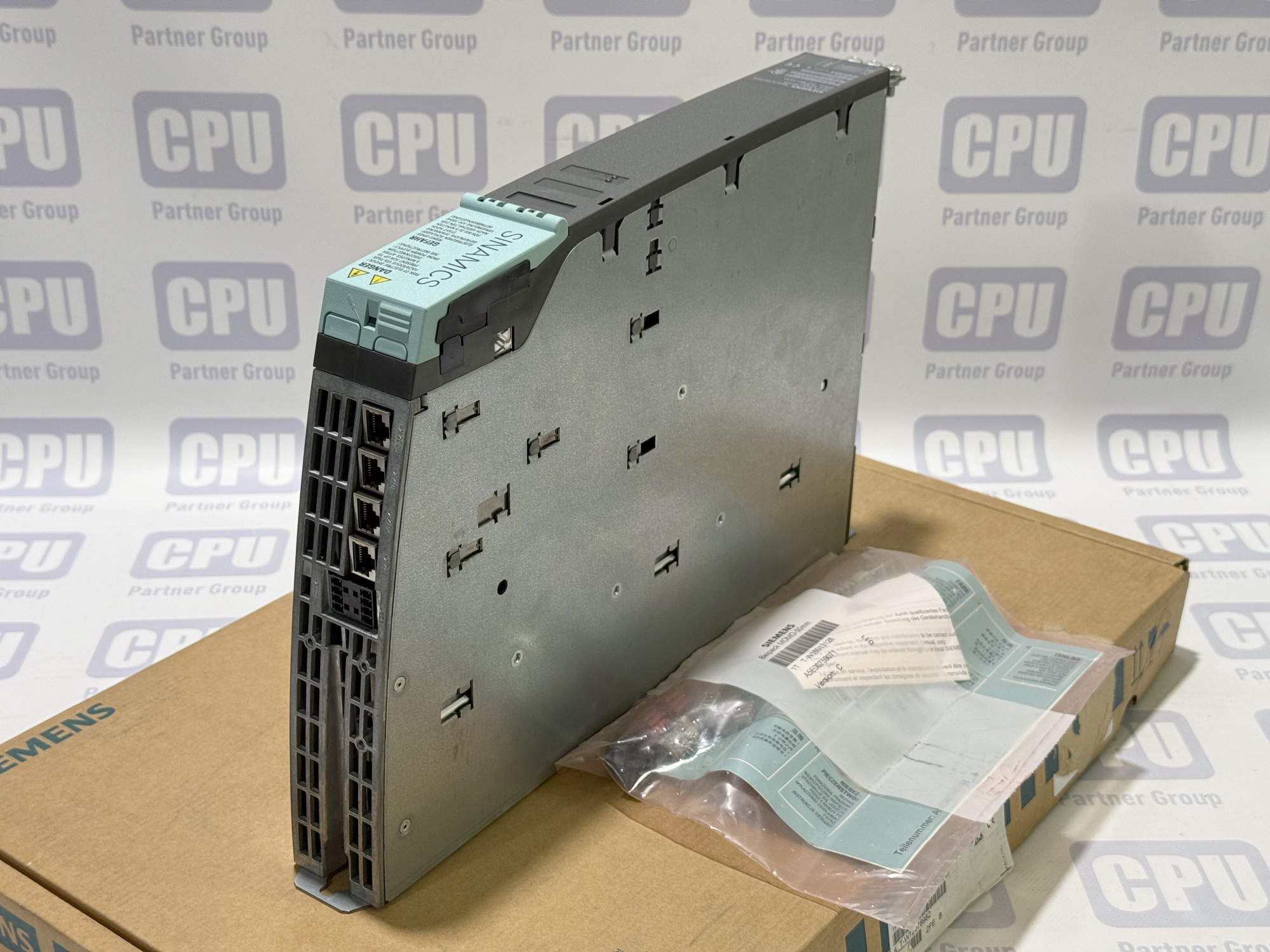

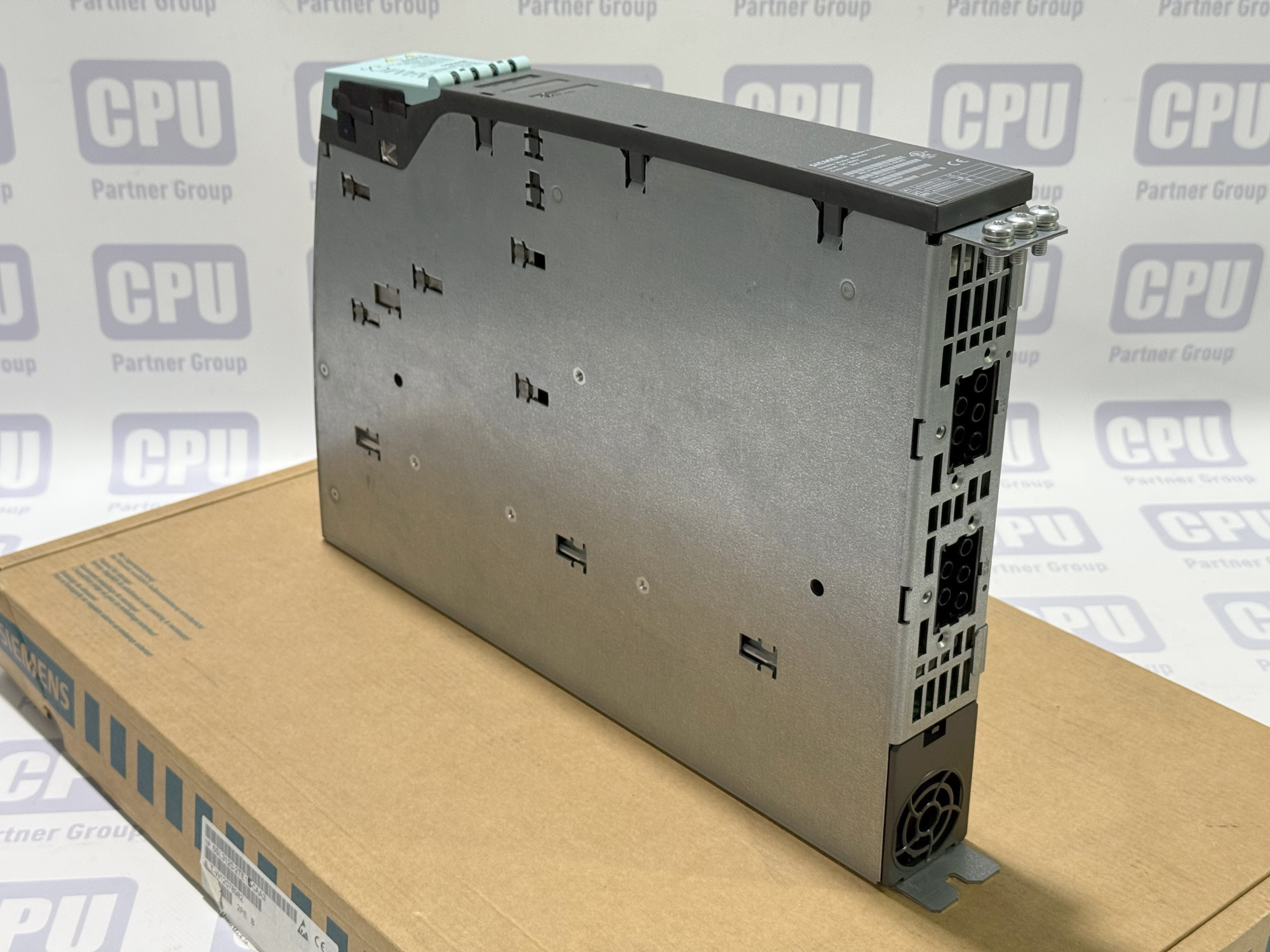

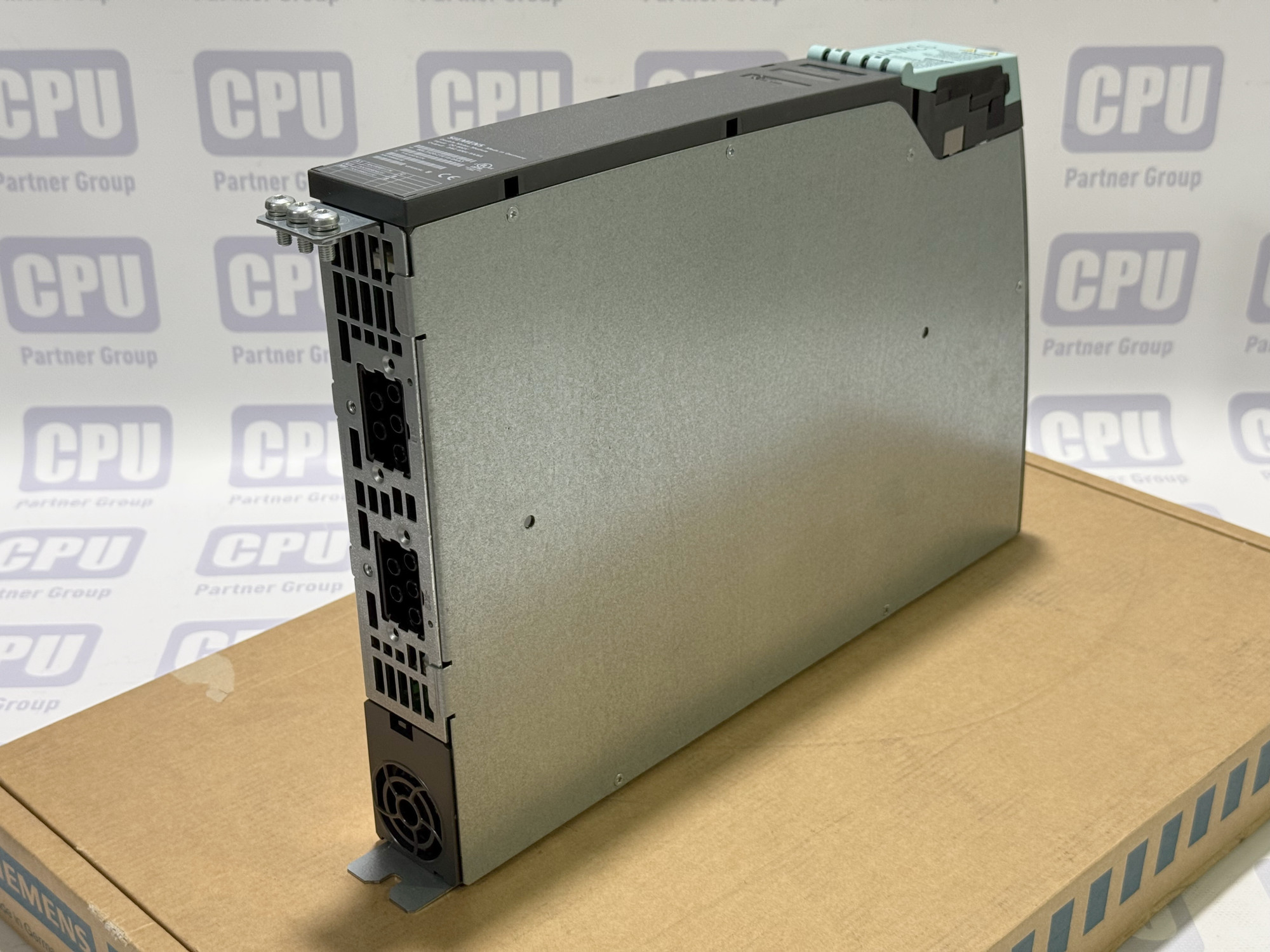

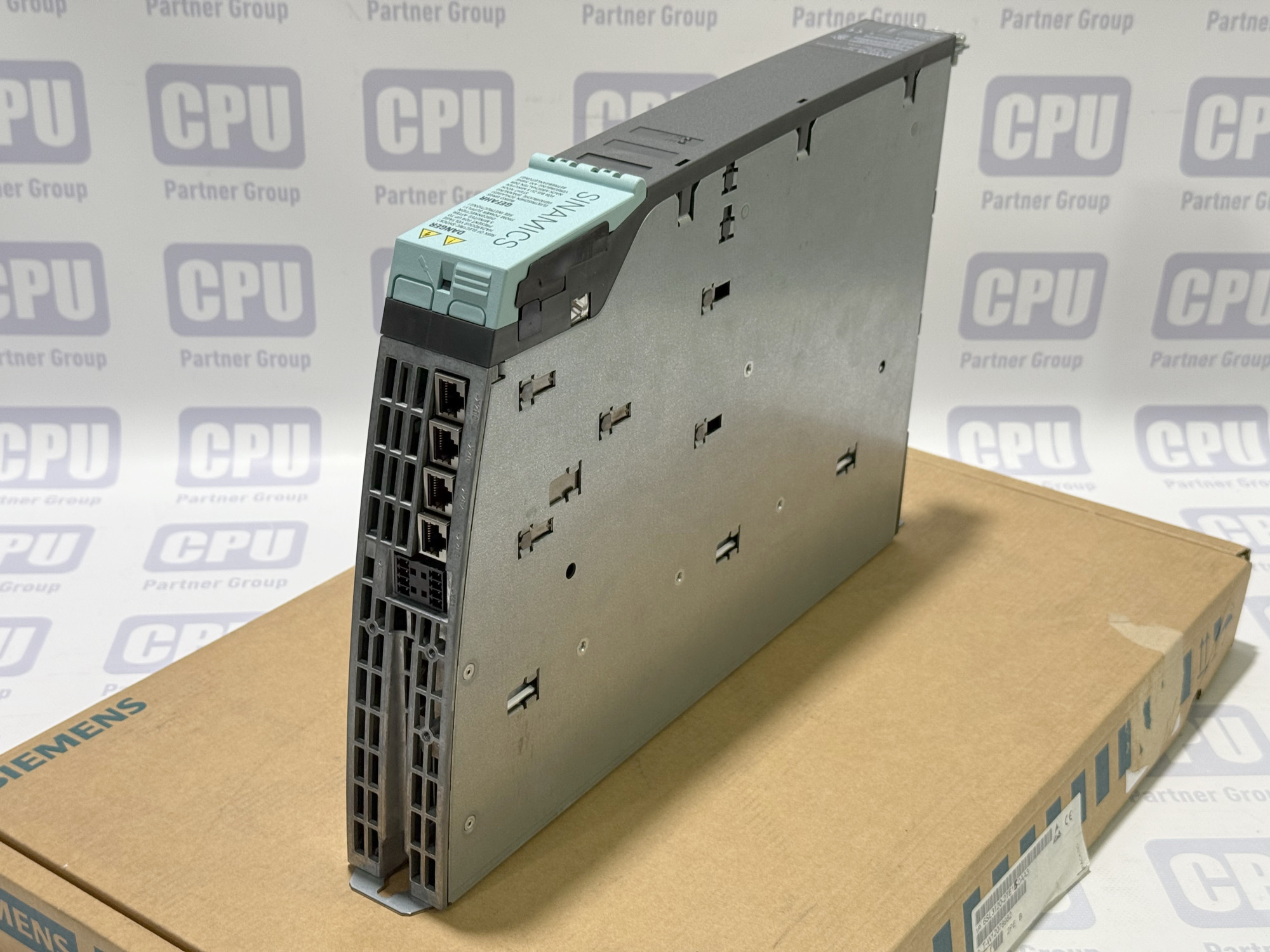

The Siemens SINAMICS S120 Double Motor Module 6SL3120-2TE15-0AA3 is a power component designed for integrated drive systems within the SINAMICS S120 platform. This Booksize format module allows for the control of two independent motors from a single, compact unit.

Operating from a 600V DC link voltage, this module provides a 3 AC 400V output with a rated current capacity of 5A for each of the two connected motors. It features internal air cooling and is built to support advanced drive functionalities.

Key Features:

Module Type: Double Motor Module for SINAMICS S120 systems

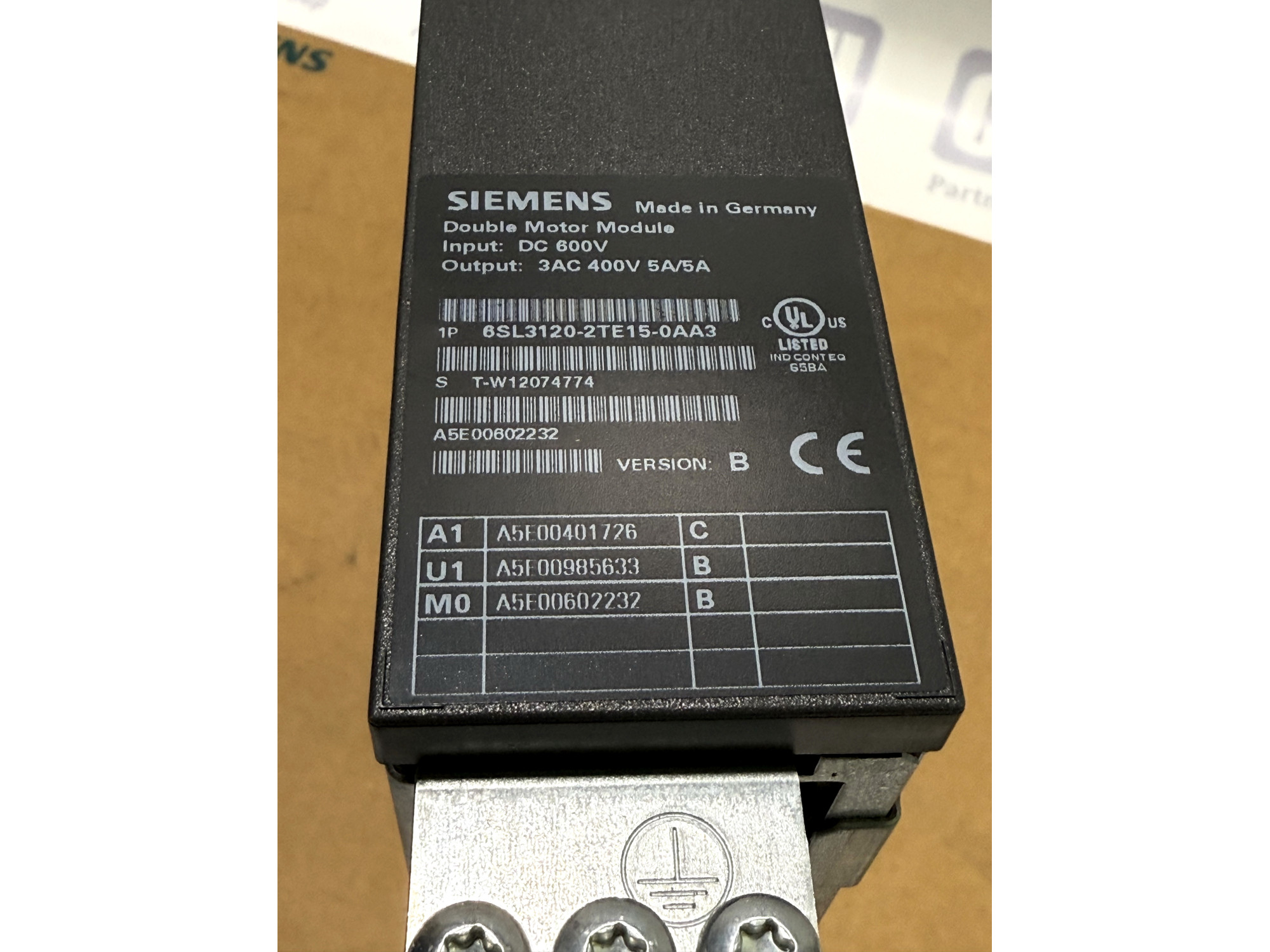

Input: 600V DC

Output: 3 AC 400V, 5A / 5A (for two motors)

Axis Control: Enables control of two independent motor axes.

Design: Compact Booksize format with internal air cooling.

Integrated Safety: Supports extended Safety Integrated functions (requires compatible control unit and configuration).

Connectivity: Features the DRIVE-CLiQ interface for seamless integration.

This module is suitable for multi-axis motion control applications in various industrial sectors, providing a reliable solution for coordinated drive tasks within the SINAMICS S120 architecture.
