Siemens SINAMICS S120 6SL3120-2TE21-8AA0 Double Motor Modul №1

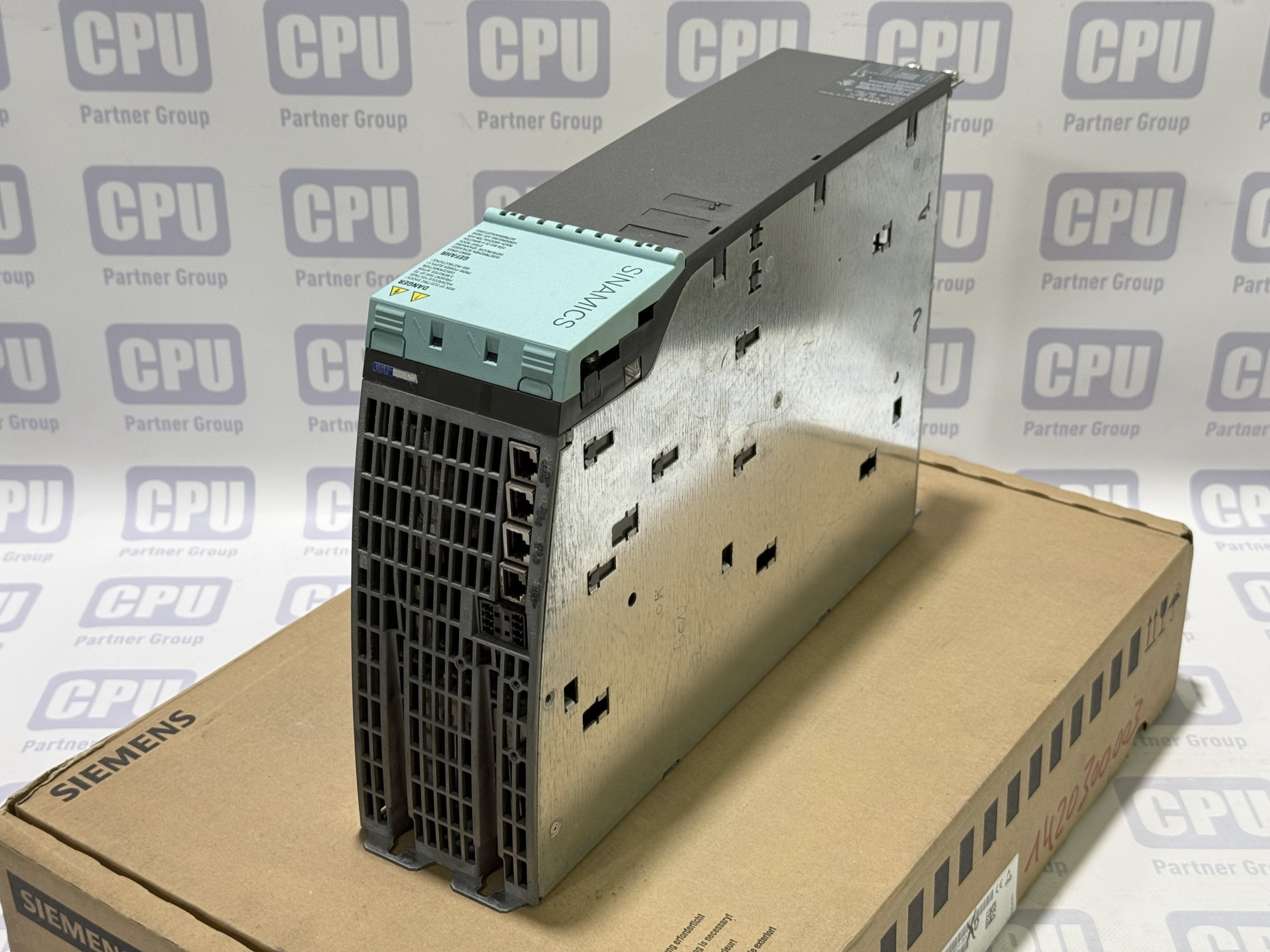

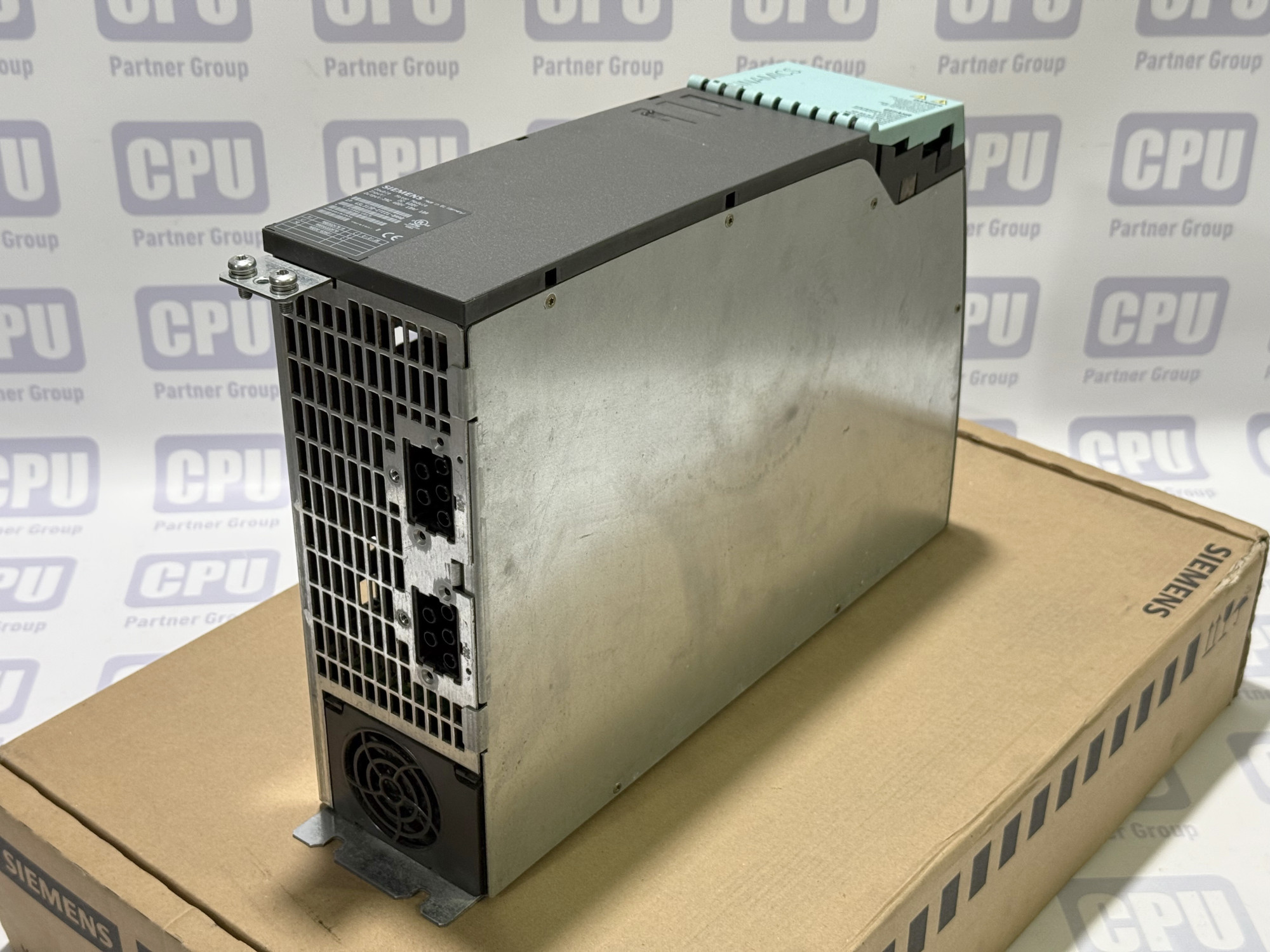

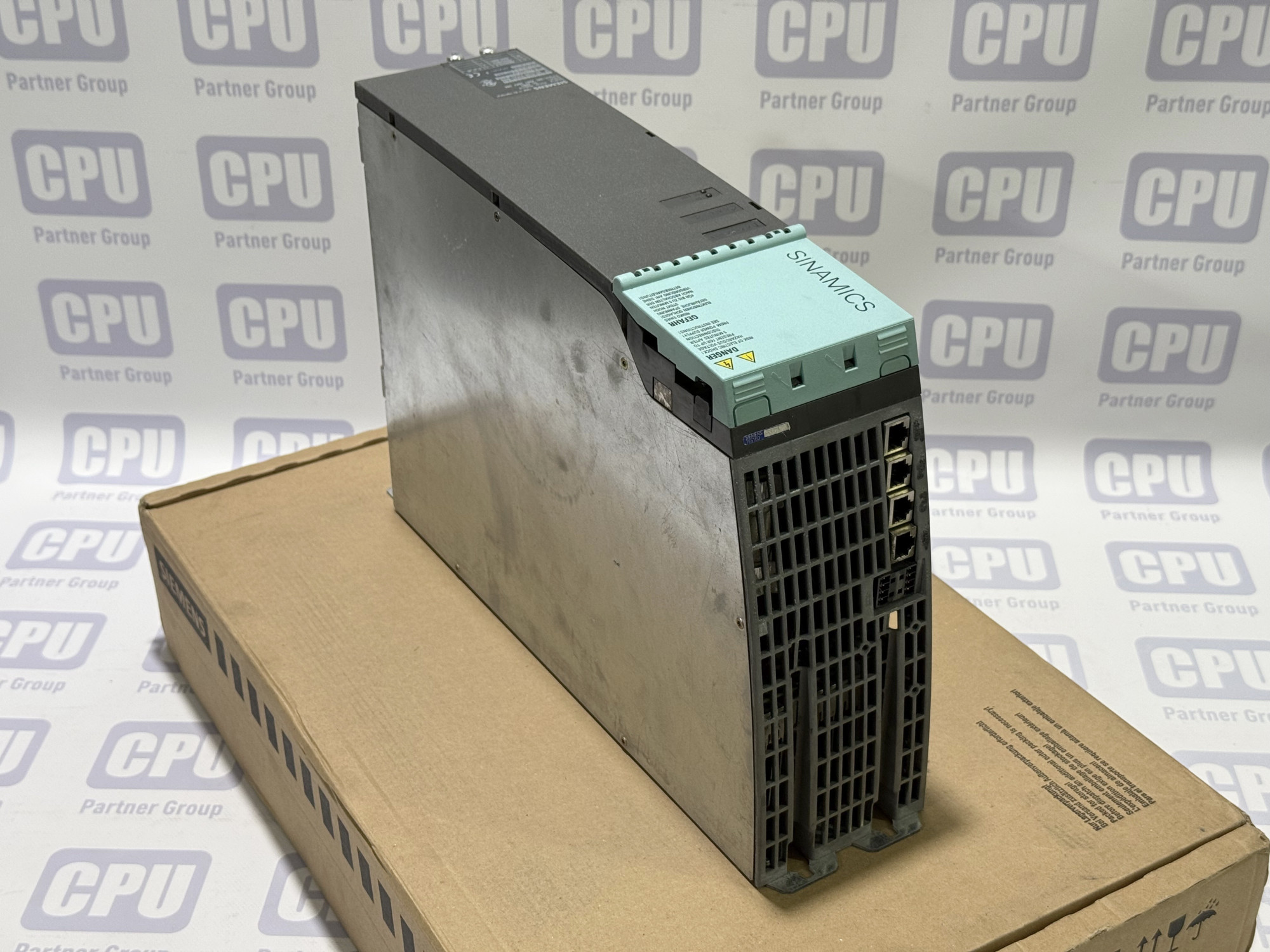

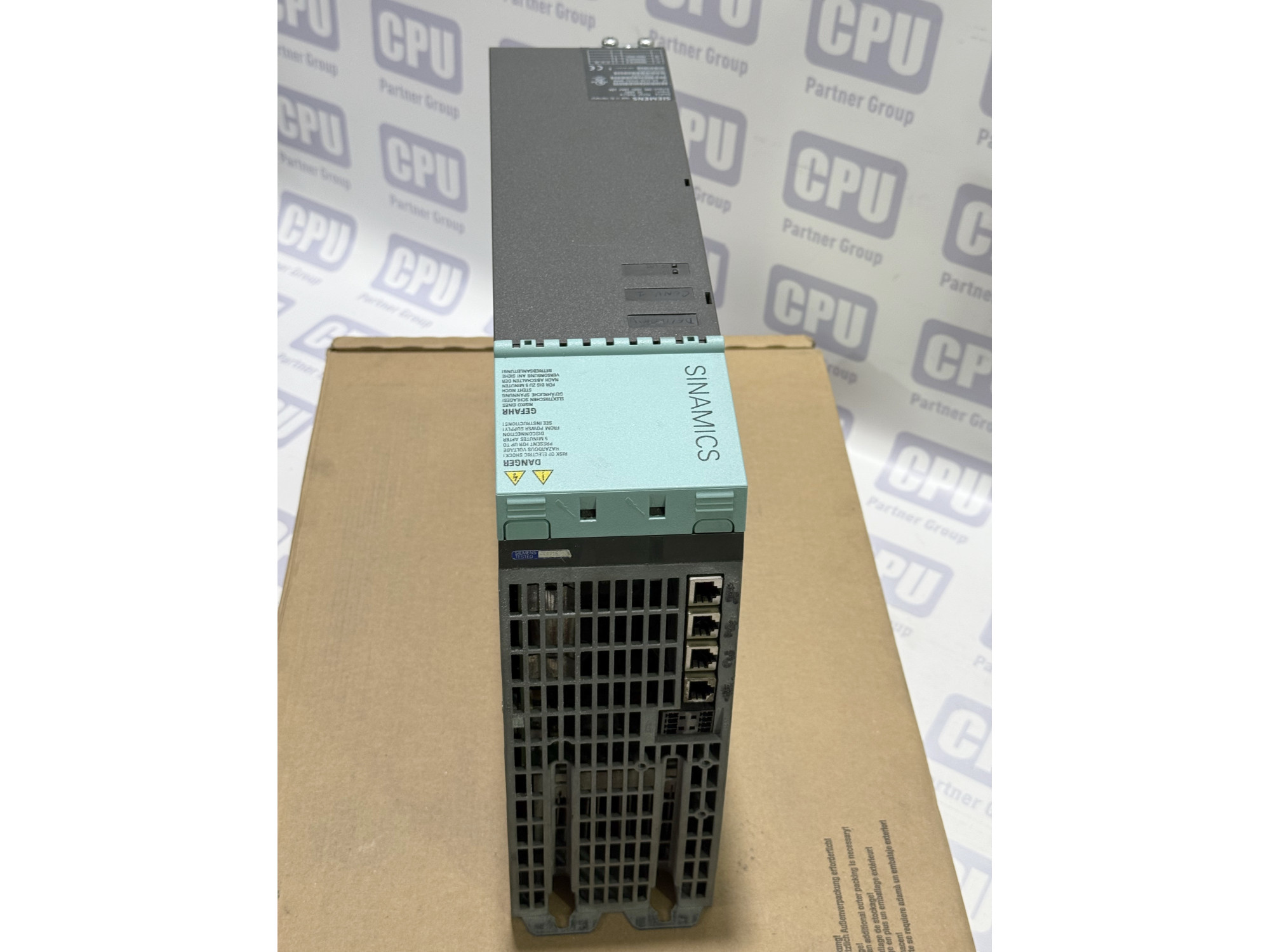

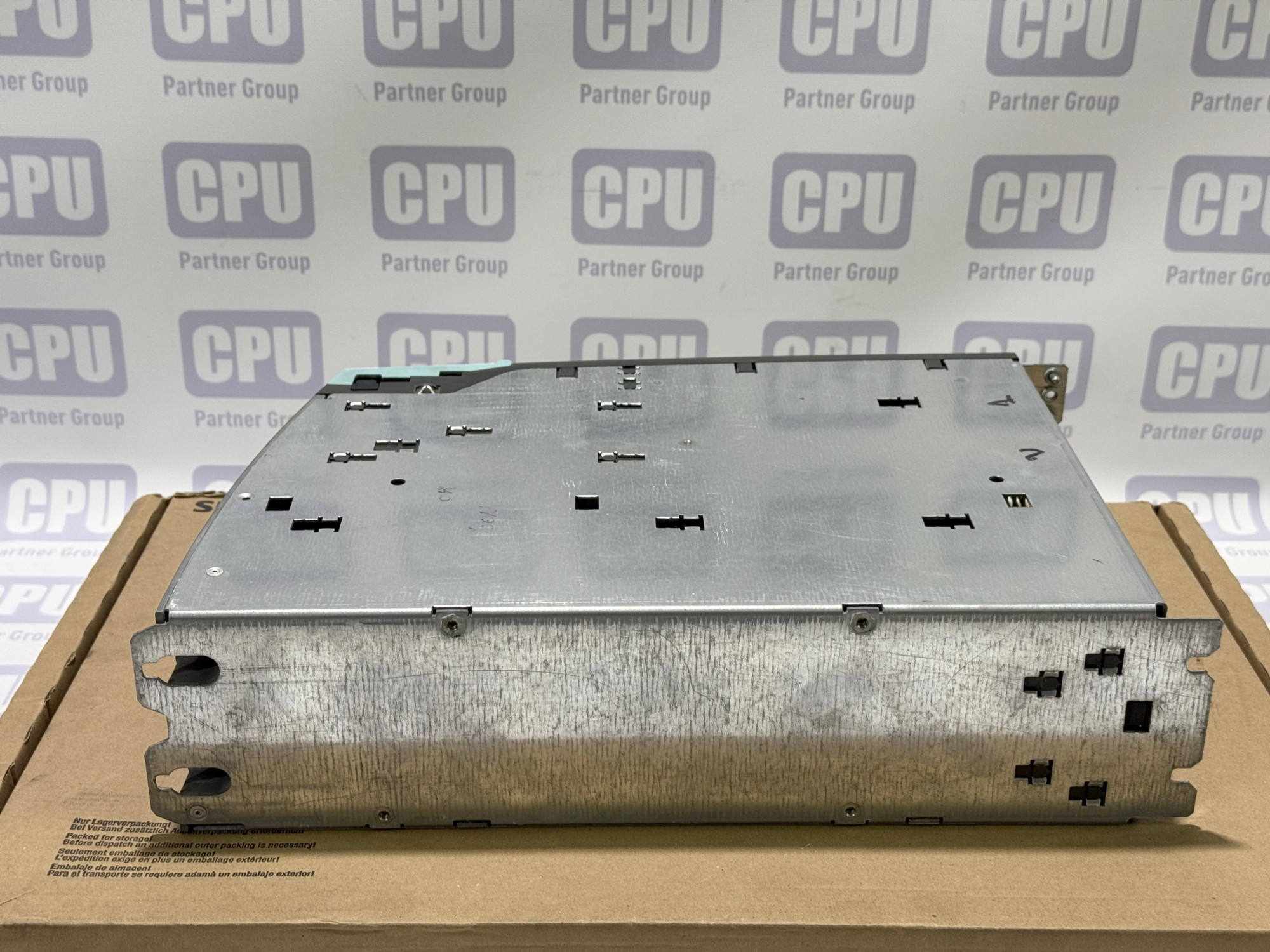

Siemens SINAMICS S120 Double Motor Module 6SL3120-2TE21-8AA0

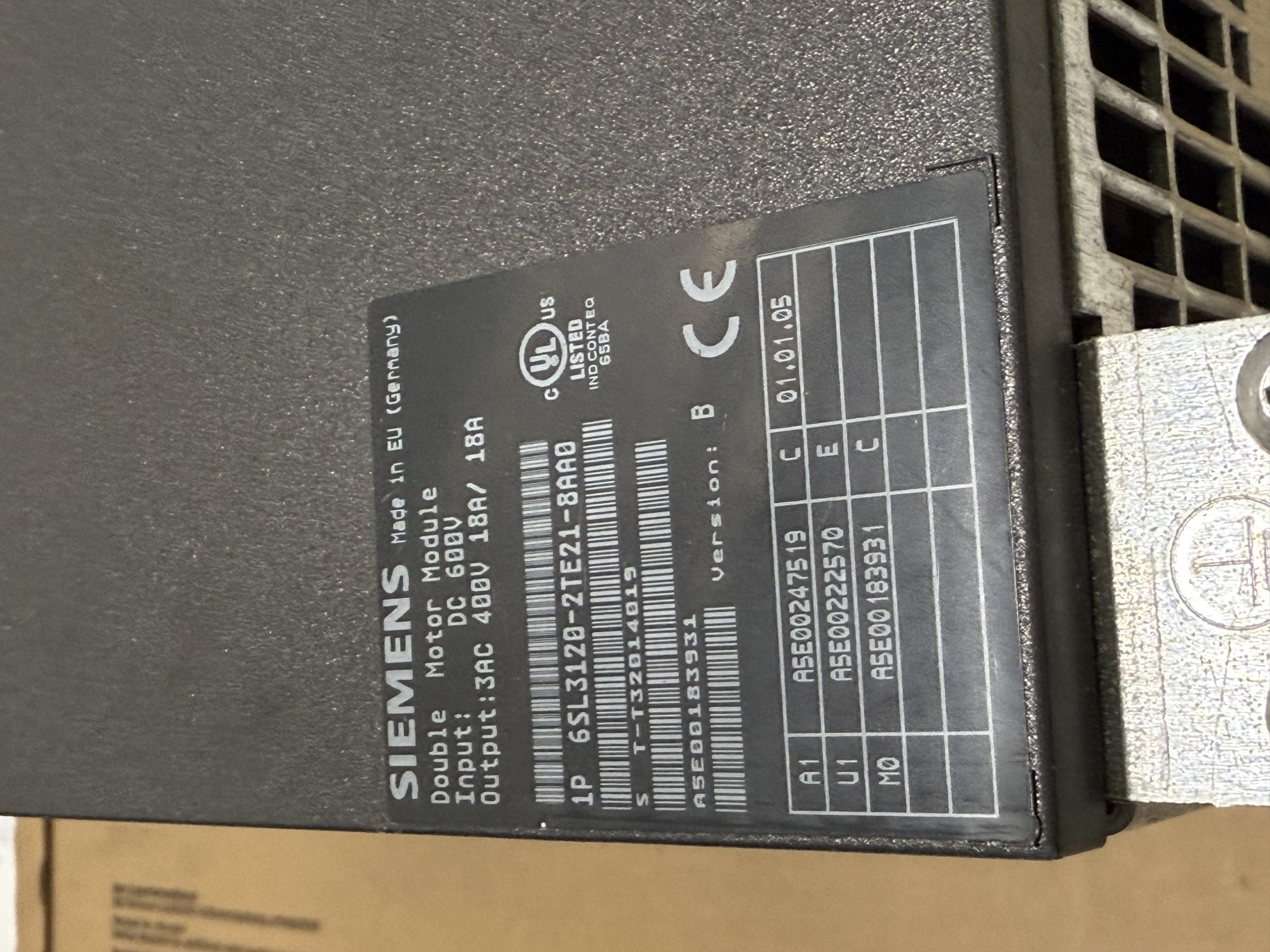

Output Current: 18A / 18A (for each of the two motor connections)

Approximate Power Output: 2 x 9.7 kW (at 400V output)

Input Voltage: DC 600V

Output Voltage: 3AC 400V

The Siemens SINAMICS S120 Double Motor Module (6SL3120-2TE21-8AA0) is a vital component for implementing compact and dynamic multi-axis drive solutions within the SINAMICS S120 system. This module efficiently controls two independent motors from a single booksize unit.

Key Features:

Dual-Axis Control: Provides two independent motor connections with a rated output current of 18 A for each axis.

Power Output: Capable of delivering approximately 9.7 kW to each connected motor (at 400V AC output).

SINAMICS S120 Integration: Designed for seamless integration into the modular SINAMICS S120 drive system, connecting to a shared DC link (600V DC input).

Compact Booksize Format: Its space-saving design allows for high power density in control cabinets.

Internal Air Cooling: Features internal air cooling for reliable operation.

Integrated Safety Functions: Supports Safety Integrated functionalities for enhanced machine and personnel protection.

DRIVE-CLiQ Connectivity: Includes the DRIVE-CLiQ interface for high-speed communication within the drive system.

This Double Motor Module is an excellent choice for multi-axis applications requiring coordinated motion and precise control, commonly found in packaging machines, printing presses, and handling equipment. It is often sourced as a spare part for maintaining existing S120 systems.

On this page you will find the user manual for Siemens SINAMICS S120 6SL3120-2TE21-8AA0. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for Siemens SINAMICS S120 6SL3120-2TE21-8AA0
