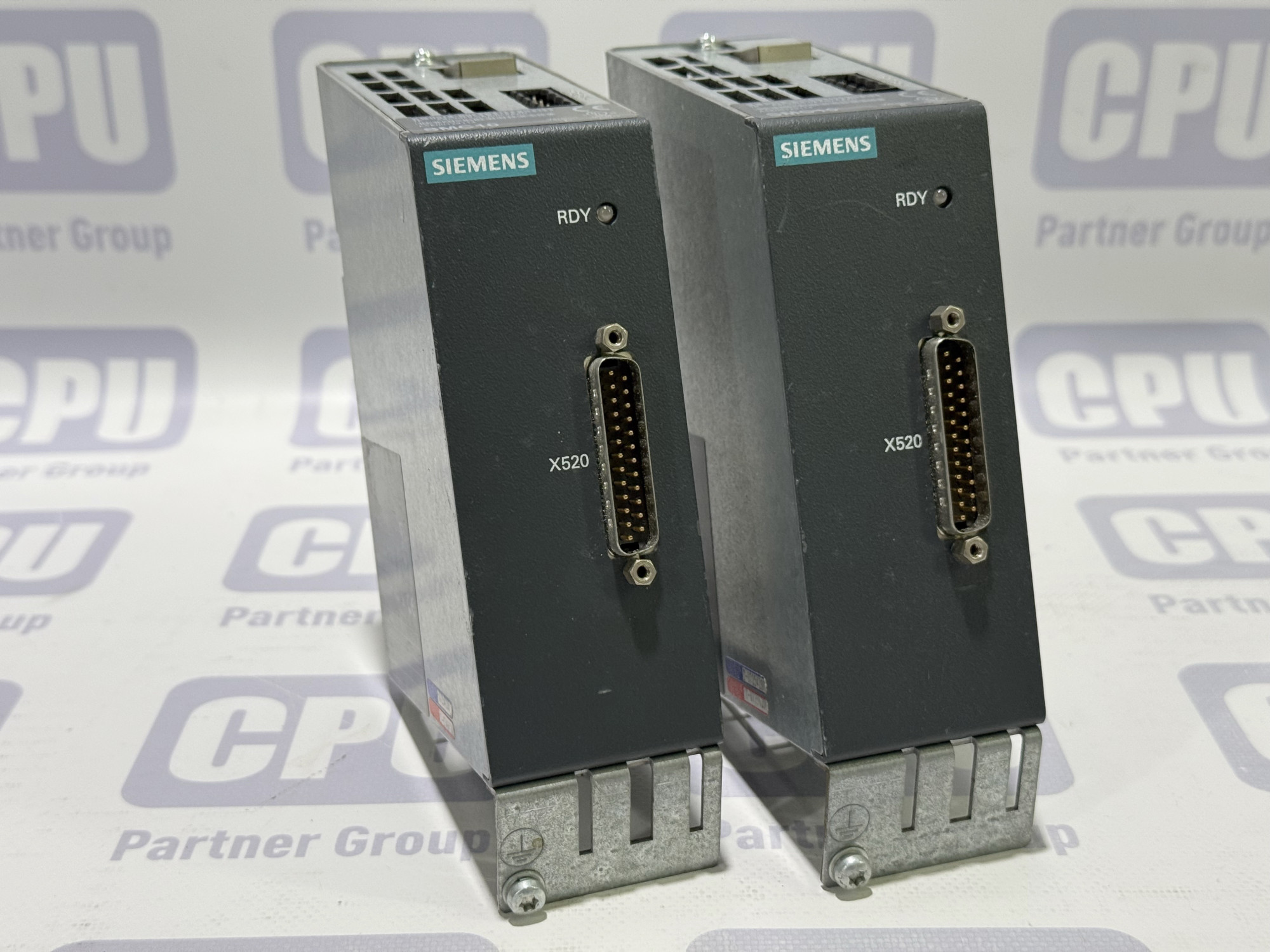

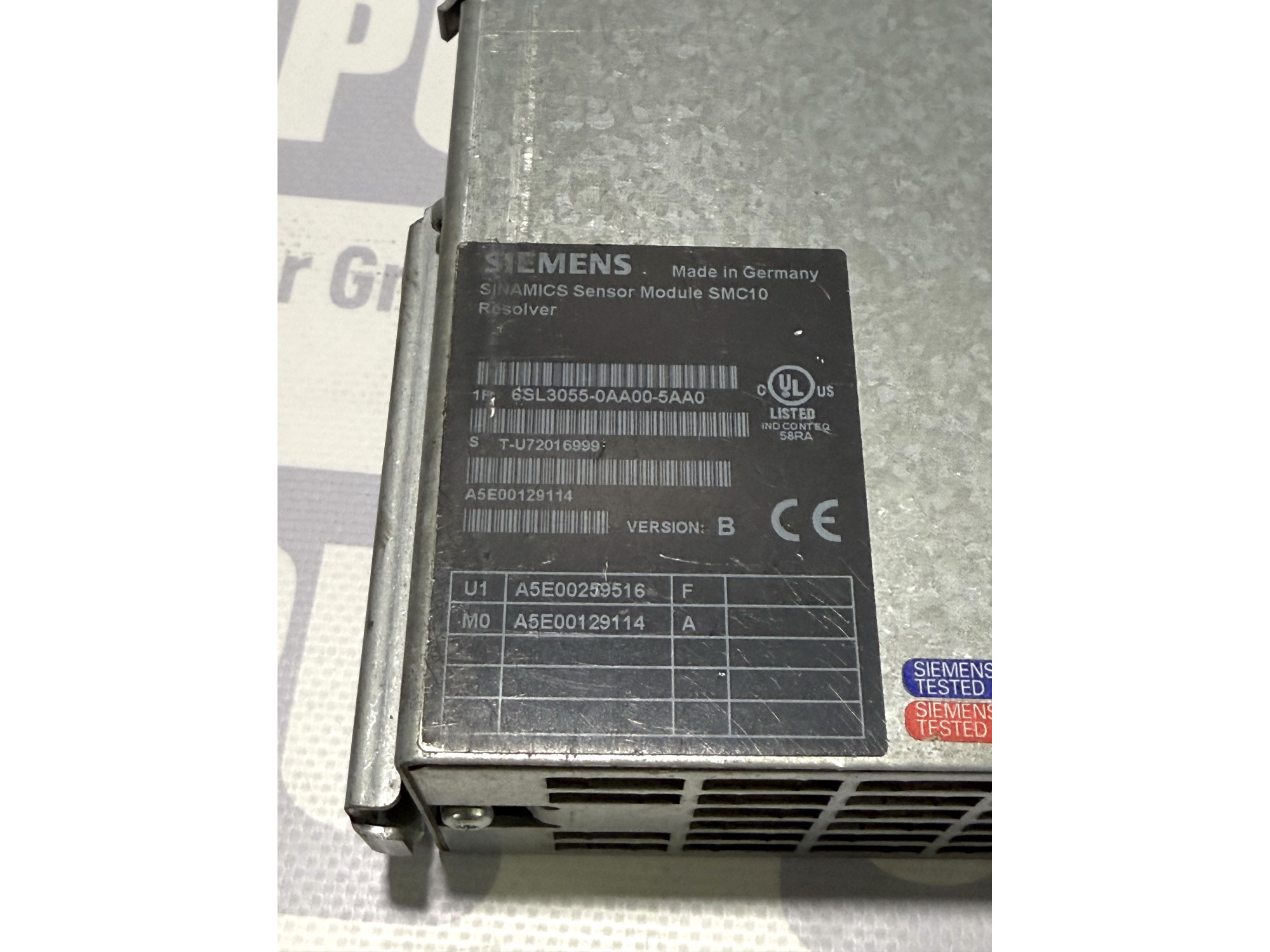

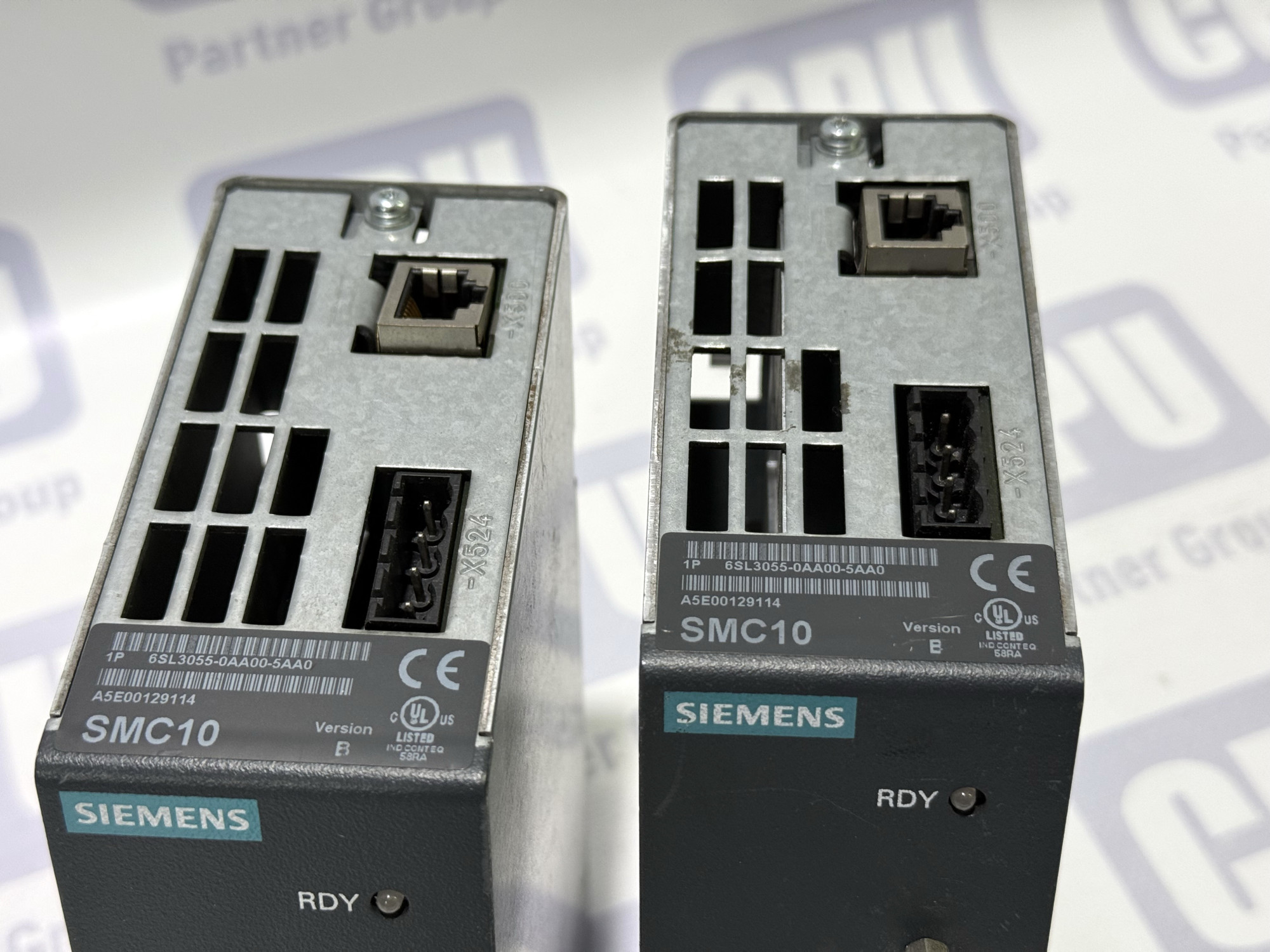

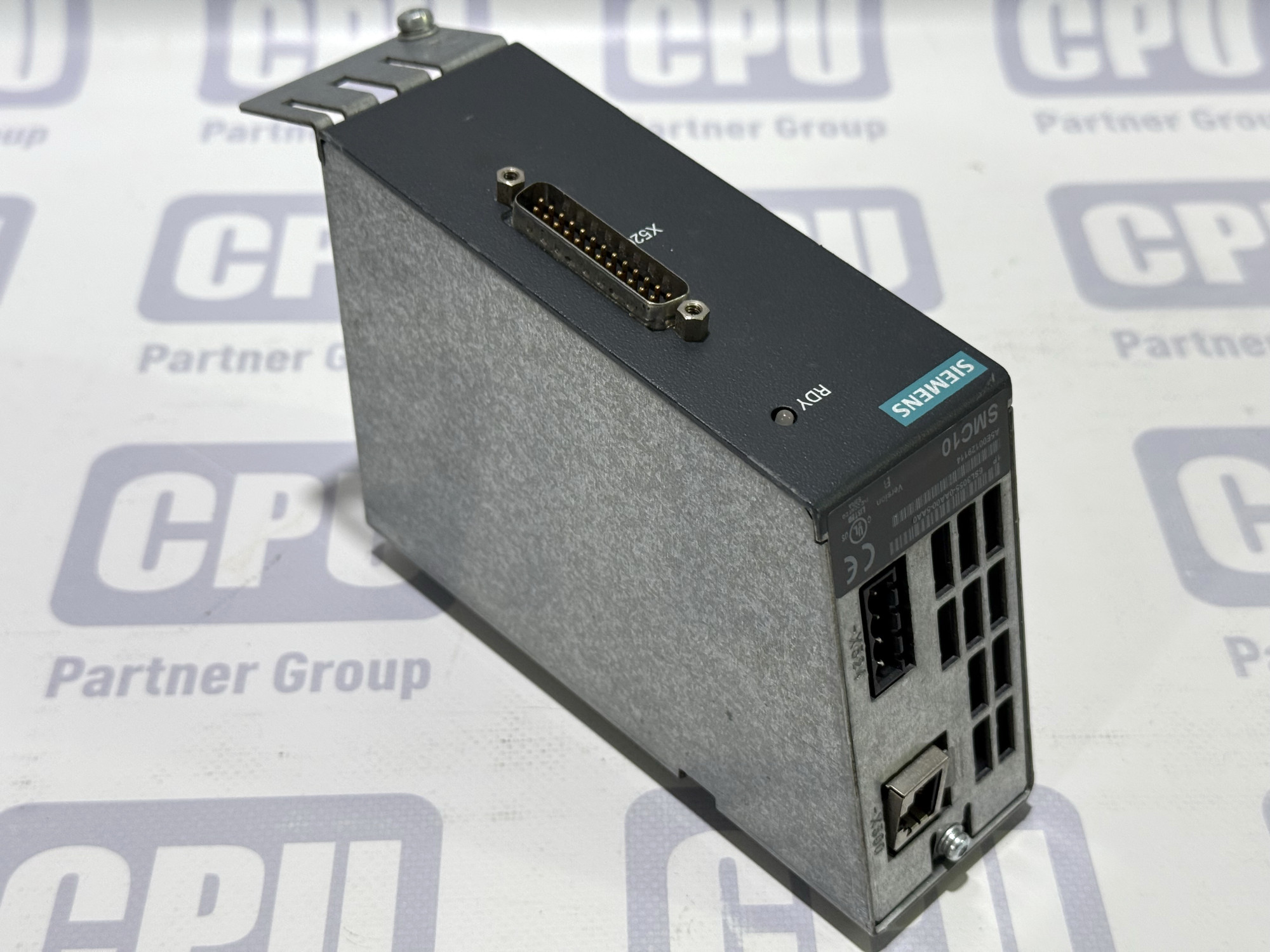

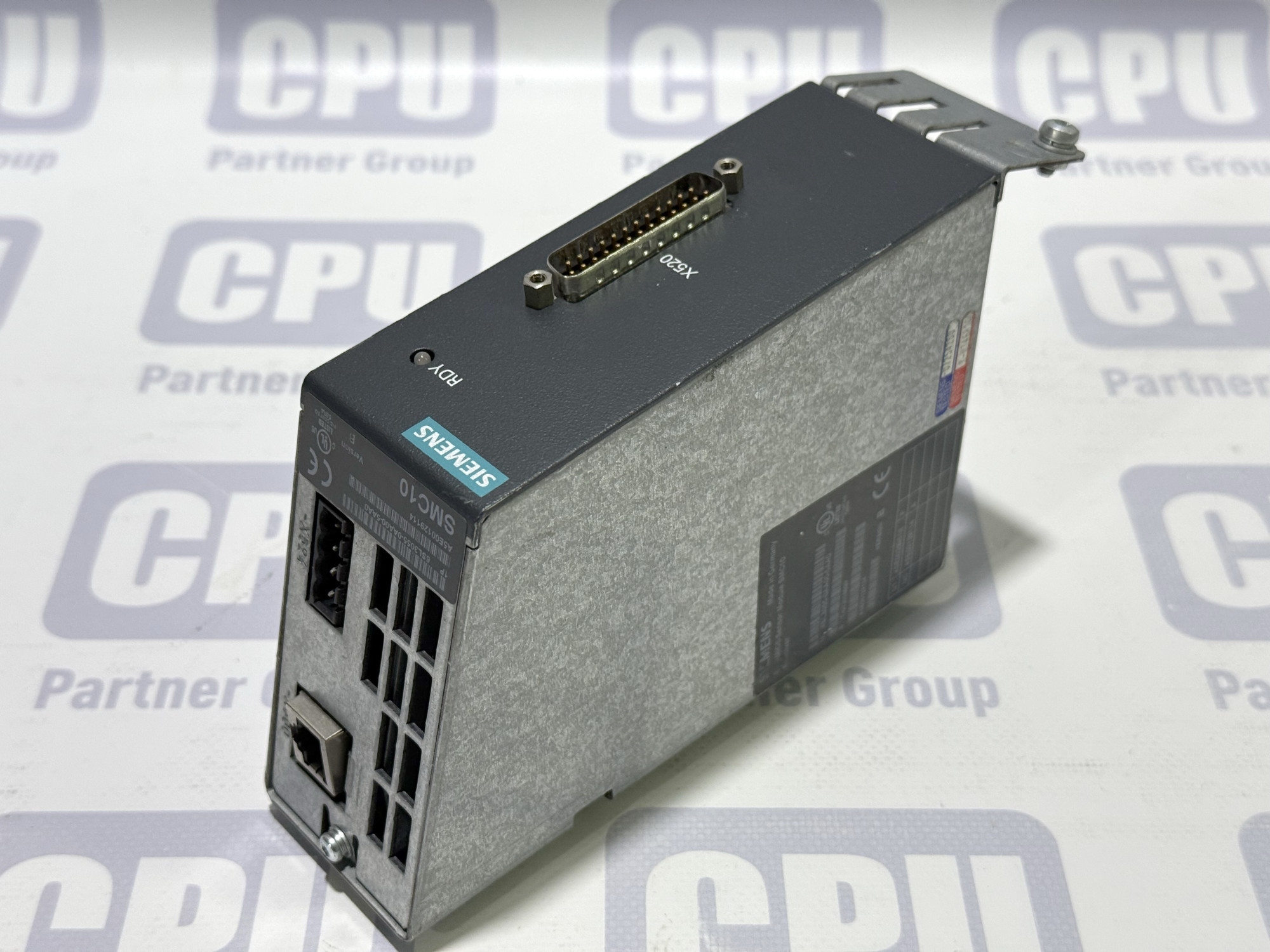

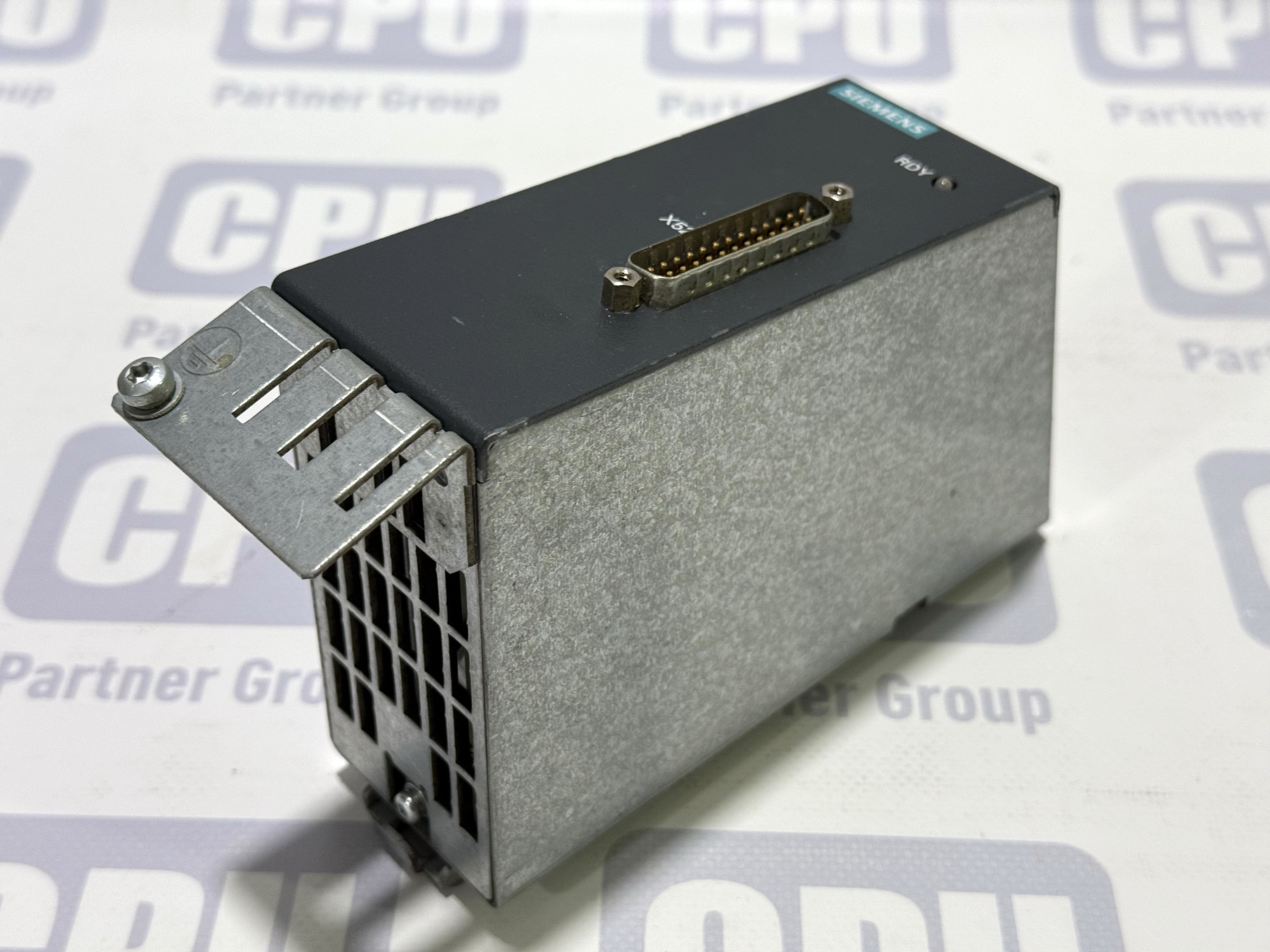

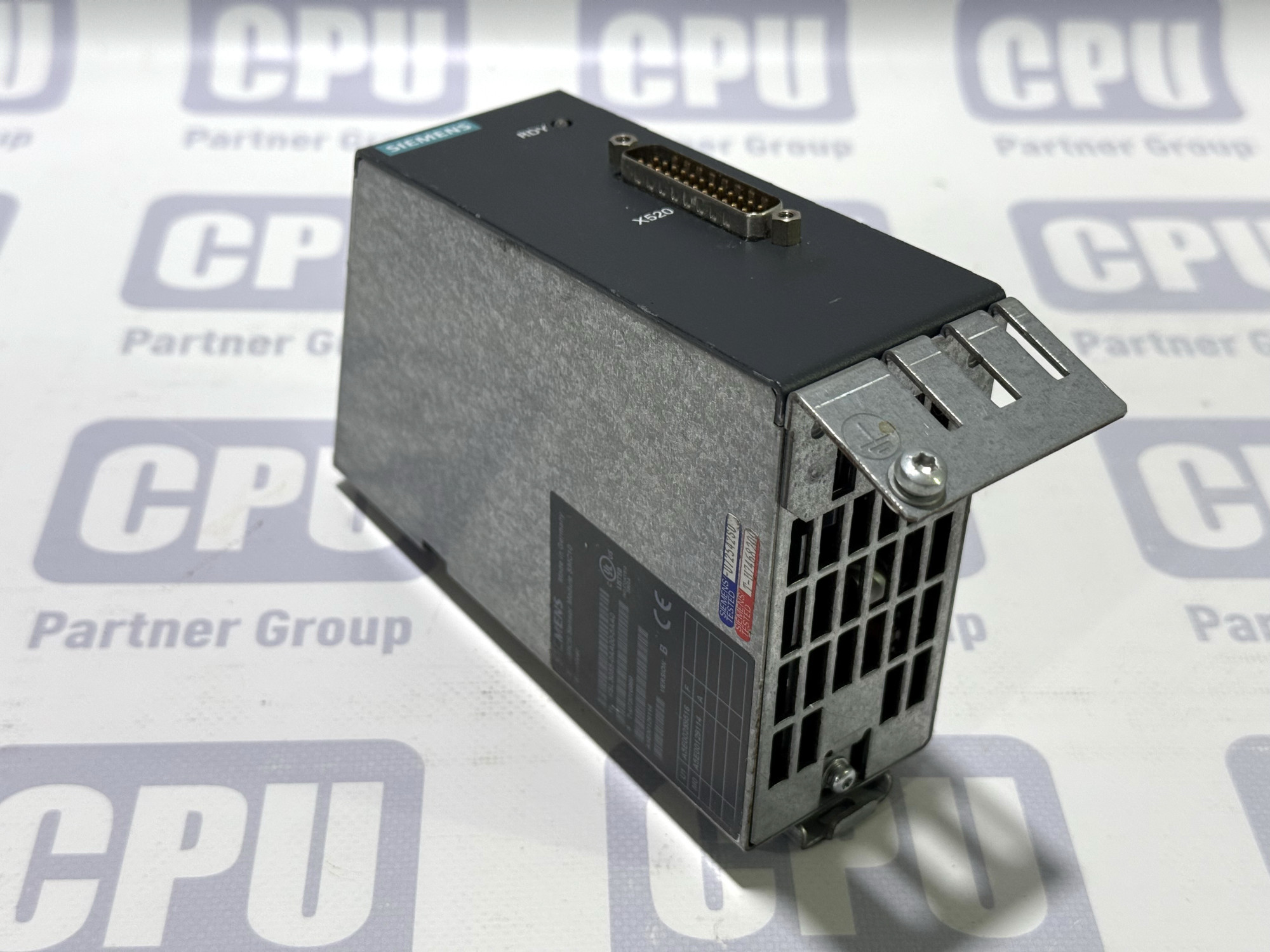

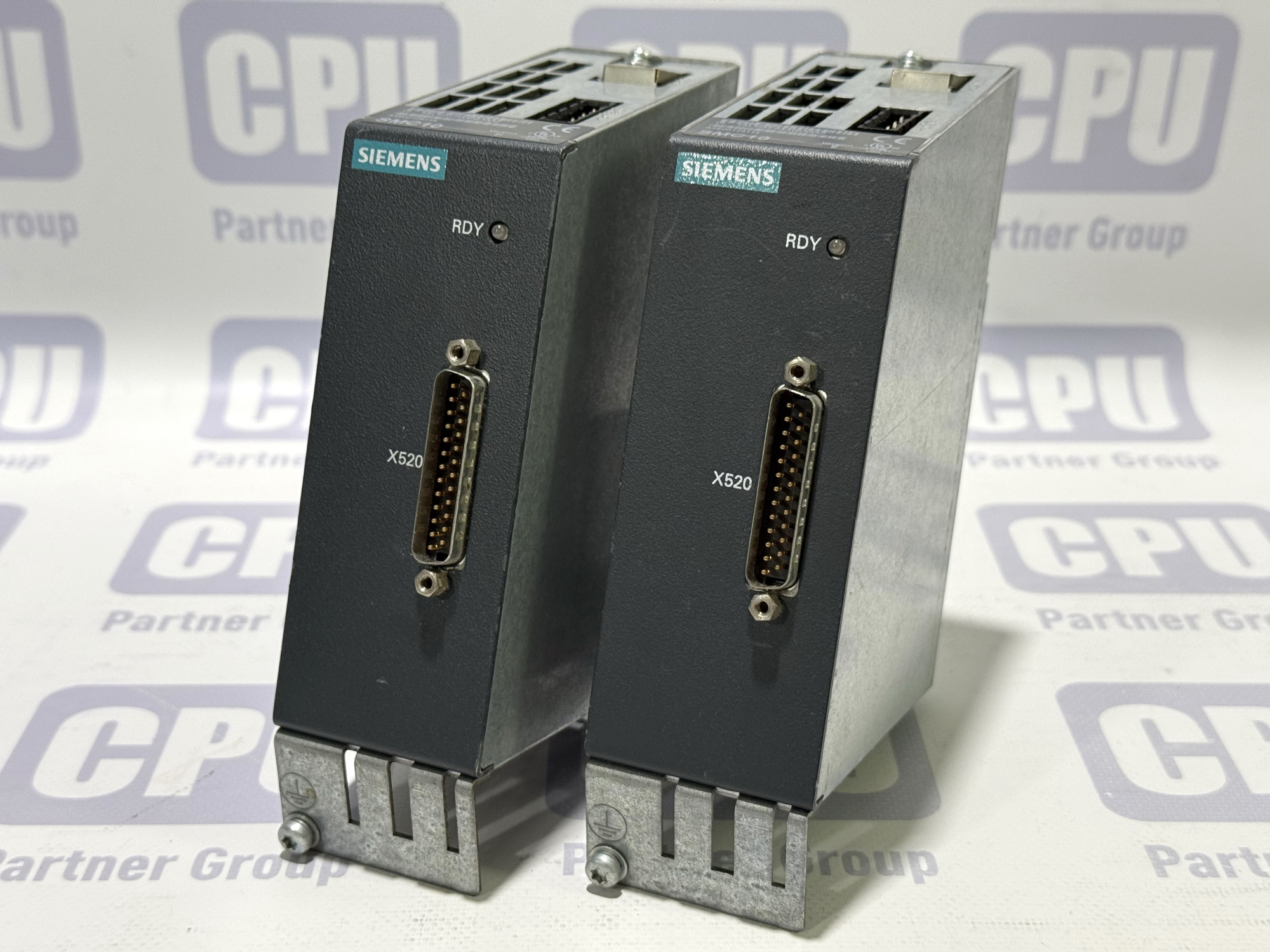

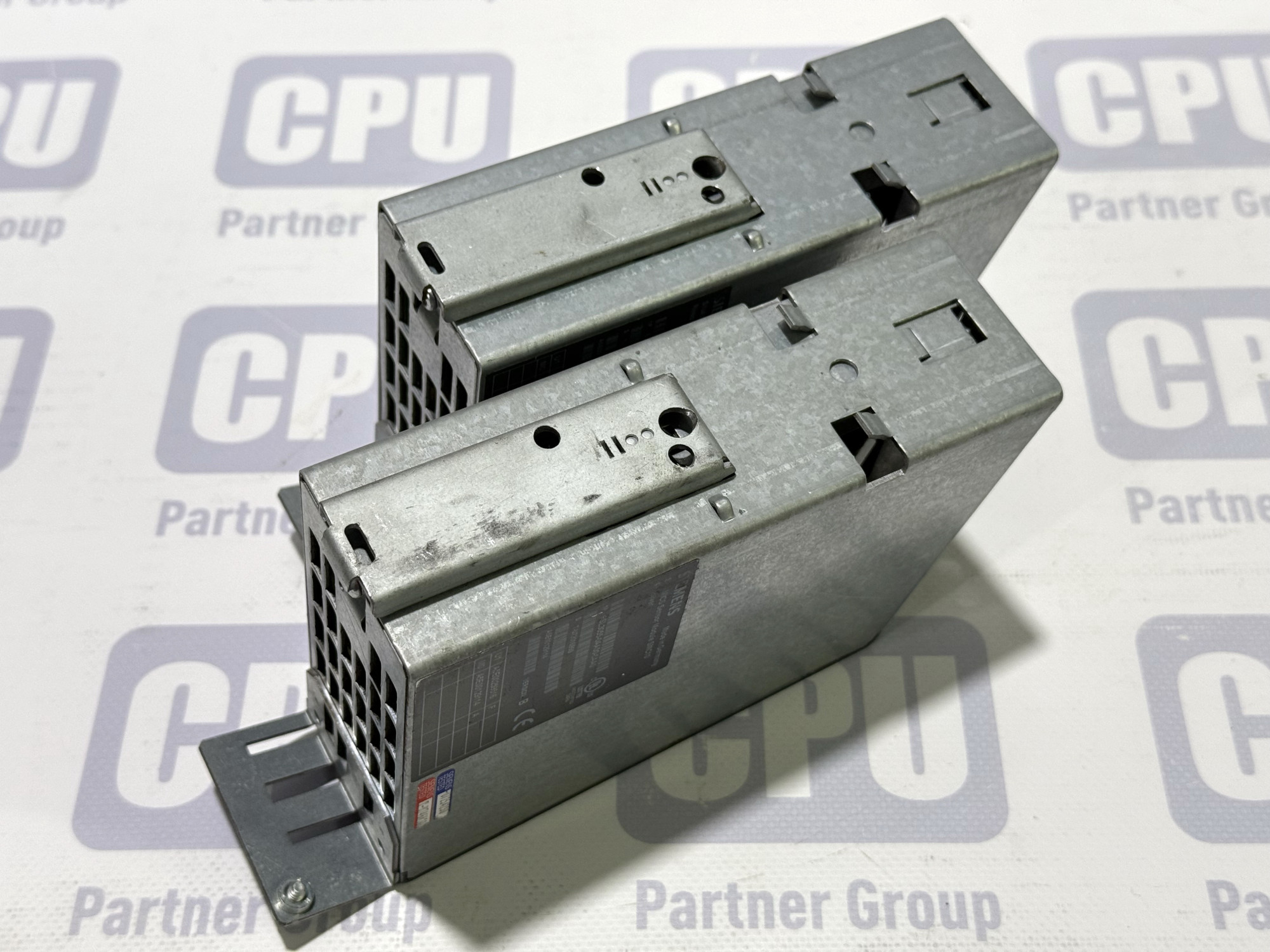

Siemens Sinamics Sensor Module SMC10 6SL3055-0AA00-5AA0

Siemens SINAMICS Sensor Module SMC10 Resolver 6SL3055-0AA00-5AA0

• Type: Sensor Module (SMC10) for Resolver Encoders
• Compatibility: Used within the SINAMICS system (commonly S120)

Siemens SINAMICS Sensor Module SMC10 Resolver (6SL3055-0AA00-5AA0)

The Siemens SINAMICS Sensor Module SMC10 Resolver (6SL3055-0AA00-5AA0) is a key component for integrating resolver type encoders into your SINAMICS drive system, typically within the SINAMICS S120 platform. This module provides the interface necessary to connect and evaluate feedback signals from a resolver, enabling precise speed and position control for your motor.

Key Features:

• Resolver Compatibility: Specifically designed to connect and process signals from standard resolver encoders.
• Encoder Feedback: Facilitates accurate motor control by providing essential speed and position feedback to the drive system.
• System Integration: Part of the modular SINAMICS system, connecting to the Control Unit (CU) to enhance drive functionality.
• Cabinet Mounting: Designed for easy installation and mounting within a control cabinet.
• Reliable Data Acquisition: Ensures dependable transfer and evaluation of encoder data for high-performance applications.
• Compact Size: Features a compact form factor suitable for panel space optimization.

The SMC10 Resolver module is essential for applications requiring closed-loop control with resolver feedback, providing the necessary interface for accurate and dynamic motion control.

On this page you will find the user manual for Siemens SINAMICS S120. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for Siemens SINAMICS S120
