Siemens SITOP 6EP1337-3BA00 Stabilized power supply №2

Siemens SITOP 6EP1337-3BA00 Stabilized power supply №2

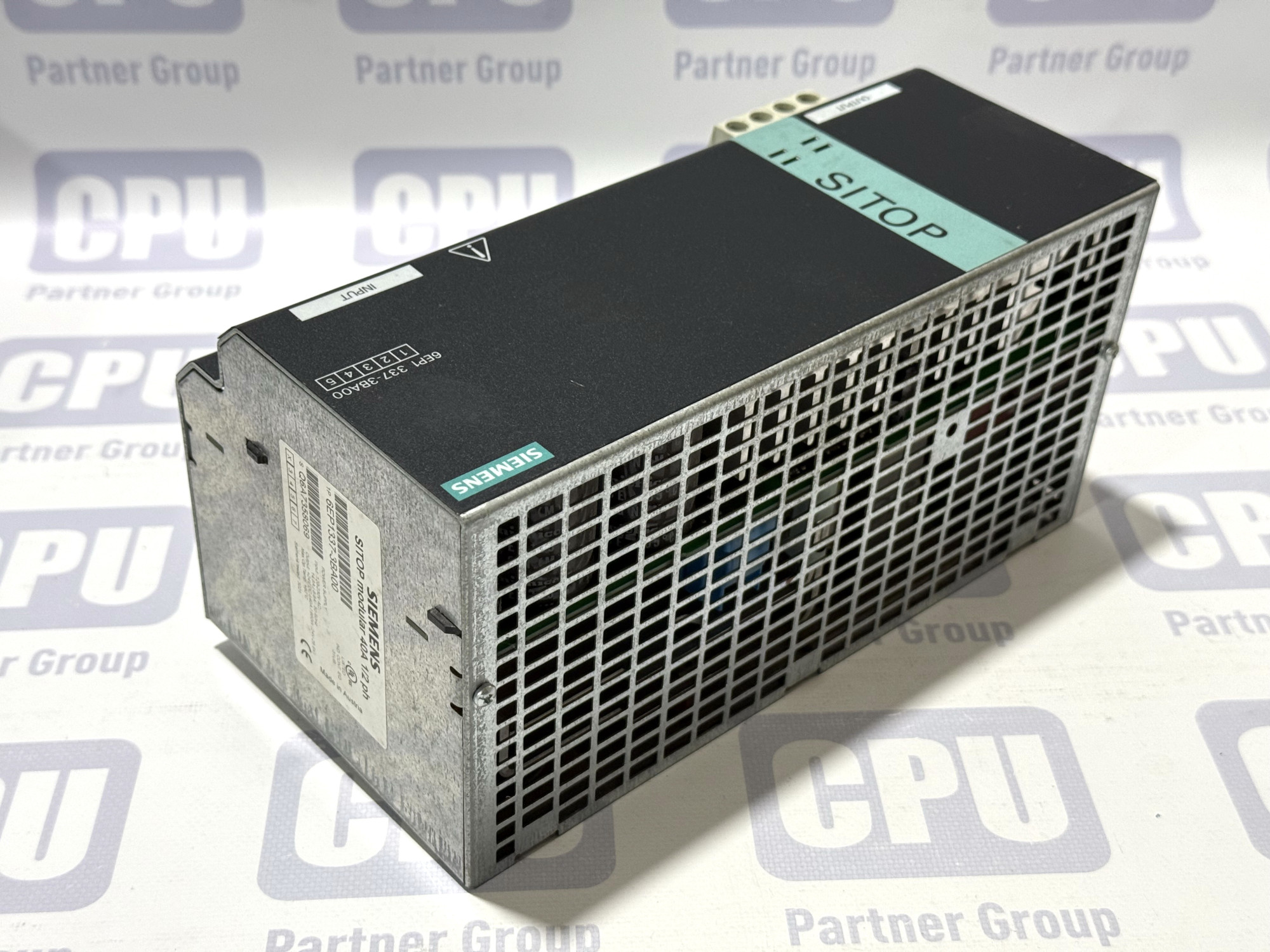

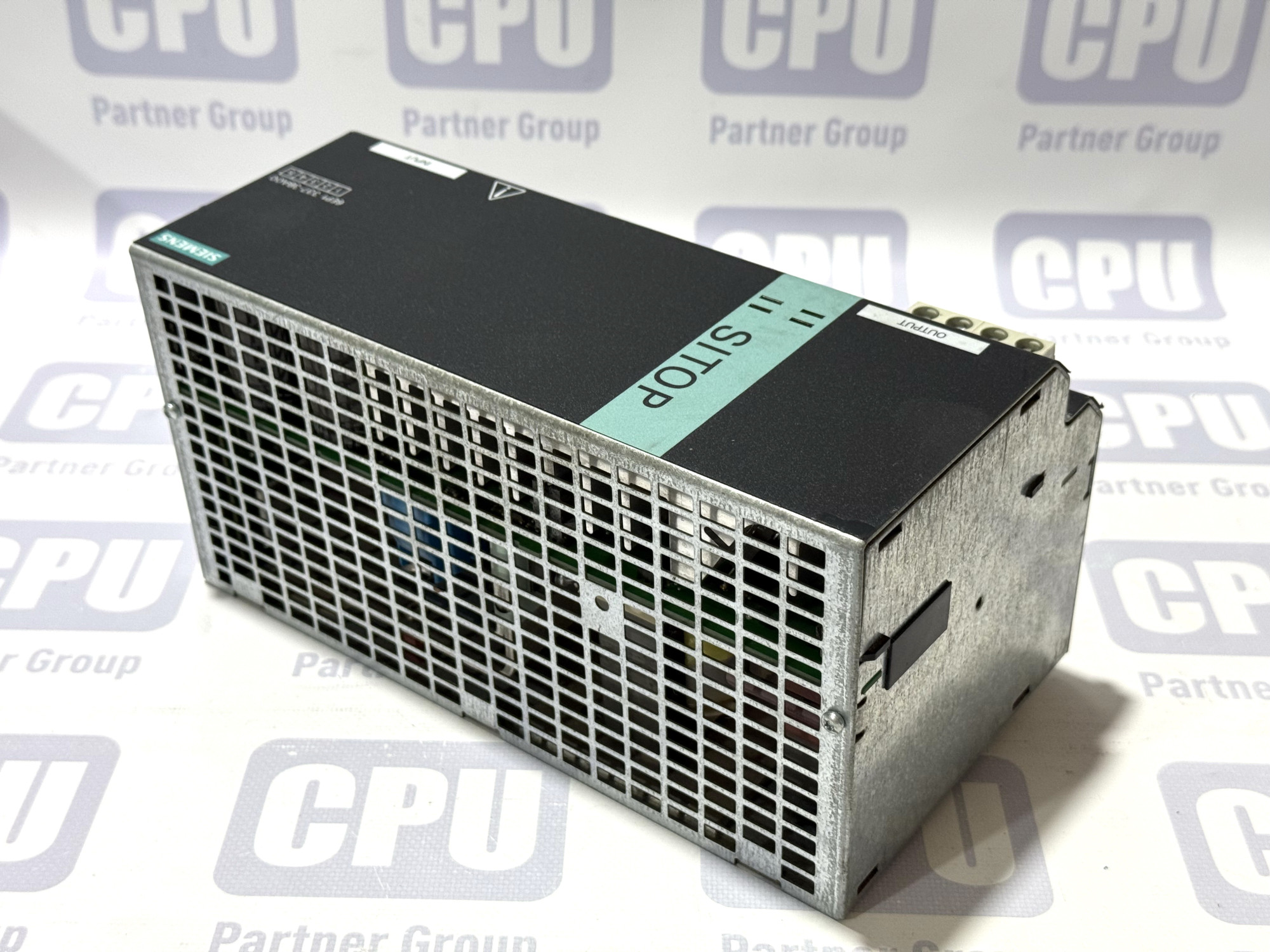

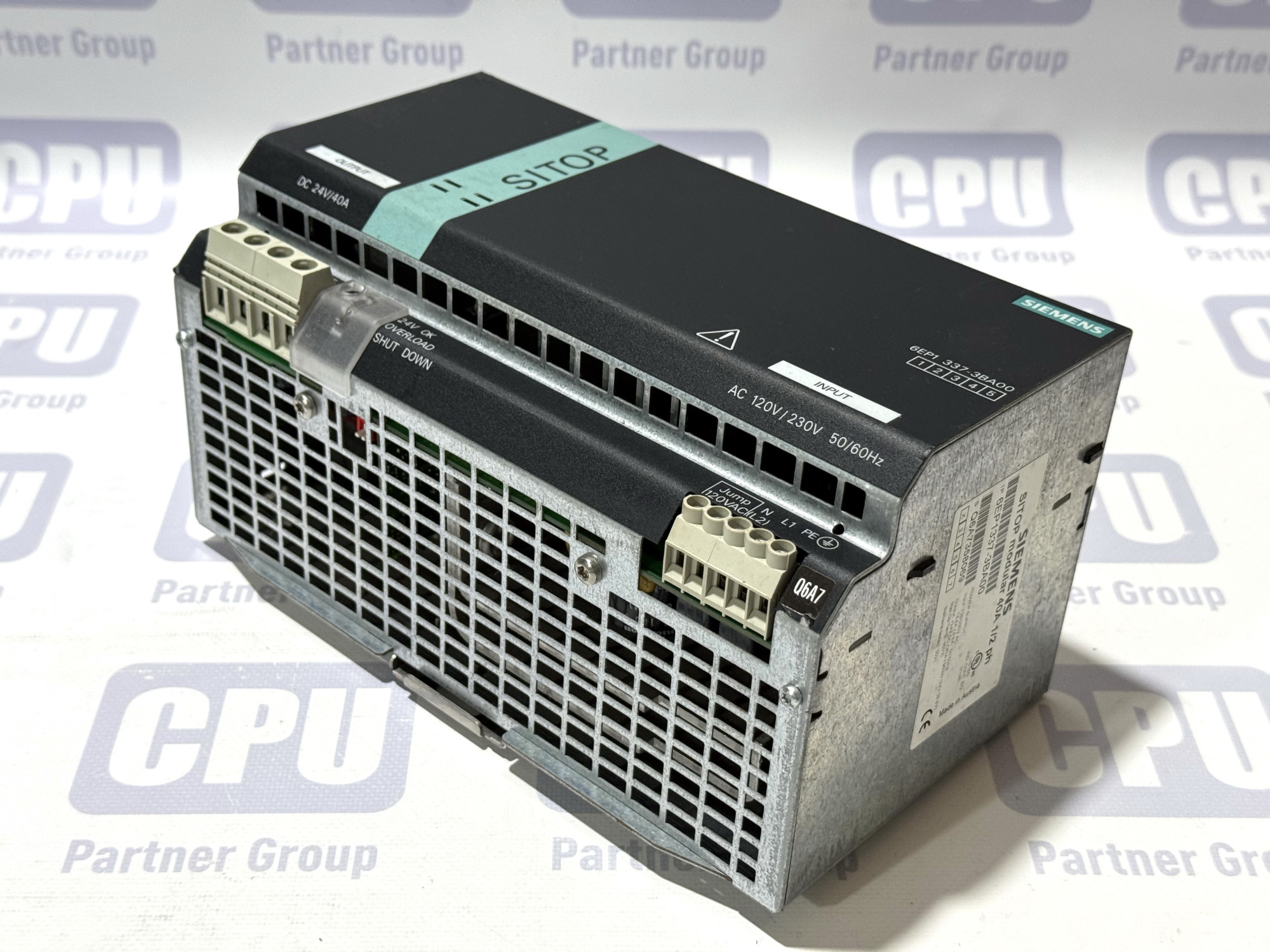

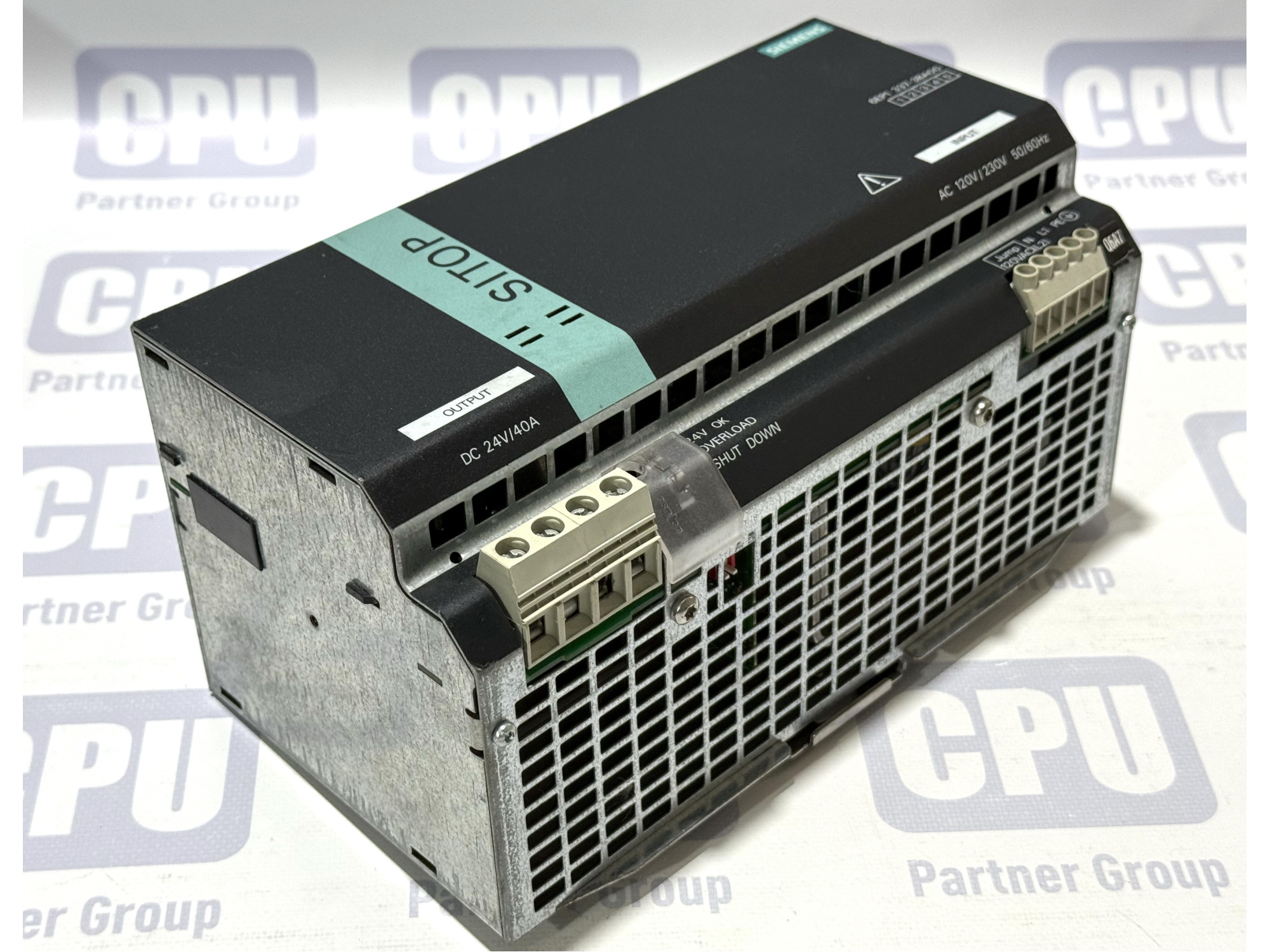

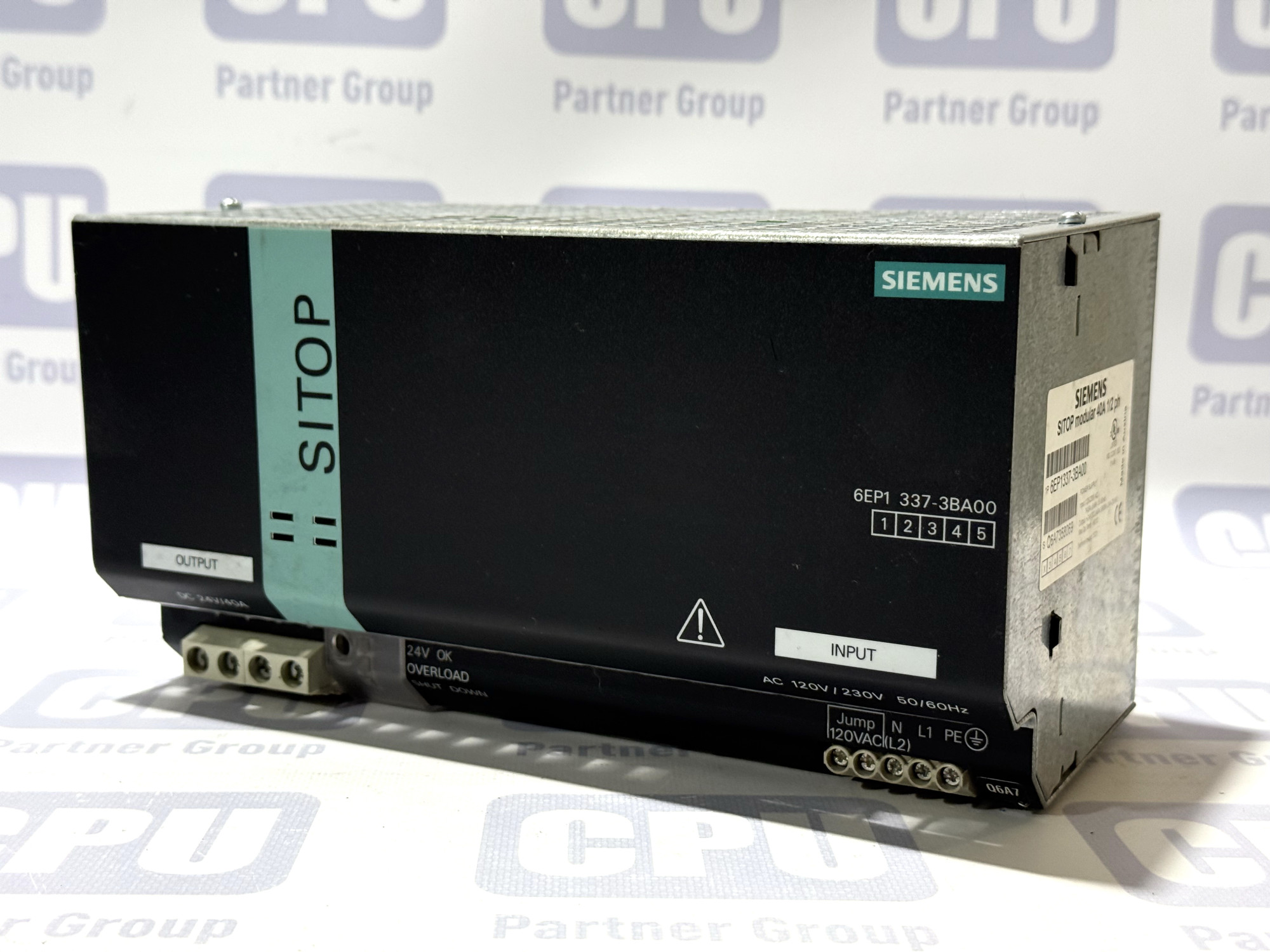

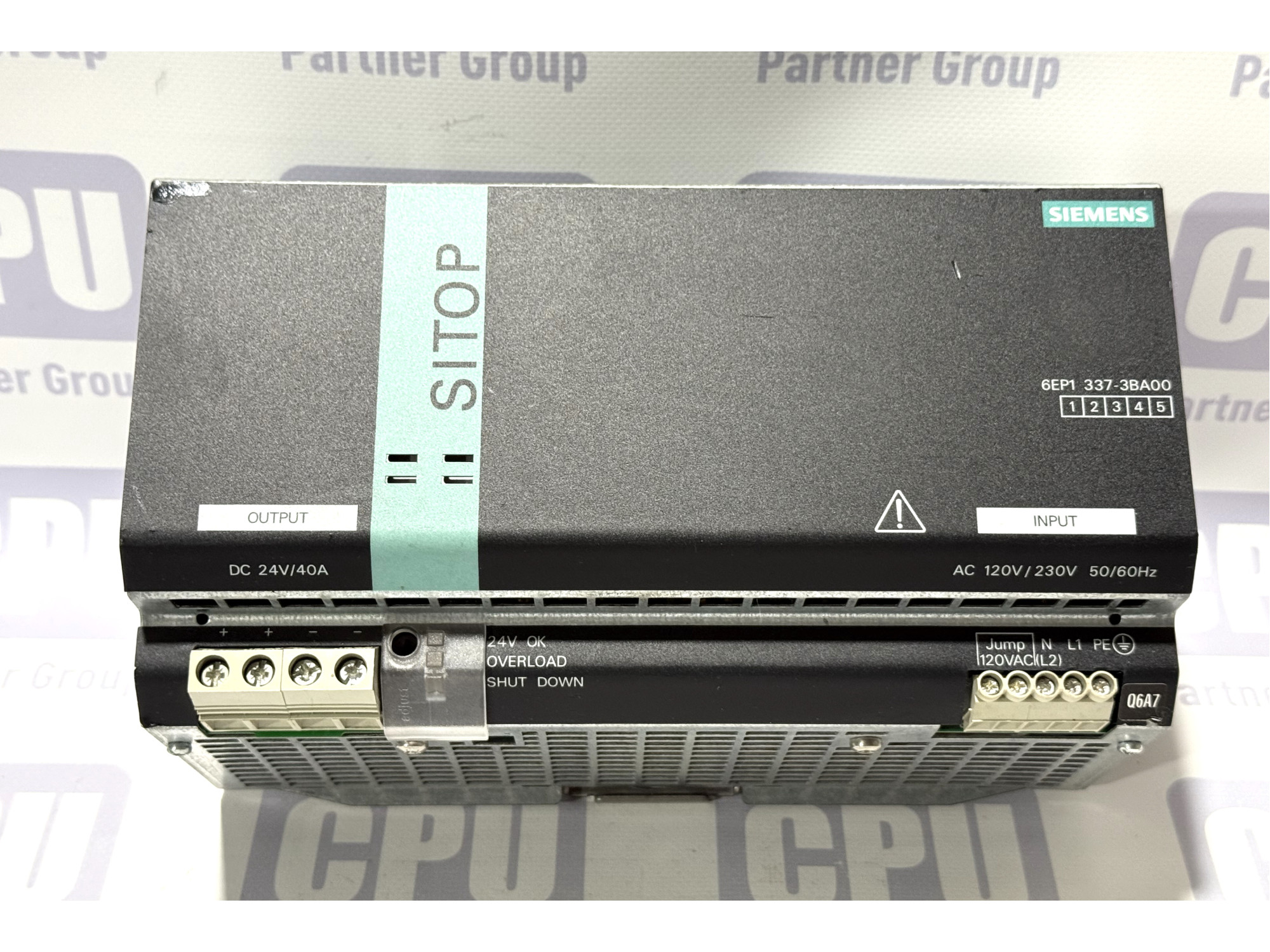

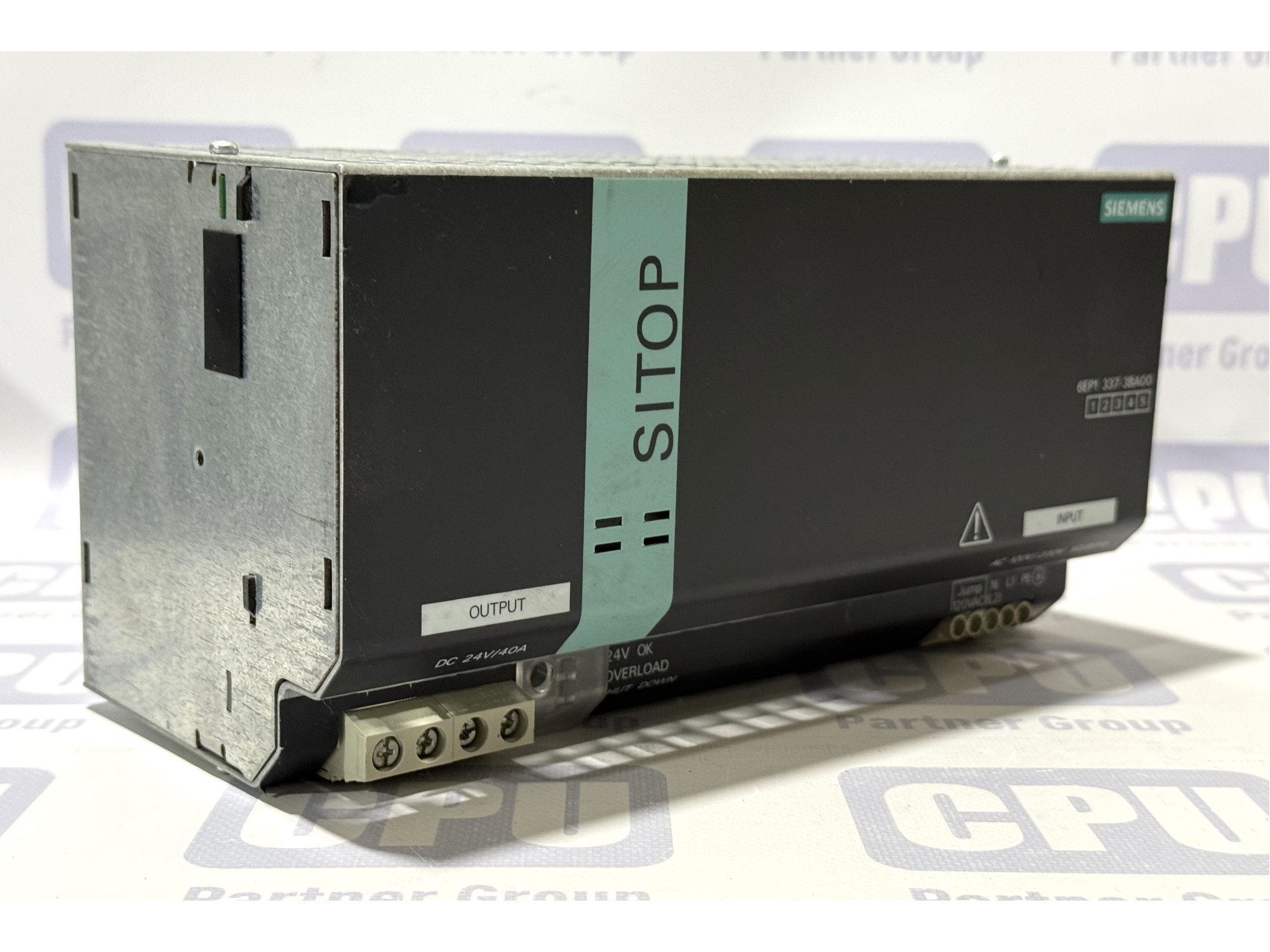

The Siemens SITOP PSU100M (6EP1337-3BA00) is a stabilized modular power supply designed for industrial applications requiring reliable and efficient power delivery. It is part of the SITOP modular series and is suitable for systems with high current demands.

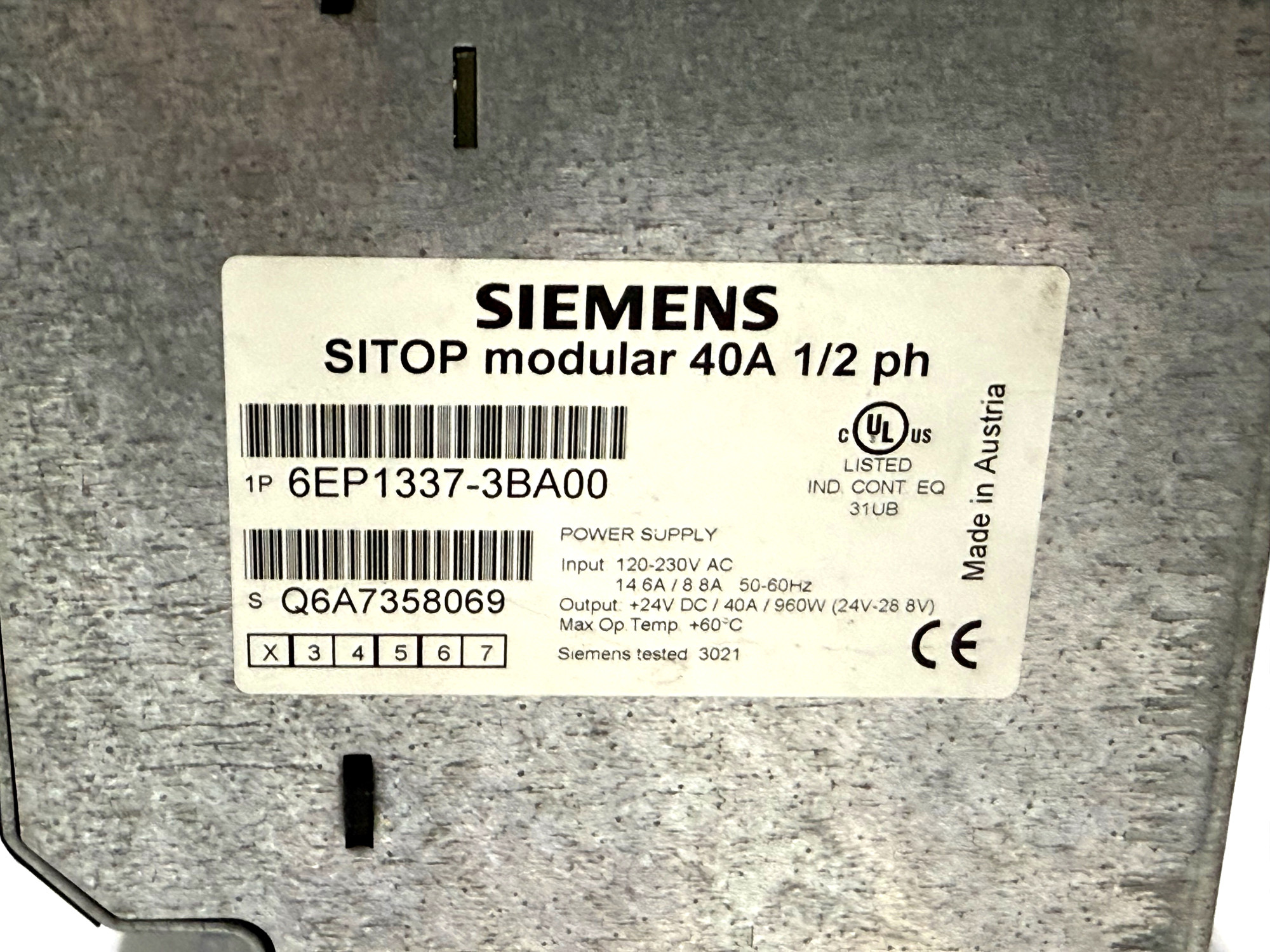

Key Specifications

• Input Voltage: Single-phase AC 120/230 V

• Output Voltage: 24 V DC

• Output Current: 40 A

• Power Output: 960 W

• Input Voltage Range: 85–132 V AC / 176–264 V AC

• Frequency Range: 47–63 Hz

• Efficiency: Up to 84%

• Dimensions (W × H × D): 240 × 125 × 125 mm

• Weight: 2.9 kg

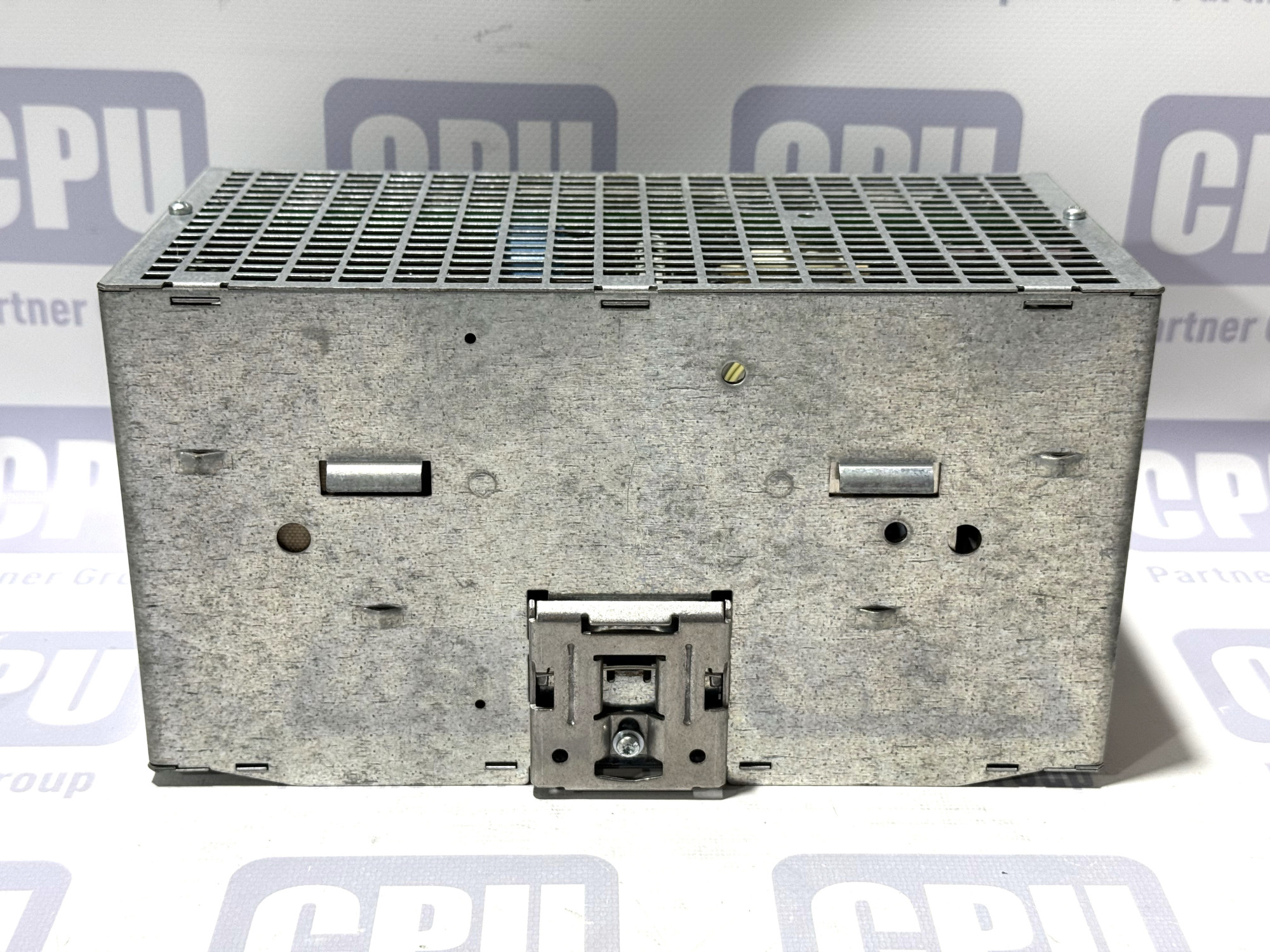

• Mounting: DIN rail

• Protection Class: IP20

• Operating Temperature: 0°C to +60°C

• Certifications: CE, UL508, TUV EN60950-1

⚙️ Features

• Stabilized Output: Provides a consistent 24 V DC output, ensuring reliable operation of connected devices.

• Overload and Short-Circuit Protection: Built-in protections safeguard the power supply and connected equipment.

• Natural Air Cooling: Efficient cooling without the need for additional fans, reducing maintenance.

• Modular Design: Allows for easy integration into existing systems and scalability for future expansions.

• LED Indicators: Visual status indicators for easy monitoring of operational status.

Applications

Ideal for use in industrial automation systems, machinery, and control panels where a stable and robust power supply is essential. Its high output current makes it suitable for powering multiple devices or systems with significant power requirements.

On this page you will find the user manual for Siemens SITOP 6EP1337-3BA00. Get detailed technical specifications, installation and operating instructions to ensure optimal performance and reliability.

Mannual for Siemens SITOP 6EP1337-3BA00
