SMC20 Siemens Sinamics Sensor Module 6SL3055-0AA00-5BA1

Condition: Used
Brand: Siemens
Product Code: 6SL3055-0AA00-5BA1
SKU: #BD7809/99#
Availability: 1
Warranty term: 30 days
Located in: Ukraine

️ 7

0 reviews / Write a review

Price: $100.00
Ex Tax: $100.00

Description
Reviews (0)

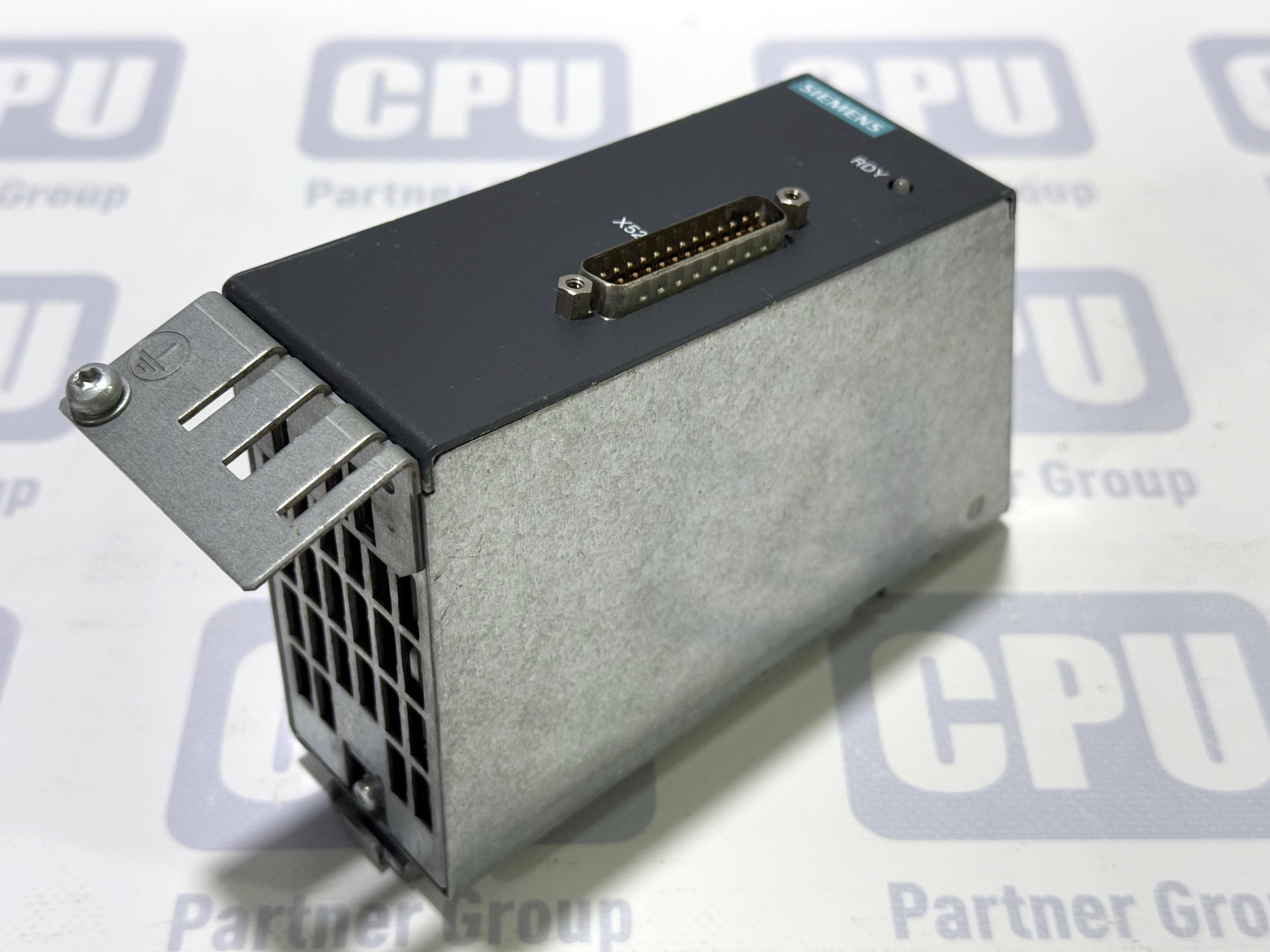

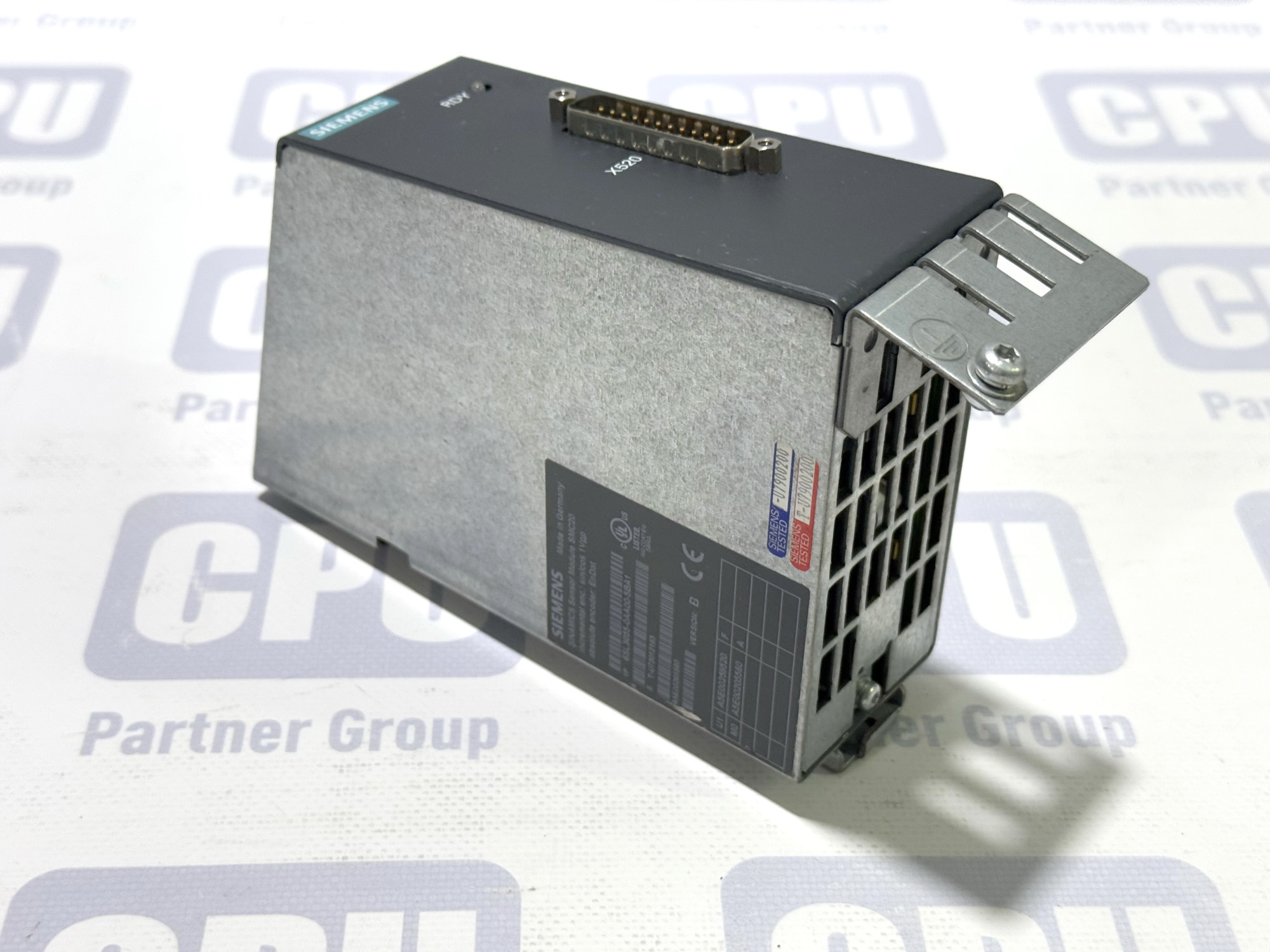

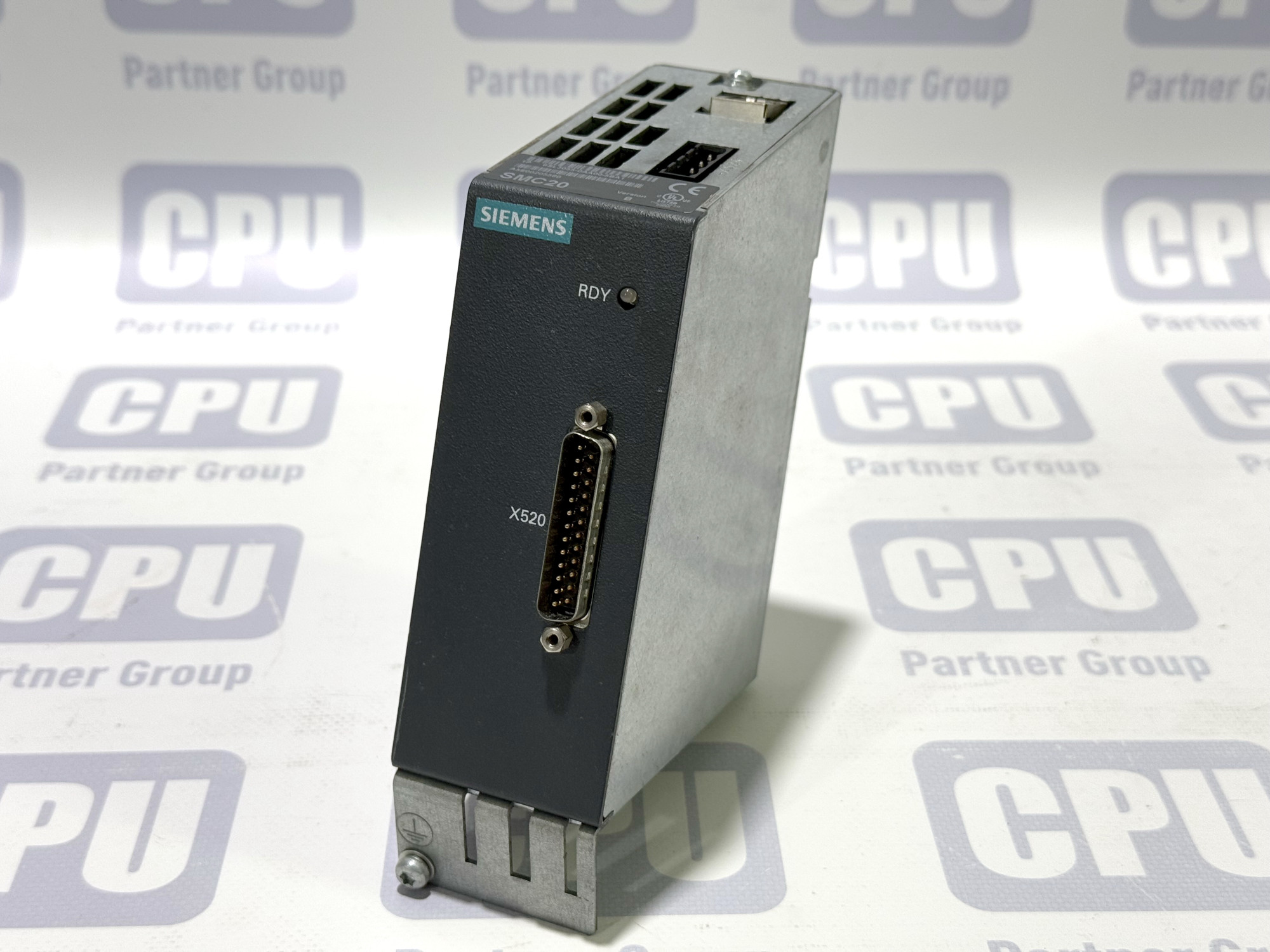

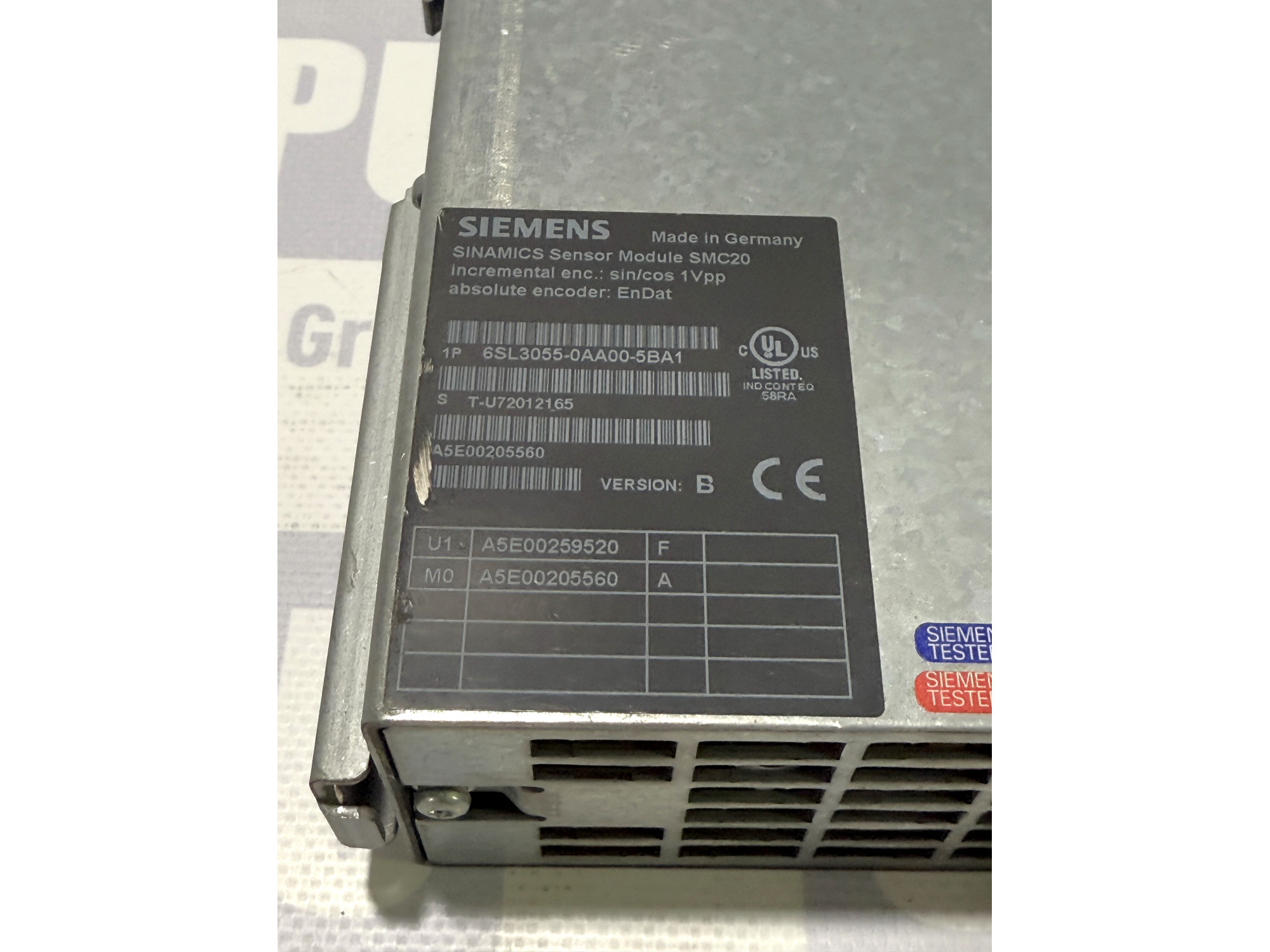

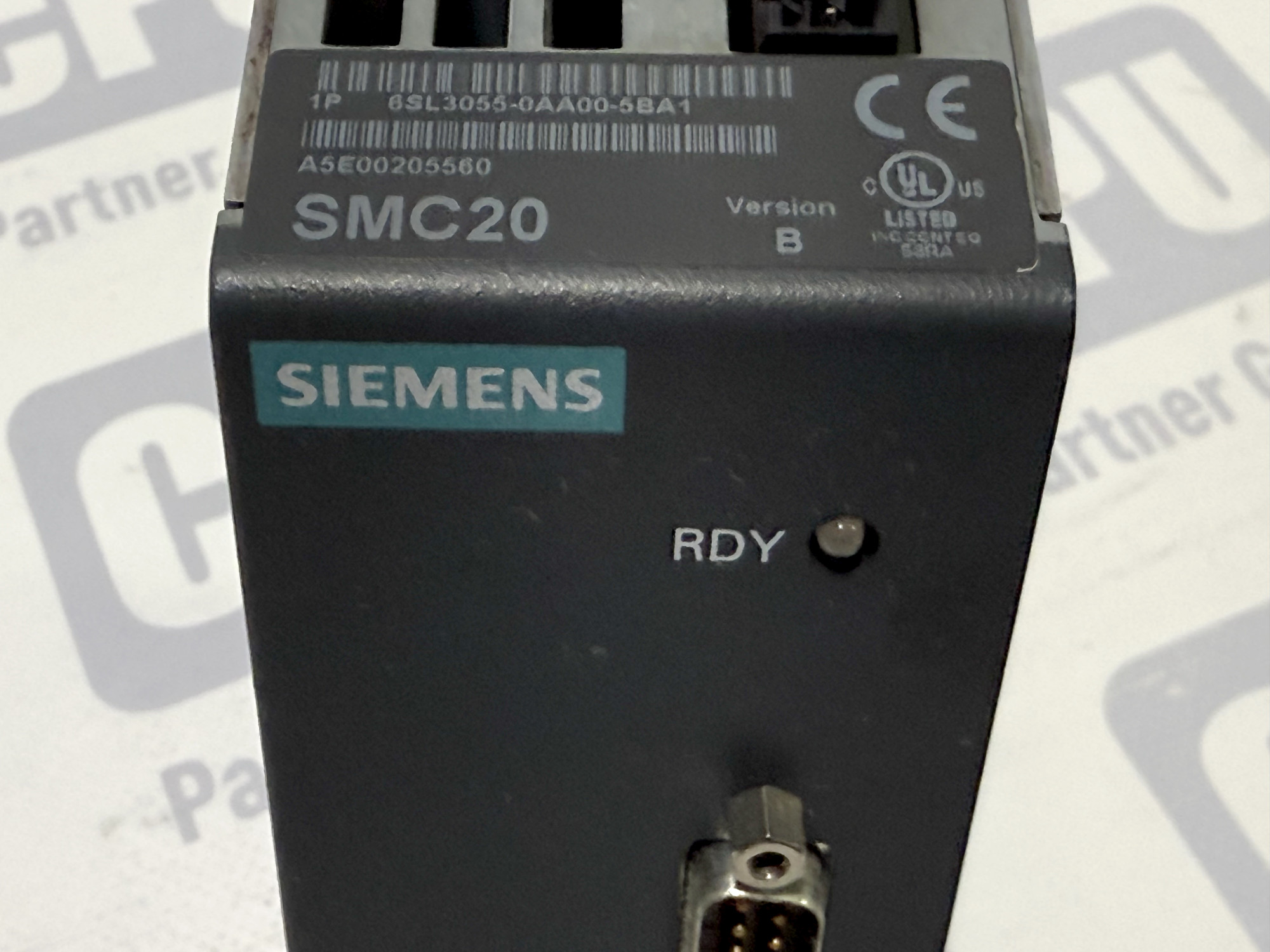

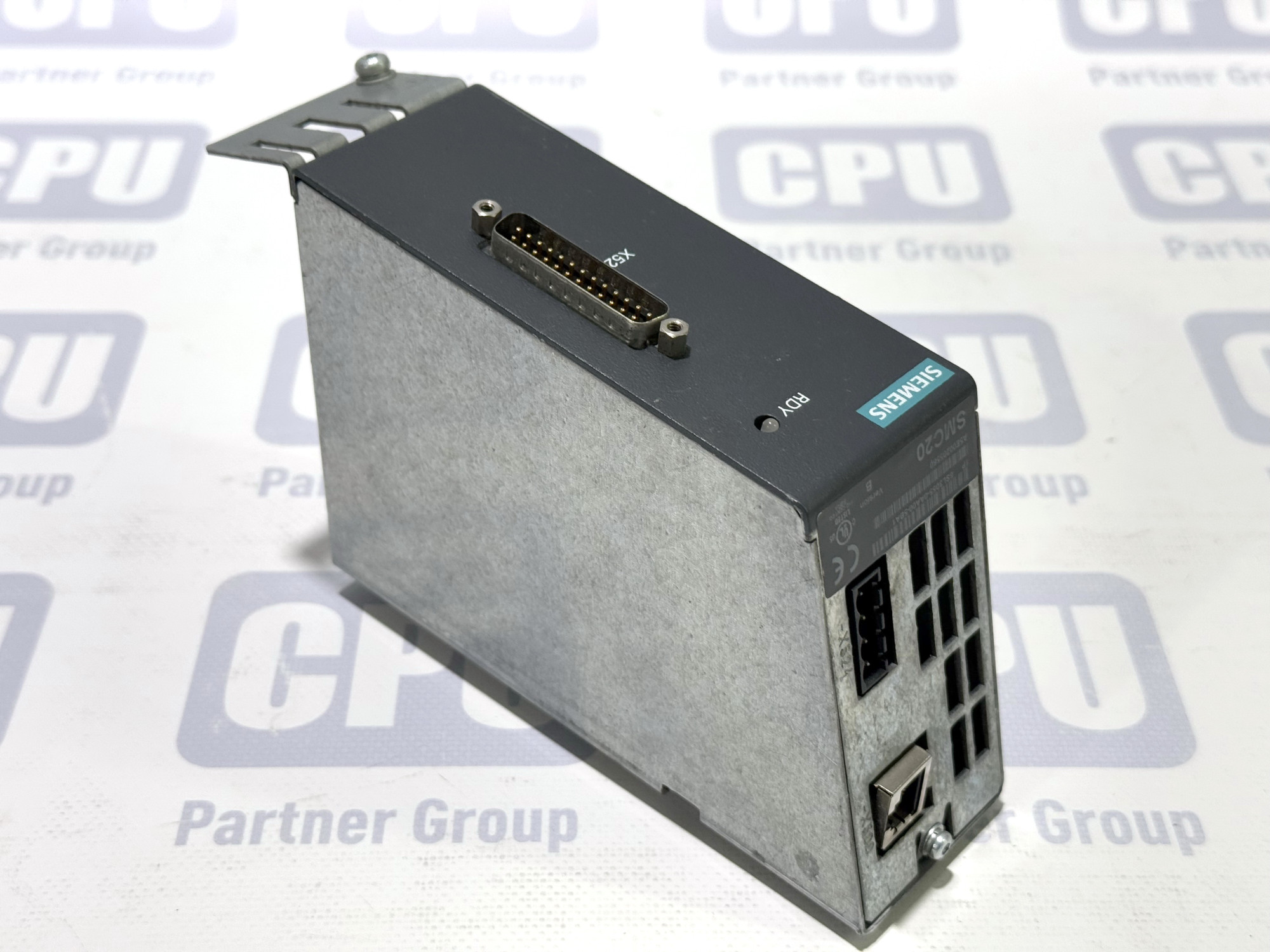

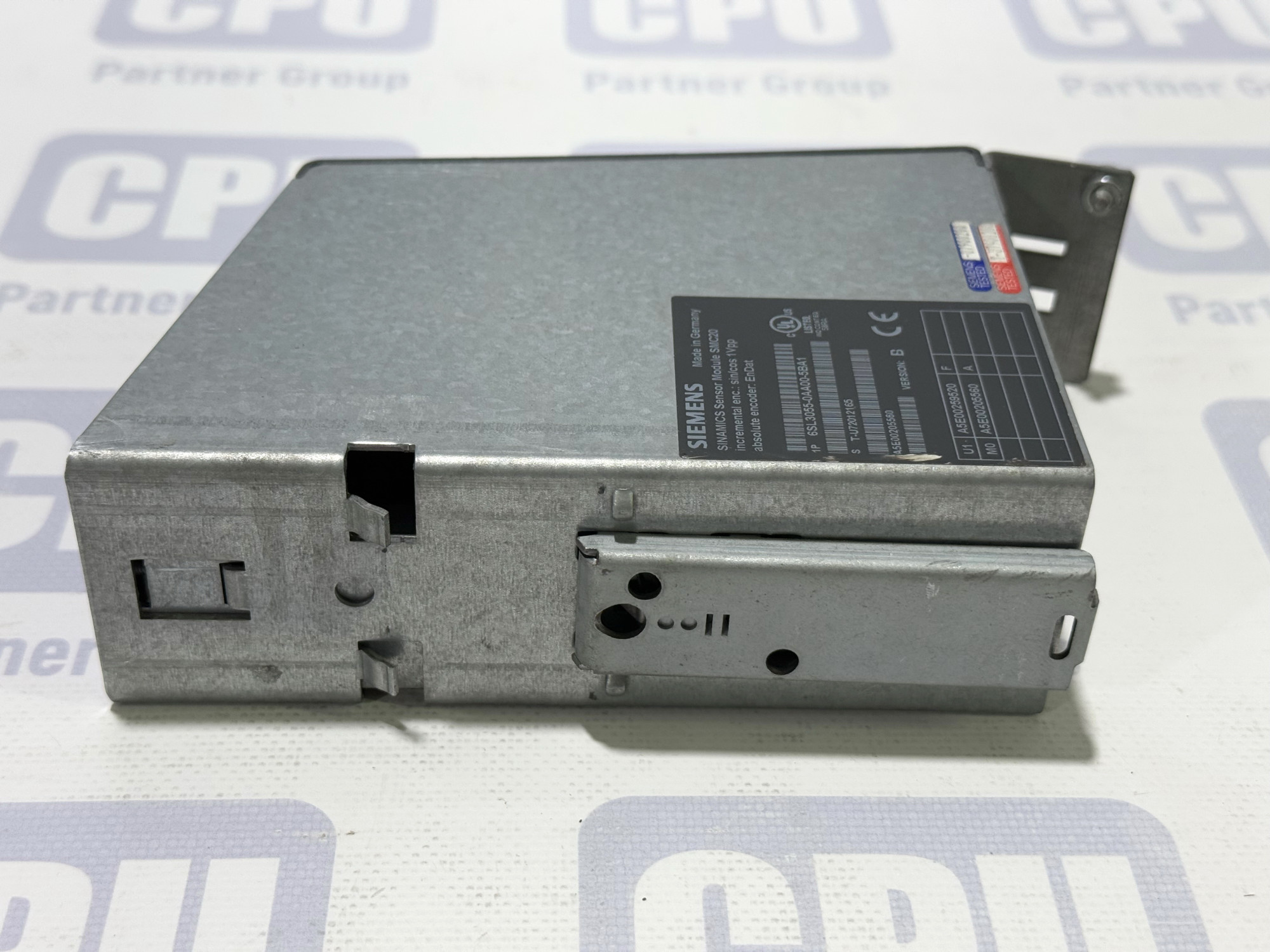

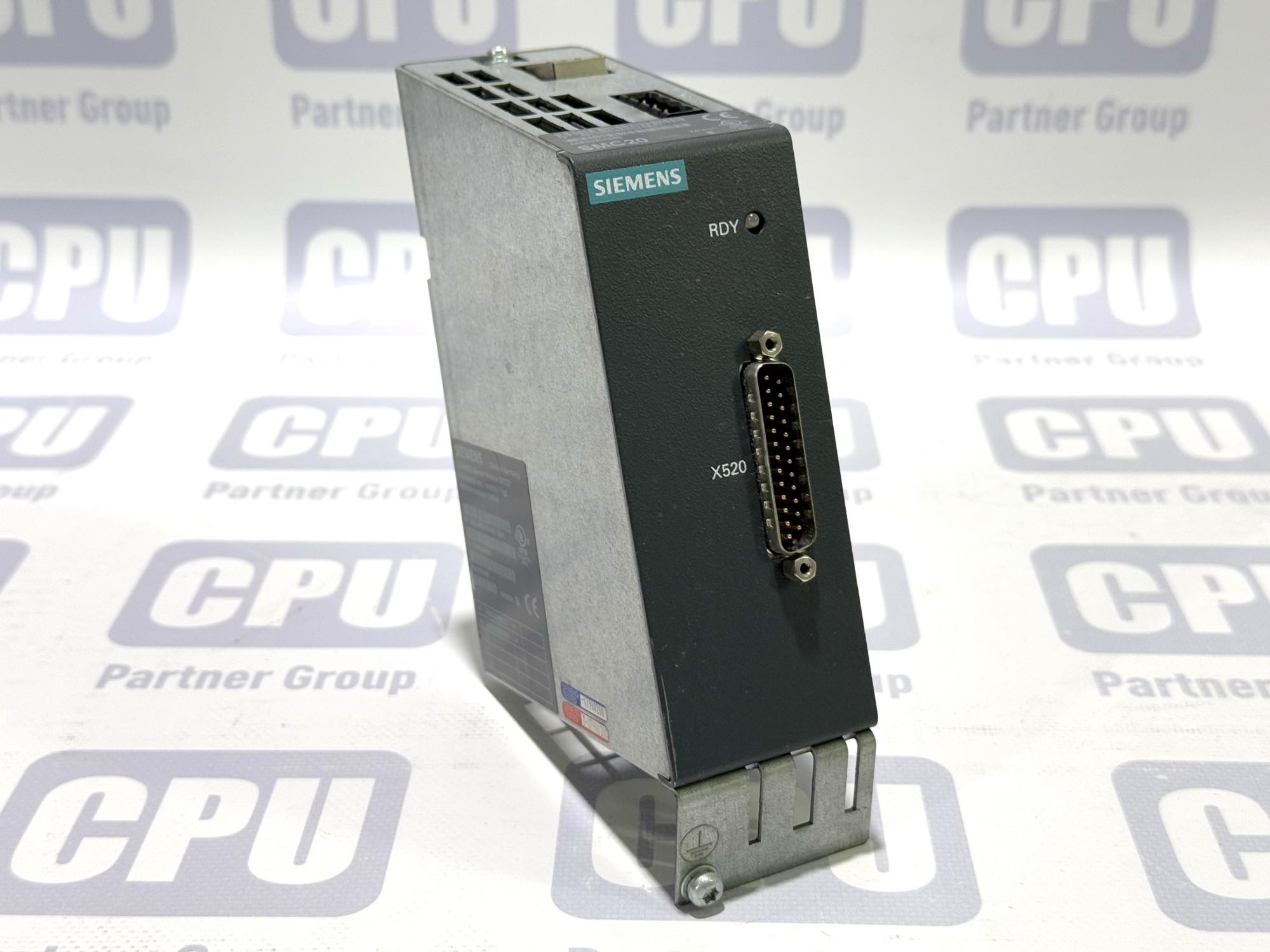

Siemens SINAMICS Sensor Module SMC20 6SL3055-0AA00-5BA1

Type: Sensor Module (SMC20) for Incremental (Sin/Cos) and Absolute (EnDat) Encoders
Compatibility: Used within the SINAMICS system (commonly S120)

Siemens SINAMICS Sensor Module SMC20 for Incremental/Absolute Encoders (6SL3055-0AA00-5BA1)

The Siemens SINAMICS Sensor Module SMC20 (6SL3055-0AA00-5BA1) is a specialized component designed for integrating high-resolution incremental (Sin/Cos 1Vpp) and absolute (EnDat) encoders into your SINAMICS drive system, typically within the SINAMICS S120 platform. This module is essential for applications demanding highly accurate speed, position, and angle feedback for precise motion control.

Key Features:

High-Resolution Encoder Support: Compatible with incremental encoders providing Sin/Cos 1Vpp signals and absolute encoders utilizing the EnDat interface.
Accurate Motion Feedback: Enables the drive system to receive precise position and speed information from advanced encoders.
System Integration: Connects to the SINAMICS Control Unit (CU) via the DRIVE-CLiQ interface (cable not included) to provide critical feedback for closed-loop control.
Reliable Performance: Ensures dependable acquisition and processing of encoder data for dynamic and accurate drive operation.
Compact Form Factor: Designed for efficient mounting within a control cabinet.

The SMC20 module is vital for complex motion control tasks in industries such as machine tools, robotics, and printing, where high accuracy and dynamic response are paramount.

On this page you will find the user manual for Siemens Sinamics 6SL3055-0AA00-5BA1. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.
