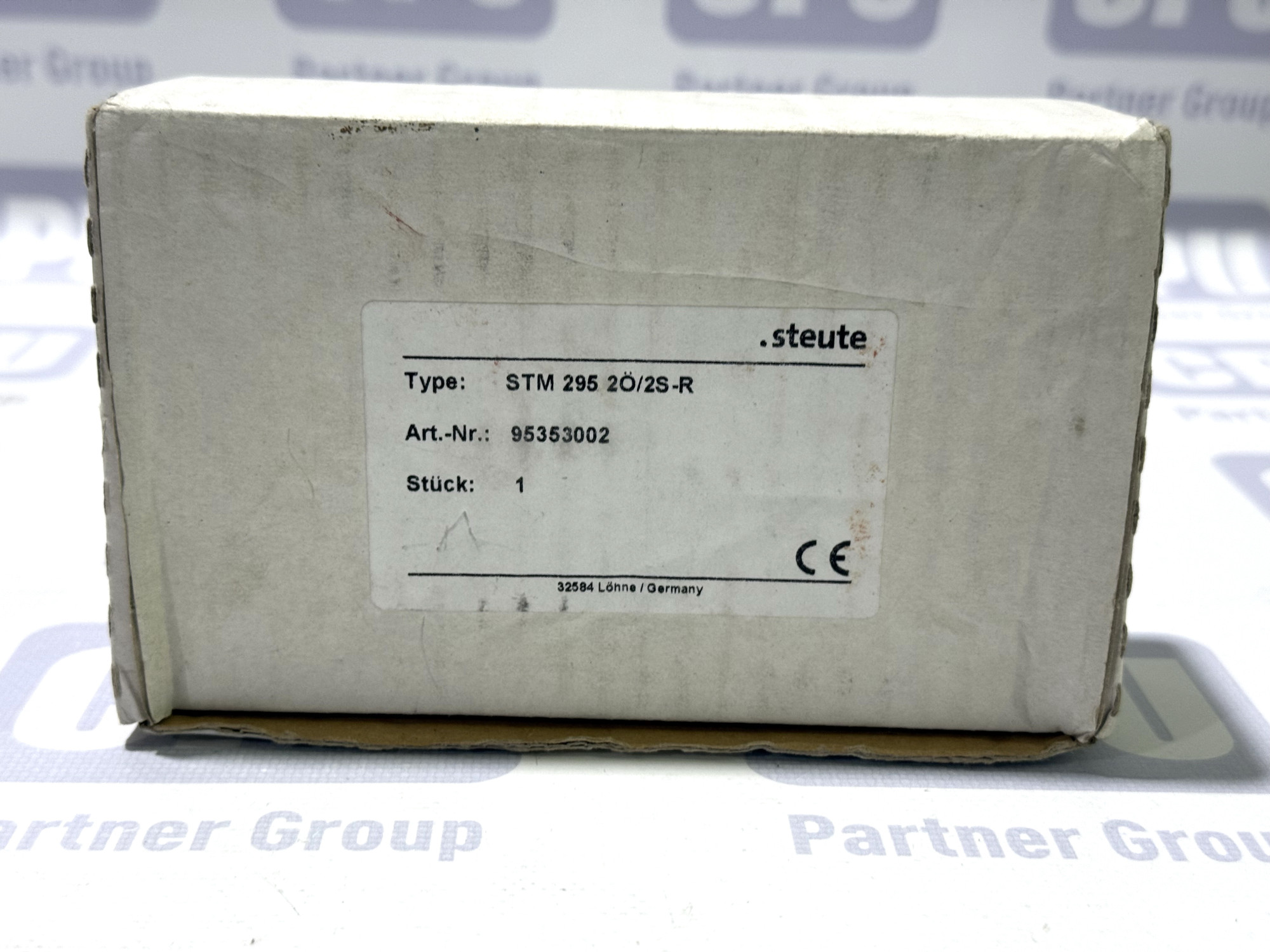

STEUTE STM 295 2O/2S-R SOLENOID INTERLOCK

STEUTE STM 295  2Ö/2S-R  Series Safety Solenoid Interlock

• Type: Safety Solenoid Interlock / Guard Locking Switch

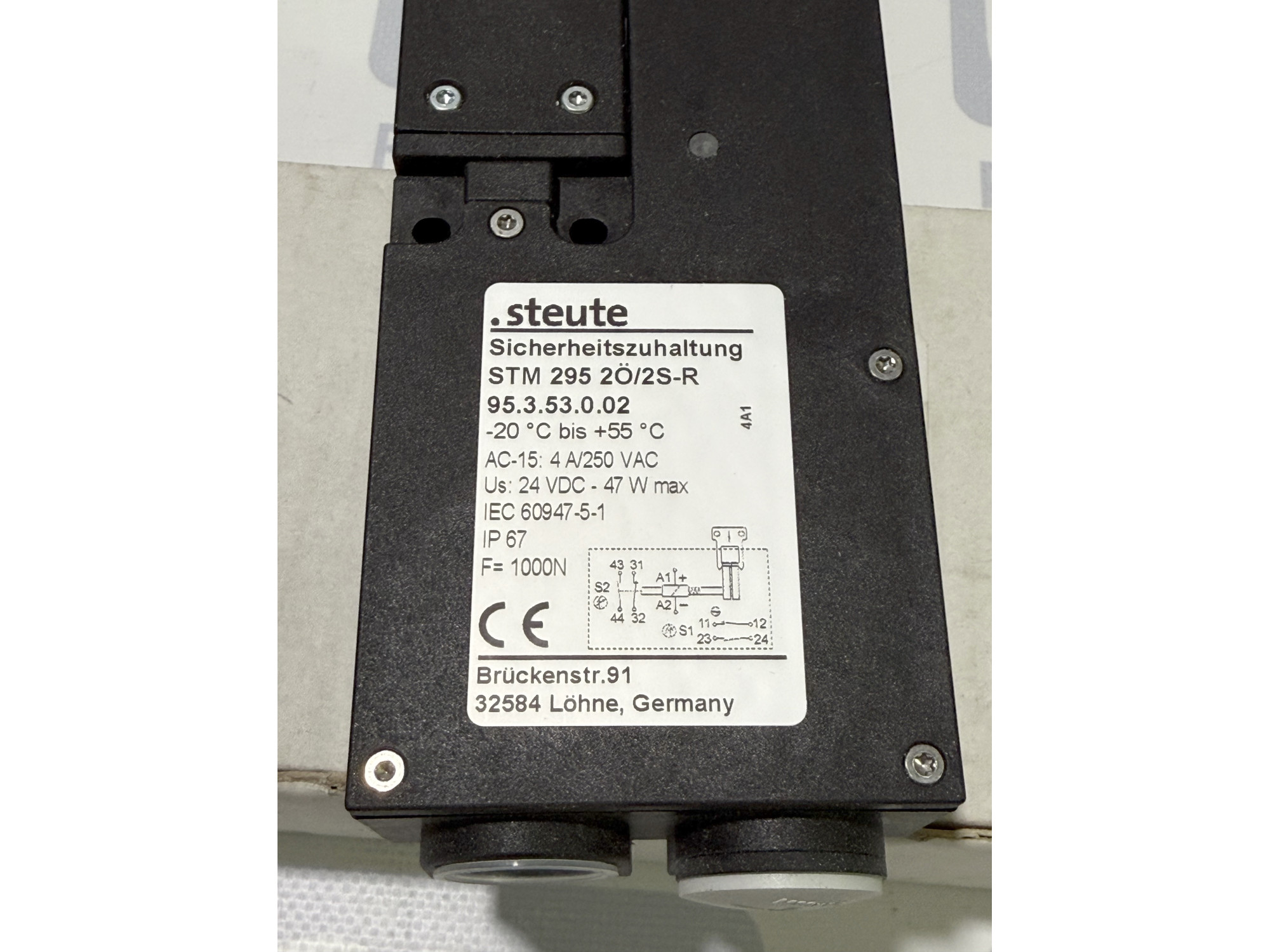

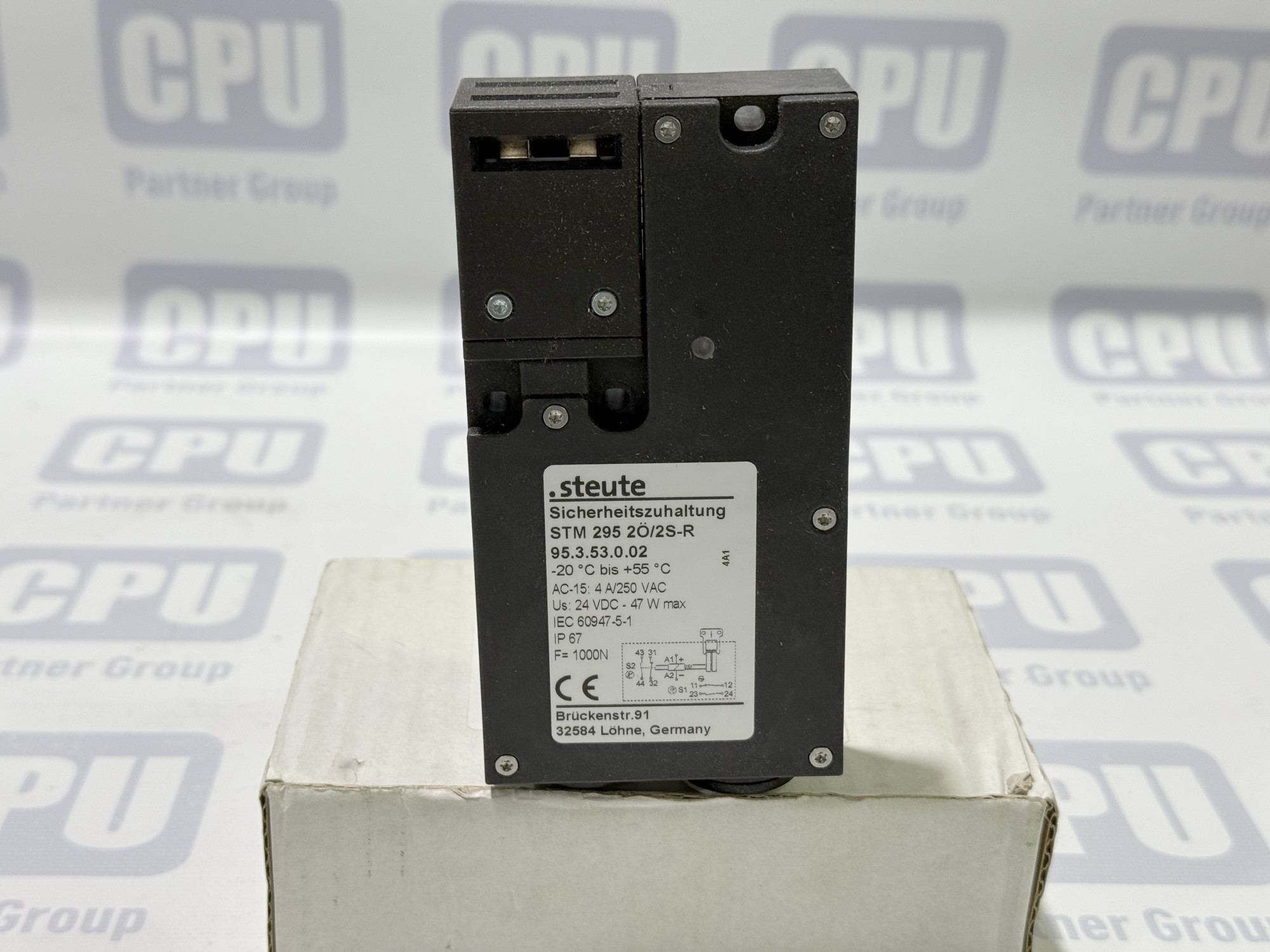

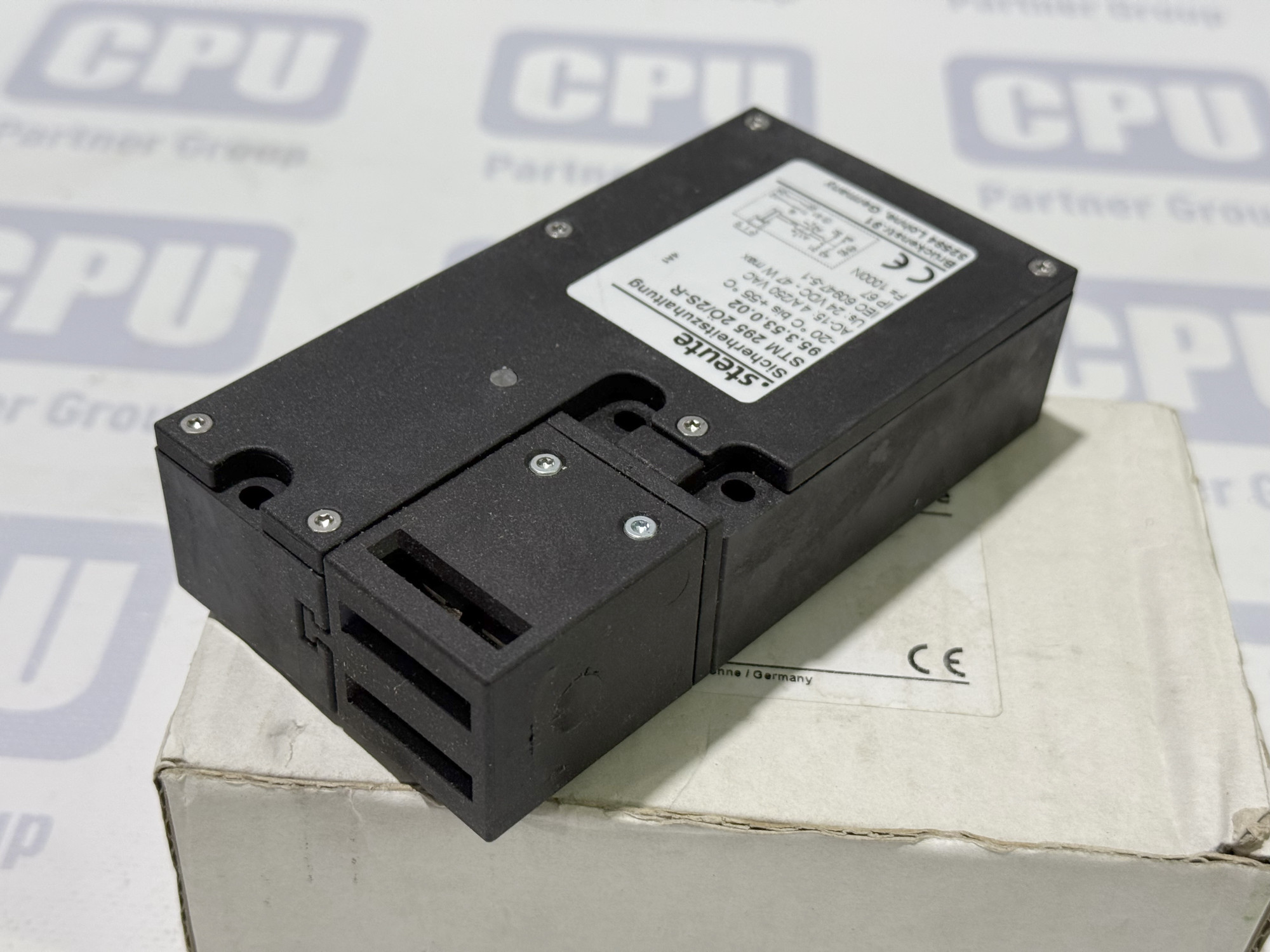

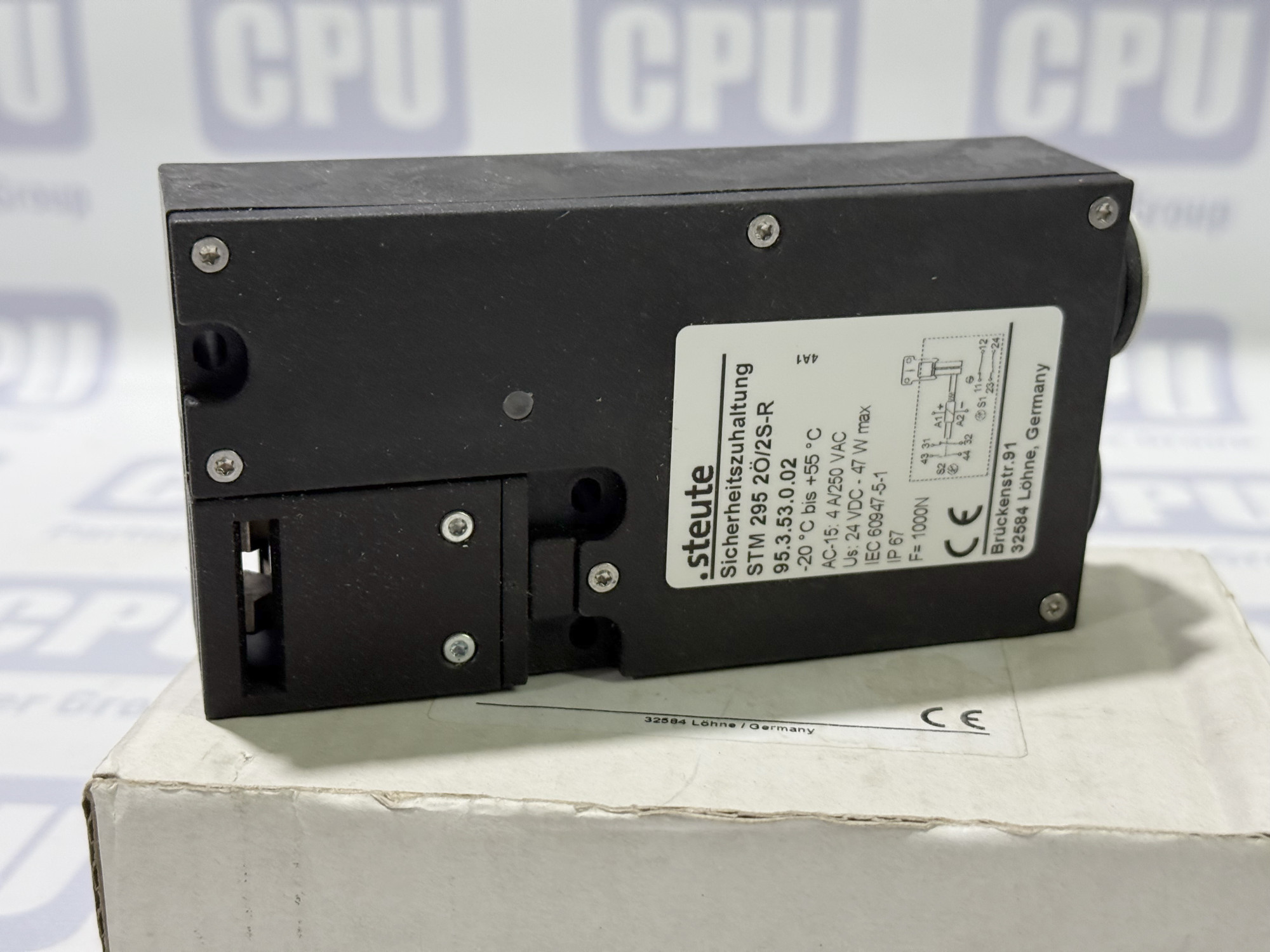

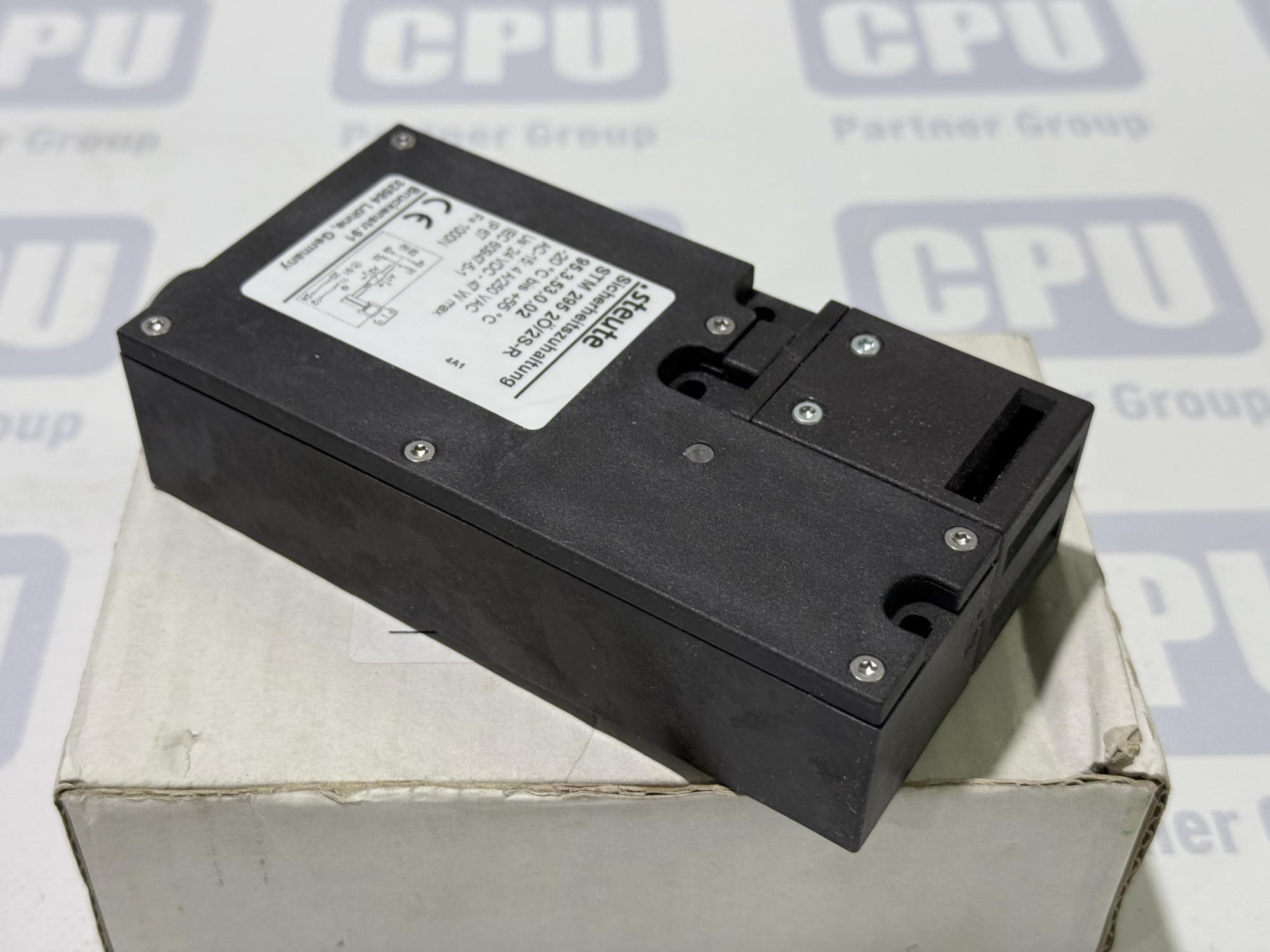

STEUTE STM 295 2Ö/2S-R Safety Solenoid Interlock (Spring-to-Lock)

The STEUTE STM 295 2Ö/2S-R is a reliable safety solenoid interlock from the STM 295 series, designed to protect personnel by safely locking machine guards, doors, or covers. This interlock switch prevents access to hazardous areas until dangerous machine movements or processes have stopped, controlled by an integrated solenoid.

This model operates on the Spring-to-lock principle (also known as Power-to-unlock), meaning the guard is locked by spring force when the solenoid is de-energized and can only be unlocked by applying power to the solenoid. It offers a high holding force of 1000 N. The switch features a contact configuration of 2 Normally Closed (NC) and 2 Normally Open (NO) positive break contacts, providing essential feedback for safety circuits and signaling.

Constructed with a durable glass-fibre reinforced thermoplastic enclosure and rated IP67, the STM 295 2Ö/2S-R is built for demanding industrial environments. It typically operates with a 24 V DC solenoid and connects via screw terminals with 2 x M20 cable entries. Designed in compliance with safety standards like EN ISO 14119 and EN ISO 13849-1, this solenoid interlock is a key component for implementing machine safety guarding solutions up to high safety performance levels (PLe) or SILs. Note that this interlock requires a separate actuator (e.g., tongue actuator) for operation.

Key Characteristics:

• Function: Safety guard locking and position monitoring controlled by solenoid.
• Locking Principle: Spring-to-lock (Power-to-unlock).
• Holding Force: 1000 N.
• Output Contacts: 2 NC + 2 NO positive break safety contacts.
• Solenoid Voltage: Typically 24 V DC.
• Housing: Thermoplastic, IP67.

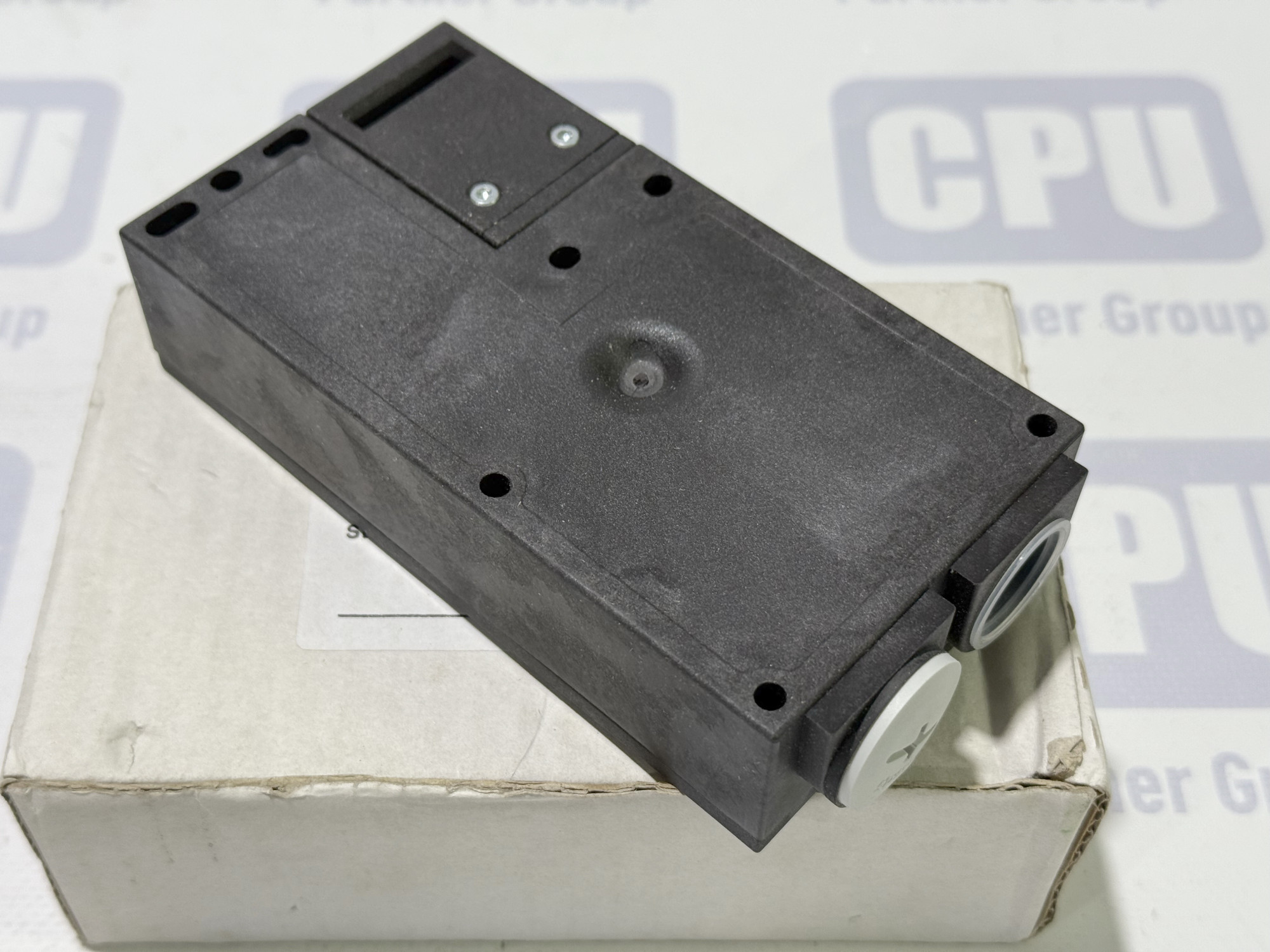

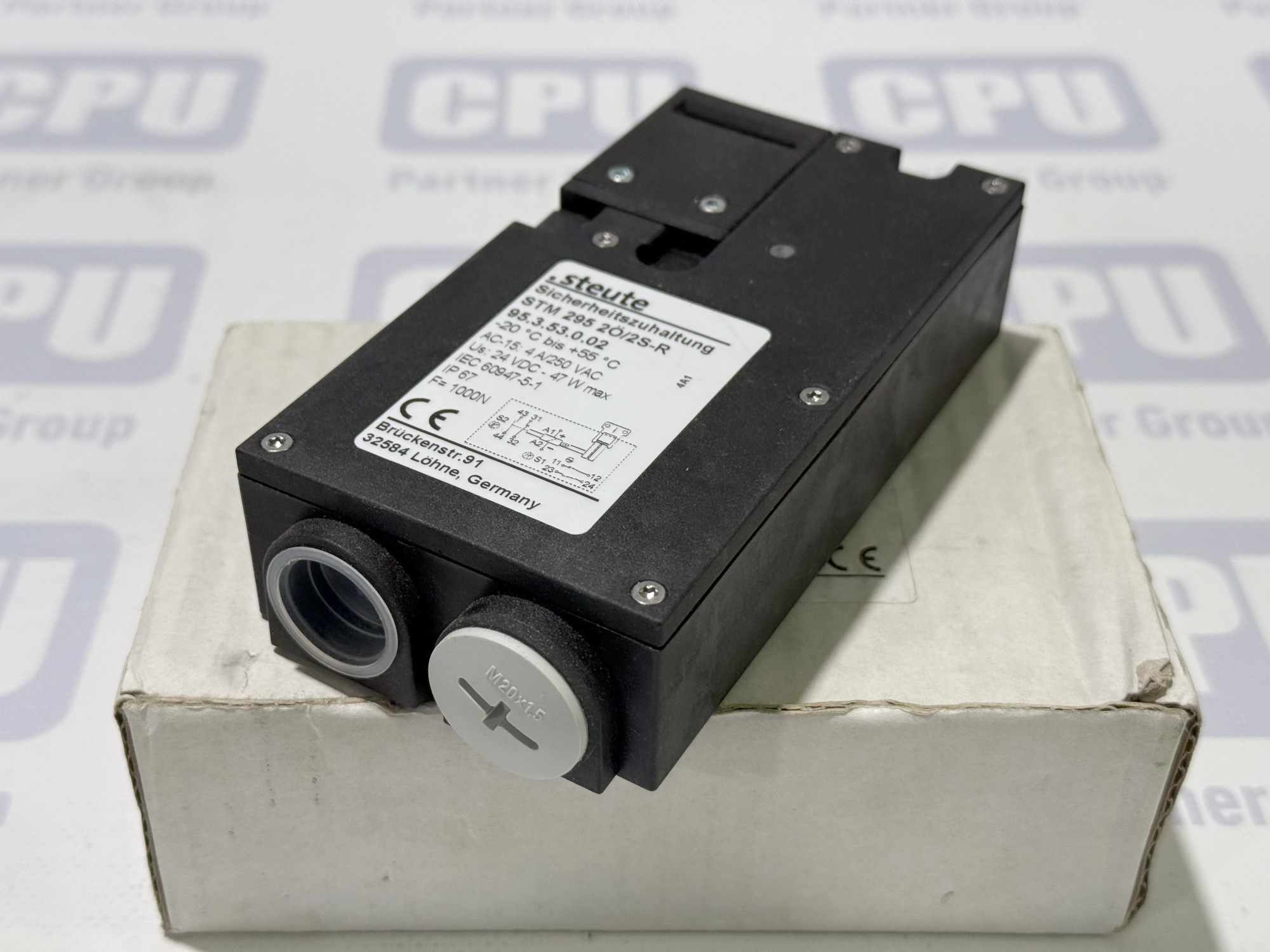

• Connection: Screw terminals, 2 x M20 cable entries.
• Safety Standards: Complies with EN ISO 14119, EN ISO 13849-1, EN 60947-5-1.

The STEUTE STM 295 2Ö/2S-R solenoid interlock provides a secure and reliable solution for machine guarding and access control in industrial safety applications.
