Stober Posidrive FAS4050 3.0kW Frequency Inverter Servo Drive with 24V-LC Option Board

Stober Posidrive FAS4050 3.0kW Frequency Inverter Servo Drive with 24V-LC Option Board

Description: High-performance industrial servo drive / frequency inverter from the POSIDRIVE FAS 4000 series manufactured by STÖBER (Germany). The FAS4050 model is engineered for precise speed, torque, and position control of three-phase asynchronous motors and servo motors. This unit comes equipped with the original Stober Optionsplatine 24V-LC extension card (Part No. 43673), providing versatile I/O capabilities for advanced automation systems. Its robust metal housing guarantees efficient heat dissipation and heavy-duty reliability in demanding industrial applications.

Specifications:

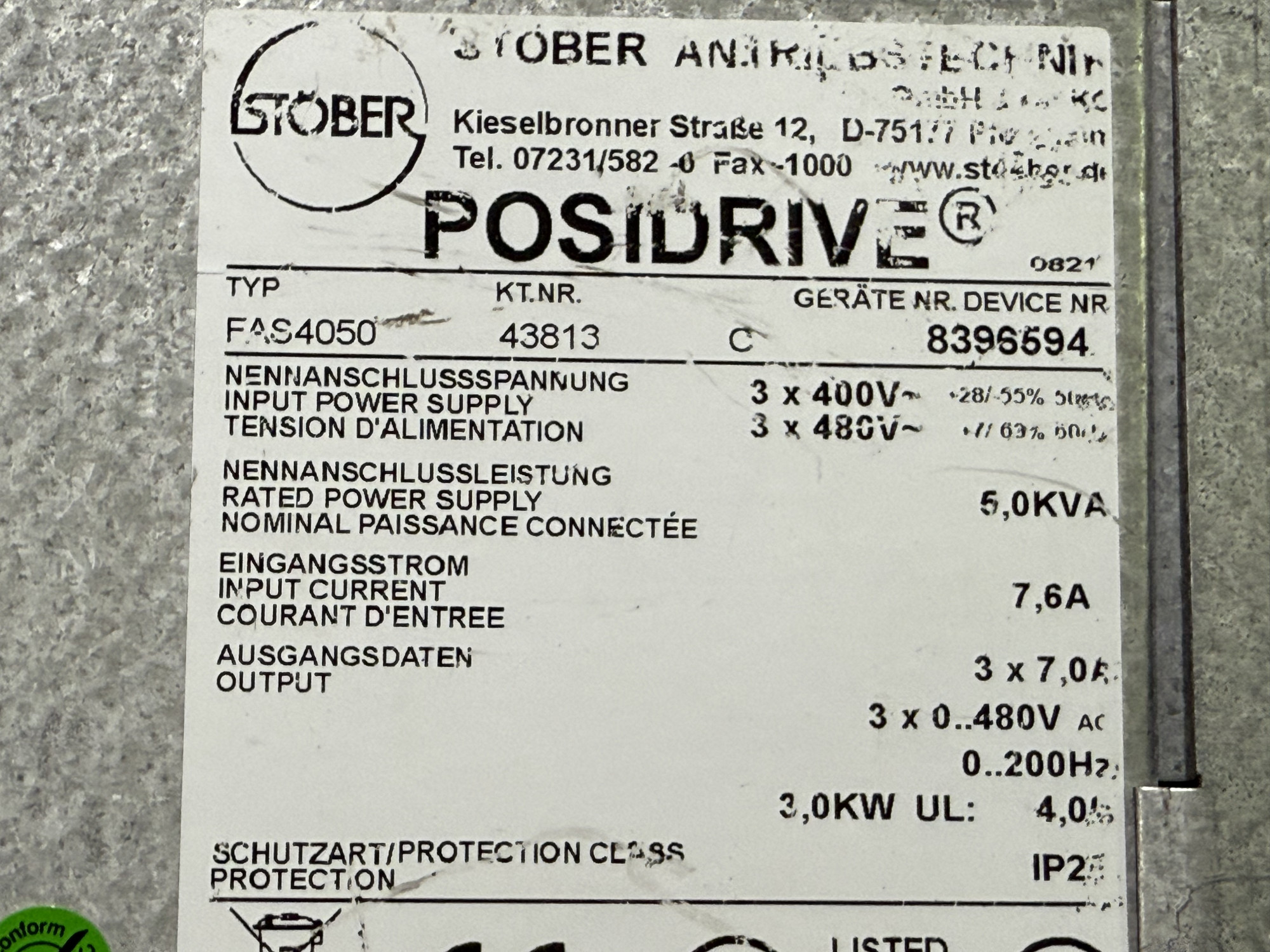

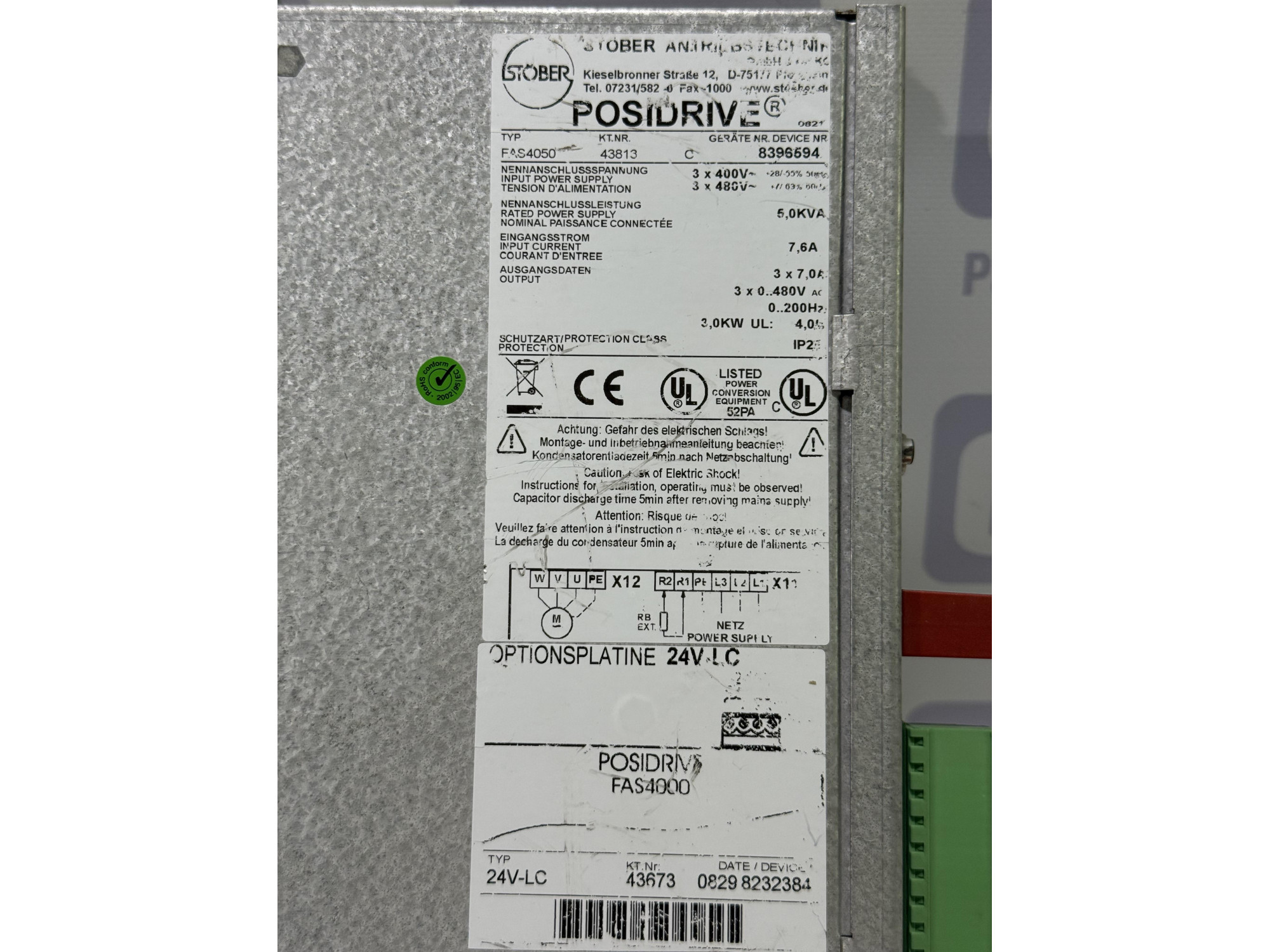

• Brand: STÖBER (Germany)

• Series: POSIDRIVE FAS 4000

• Model: FAS4050

• Device Number: 8396594

• Input Power Supply: 3-phase, 400V AC to 480V AC (3 x 400V..480V AC)

• Rated Power Supply: 5.0 kVA

• Input Current: 7.6 A

• Output Data: 3-phase, 7.0 A, 0..480V AC

• Output Frequency: 0..200 Hz

• Motor Power (UL): 3.0 kW

• Protection Class: IP20

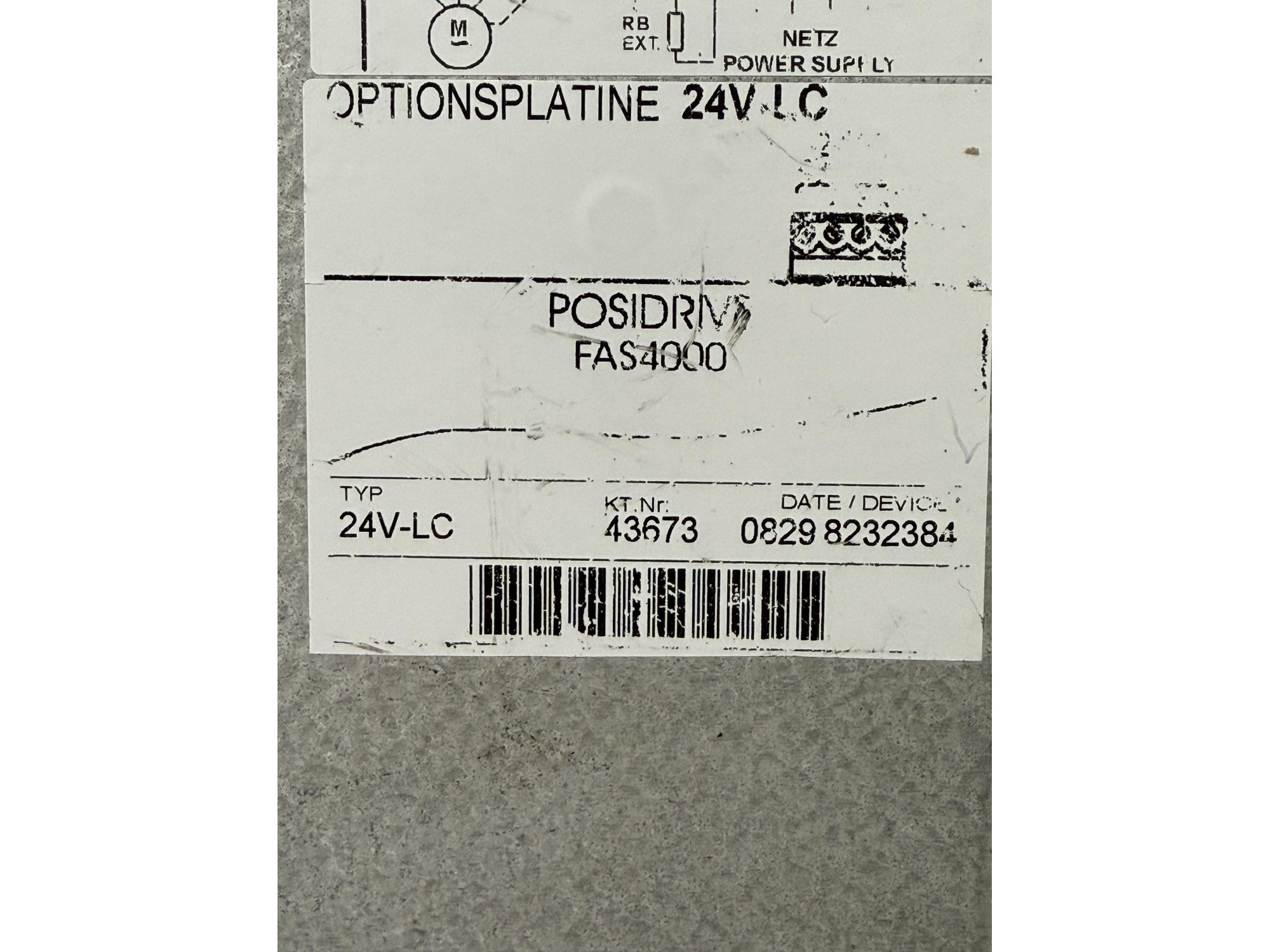

• Installed Option Board: Optionsplatine 24V-LC (KT.Nr. 43673, Date/Device: 0829 8232384)

• Pinout / Terminal Connections: X3 Communication Port (D-Sub), X1 Control Terminals (+10V, REF.VALUE, AEGDN, GROUND, DGND, ENABLE, INPUT BE1-BE5, +15V), X2 Relay Terminals (RELAY1 READY, RELAY2)

Application: Ideally suited for factory automation, CNC machinery, metalworking, woodworking equipment, conveying systems, packaging machinery, textile production, and specialized automated assembly lines requiring reliable electronic speed and position control.
