Telemecanique Zelio Logic SR1 B101FU Smart Relay (100-240VAC, 6 Discrete Inputs, 4 Relay Outputs 8A)

Telemecanique Zelio Logic SR1 B101FU Smart Relay (100-240VAC, 6 Discrete Inputs, 4 Relay Outputs 8A)

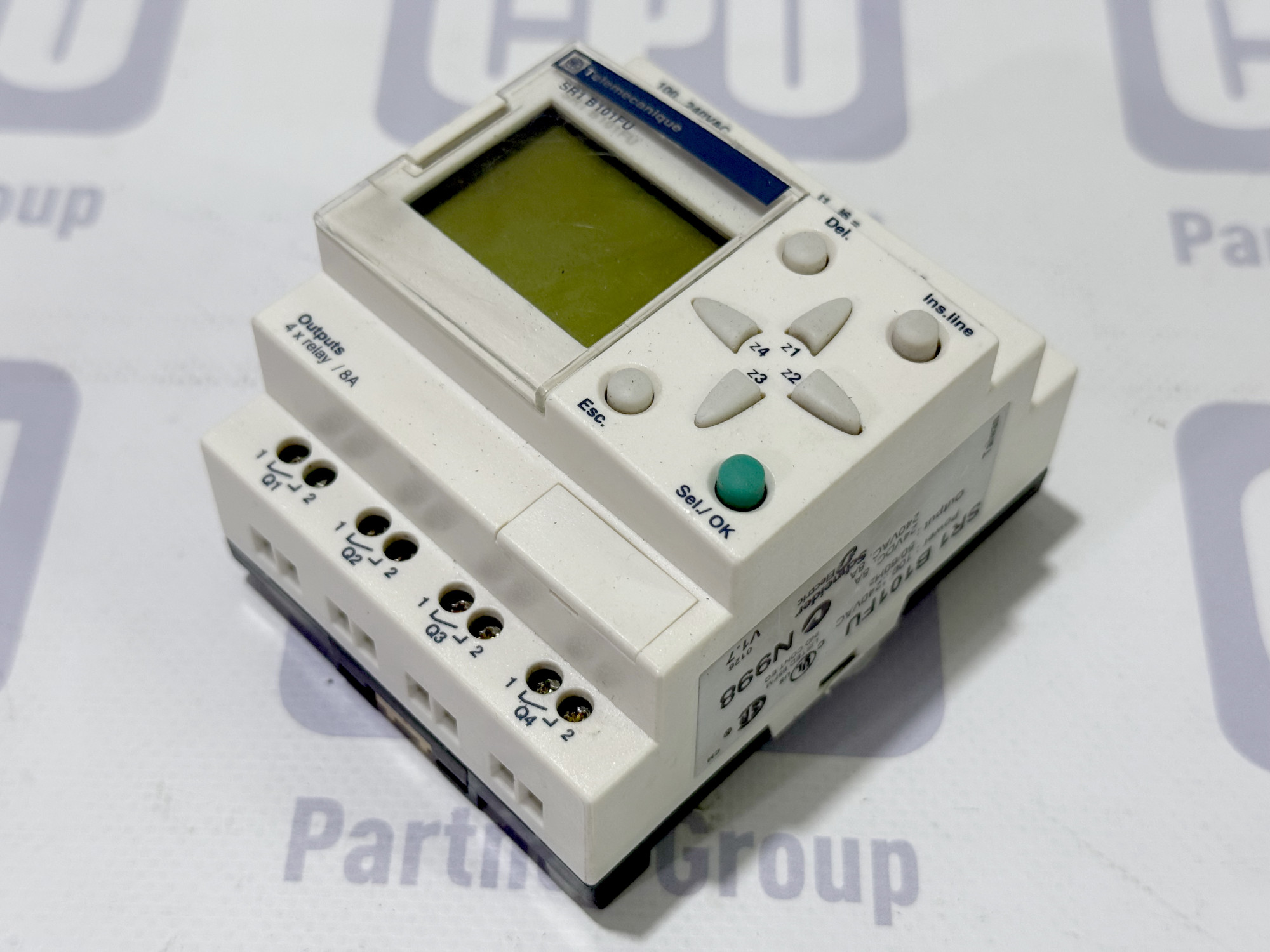

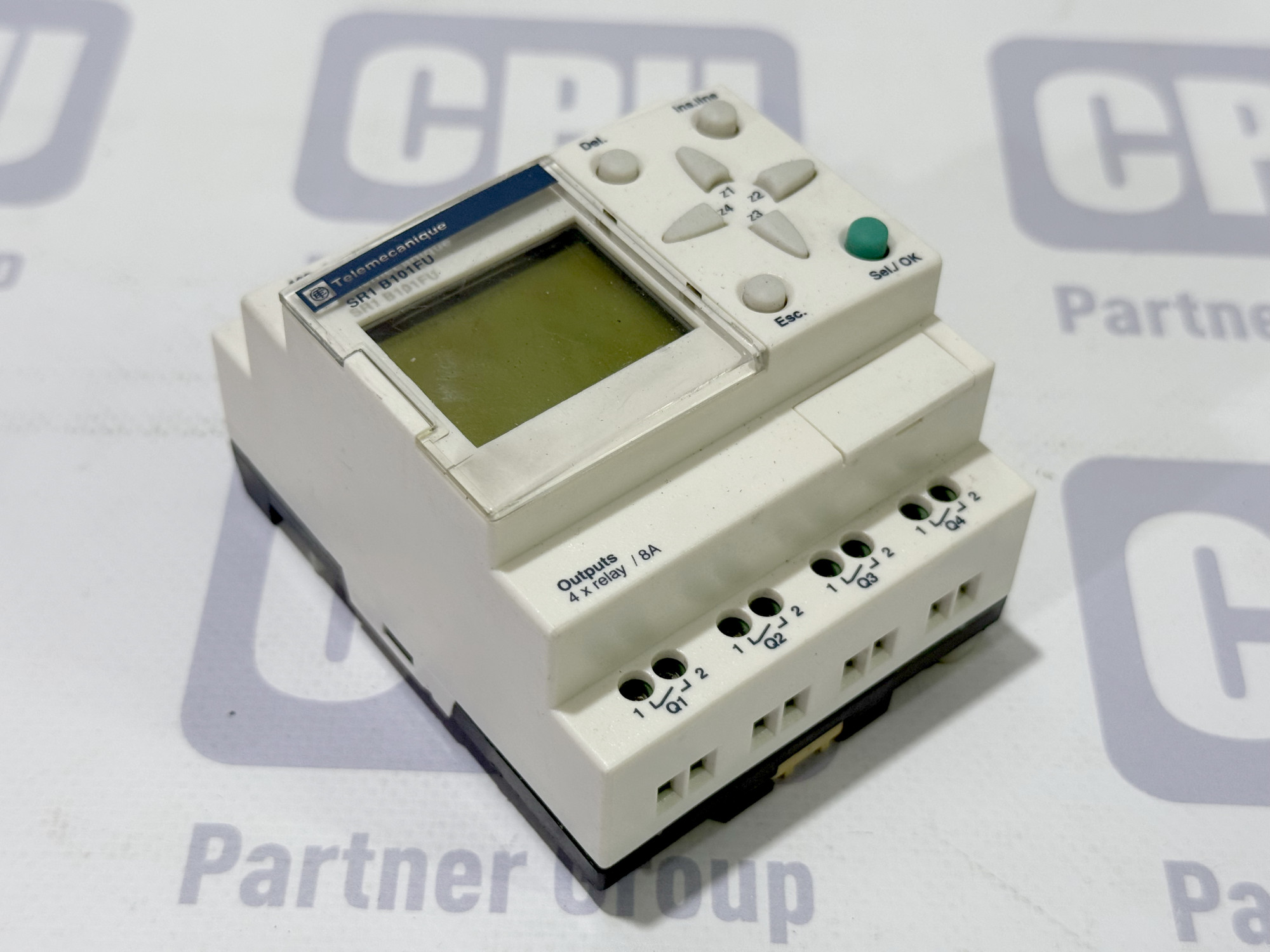

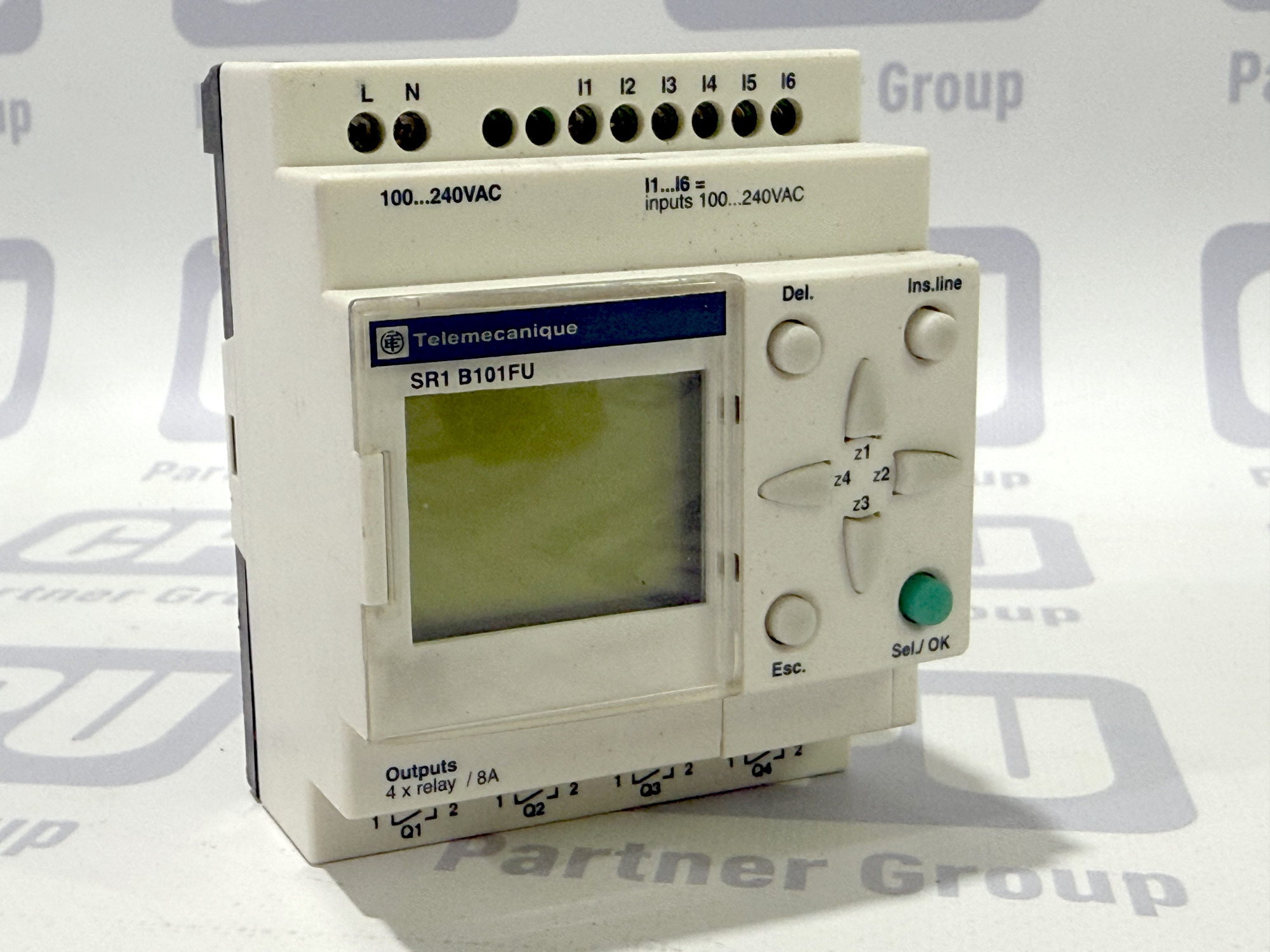

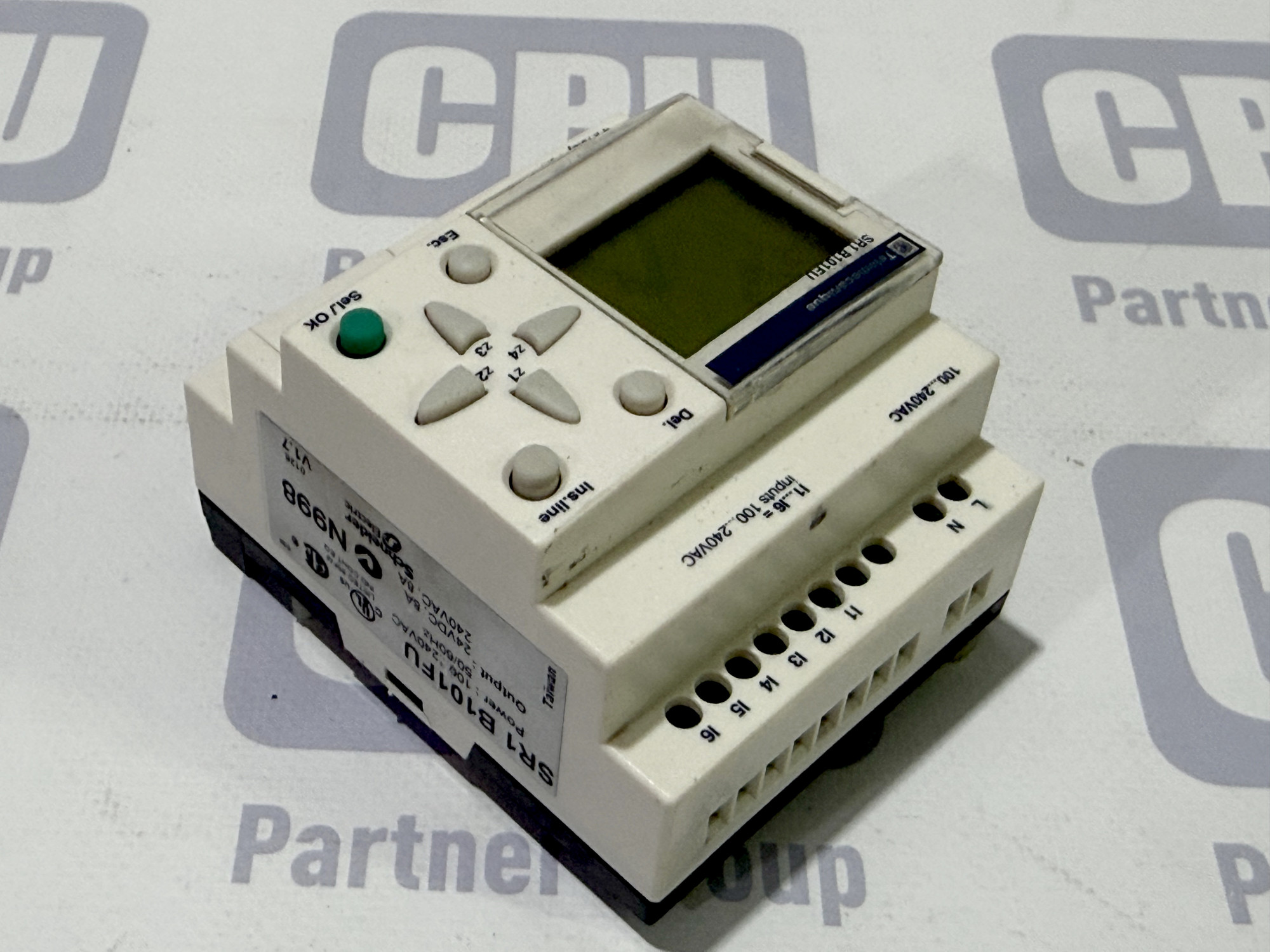

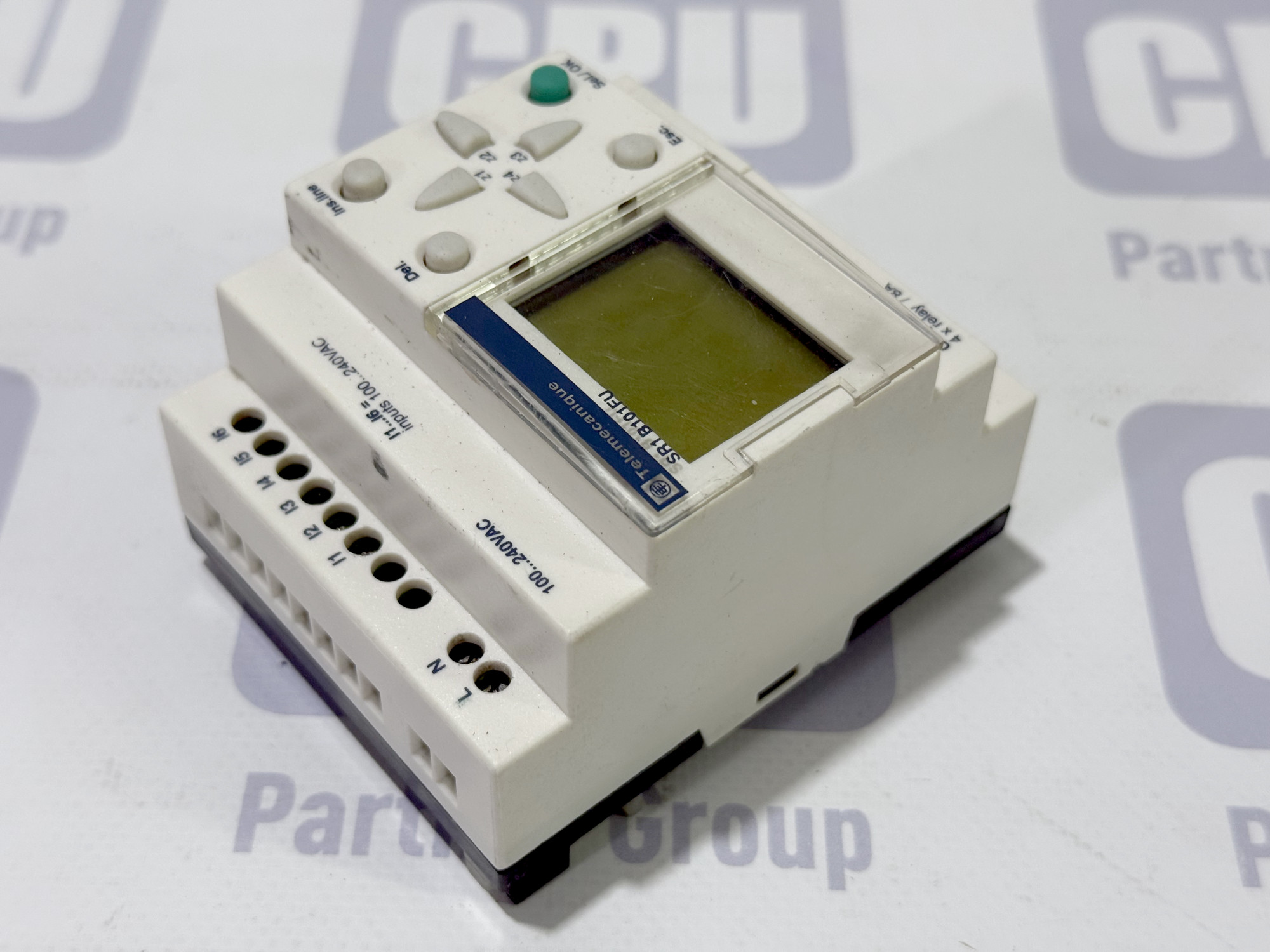

Product Description The Telemecanique SR1 B101FU programmable smart relay by Schneider Electric is a compact logical module designed for basic automation and control systems. This intelligent device successfully replaces traditional relay logic setups, combining functions of multiple timers, counters, and intermediate relays into a single unit. It features an integrated monochrome LCD display and a set of front-panel navigation buttons, allowing operators to monitor system status and adjust program parameters directly on-site. The compact, space-saving housing is fully optimized for quick and secure mounting onto standard 35mm DIN rails in electrical distribution panels.

Product Specifications

• Manufacturer: Telemecanique (Schneider Electric)

• Model / Part Number: SR1 B101FU

• Operating Current: 8 A

• Supply Voltage: 100...240 V AC

• Number of Channels: 10 channels (6 inputs / 4 outputs)

• Supply Frequency: 50/60 Hz

• Input Type: Discrete (100...240 V AC)

• Output Type: Relay (NO/NC contacts)

• User Interface: Built-in LCD display, navigation keypad (z1-z4, Esc, Del, Sel/OK, Ins.line)

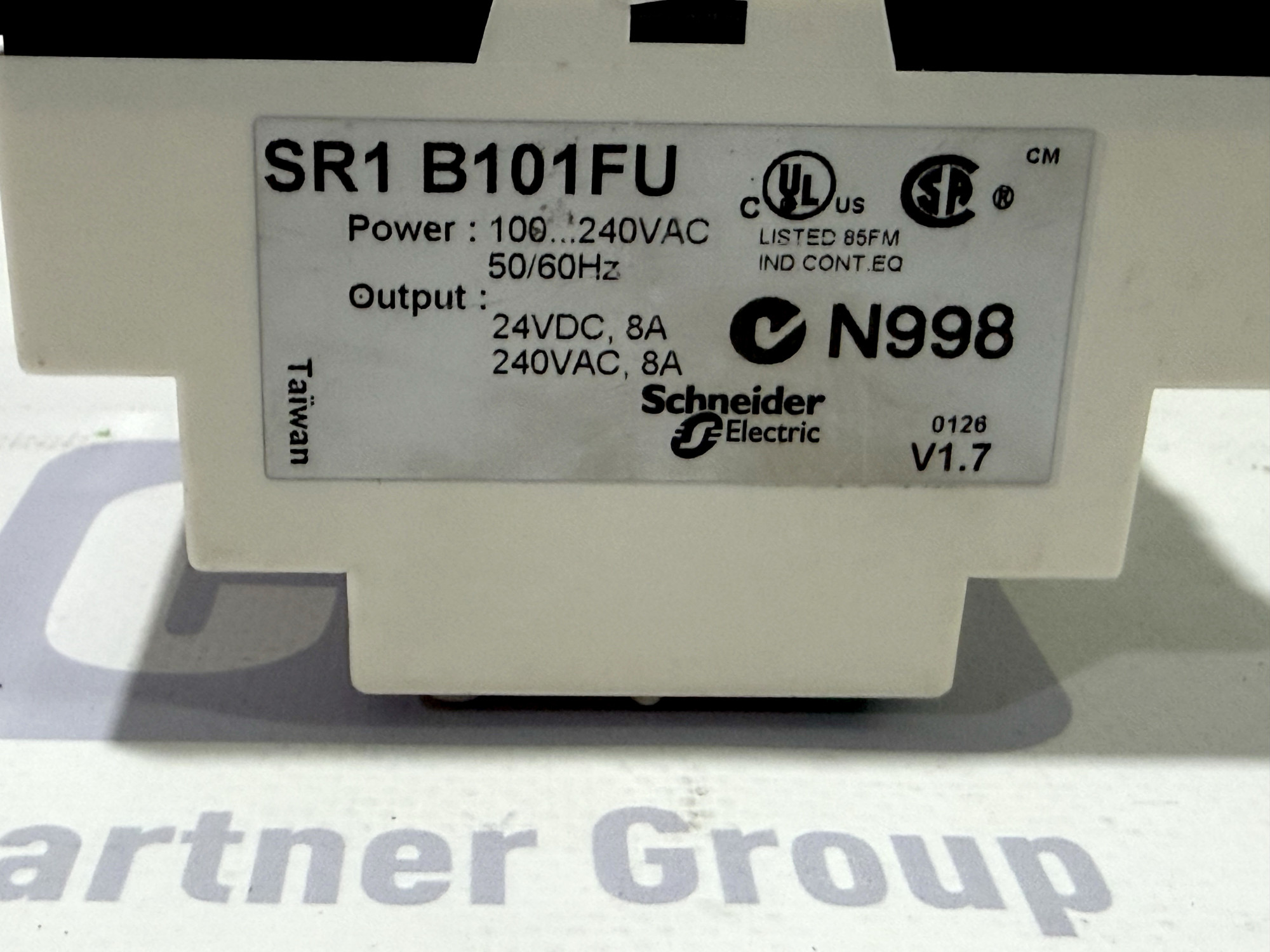

• Firmware Version: V1.7

• Country of Origin: Taiwan

Application This programmable smart relay is widely utilized in low-complexity industrial automation and commercial building management systems. It is an ideal solution for controlling automatic transfer switches (ATS), small pumping stations, HVAC and ventilation units, industrial mixers, and small conveyor belts. Additionally, the module is effectively used in residential applications to manage automated indoor/outdoor lighting control, gate openers, barriers, and motorized roller shutters or awnings.
