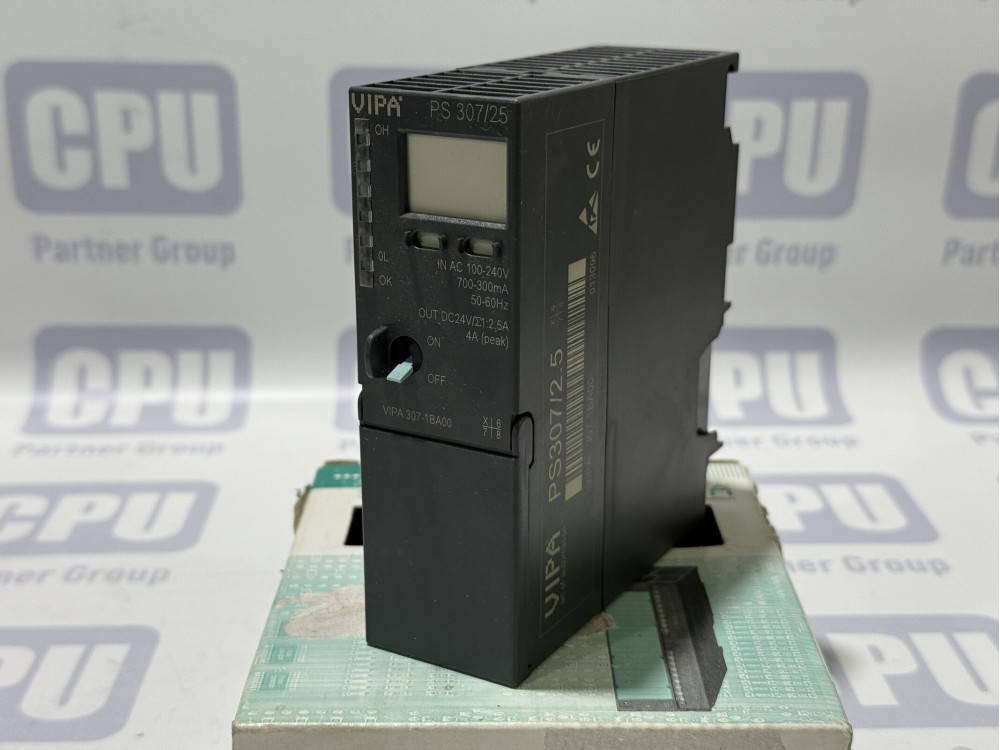

VIPA PS307/2.5 307-1BA00 Power module

VIPA PS307/2.5 (307-1BA00) Power Supply Module

The VIPA PS307/2.5 (Order Number: 307-1BA00) is a compact and reliable power supply module designed for use in automation systems. It provides regulated 24 V DC output power for CPUs, input/output modules, and other 24 V DC devices used in industrial control systems.

Technical Specifications

• Model: PS307/2.5

• Order Number: 307-1BA00

• Power Type: Power supply module

• Input Voltage:

  • 120/230 V AC (wide range)

  • Frequency: 50/60 Hz

• Input Current:

  • At 230 V AC: approx. 0.5 A

  • At 120 V AC: approx. 1.0 A

• Output Voltage: 24 V DC

• Output Current: Max. 2.5 A

• Output Power: 60 W

• Voltage Tolerance: ±3%

• Ripple and Noise: < 150 mVpp

• Protection Features:

  • Overload protection

  • Short-circuit protection

  • Overvoltage protection

• Efficiency: > 85%

• Cooling: Convection cooling (no fan required)

• Status Indicators: LED for output status

• Connection Type:

  • Screw terminals for input and output

• Mounting: DIN rail mounting (EN 60715)

• Dimensions (W × H × D): Approx. 50 mm × 125 mm × 120 mm

• Weight: Approx. 0.6 kg

• Operating Temperature Range: 0 °C to +60 °C

• Storage Temperature Range: –25 °C to +85 °C

• Protection Class: IP20

• Certifications: CE, UL, cUL

Applications

The VIPA PS307/2.5 power supply is suitable for use in industrial automation systems where a stable 24 V DC power source is required. It is commonly used to power PLCs, I/O modules, sensors, and actuators in control cabinets and industrial machinery.

Summary

The VIPA PS307/2.5 (307-1BA00) is a compact and efficient DIN rail-mounted power supply module, offering reliable 24 V DC output at 2.5 A. With integrated protection features and compatibility with a wide AC input range, it is an ideal power solution for automation and control applications.

On this page you will find the user manual for VIPA PS307/2.5  307-1BA00. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for VIPA PS307/2.5  307-1BA00
