Yamatake Azbil MGG14C-MH3A-1B1X-Y Converter MGG18F-050PD21LS1AHA

Yamatake Azbil MGG14C-MH3A-1B1X-Y Converter MGG18F-050PD21LS1AHA

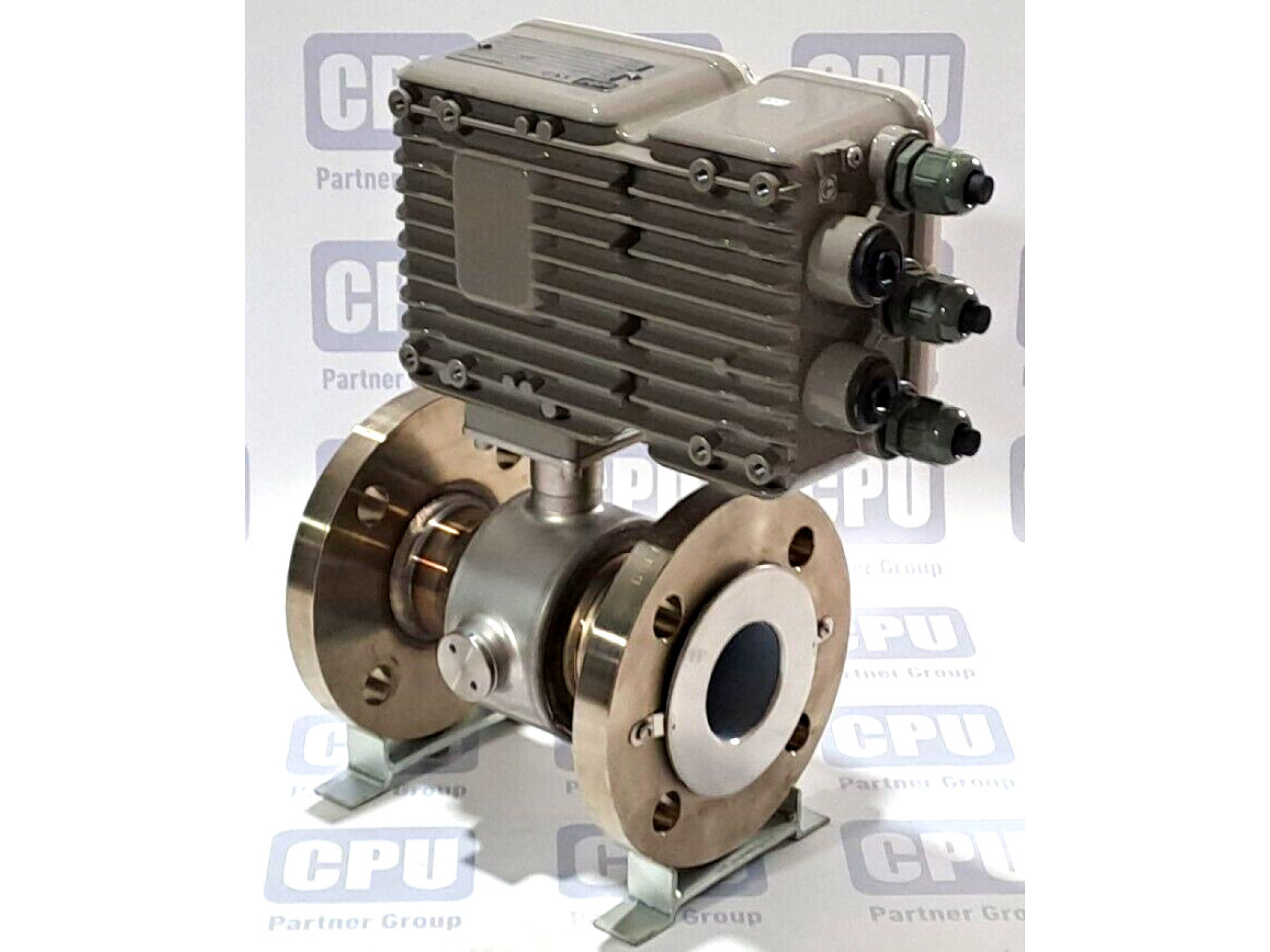

The MGG14C-MH3A-1B1X-Y is part of the MagneW 3000 Plus series of electromagnetic flow meter converters by Yamatake Azbil. Designed to work with MagneW 3000 Plus detectors (e.g., MGG18F), it converts the magnetic flow signal into standard analog and digital outputs with strong immunity to electrical noise.

Technical Specifications

• Model Family: MagneW 3000 Plus

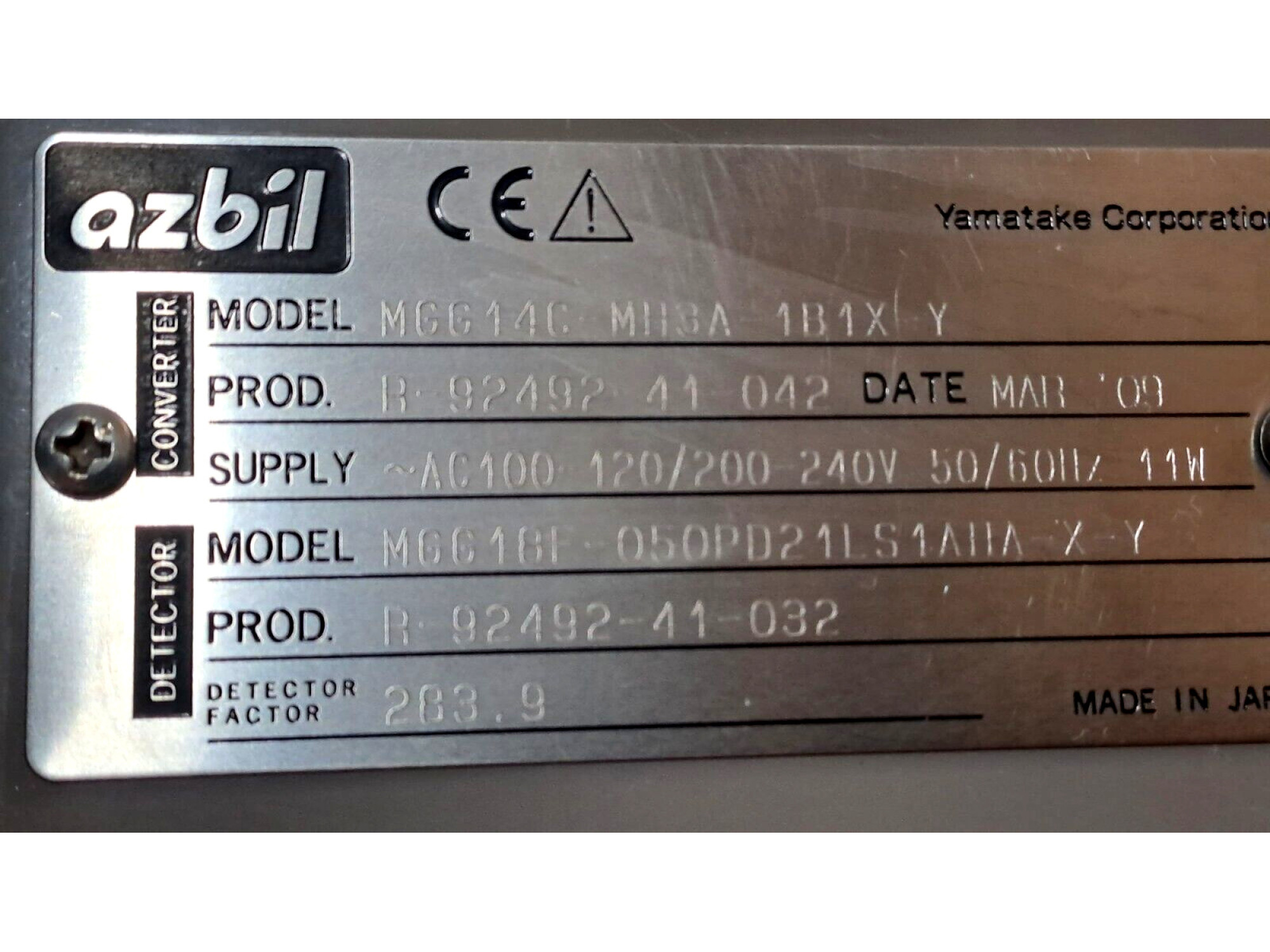

• Power Supply: Configured for AC supply (typically 100–120 V or 200–240 V, 50/60 Hz)

• Analog Output: 4–20 mA DC (loop powered; external DC supply may be required)

• Pulse Output: Open-collector pulse for flow rate or volume

• Communications Options: Supports HART and optional Foundation Fieldbus, DE protocols

• Operator Interface: Backlit LCD display with keypad for setup, readouts, diagnostics

• I/O Extensions: Optional additional contact inputs and outputs for flow switching or alarms

• Noise Immunity: Designed for high immunity in industrial process environments

Mechanical and Environmental Data

• Construction: Rugged housing, suitable for panel mounting

• Operating Temperature: Typically –25 °C to +60 °C

• Protection Features: Built-in surge and lightning protection

• Flow Detection: Supports empty-pipe detection and fast-response variants

Performance

• Accuracy: ±0.5% of flow rate with high repeatability

• Flow Rate Range: From near-zero up to max depending on detector (e.g., up to 45 m³/hr with 40 mm detector)

Typical Applications

Ideal for process industries requiring accurate and reliable flow measurement, such as water/wastewater, chemical production, HVAC systems, and industrial liquids monitoring. Suitable for both new installations and retrofit upgrades using the MagneW 3000 Plus platform.

Summary

The MGG14C-MH3A-1B1X-Y is a robust and flexible converter module in the MagneW 3000 Plus series. It offers precise measurement, industrial-grade noise immunity, versatile outputs, and field-friendly configurability, making it an excellent choice for demanding flow metering tasks.
