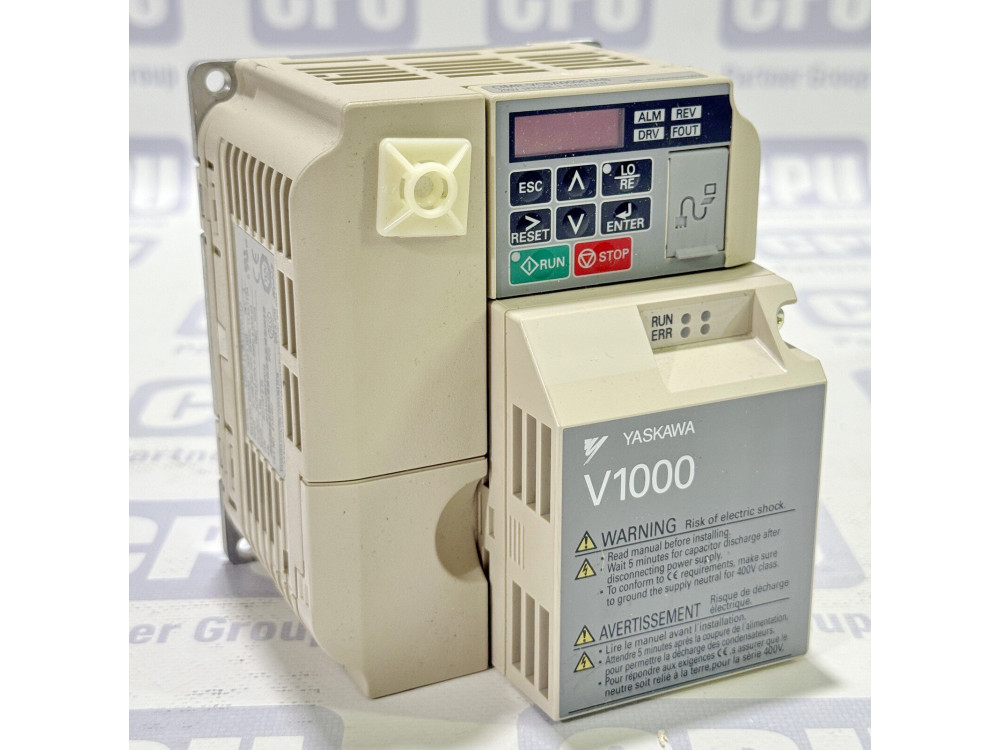

Yaskawa CIMR-VCBA0006JAB V1000 Series AC Drive - 1.1kW/1.1kW Inverter

Yaskawa CIMR-VCBA0006JAB (V1000 series) AC Drive — 1.1 kW

Description:
The CIMR-VCBA0006JAB is a compact, general-purpose AC inverter in the V1000 line. It is designed to convert single-phase 230 V AC input into three-phase output for driving induction or permanent-magnet motors. This drive supports V/f and open-loop vector control and is suitable for industrial applications like pumps, fans, conveyors, and light machinery.

---

Technical Specifications

Parameter	Value / Feature
Model	CIMR-VCBA0006JAB
Series	V1000
Input Voltage	Single-phase 200-240 V AC
Rated Motor Output Power	1.1 kW under variable torque load
Heavy-Duty Power Rating	0.75 kW for constant torque loads
Rated Current	6 A (Normal Duty) / 5 A (Heavy Duty)
Control Methods	V/f control, Open-loop vector control
Maximum Output Frequency	Up to 400 Hz
Protection Rating	IP20 enclosure
Motor Compatibility	Induction motors and permanent-magnet motors
Cooling	Standard built-in cooling for wall-mounted installation
Operating Temperature Range	–10 °C to +50 °C
Mounting Type	Wall-mount or panel-mount
Dimensions	Height ~128 mm, Width ~108 mm, Depth ~79.5 mm
Weight	Approximately 1.1 kg
Built-in Features	LED operator, built-in EMC filter, safe torque off (STO) function
Communication Options	MODBUS, RS-422, RS-485; optional CANopen, DeviceNet, EtherCAT, PROFINET, etc.
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature, short-circuit, brown-out

---

Typical Applications:

• Pumps, fans, blowers

• Conveyors and material handling

• General machine tools

• Light automation requiring variable-speed motor control

---

In summary, the Yaskawa CIMR-VCBA0006JAB is a versatile, high-performance inverter in the V1000 family, offering up to 1.1 kW output in normal duty applications, multiple communication protocols, and robust protective and control features for industrial automation use.

On this page you will find the user manual for Yaskawa V1000 Series. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for Yaskawa V1000 Series
