Balluff BES00NK Inductive Proximity Sensor BES 516-324-E4-C-S49-00,3

Balluff BES00NK Inductive Proximity Sensor (BES 516-324-E4-C-S49-00,3)

Product Description:

The Balluff BES00NK (part number BES 516-324-E4-C-S49-00,3) is a premium industrial-grade inductive proximity sensor designed for non-contact detection of metal targets. Housed in a compact M8 stainless steel cylindrical body, this sensor is optimized for tight spaces and harsh factory environments. Featuring an outstanding switching frequency of up to 5000 Hz and a robust IP68 protection rating, the BES00NK ensures reliable, precise, and high-speed operation in automated assembly lines, CNC machinery, and packaging equipment. Made in Hungary, it delivers top-tier reliability and complies with CE, cULus, and UKCA standards.

Characteristics:

• Manufacturer: Balluff (Germany)

• Country of Origin: Hungary

• Order Code: BES00NK

• Type Designation: BES 516-324-E4-C-S49-00,3

• Part Number: 149835

• Housing Shape: Cylindrical threaded, M8x1

• Housing Length: 30 mm

• Installation: Flush mounting

• Rated Operating Distance (Sn): 1.5 mm

• Switching Output: PNP normally open (NO)

• Operating Voltage: 10...30 V DC

• Rated Operating Current: ≤ 200 mA

• Switching Frequency: 5000 Hz

• Housing Material: Stainless steel

• Sensing Surface Material: PBT (plastic)

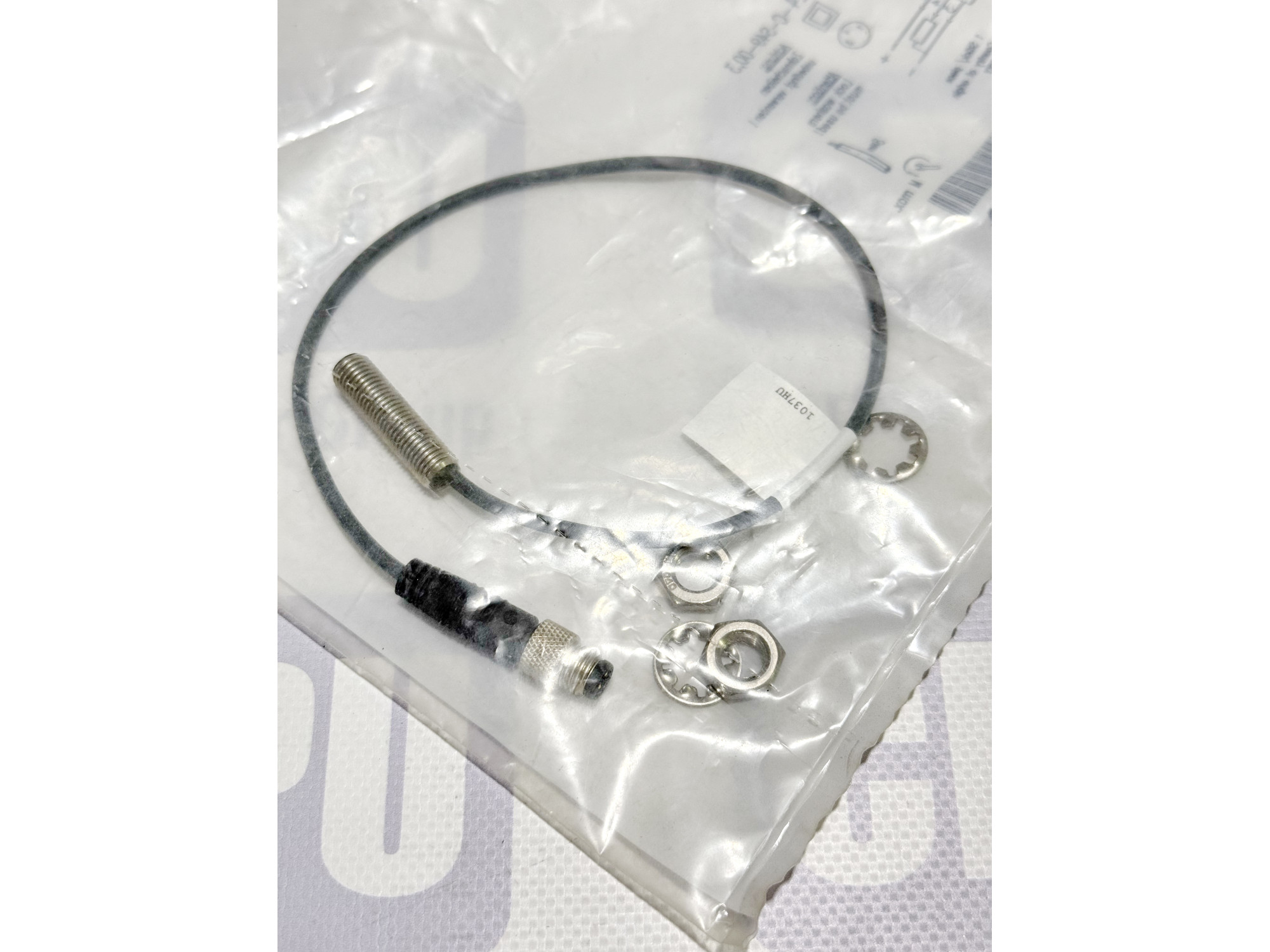

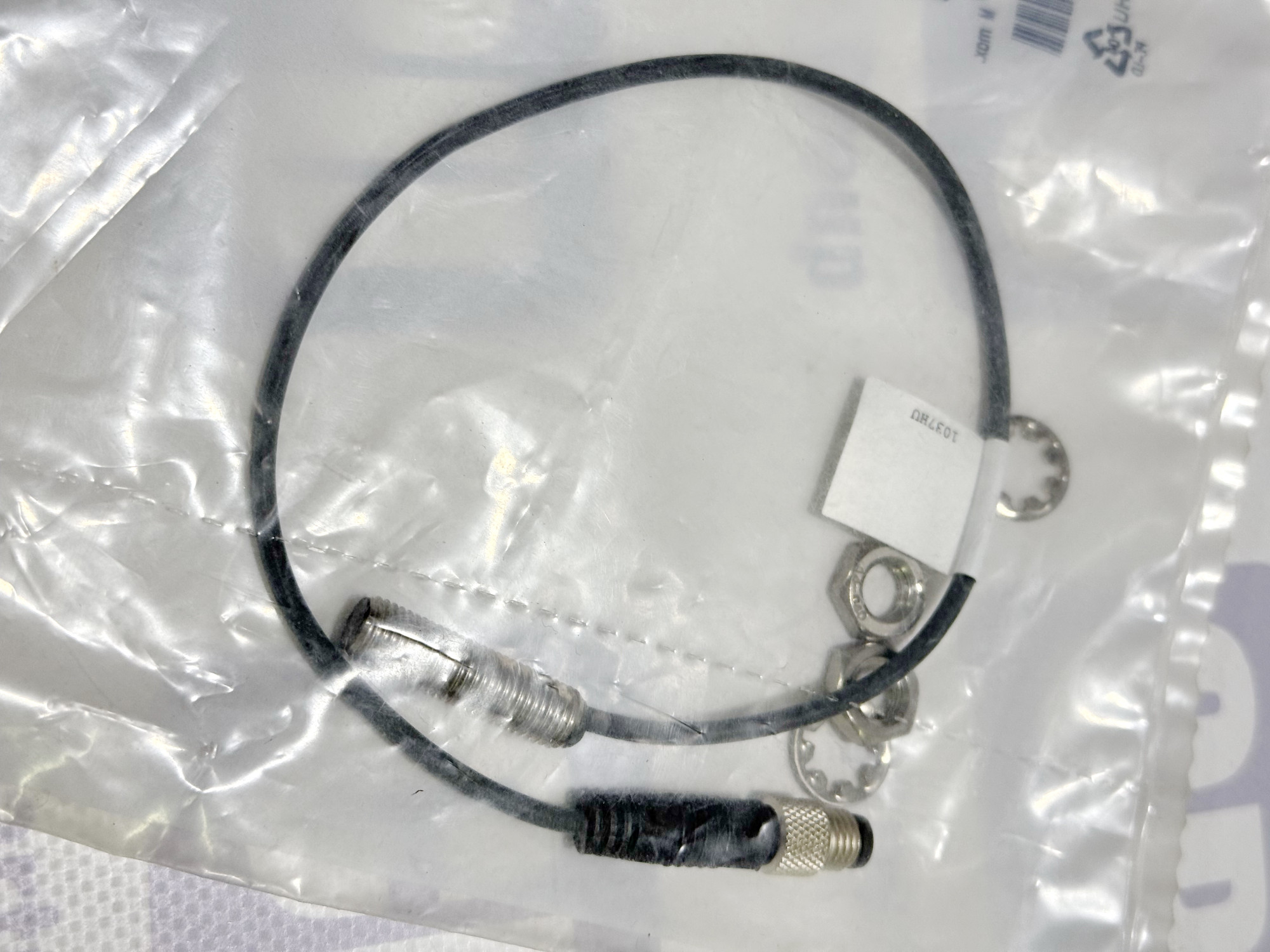

• Connection: Cable with connector, M8x1-Male, 3-pin, 0.30 m, PUR jacket

• Ambient Temperature: -40 °C to +85 °C

• IP Rating: IP68

• Approvals / Conformity: CE, cULus, UKCA, WEEE

Application:

• Position detection of moving metal parts on automated conveyors.

• Limit switching and tooling position feedback in CNC machining stations.

• High-speed object counting and RPM tracking on rotating metal gears.

• Integration into automated packaging, bottling, and filling lines.

• Perfect choice for robotic grippers and compact pneumatic actuators.
