Balluff BES01LR BES 516-377-S49-C Inductive Proximity Sensor M5

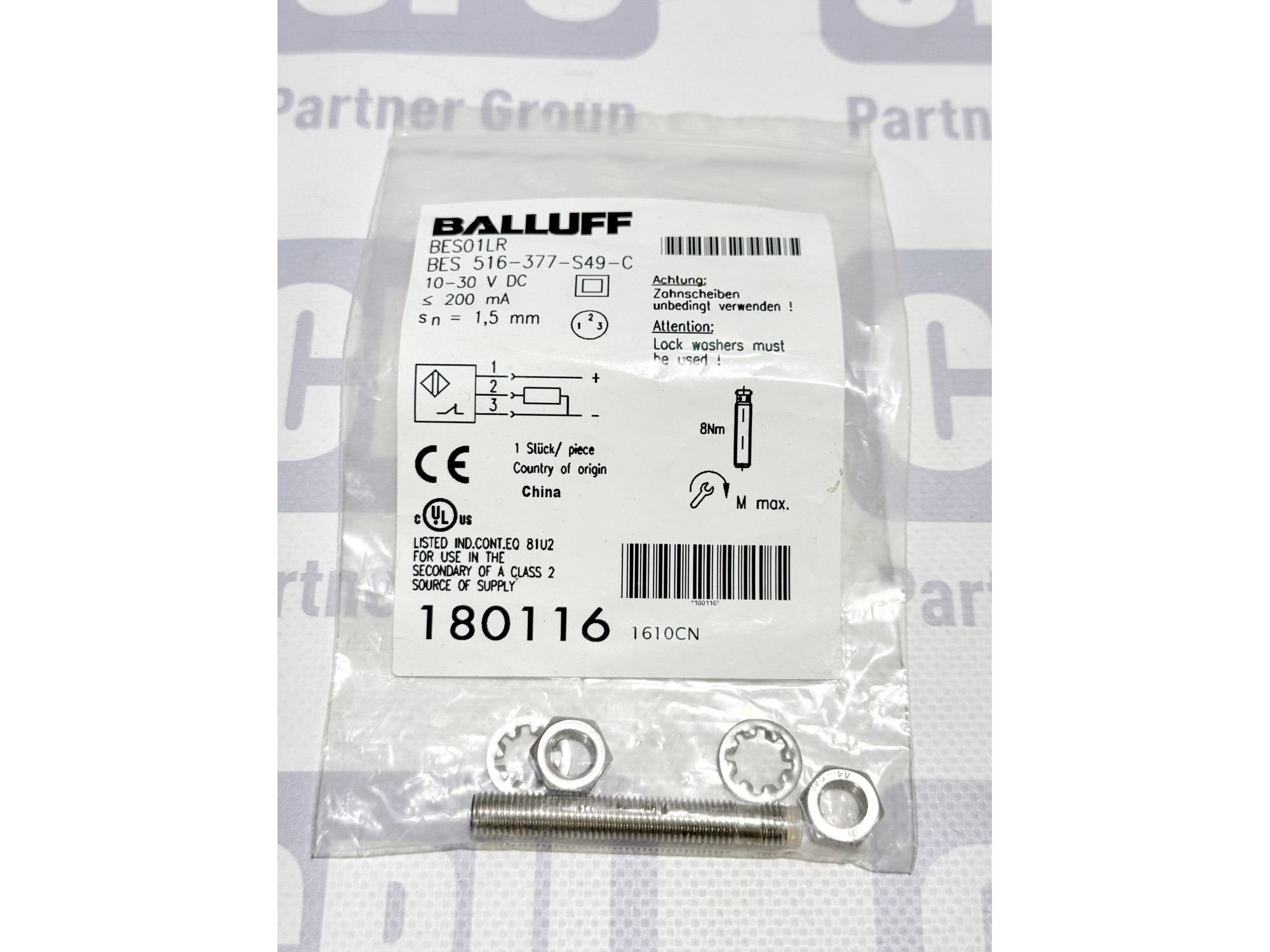

Balluff BES01LR (BES 516-377-S49-C) Inductive Proximity Sensor M5

Description:

The Balluff BES01LR (part number BES 516-377-S49-C) is a high-performance inductive proximity sensor designed for contactless metal detection in industrial automation. Its ultra-compact M5 cylindrical threaded housing makes it an outstanding choice for installation in tight spaces where space is at a premium. Featuring a 1.5mm sensing distance (flush installation) and a operating voltage of 10-30 V DC, this sensor provides precise and reliable positioning. Built with premium materials to withstand demanding industrial environments, the Balluff inductive sensor ensures long-term durability and minimum system downtime on assembly lines, machine tools, and robotics.

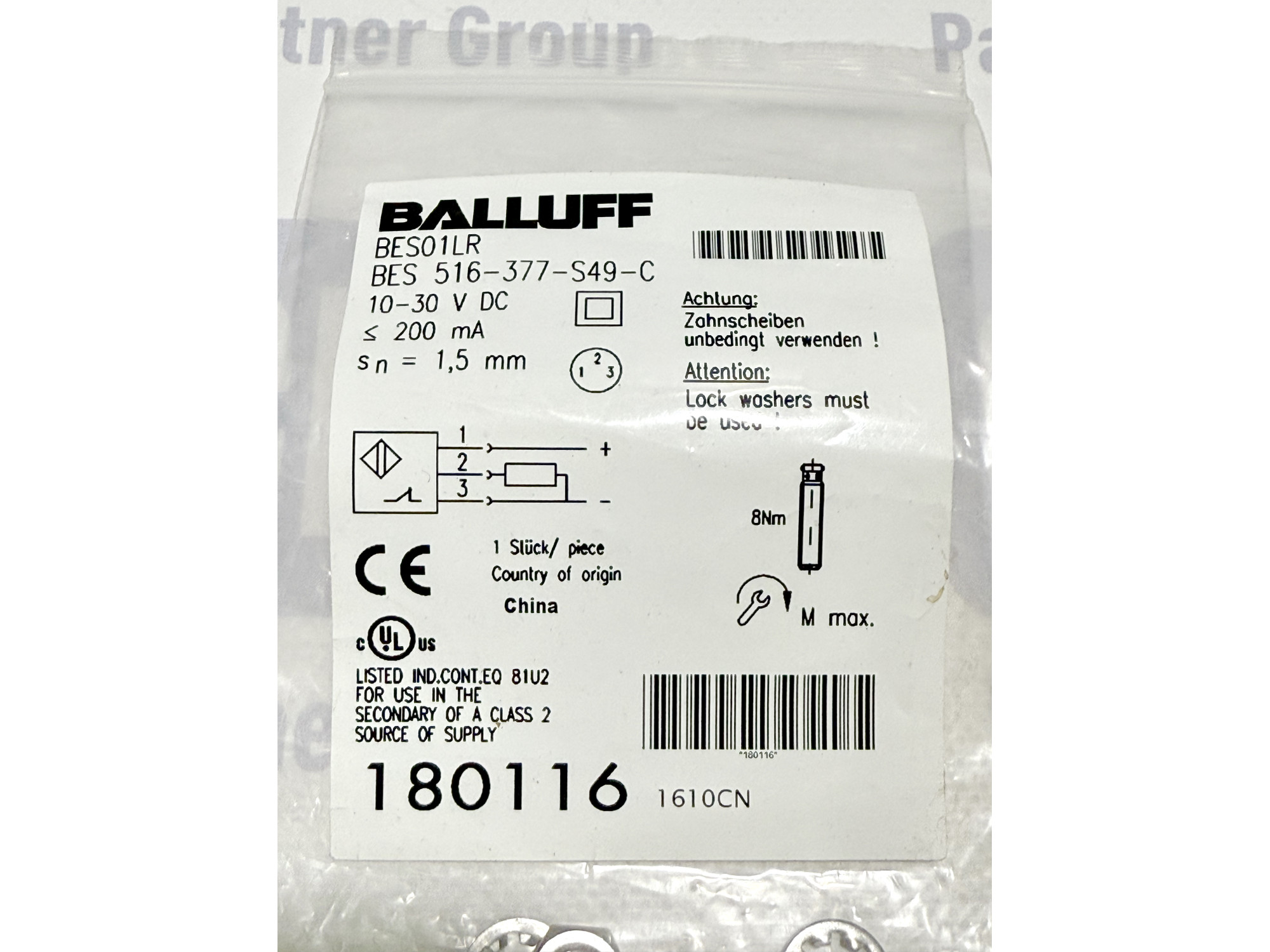

Specifications:

• Brand: Balluff

• Order code: BES01LR

• Part number: BES 516-377-S49-C

• Sensor type: Inductive

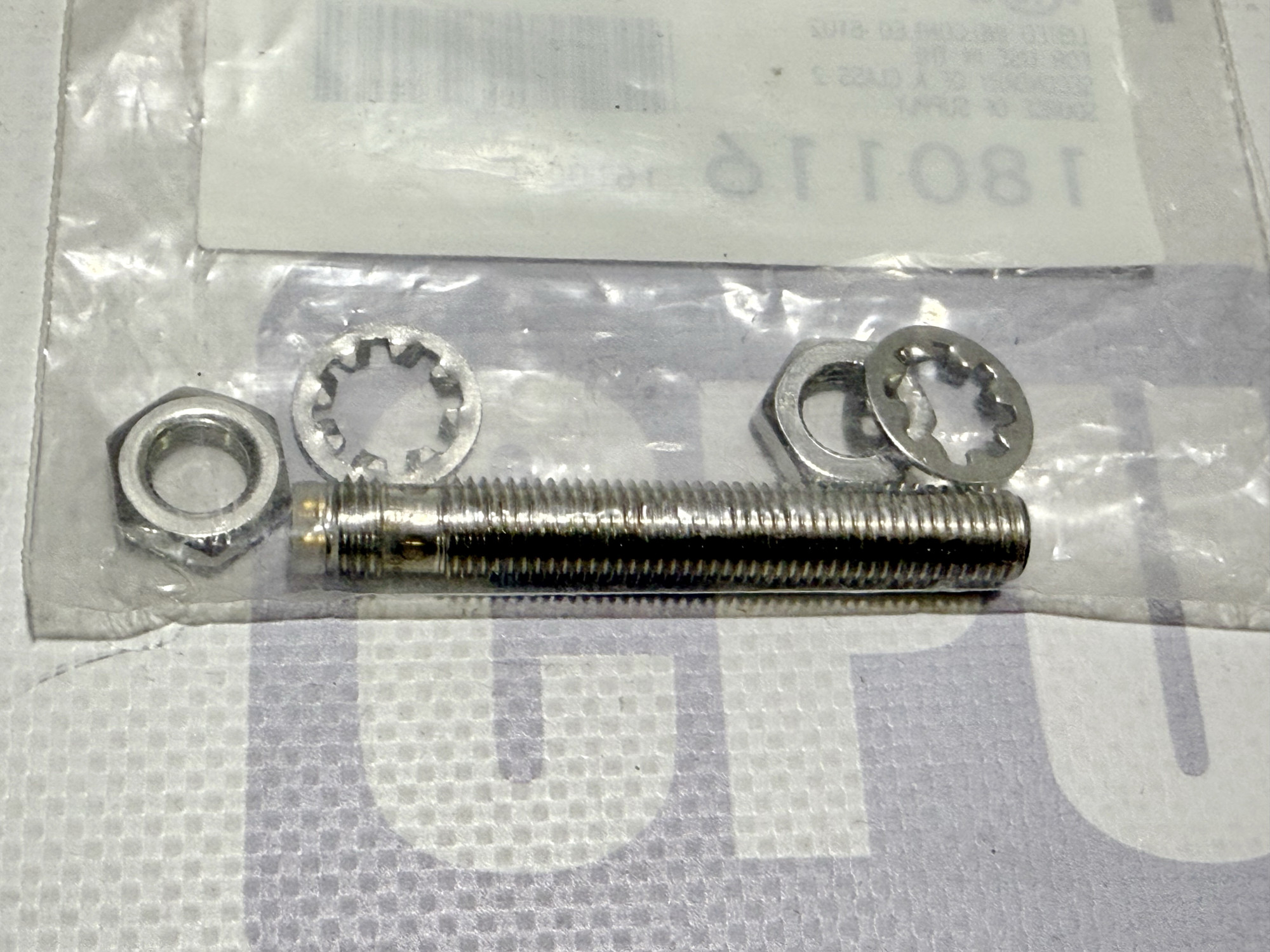

• Housing style: Cylindrical threaded

• Thread size: M5 x 0.5

• Rated operating distance (Sn): 1.5 mm

• Installation: Flush (shielded)

• Operating voltage: 10–30 V DC

• Rated operational current: less than or equal to 200 mA

• Switching output: PNP Normally Open (NO)

• Connection: M8 connector (3-pin, S49)

• Tightening torque max: 8 Nm

• Country of origin: China

• Approvals / Conformity: CE, cULus

Application:

• Precision positioning of machine parts in automatic assembly lines and CNC machinery.

• Limit switching and position detection in compact pneumatic and hydraulic actuators.

• High-speed object counting and parts presence monitoring in packaging and bottling plants.

• Robotic arms, grippers, and micro-manipulators requiring lightweight and tiny sensors.
