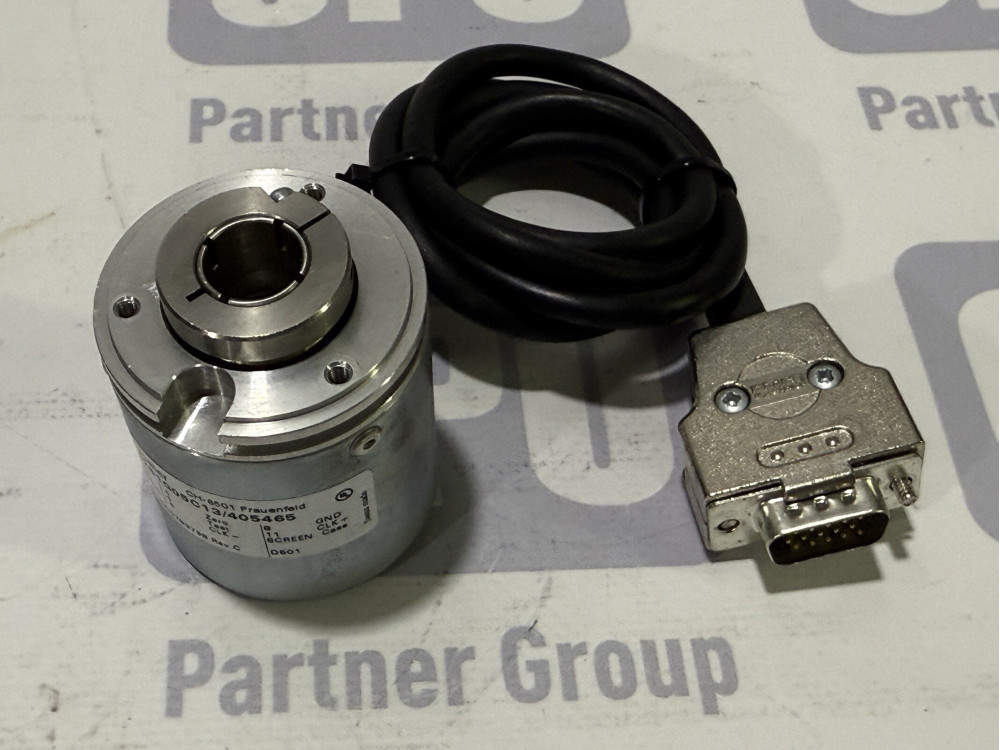

Baumer BMMH 42S1G05C13/405465 Absolute Encoder – Hollow Shaft, D-Sub Connector, 5V TTL

The Baumer BMMH 42S1G05C13/405465 is a high-precision absolute rotary encoder engineered for precise position detection and feedback in automation and motion control systems. This encoder features a compact 42 mm housing and a hollow shaft design, which allows for easy and space-saving installation on motor or machine shafts. The D-Sub connector ensures a reliable electrical interface, while the 5V TTL output provides stable, noise-resistant signal transmission for accurate position readings. The device is designed for industrial applications requiring durability, precision, and long-term operational reliability.

Technical Specifications:

• Model: BMMH 42S1G05C13/405465

• Type: Absolute rotary encoder

• Shaft type: Hollow shaft

• Electrical connection: D-Sub connector

• Output signal: TTL (5V)

• Resolution: Up to 13 bits single-turn (depending on configuration)

• Power supply: 5 V DC

• Housing diameter: 42 mm

• Material: Robust industrial-grade aluminum housing

• Mounting: Compact, easy to install on servo motors or drive shafts

• Protection class: IP65 (resistant to dust and moisture)

• Operating temperature range: Typically -20°C to +85°C

• Applications: Robotics, CNC machines, servo drives, automation systems, packaging and printing machinery

  On this page you will find the user manual for Baumer BMMH 42S1. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

  Manual for Baumer BMMH 42S1
