Fraba Posital OCD-DPB1B-1213-C100-0CC Encoder 10-30V Profibus Vers.2, #1

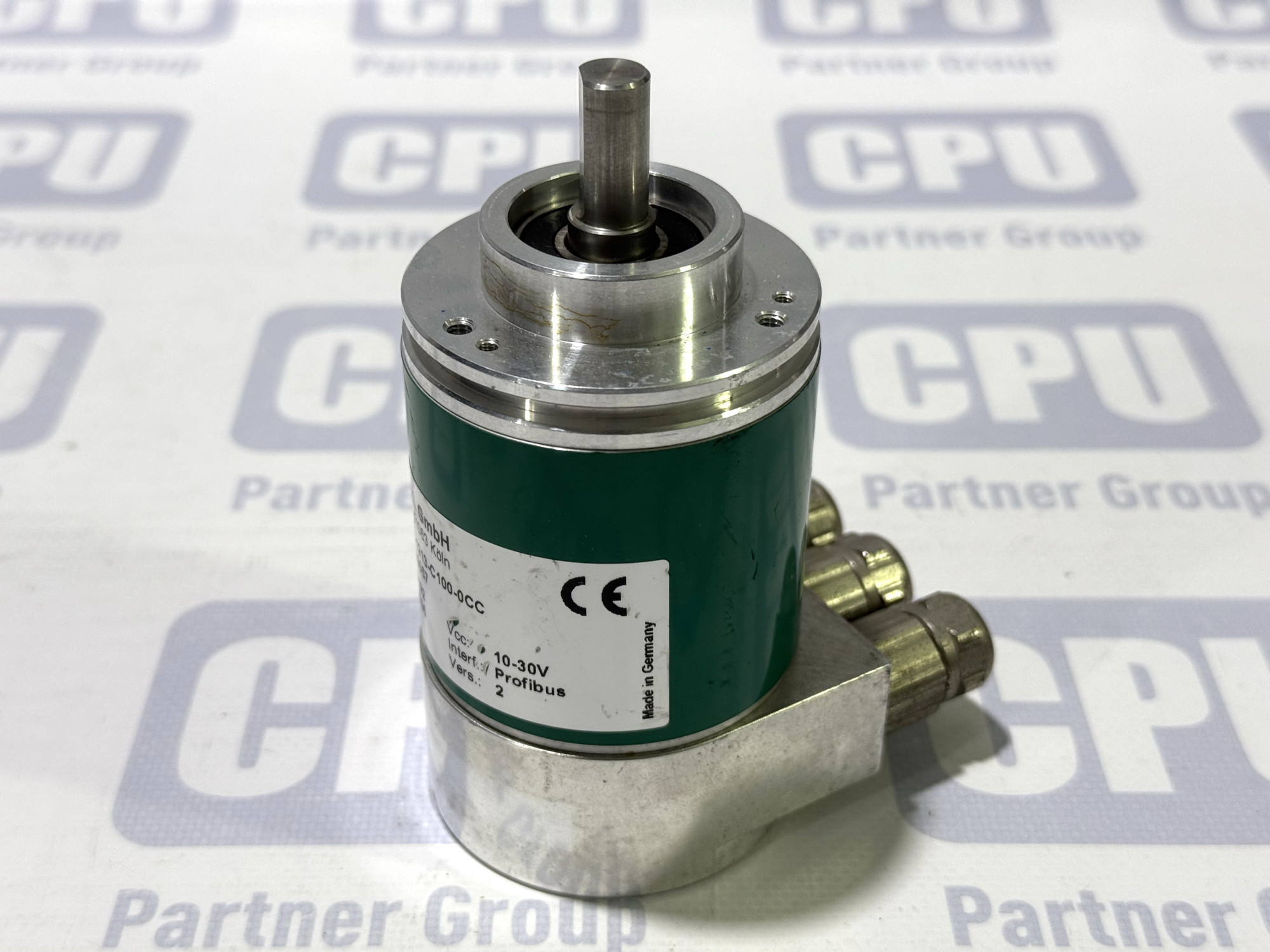

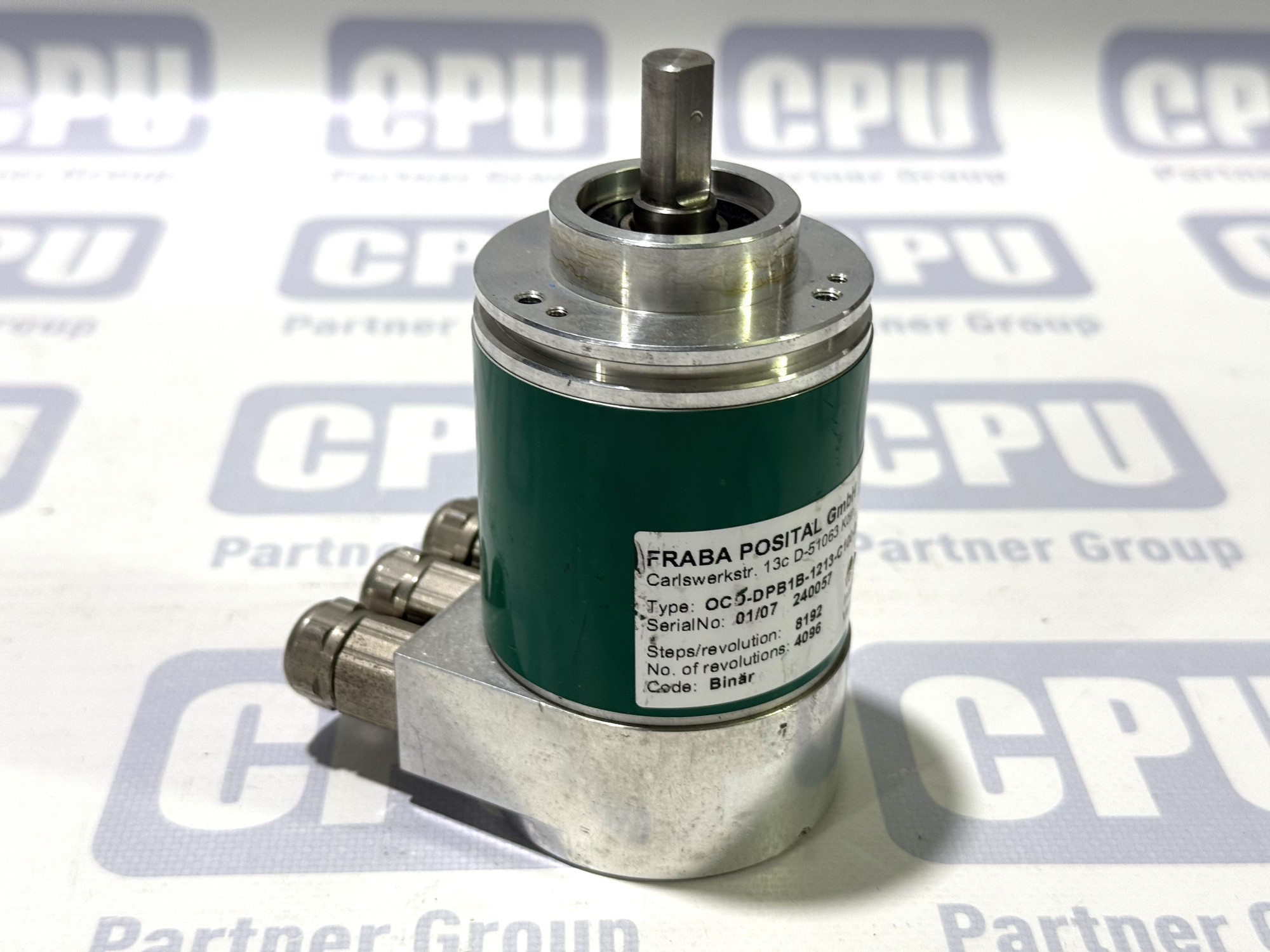

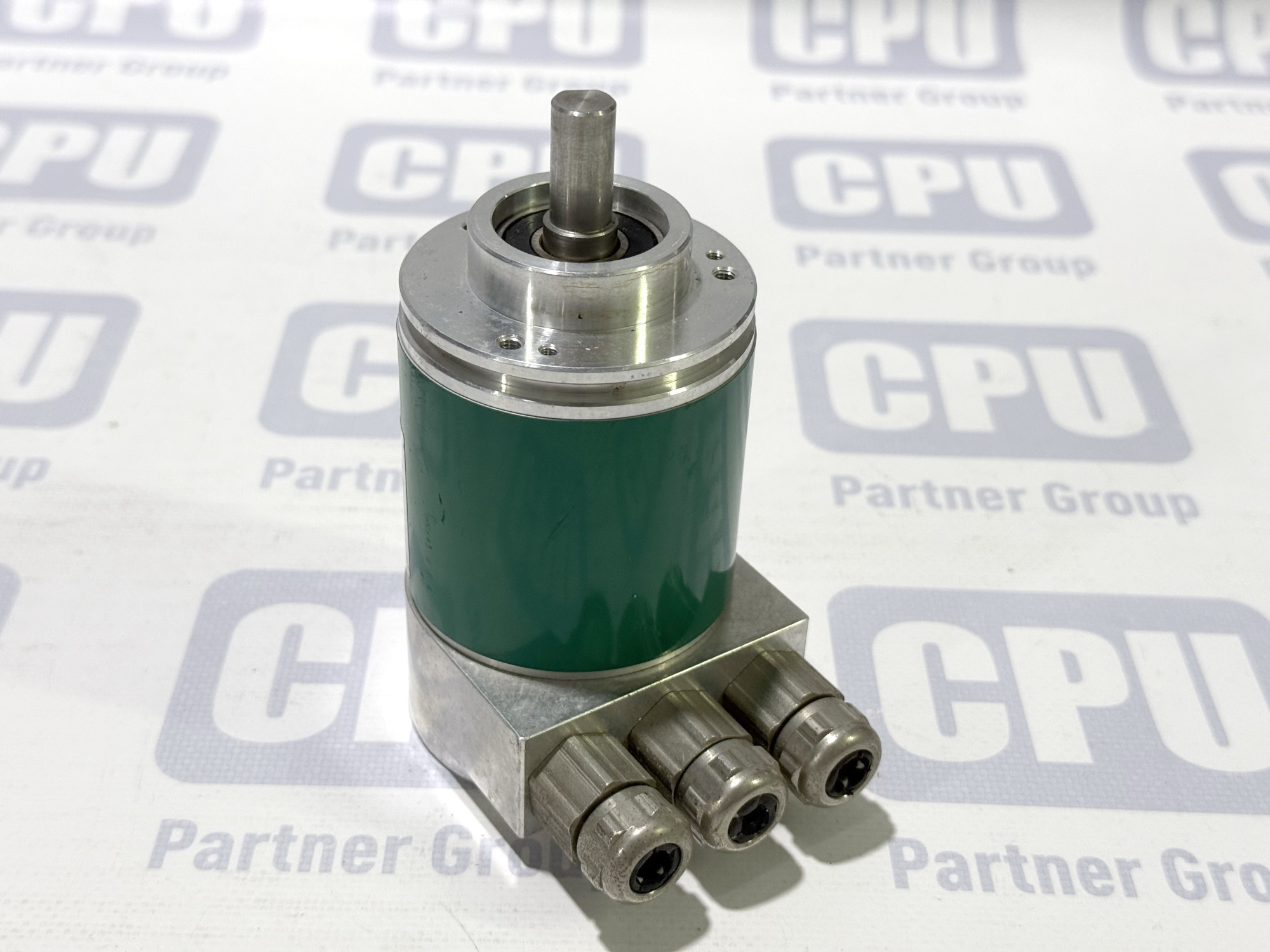

Fraba Posital OCD-DPB1B-1213-C100-0CC Encoder

General Description

The OCD-DPB1B-1213-C100-0CC is an absolute multiturn encoder manufactured by Fraba Posital. This is a high-precision position sensor with a Profibus-DP interface, designed for industrial applications where accurate determination of angular position and number of turns is required.

Model Code Breakdown

OCD-DPB1B-1213-C100-0CC:

• OCD - absolute multiturn encoder series
• DPB1B - Profibus-DP communication interface
• 1213 - resolution: 12 bits per turn, 13 bits multiturn
• C100 - mechanical design and housing size
• 0CC - additional options and configuration

Main Technical Specifications

Resolution:

• Resolution per turn: 12 bits (4096 positions per turn)
• Multiturn capability: 13 bits (8192 turns)
• Total resolution: 25 bits (33,554,432 positions)

Communication Interface:

• Protocol: Profibus-DP
• Data rate: up to 12 Mbps
• Connection type: 5-pin M12 connector

Mechanical Characteristics:

• Housing diameter: 58 mm
• Shaft type: hollow shaft
• Shaft diameter: standard industrial size
• Protection rating: IP65/IP67

Electrical Parameters:

• Supply voltage: 9-30 V DC
• Current consumption: less than 150 mA
• Output signal: digital via Profibus-DP

Technical Features

Operating Principle:

• Magnetic measurement technology
• Absolute positioning without need for reference position
• Position retention during power loss
• Battery-free operation thanks to magnetic technology

Operating Conditions:

• Operating temperature: -40°C to +85°C
• Storage temperature: -40°C to +85°C
• Humidity: up to 95% non-condensing
• Vibration: up to 20g (55-2000 Hz)
• Shock: up to 100g

Functional Capabilities

Diagnostic Functions:

• System self-diagnosis
• Signal quality monitoring

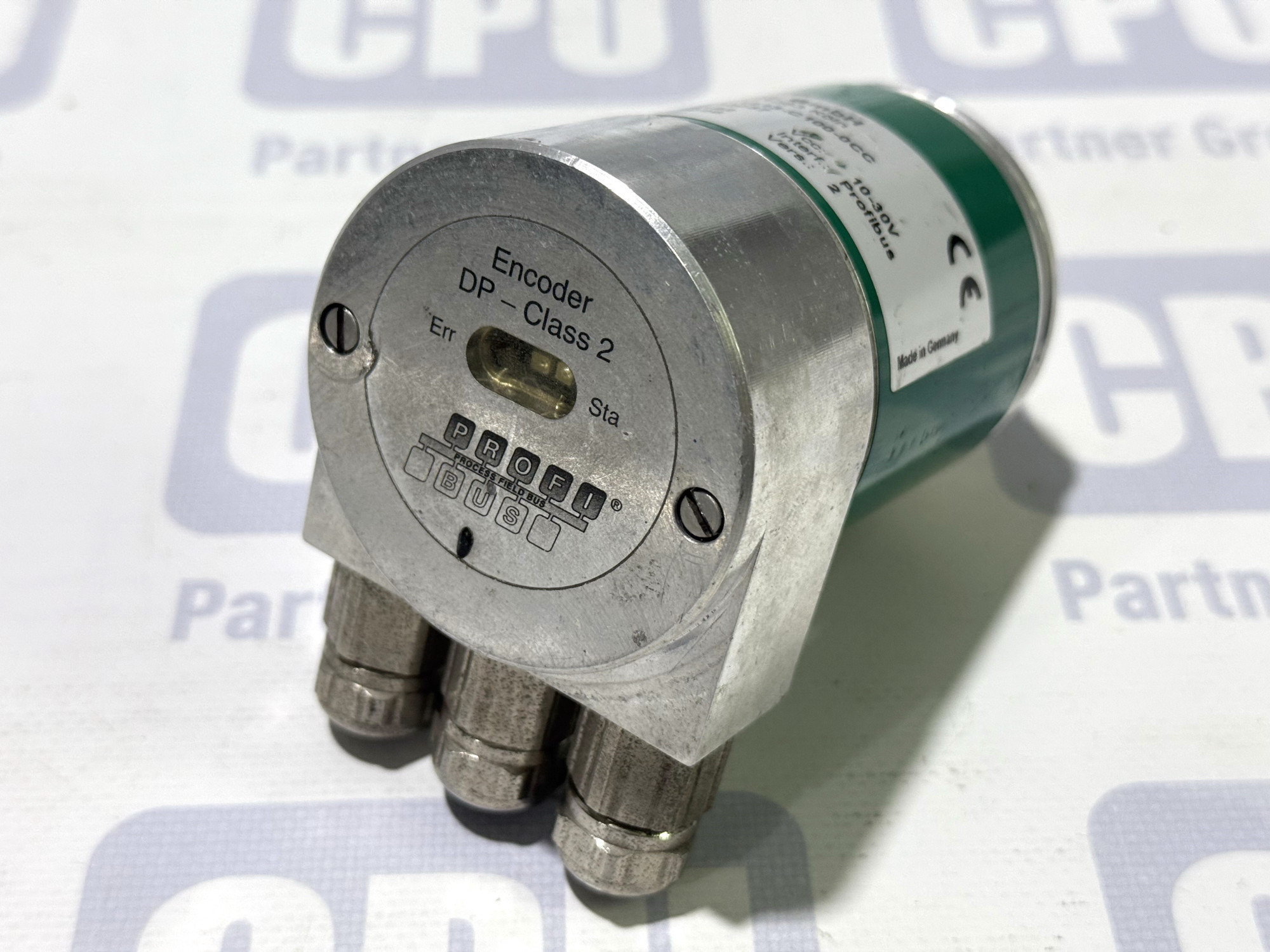

• Status indication via LEDs
• Diagnostics via Profibus

Setup and Configuration:

• Programmable parameters via Profibus
• Counting direction setup
• Output value scaling
• User-defined unit settings

Applications

• Industrial automation
• Robotics
• CNC machines
• Positioning systems
• Conveyor systems
• Material handling equipment
• Drive control systems

Advantages

• High resolution for precise positioning
• Reliable operation in industrial environments
• No battery requirement
• Easy integration into Profibus systems
• Compact design
• Long service life
• Resistance to vibrations and shocks

Connection

The encoder connects via standard 5-pin M12 connector:

• Pin 1: +24V power supply
• Pin 2: Data+ (Profibus)
• Pin 3: GND (ground)
• Pin 4: Data- (Profibus)
• Pin 5: Shield

The OCD-DPB1B-1213-C100-0CC encoder represents a reliable and accurate solution for applications requiring absolute position determination with high resolution and integration into Profibus-DP networks.

On this page you will find the user manual for Fraba Posital OCD-DPB1B-XXXX-XXXX-0CC. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for Fraba Posital OCD-DPB1B-XXXX-XXXX-0CC
