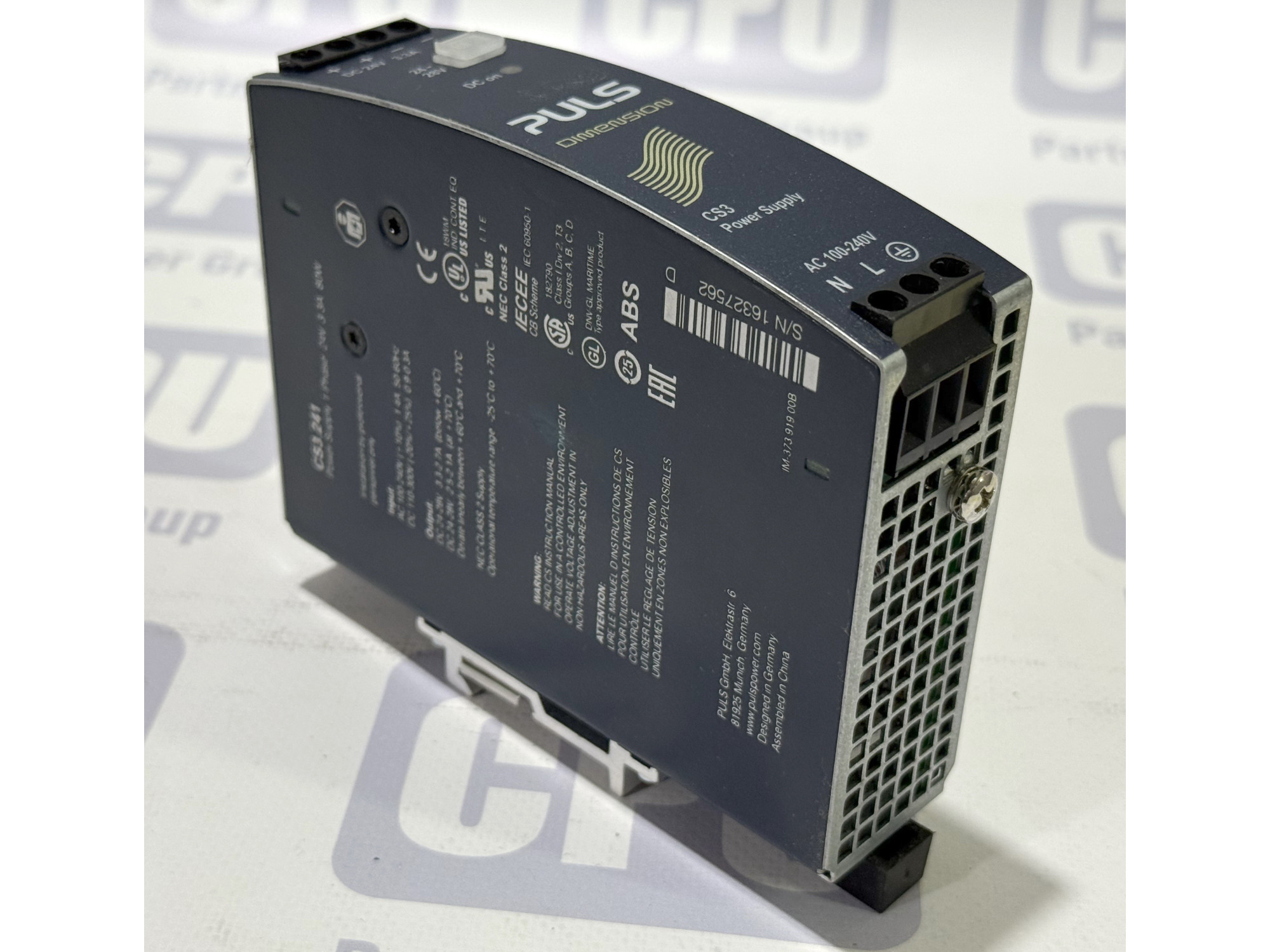

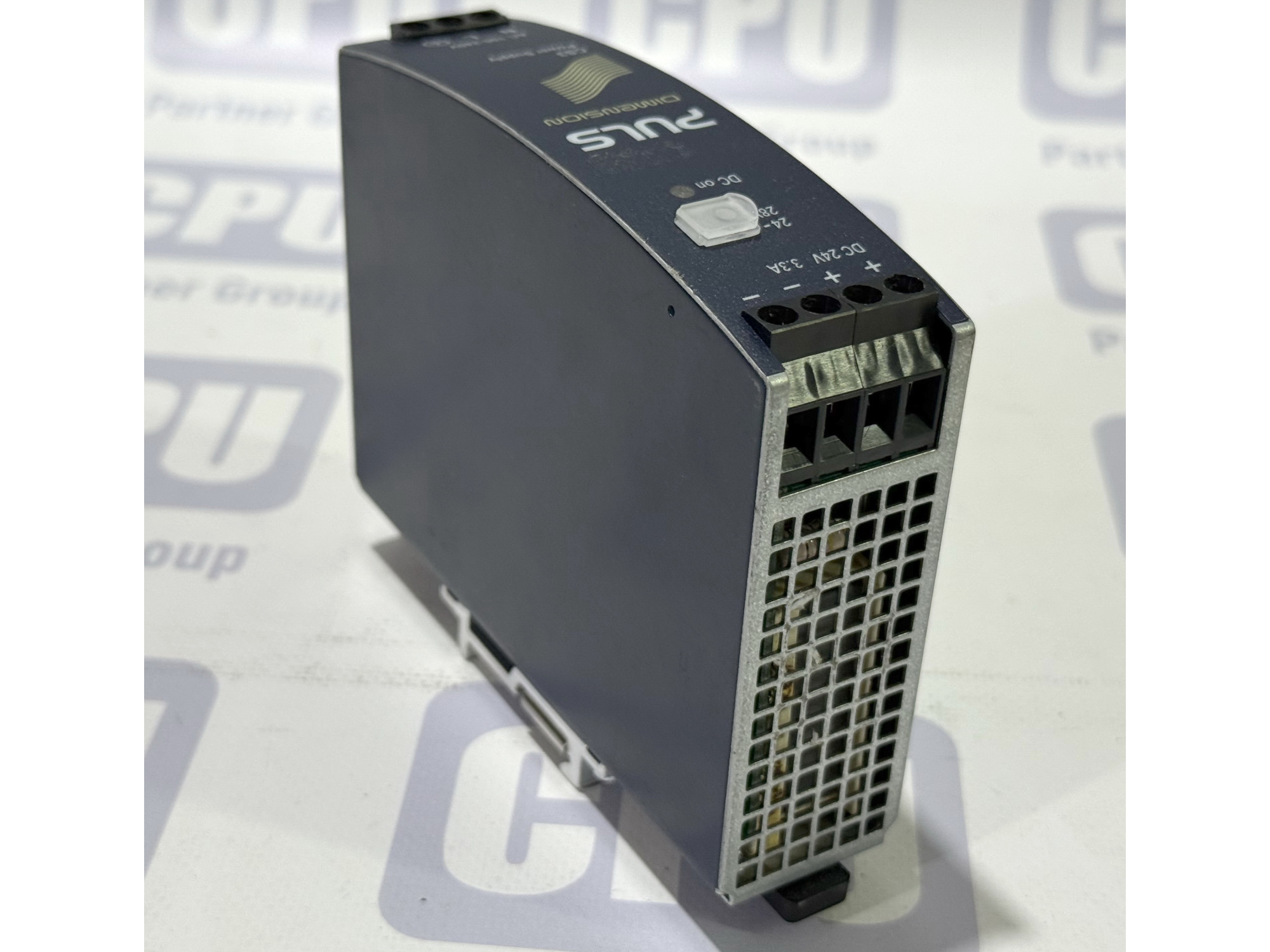

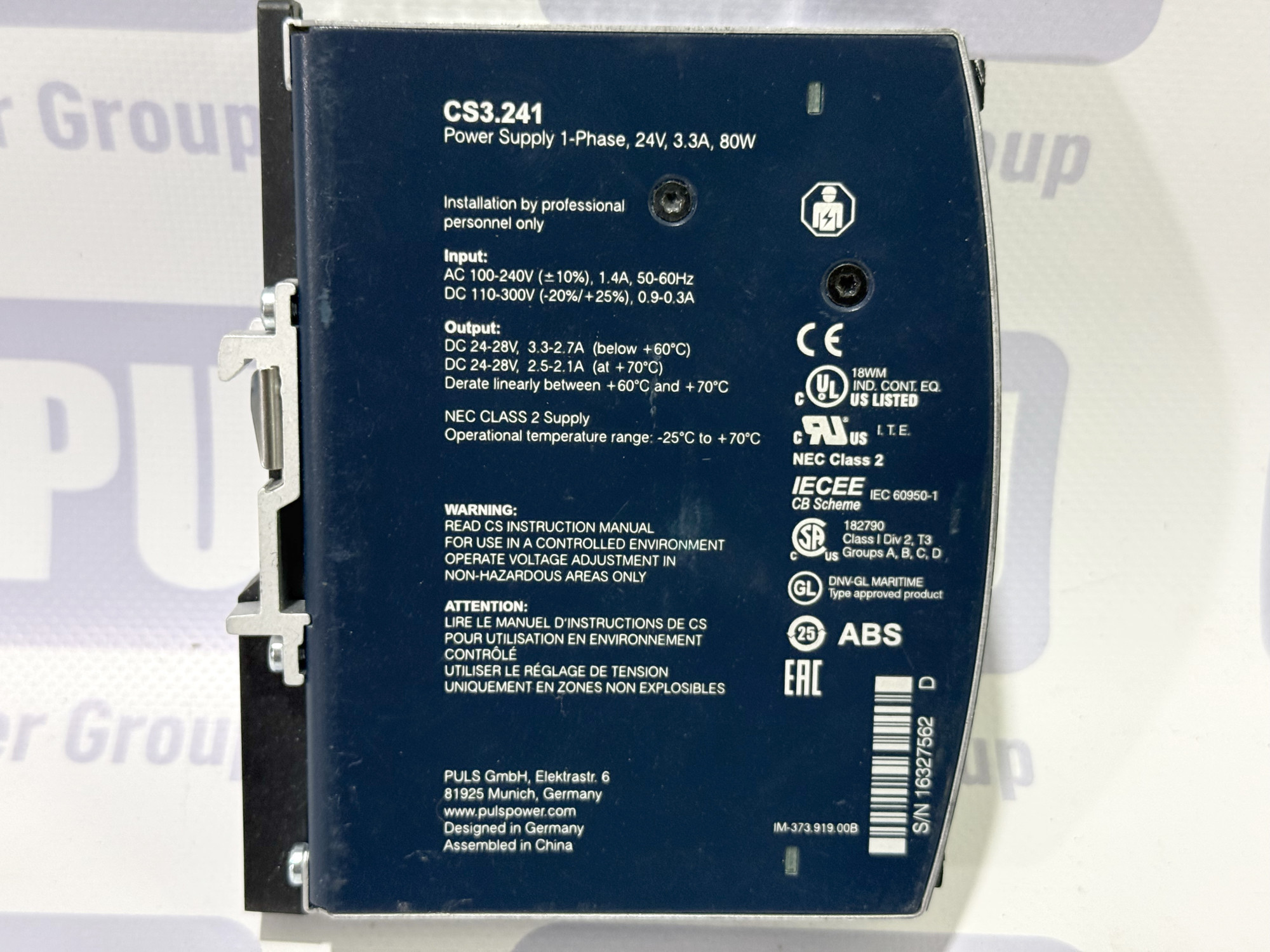

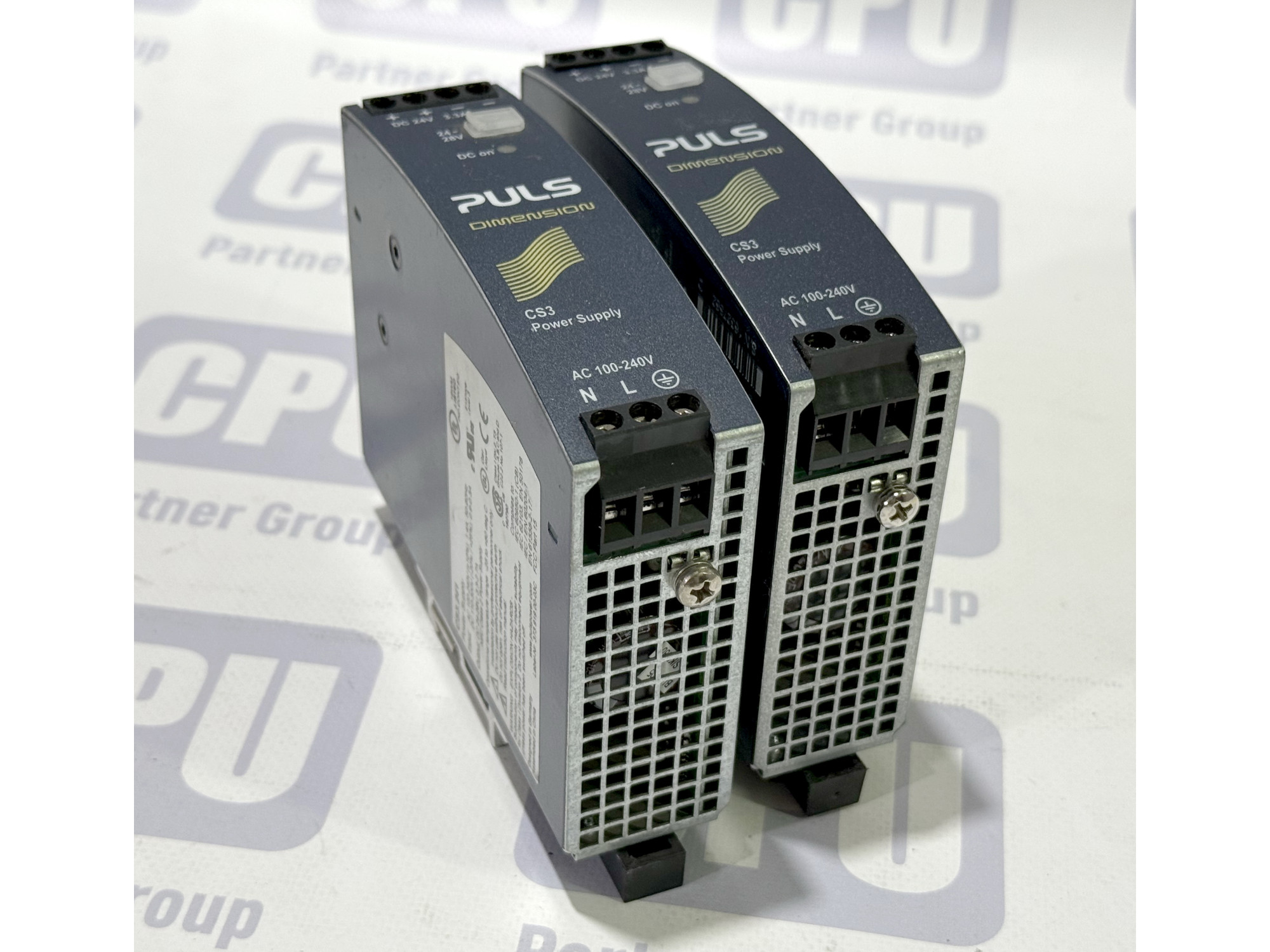

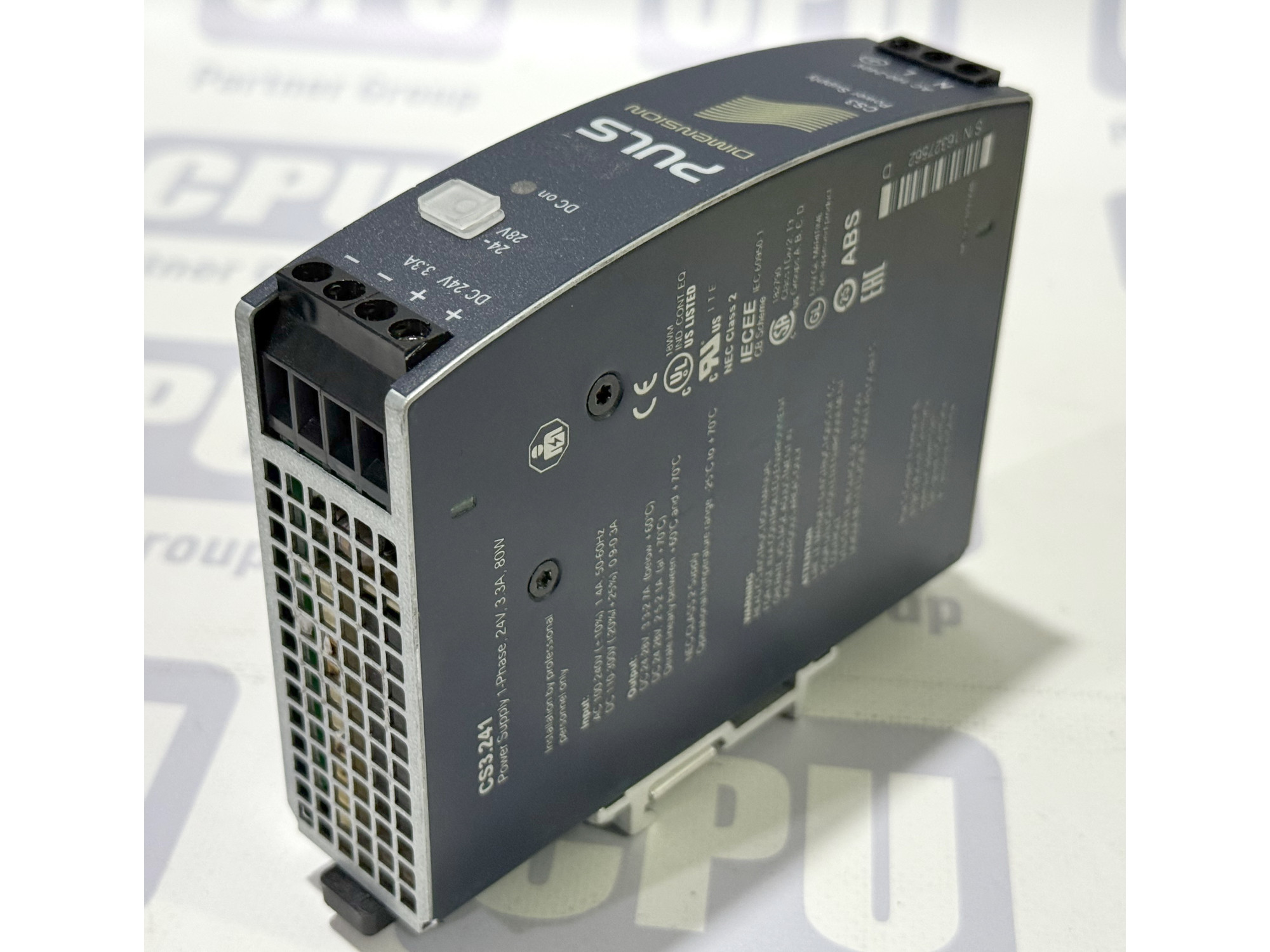

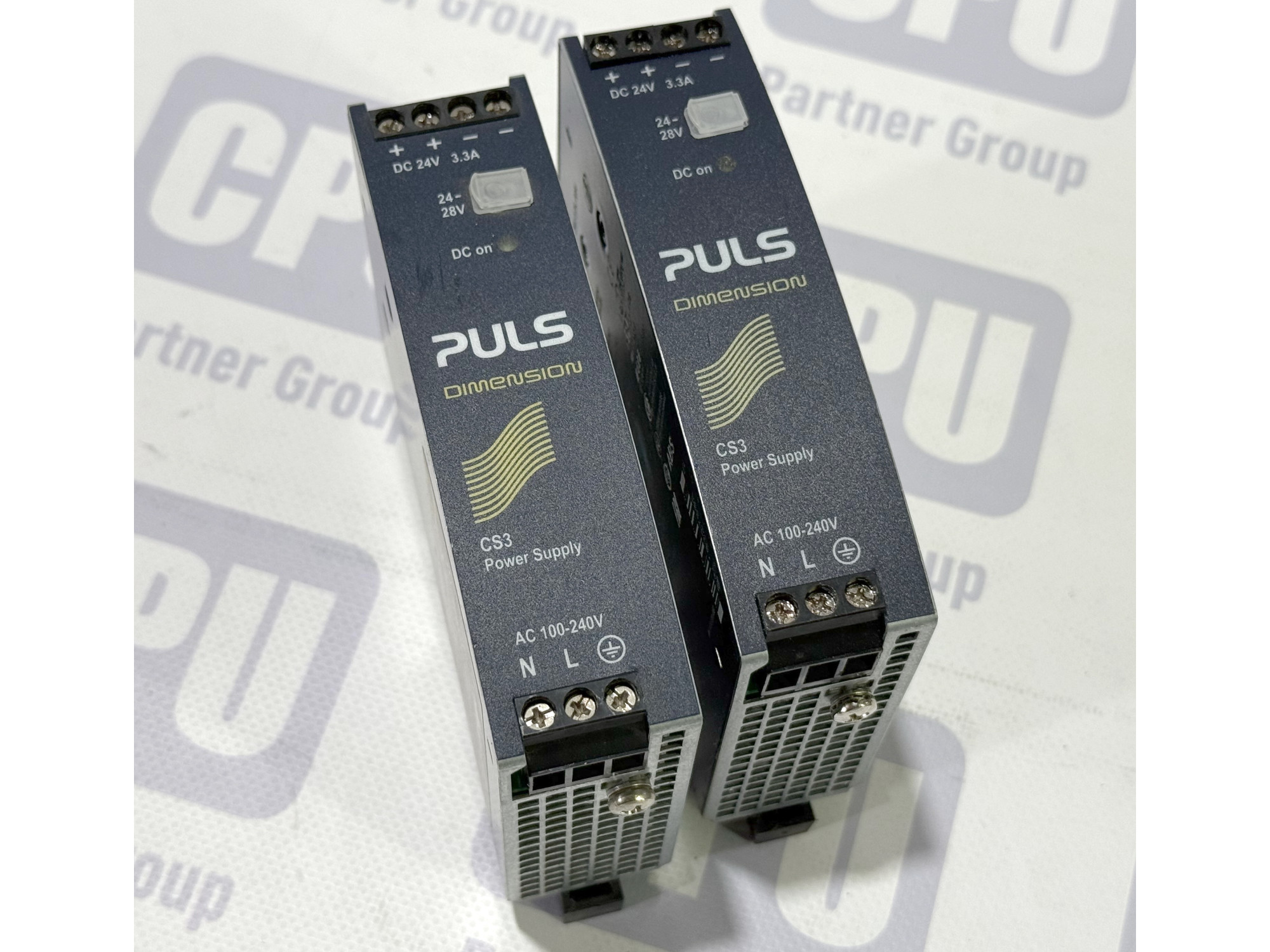

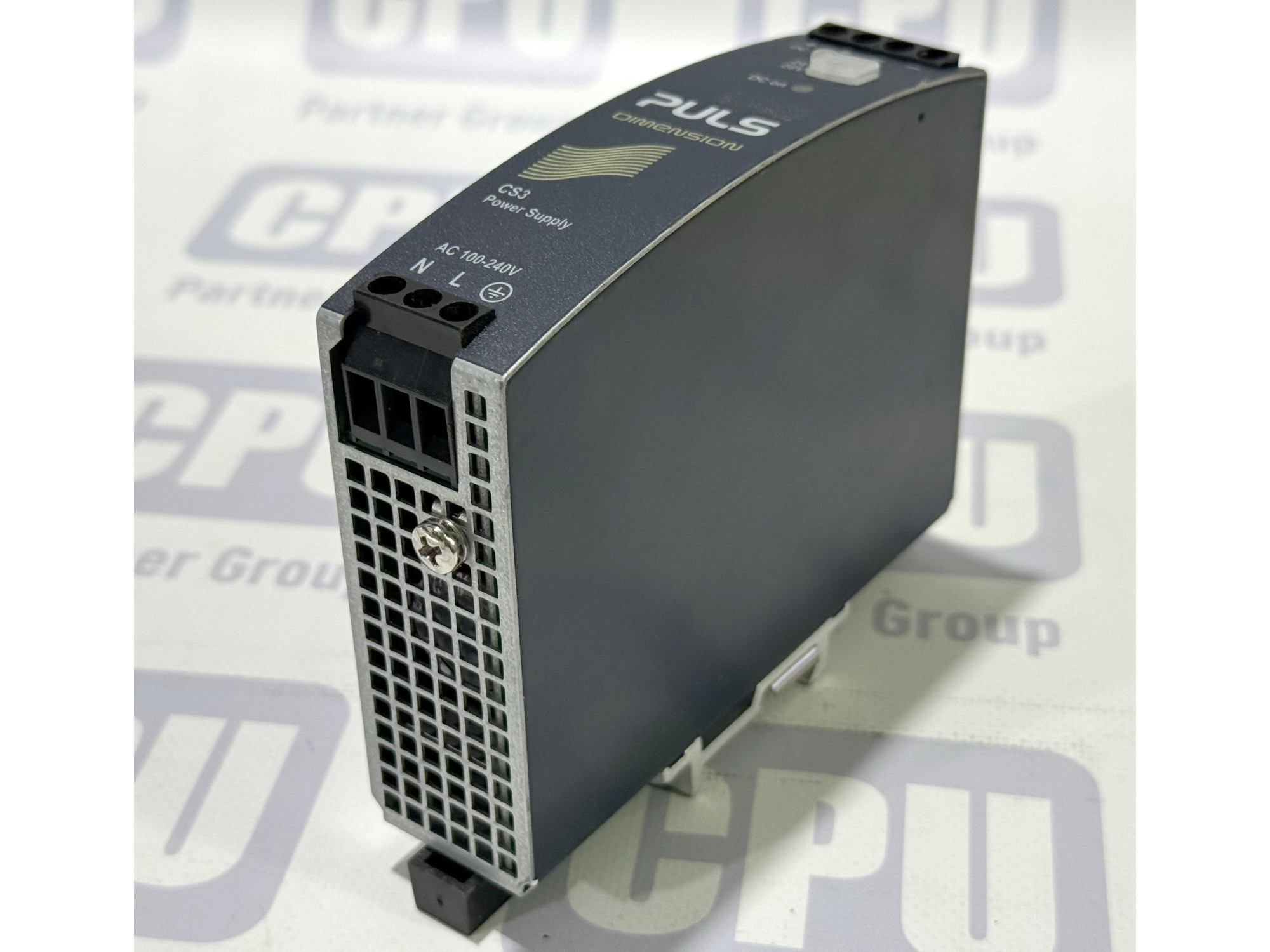

PULS Dimension CS3.241 DIN Rail Power Supply 24V 3.3A 80W 1-Phase

PULS Dimension CS3.241 DIN Rail Power Supply 24V 3.3A 80W 1-Phase

Product Description: The PULS Dimension CS3.241 is a premium, high-efficiency single-phase DIN rail power supply from the renowned German manufacturer PULS. Part of the reliable Dimension C-Series, this compact unit is engineered to deliver stable 24V DC power to demanding industrial automation environments. With a slim housing width of just 32 mm, it dramatically optimizes panel space inside electrical enclosures. It features an impressive efficiency rating of up to 89.8%, a wide input voltage range supporting both AC and DC grids, and strict compliance with the NEC Class 2 standard. Built to perform, it provides full output power across a broad operating temperature range from -25°C to +60°C and includes a front-panel potentiometer for precise voltage adjustment.

Specifications:

• Brand: PULS (Germany)

• Series: Dimension C-Series / CS-Series

• Model / MPN: CS3.241

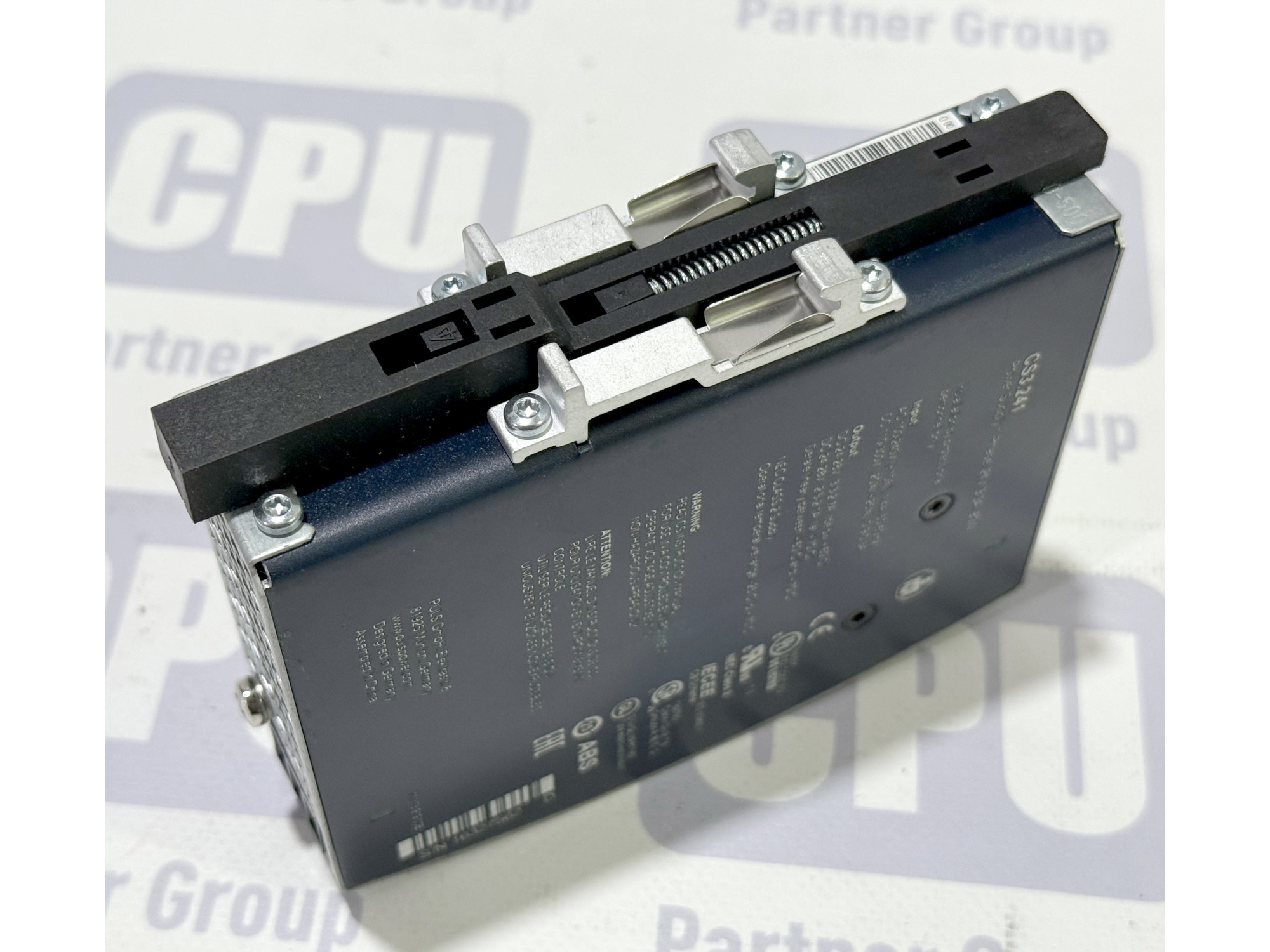

• Mounting Type: DIN Rail (35 mm)

• Number of Phases: 1-Phase (Single Phase)

• Input Voltage (AC): 100-240V (±10%), 50-60Hz, 1.4A

• Input Voltage (DC): 110-300V (-20%/+25%), 0.9-0.3A

• Output Voltage (DC): 24V (User adjustable via front potentiometer from 24V to 28V)

• Output Current: 3.3–2.7A (up to +60°C), 2.5–2.1A (up to +70°C)

• Nominal Output Power: 80W

• Efficiency: Up to 89.8%

• Dimensions: 32 x 124 x 102 mm (W x H x D)

• Connection Type: Screw Terminals

• Certifications & Features: NEC Class 2 compliant, DC-OK status LED, short-circuit, overload, and overvoltage protection

Application: This power supply is widely used for powering programmable logic controllers (PLCs), human-machine interfaces (HMIs), industrial sensors, actuators, intermediate relays, and communication network modules. It is an ideal choice for industrial control panels, CNC machinery, HVAC systems, water treatment equipment, and telecommunication enclosures across critical infrastructure sectors.
