PULS DIMENSION QS10.241 DIN Rail Power Supply (24V, 10A, 240W)

PULS DIMENSION QS10.241 DIN Rail Power Supply (24V, 10A, 240W)

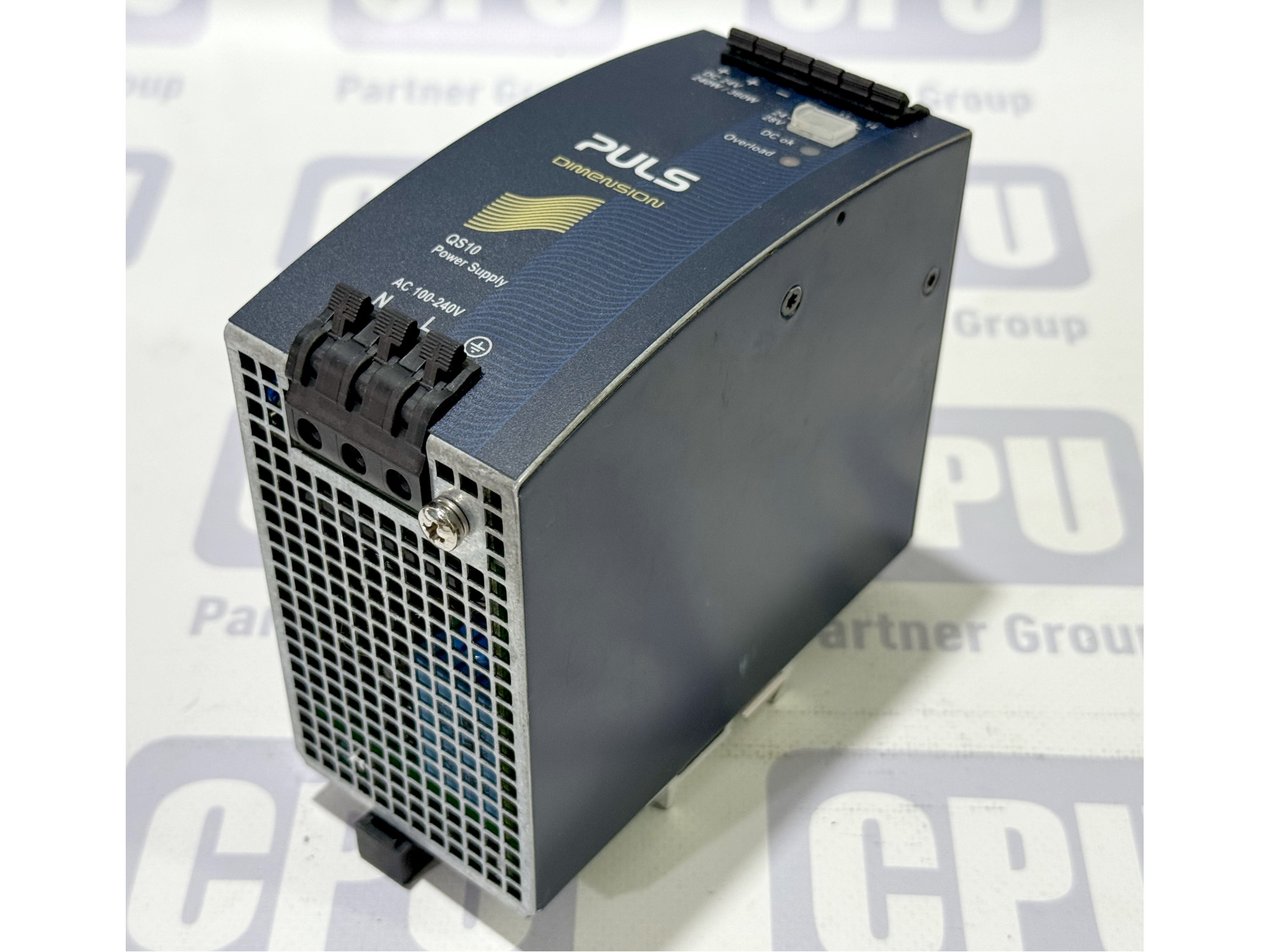

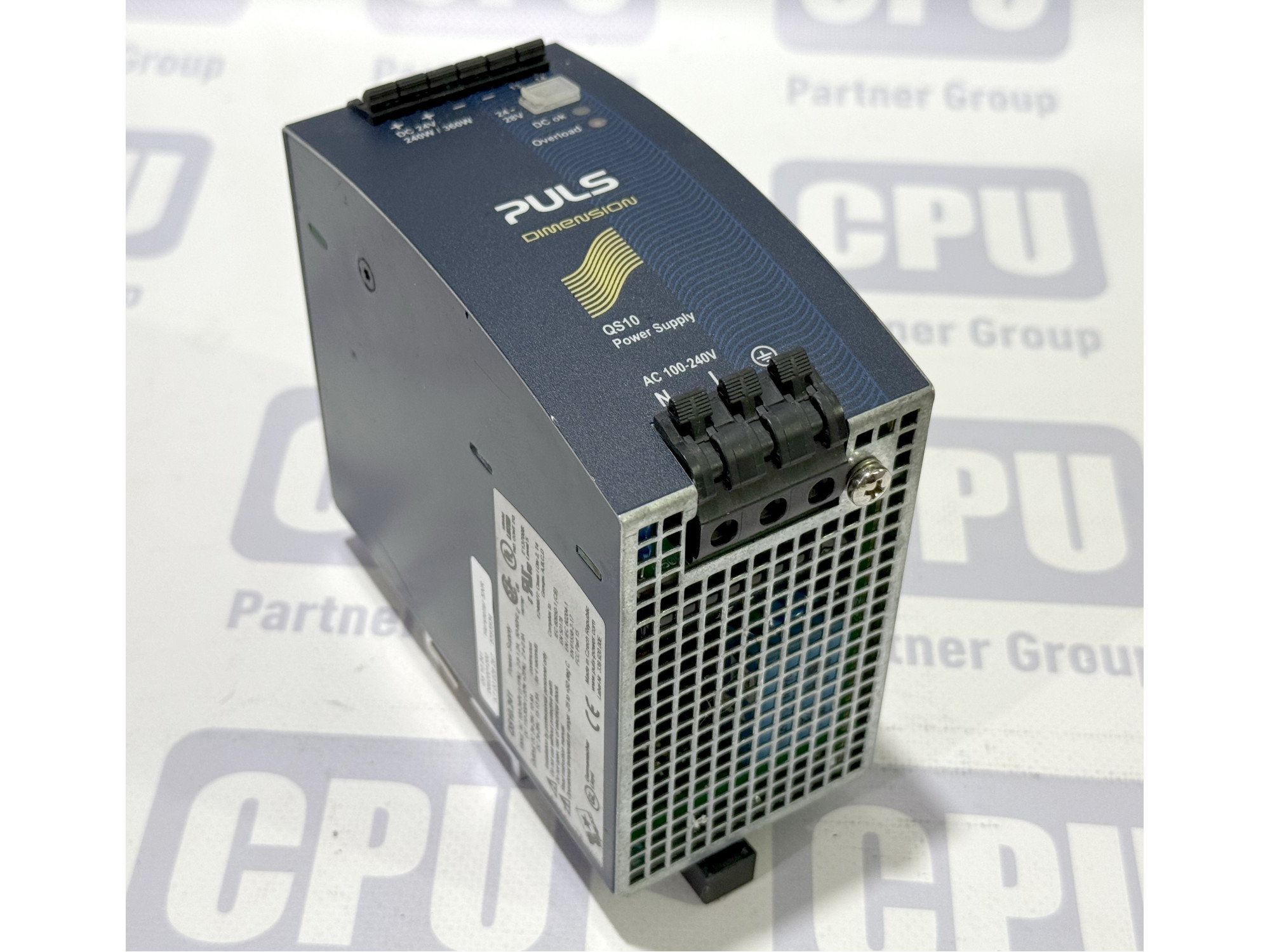

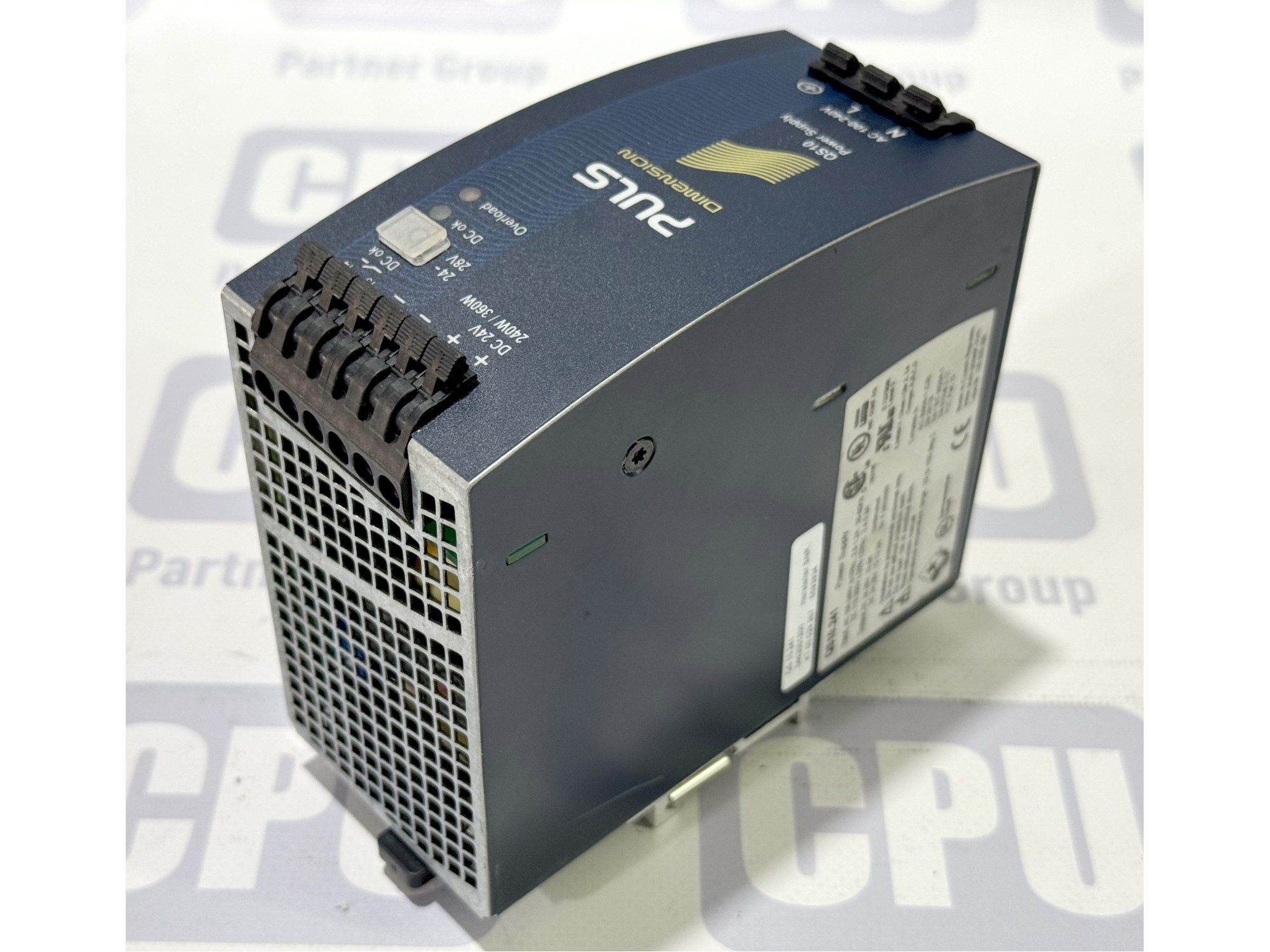

Product Description: The PULS DIMENSION QS10.241 is a premium-grade, single-phase industrial switch-mode power supply engineered to deliver exceptional reliability and high efficiency for demanding industrial automation systems. Operating with an outstanding efficiency rate of up to 93.5%, this compact unit minimizes power losses and heat generation within control cabinets. It features a specialized BonusPower capability, allowing the power supply to briefly output up to 15A (360W) for up to 4 seconds to successfully kickstart heavy inductive, capacitive, or motor loads without voltage drops. Built with cutting-edge, vibration-resistant Quick-Connect spring terminals, the unit simplifies wiring and ensures maintenance-free operation. Additional industrial highlights include an active power factor correction (PFC), a manual output voltage potentiometer, dual LED diagnostic indicators, and an isolated dry "DC ok" relay contact for remote status monitoring. The lightweight yet rugged aluminum enclosure is optimized for rapid snapshot mounting on standard 35mm DIN rails.

Specifications:

• Manufacturer: PULS (Germany)

• Series: DIMENSION QS10

• Part Number / Model: QS10.241

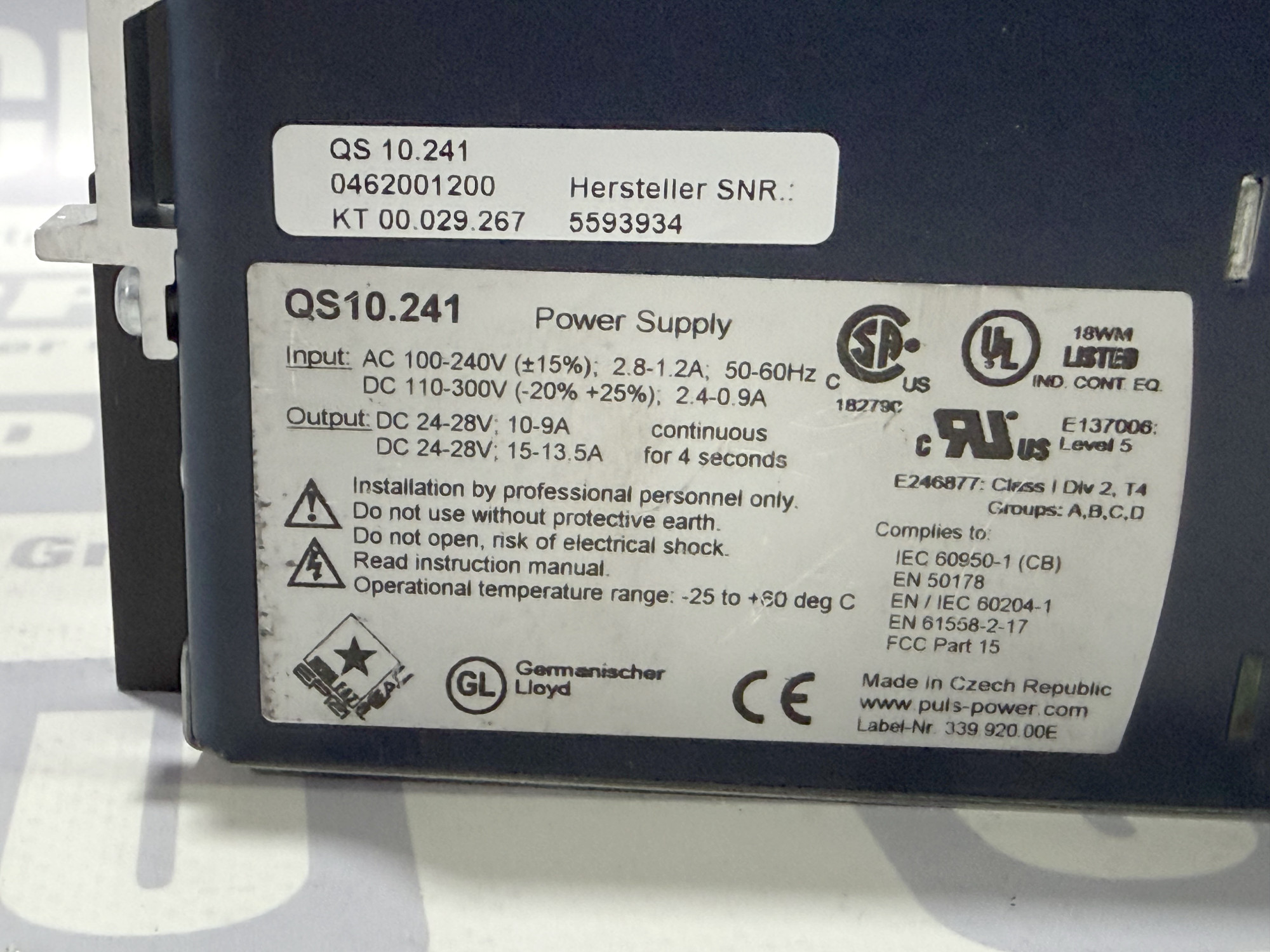

• Serial Number / SNR: 5593934

• Device Type: Switch-mode industrial power supply

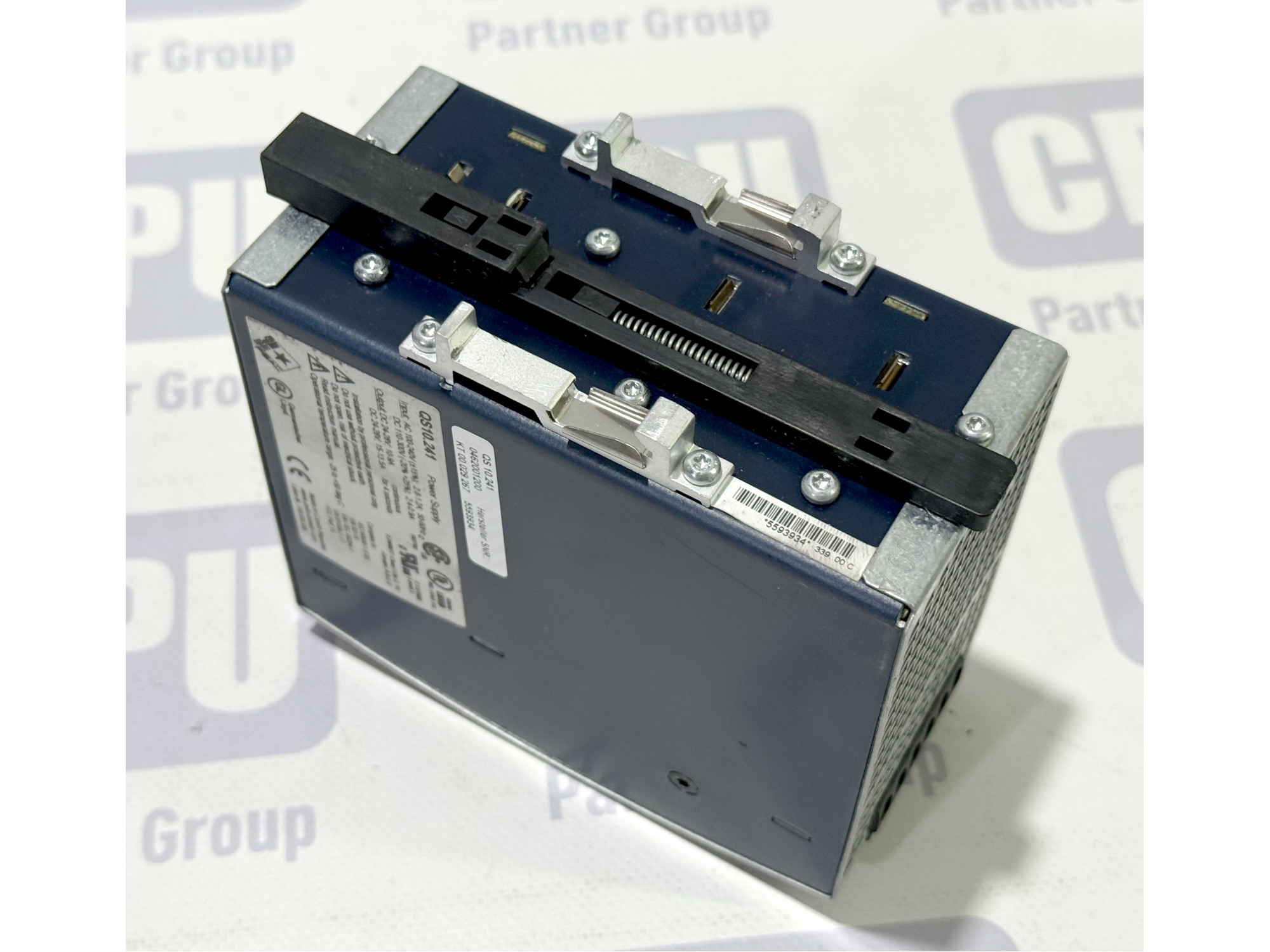

• Mounting Type: Standard 35mm DIN rail

• Input Voltage (AC): 100-240V (±15%), 50-60Hz, 2.8-1.2A

• Input Voltage (DC): 110-300V (-20% / +25%), 2.4-0.9A

• Nominal Output Voltage: 24V DC

• Output Voltage Adjustment Range: 24-28V DC (adjustable via integrated front potentiometer)

• Continuous Output Current: 10A at 24V, 9A at 28V

• Short-term Peak Output Current (4 seconds): 15A at 24V, 13.5A at 28V

• Output Power: 240W continuous, 360W peak (BonusPower)

• Efficiency: 93.5%

• Power Factor: Active PFC included

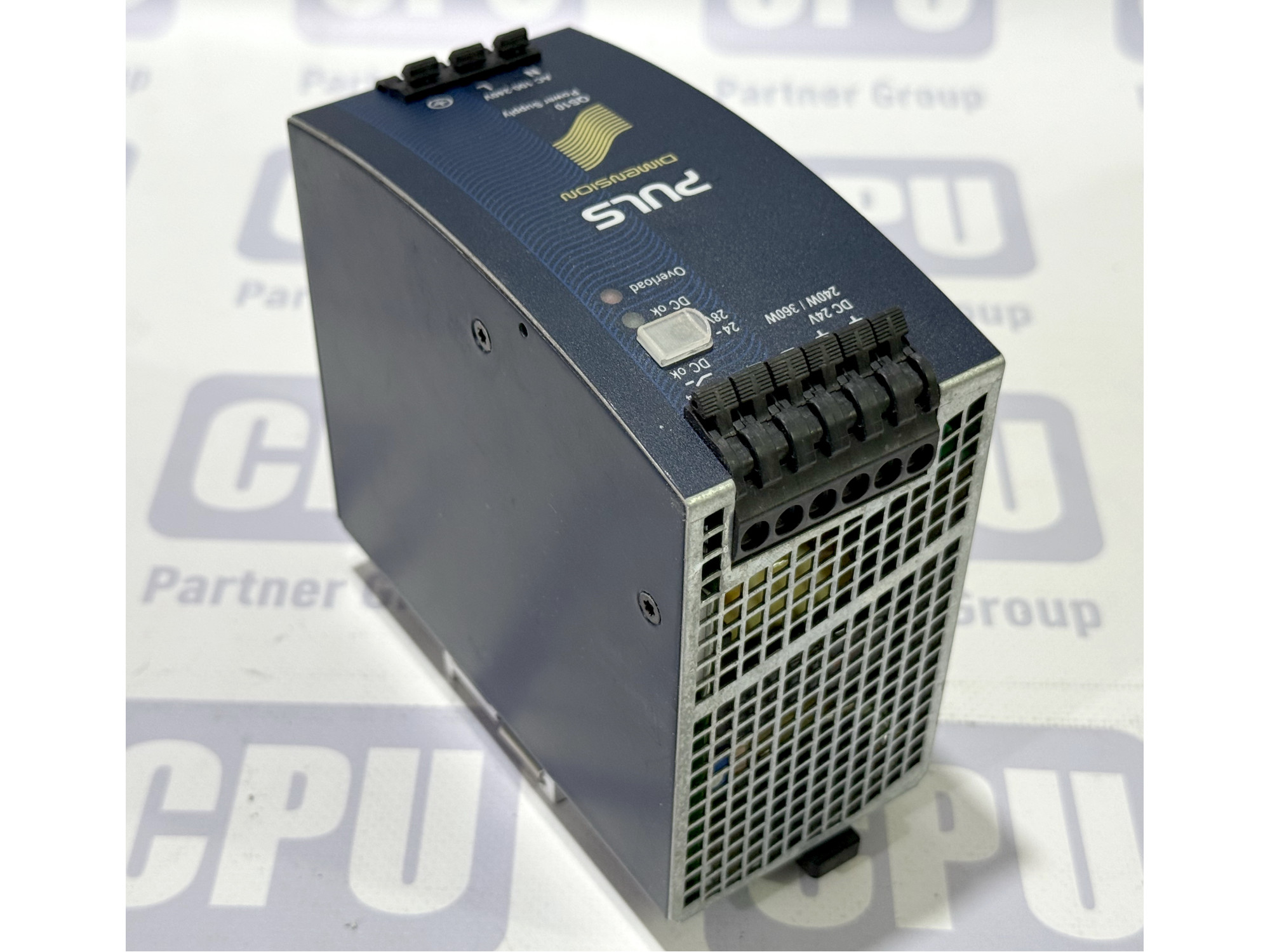

• Connection Type: Quick-Connect spring-clamp terminals

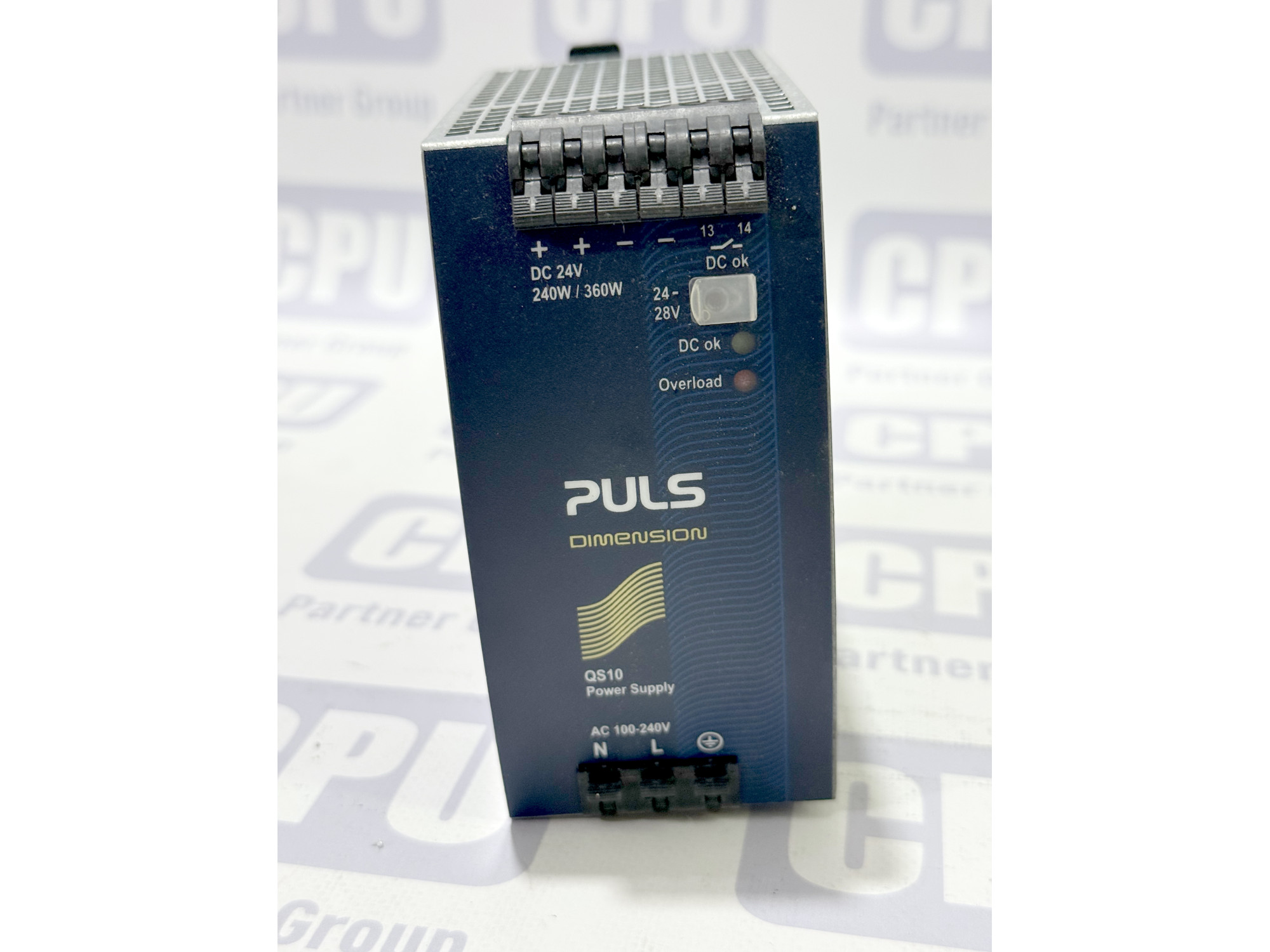

• Status Monitoring: Green "DC ok" LED, Red "Overload" LED, "DC ok" relay contact (terminals 13-14)

• Operational Temperature Range: -25°C to +70°C (full power up to +60°C)

• Protection Features: Overload protection, short-circuit protection, overvoltage protection, overtemperature protection

• Dimensions: 60 x 124 x 117 mm

• Weight: 900 g

• Country of Manufacture: Czech Republic (Made in Czech Republic)

Application: This power supply is widely implemented for distributing clean, regulated low-voltage power to Programmable Logic Controllers (PLCs), Human-Machine Interfaces (HMIs), industrial I/O modules, ethernet switches, field sensors, intermediate relays, actuators, and solenoids inside automation cabinets. It is widely preferred in mechanical engineering, factory automation, robotics, conveyor systems, water management, power sub-stations, and petrochemical process plants due to its remarkable resistance to extreme loads and physical vibrations.
