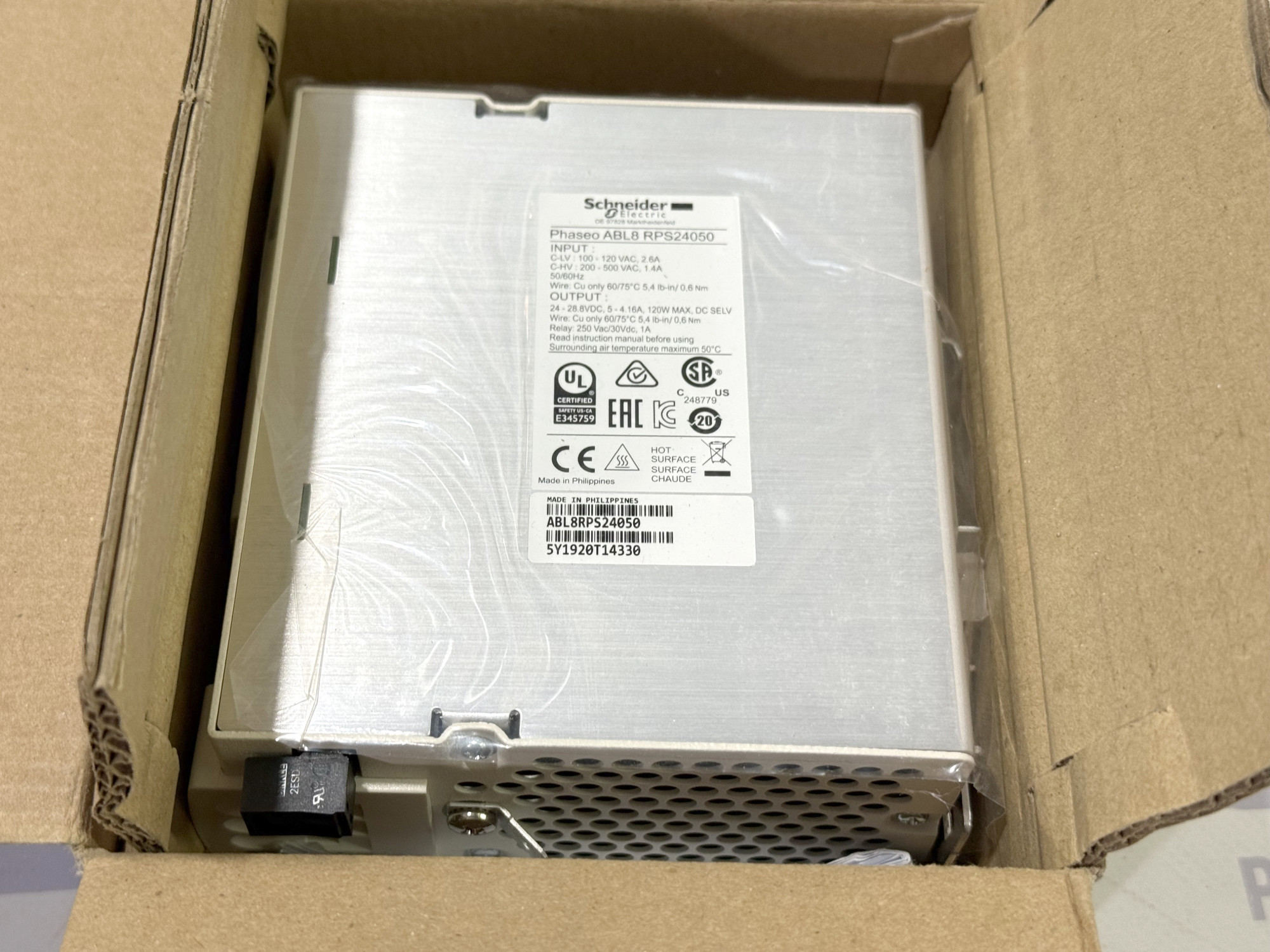

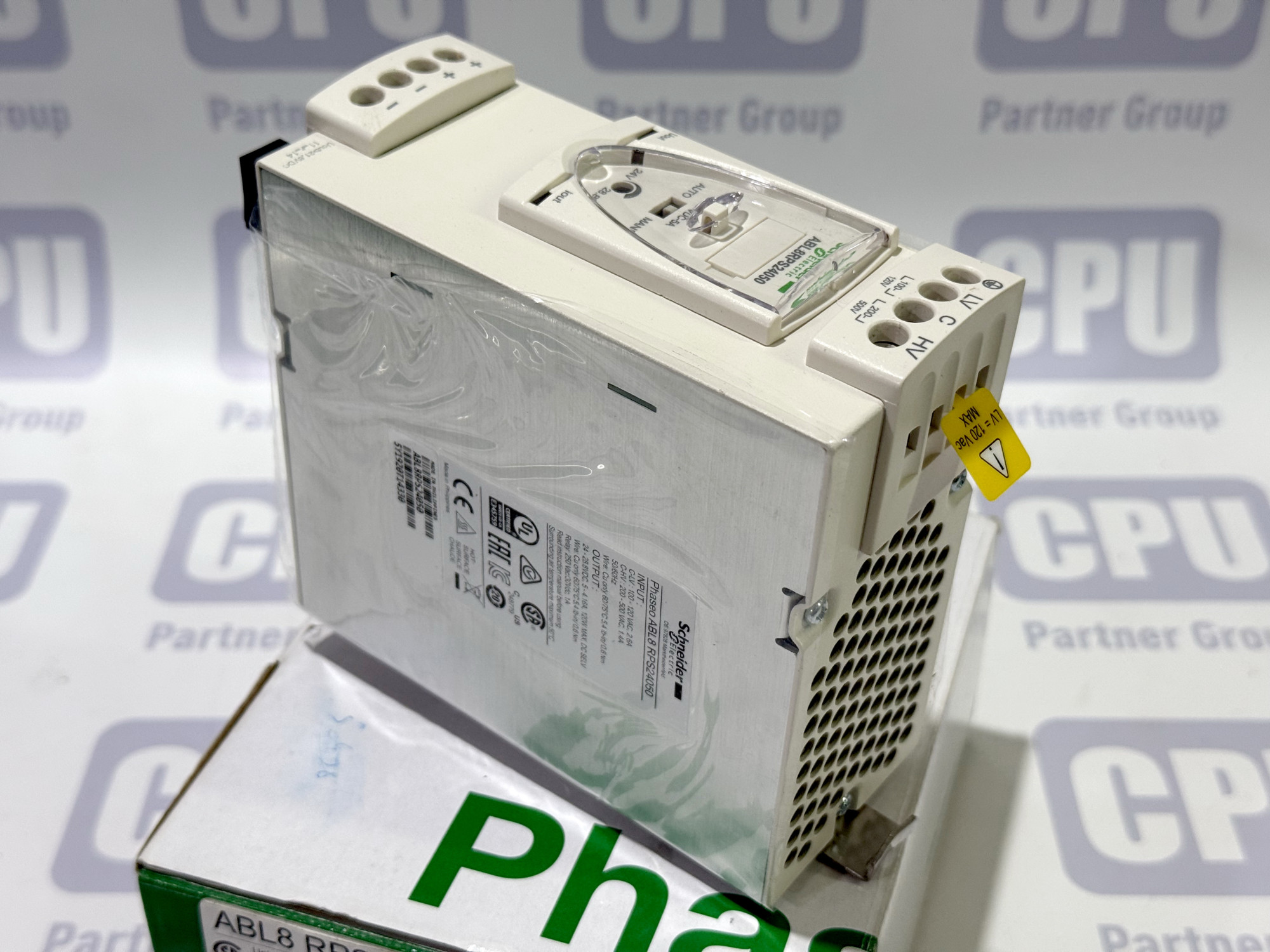

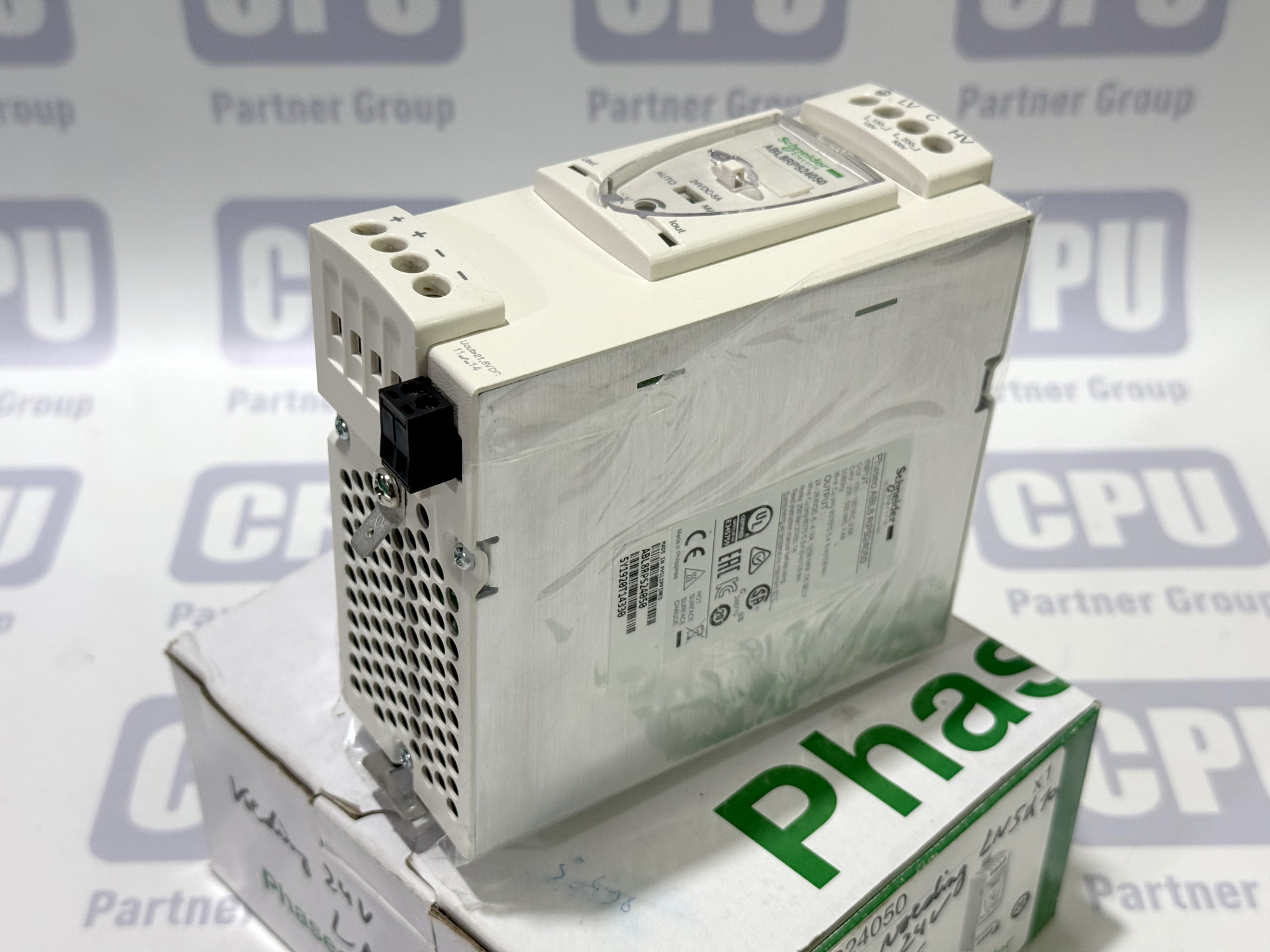

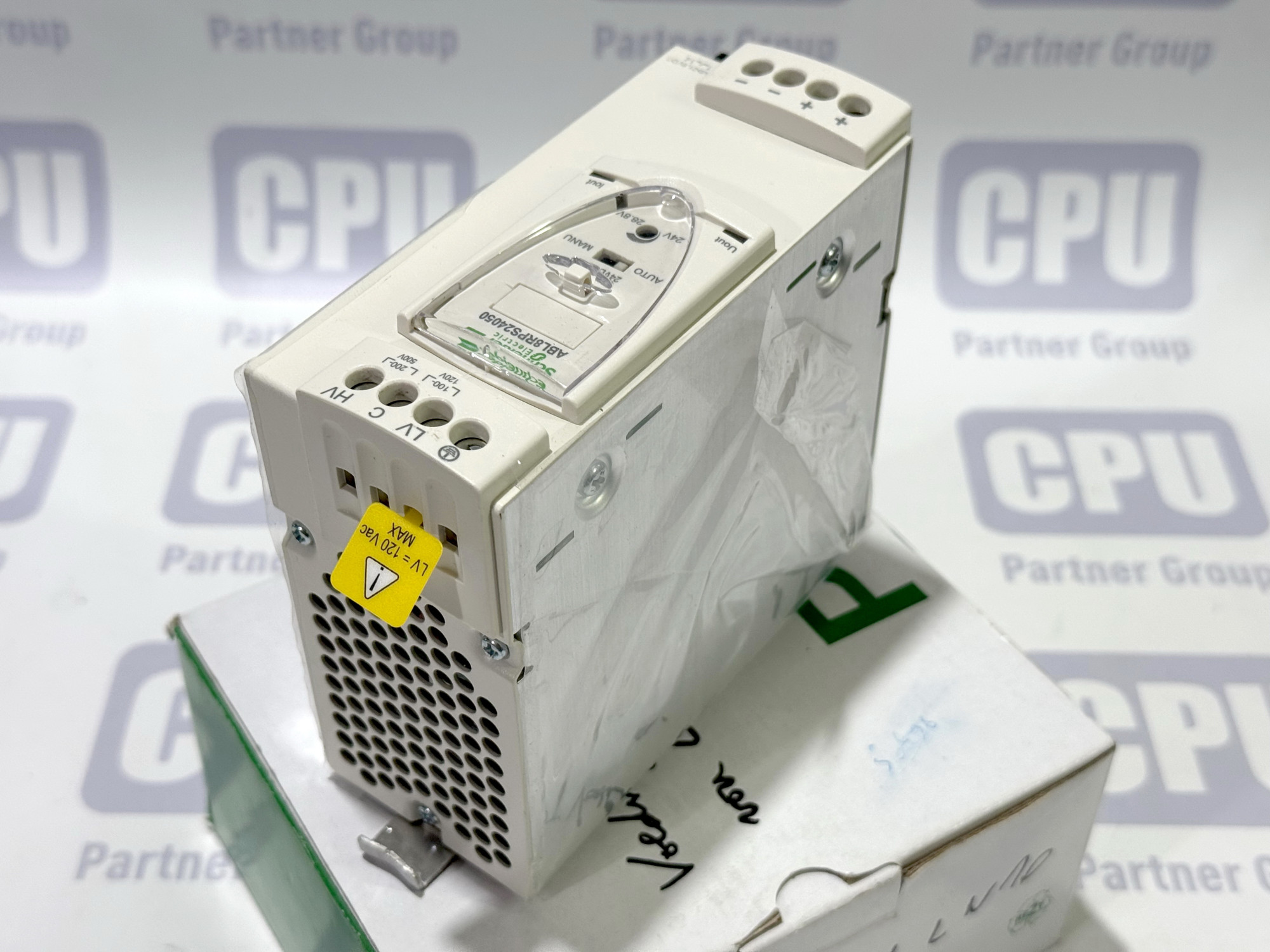

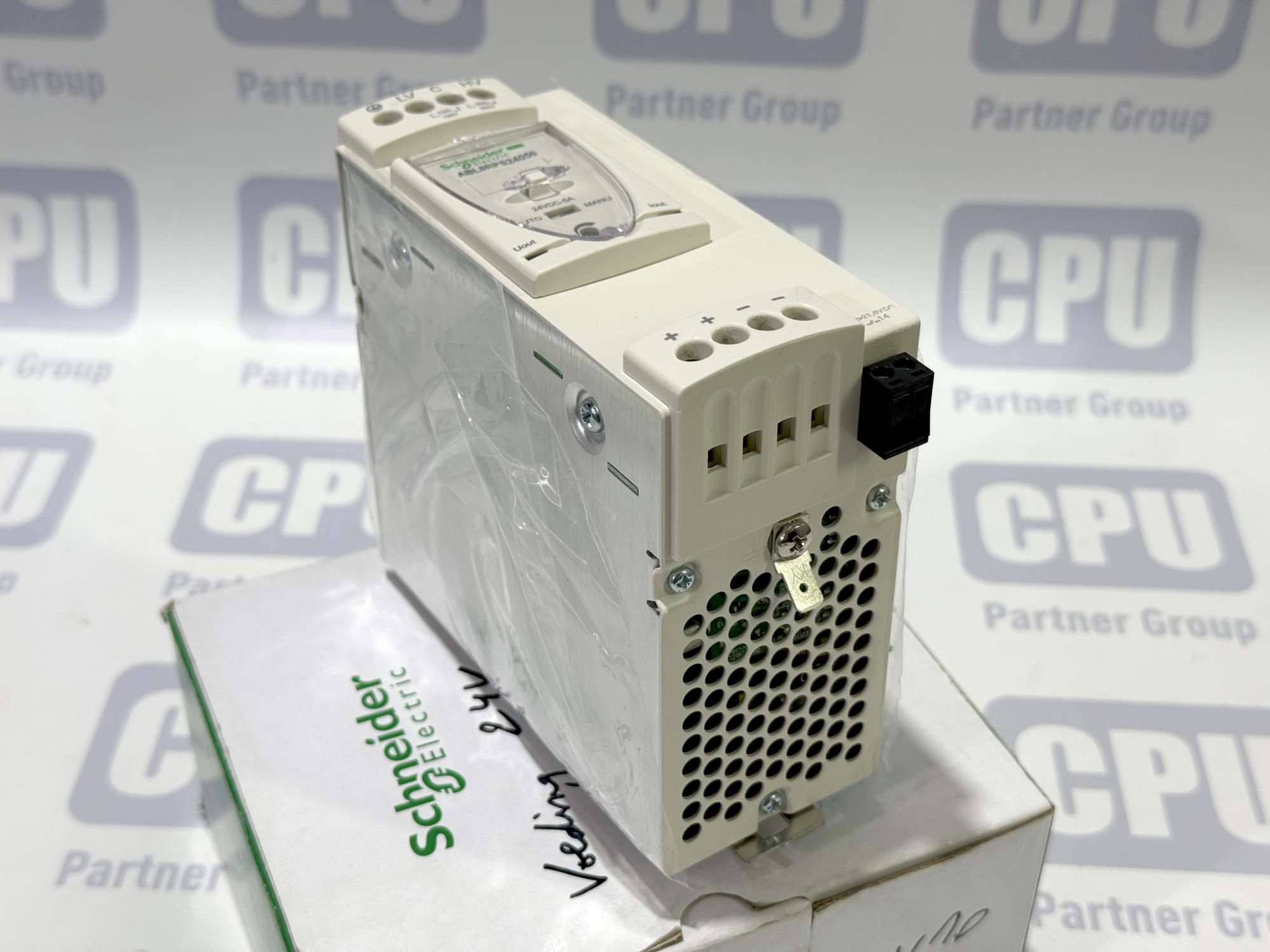

Schneider Electric Phaseo ABL8 RPS24050 Universal Power Supply 24V DC 5A 120W

Schneider Electric Phaseo ABL8 RPS24050 Universal Power Supply 24V DC 5A 120W

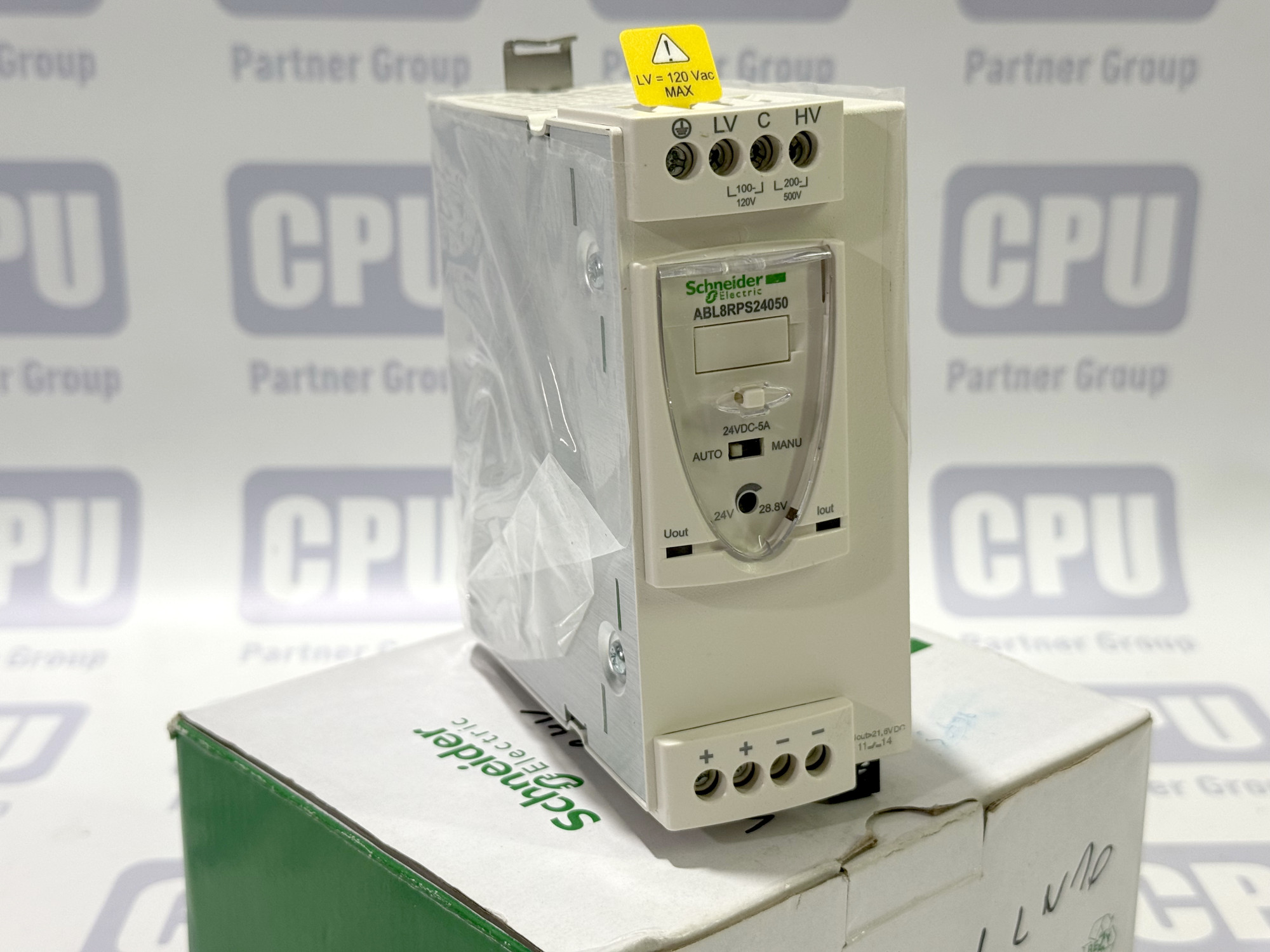

Product Description: The Schneider Electric Phaseo ABL8RPS24050 is a premium, industrial-grade regulated switch-mode power supply designed to deliver a highly stable and reliable 24V DC output. Engineered for demanding industrial automation and control applications, this universal power supply features a wide input voltage range, enabling single-phase or two-phase connection layouts. Its compact, robust housing is purpose-built for seamless DIN-rail mounting. Equipped with integrated advanced electronic protection mechanisms against short-circuits, overloads, and overtemperature, it ensures uninterrupted performance for all downstream electronic loads. The front panel includes intuitive LED status diagnostics and an automatic/manual reset mode toggle switcher for enhanced maintenance convenience.

Specifications:

• Manufacturer: Schneider Electric

• Product Range: Phaseo Universal

• Model / MPN: ABL8RPS24050

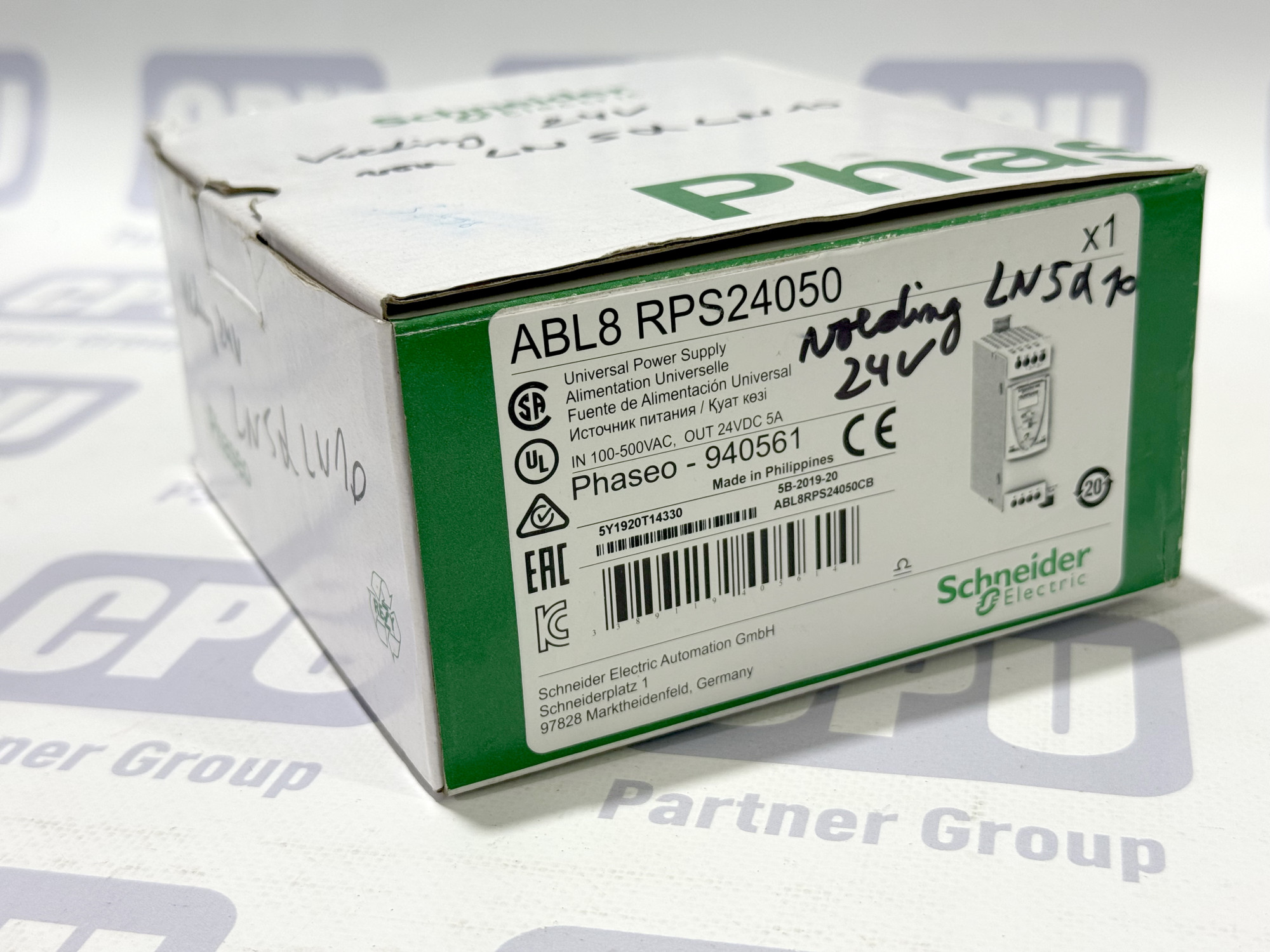

• EAN Barcode: 3389119405614

• Power Supply Type: Switch-mode (Regulated)

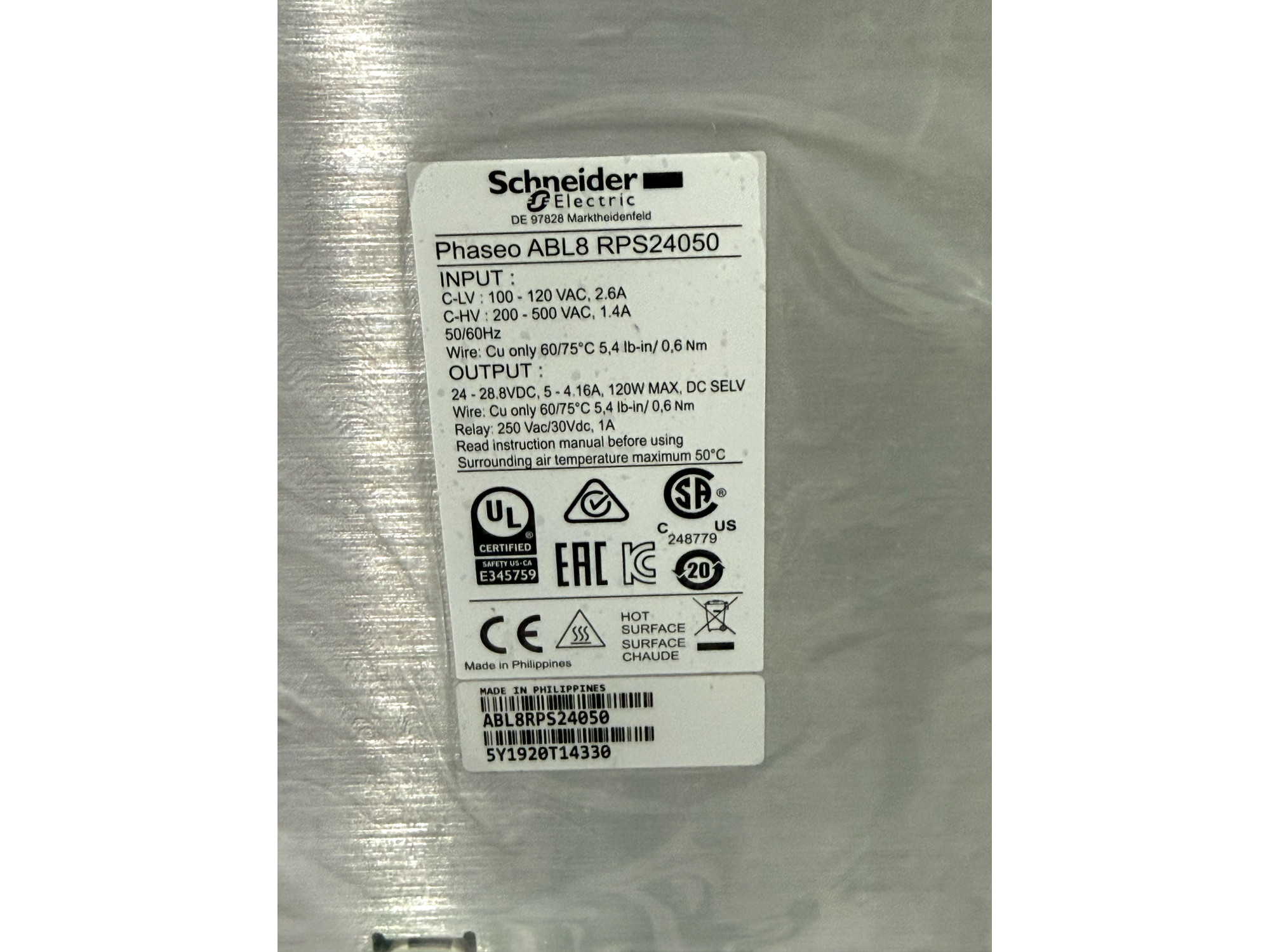

• Number of Phases: 1-phase (100–120 VAC) / 2-phase (200–500 VAC)

• Minimum Input Voltage: 100 VAC

• Maximum Input Voltage: 500 VAC

• Network Frequency: 50/60 Hz

• Output Voltage: 24 VDC (adjustable from 24 to 28.8 VDC via potentiometer)

• Maximum Output Current: 5 A (at 24V) / 4.16 A (at 28.8V)

• Nominal Output Power: 120 W (0.12 kW)

• Safety Standard: DC SELV (Safety Extra Low Voltage)

• Signaling Relay: Integrated, 250 VAC / 30 VDC, up to 1 A

• Mounting Type: 35mm DIN Rail

• Country of Origin: Philippines

• Certificates: CE, UL, CSA, EAC, KC, RoHS

Application: This power supply unit is specifically developed to provide clean, stabilized power within industrial control panels, electrical enclosures, and automation cabinets. It is ideally suited for supplying power to Programmable Logic Controllers (PLCs), Human-Machine Interfaces (HMIs), industrial sensors (pressure, temperature, proximity), intermediate relays, contactors, low-voltage actuators, and other essential process control machinery.
