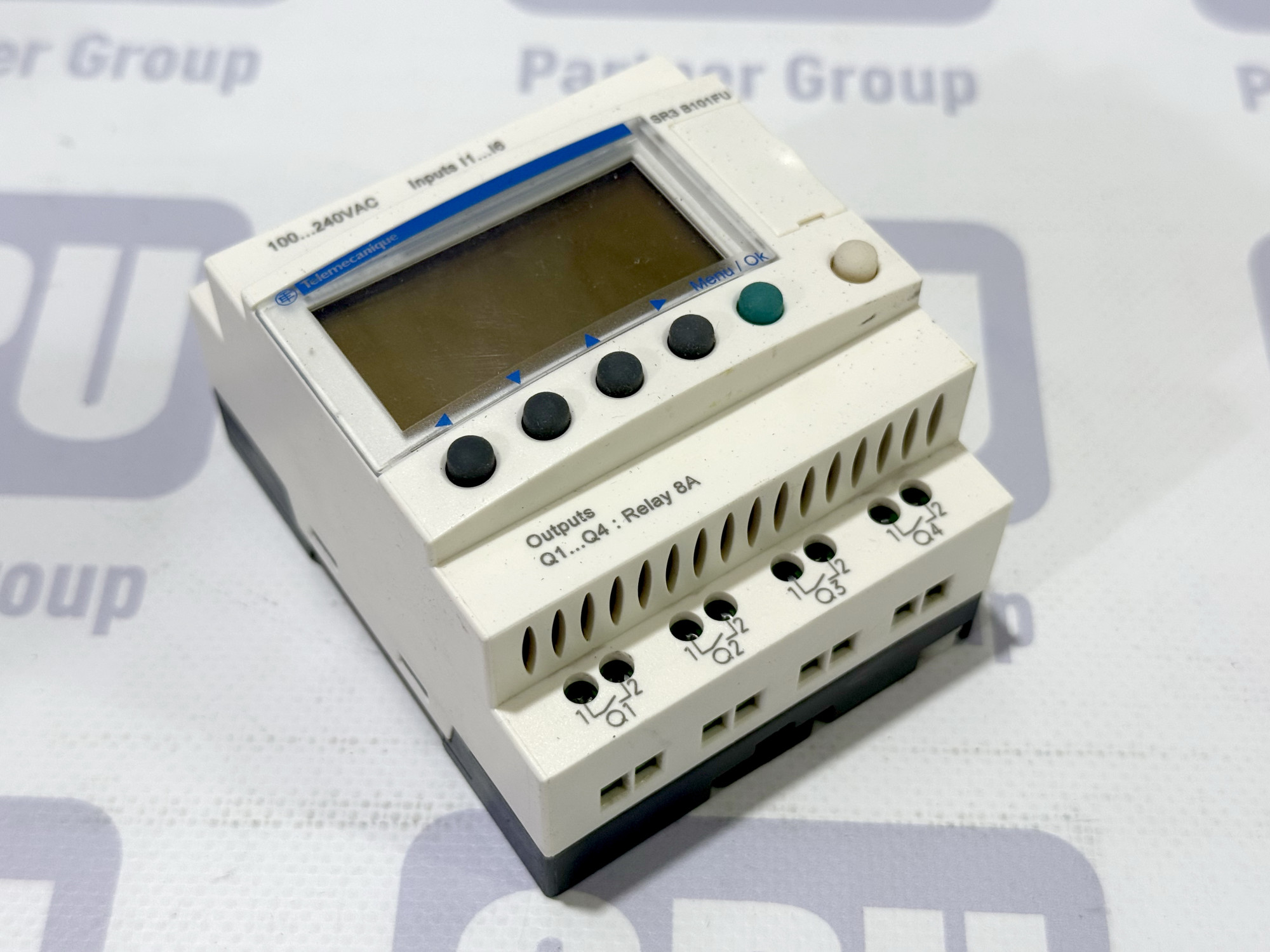

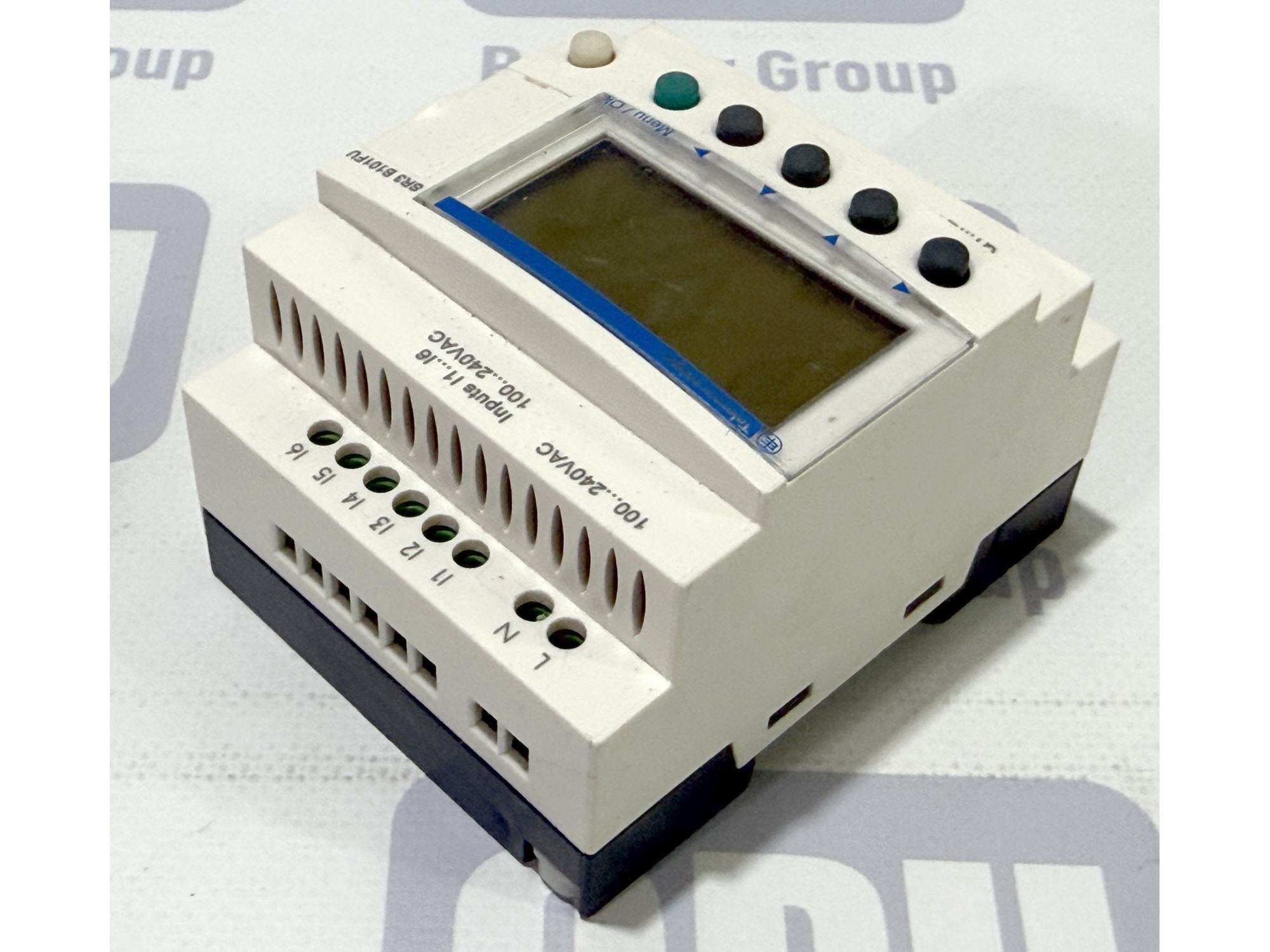

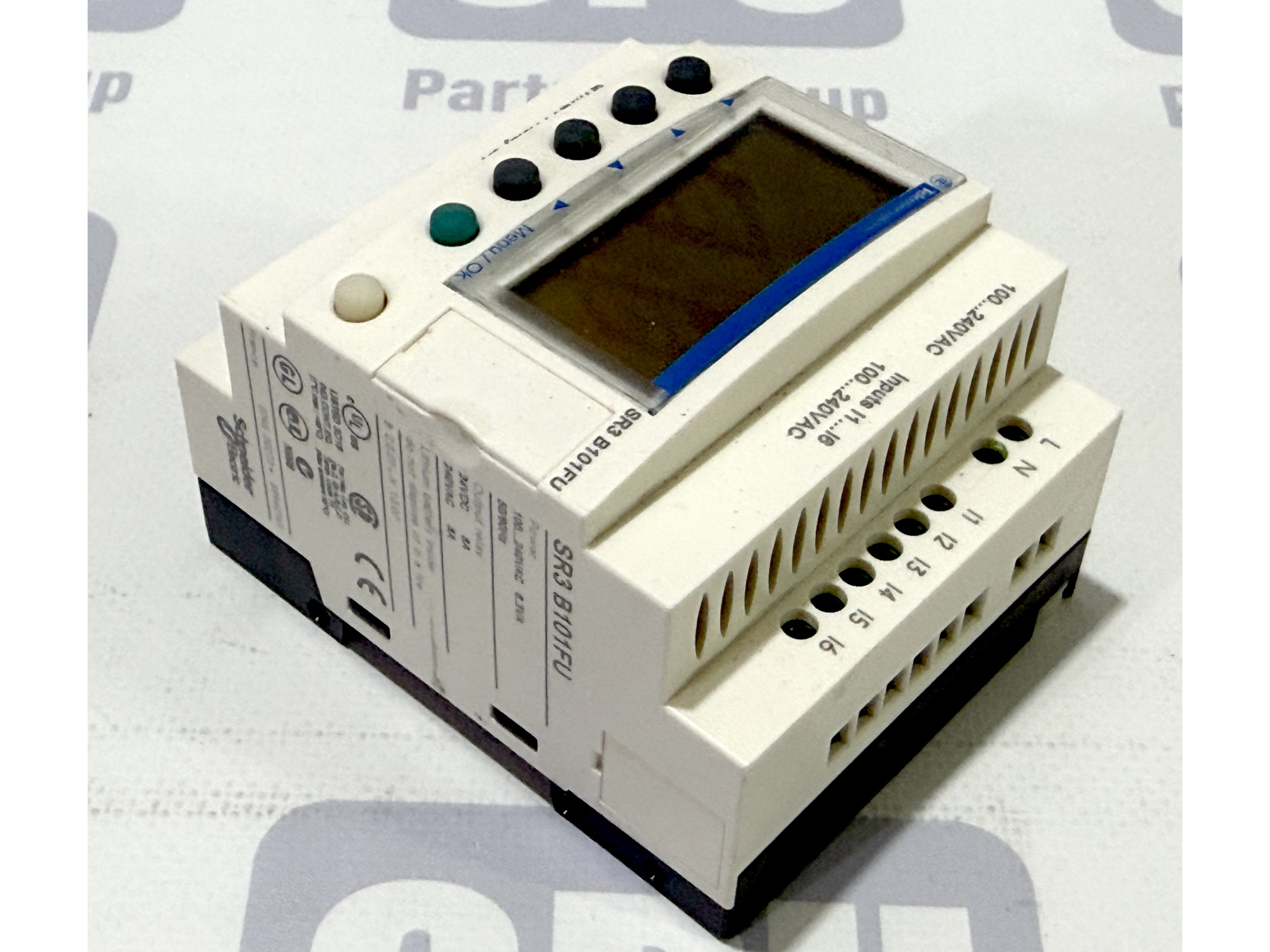

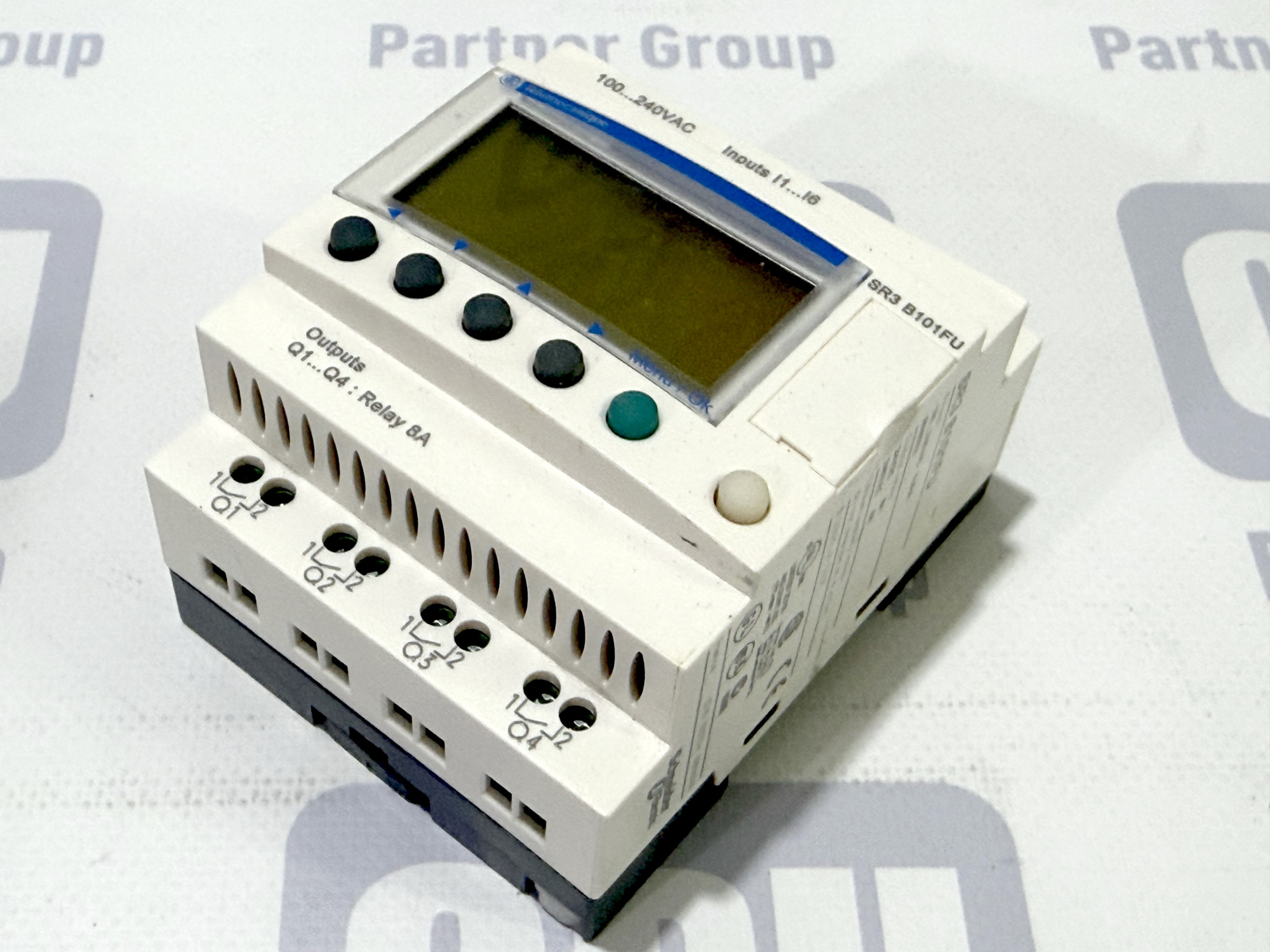

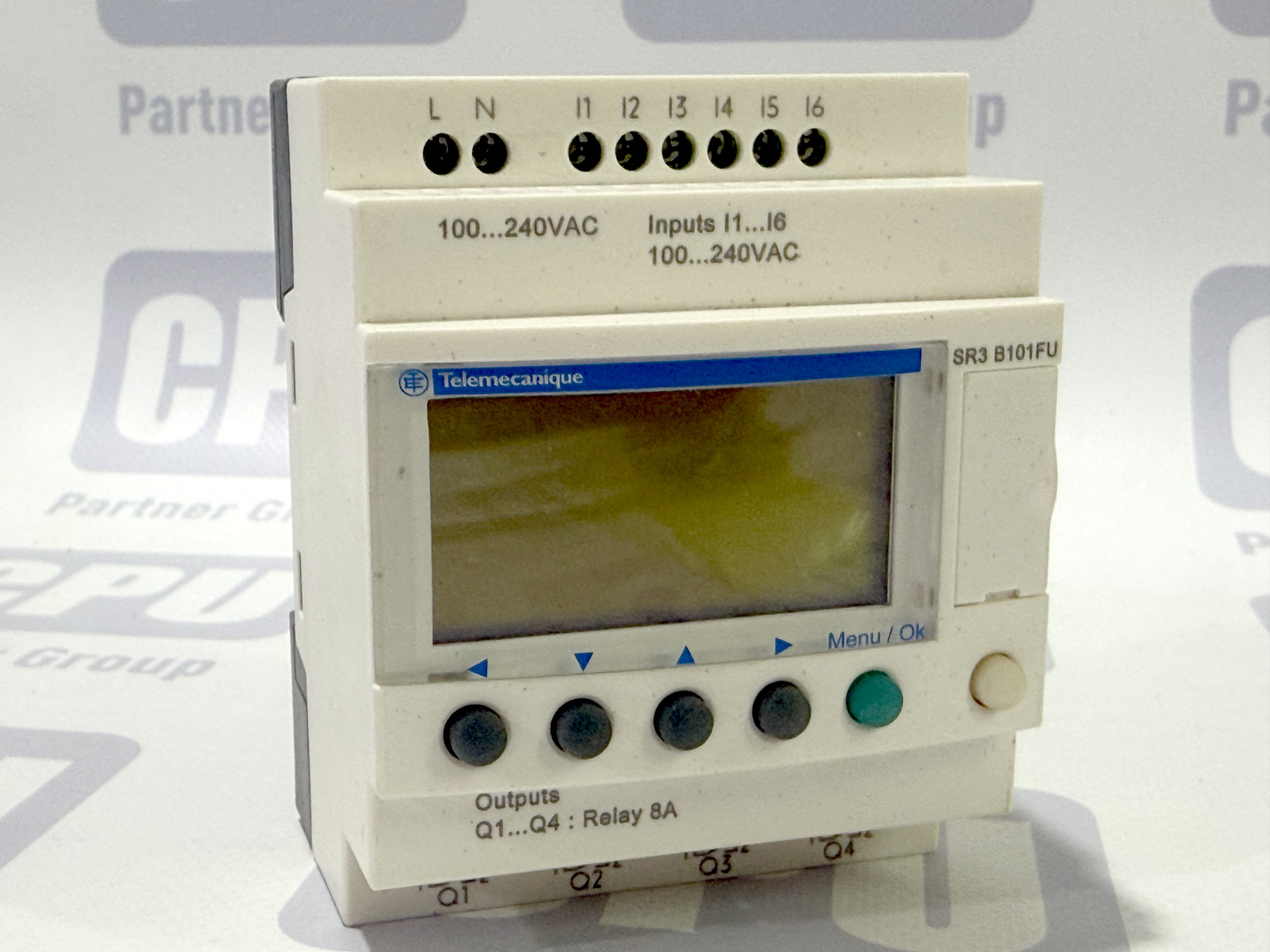

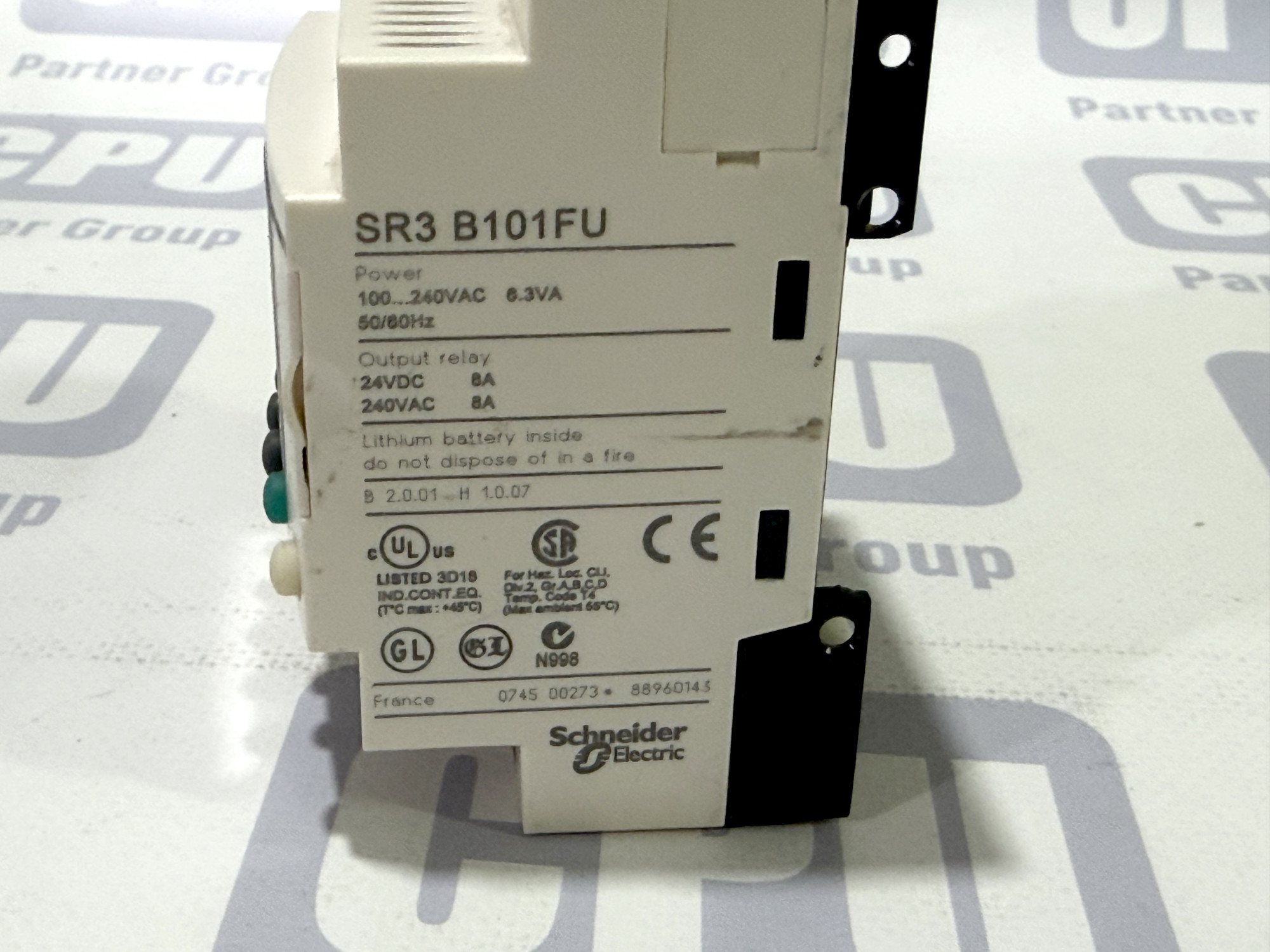

Schneider Electric Zelio Logic SR3B101FU Smart Relay (100...240V AC, 6 Inputs / 4 Outputs)

Schneider Electric Zelio Logic SR3B101FU Smart Relay (100...240V AC, 6 Inputs / 4 Outputs)

Product Description: The Schneider Electric Zelio Logic programmable smart relay (model SR3B101FU, branded under Telemecanique) is designed for the automation of small control systems and localized industrial processes. This compact module serves as a highly efficient and cost-effective alternative to traditional PLCs in applications where ease of programming, flexibility, and high reliability are essential. The relay features an integrated backlit liquid crystal display (LCD) and navigation buttons, allowing users to configure parameters, monitor input/output statuses, and adjust logic directly on-site. Additionally, the built-in real-time clock (RTC) enables precise automation based on time, schedule, and calendar events.

Specifications:

• Model: SR3B101FU

• Manufacturer: Schneider Electric (Telemecanique)

• Supply Voltage: 100...240 V AC, 50/60 Hz

• Power Consumption: 6.3 VA

• Number of Inputs: 6 discrete inputs (100...240 V AC)

• Number of Outputs: 4 relay outputs (8 A nominal current, switching voltage up to 240 V AC / 24 V DC)

• Display: Built-in LCD screen with text display support

• Real-Time Clock (RTC): Integrated (powered by an internal lithium battery)

• Expandability: Yes (modular structure of the SR3 series)

• Mounting Type: 35 mm DIN rail or panel mounting with screws

• Degree of Protection: IP20 for terminals, IP40 for the front panel

Application: This smart relay is widely used in the automation of building management systems, residential utilities, and small-scale industrial applications. It is commonly implemented for controlling lighting networks (facade, landscape, or scheduled internal lighting), HVAC systems (ventilation and air conditioning), pumping groups (water supply, drainage), automatic irrigation systems, and motorized gates or shutters. It is also well-suited for small machinery like conveyors or mixers, and automatic transfer switch (ATS/АВР) control panels.
