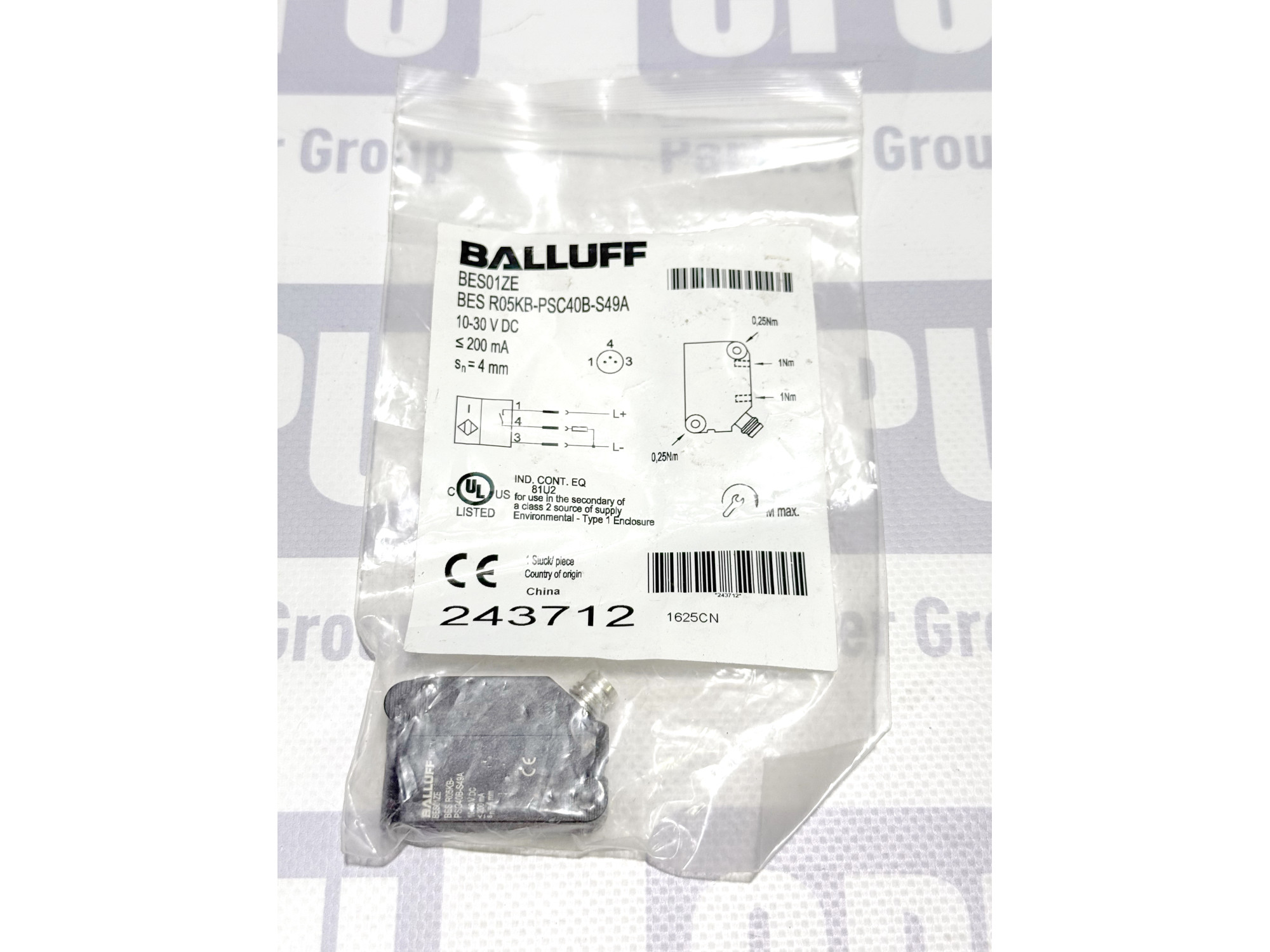

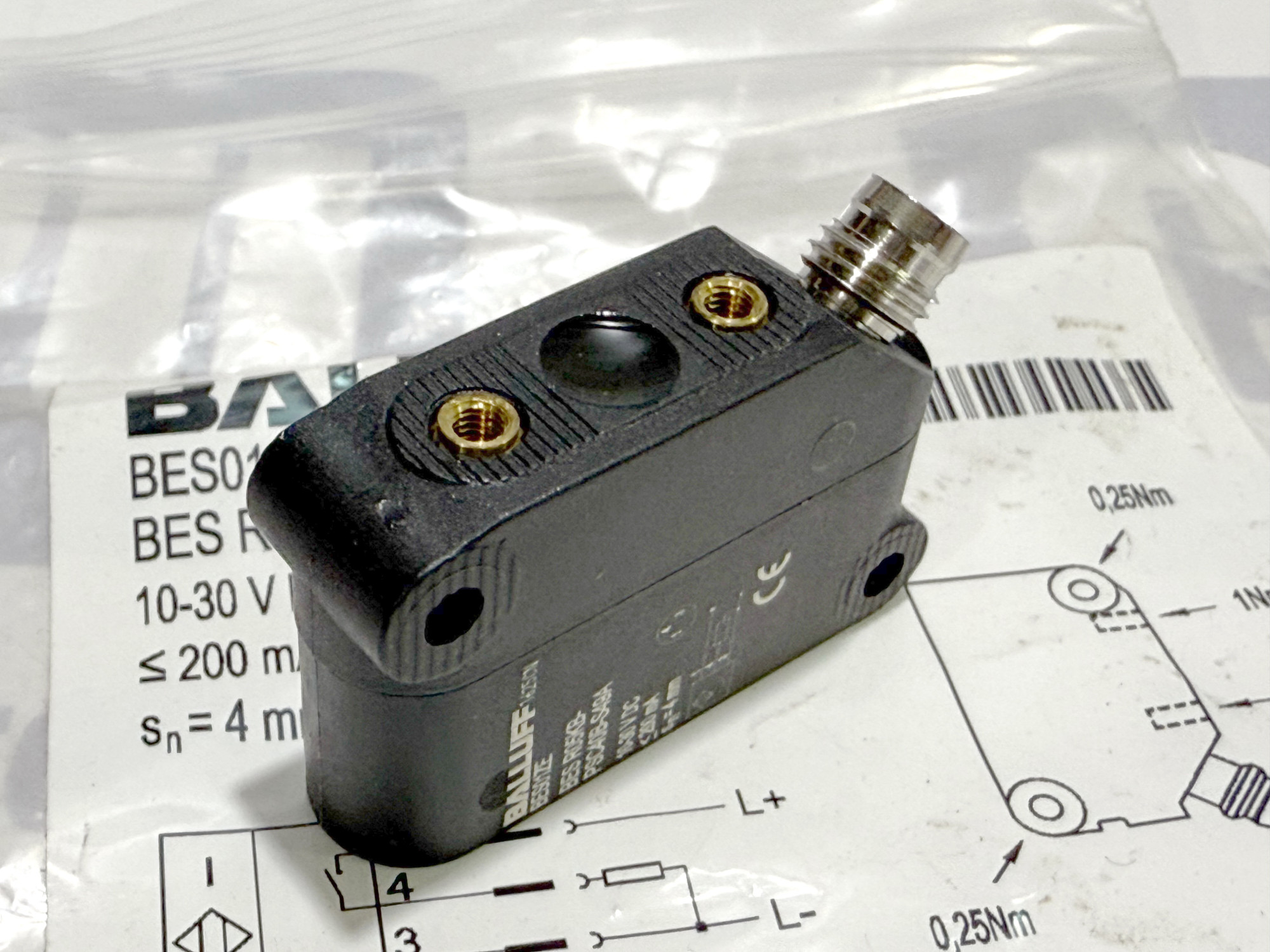

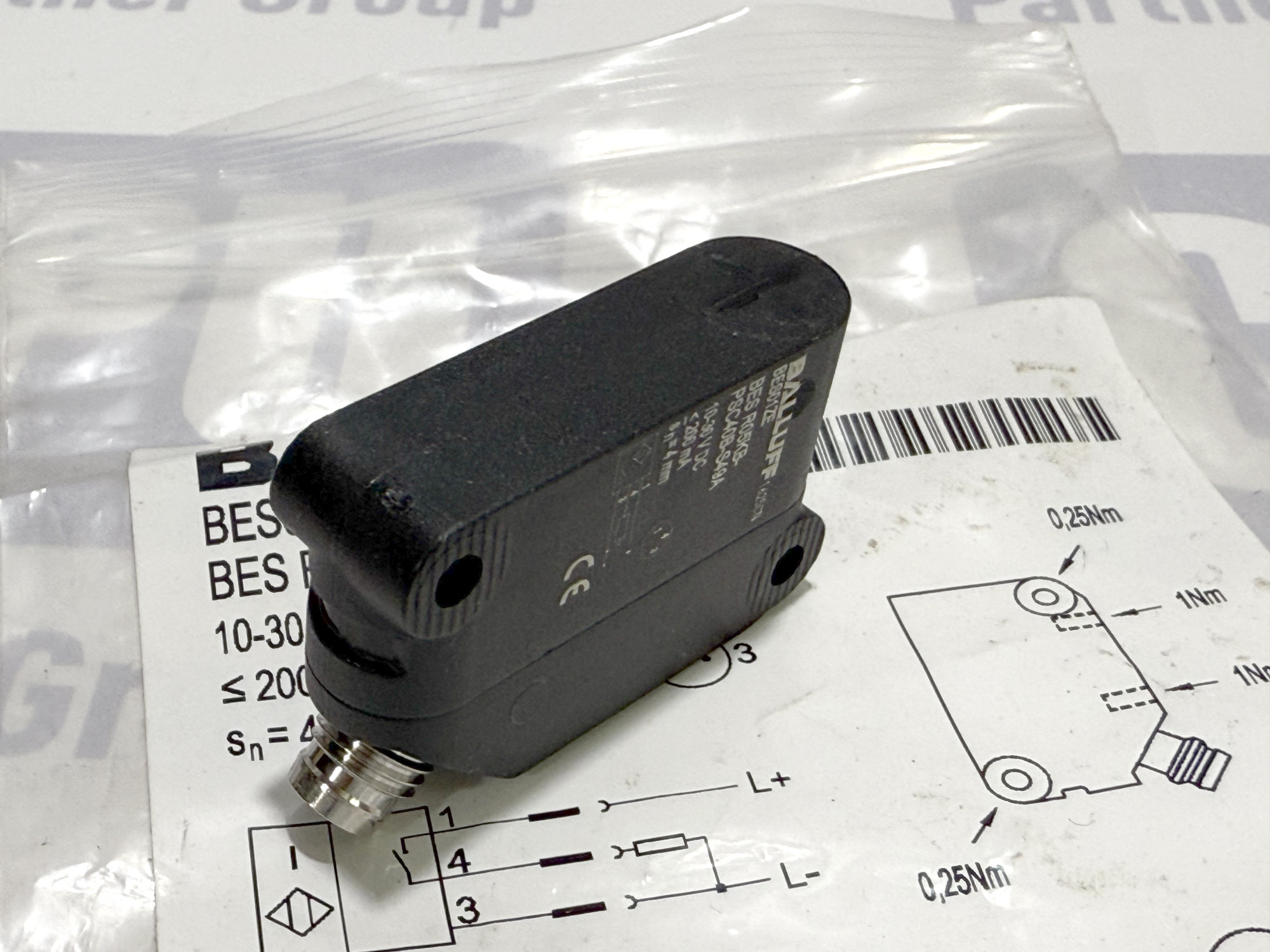

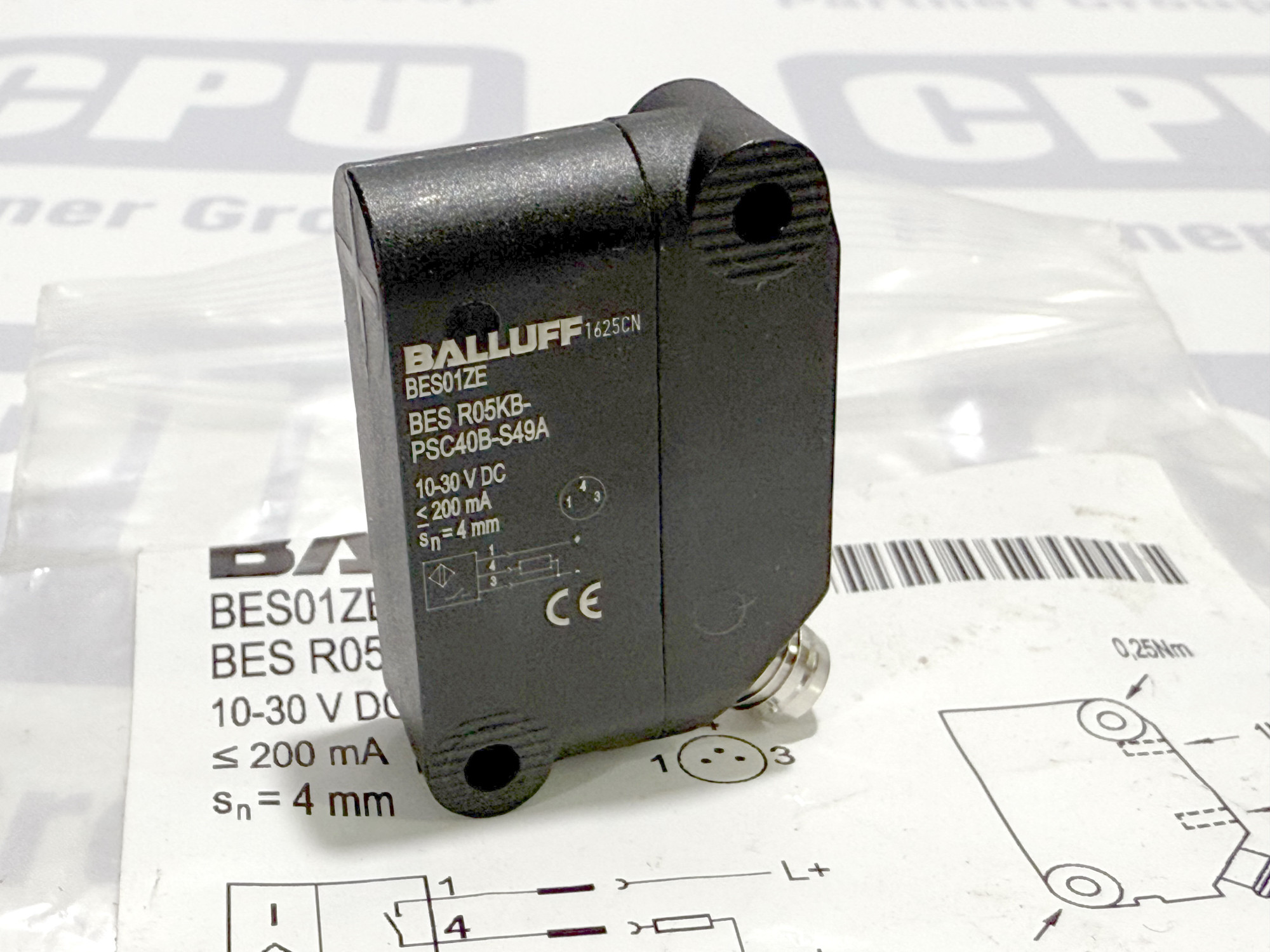

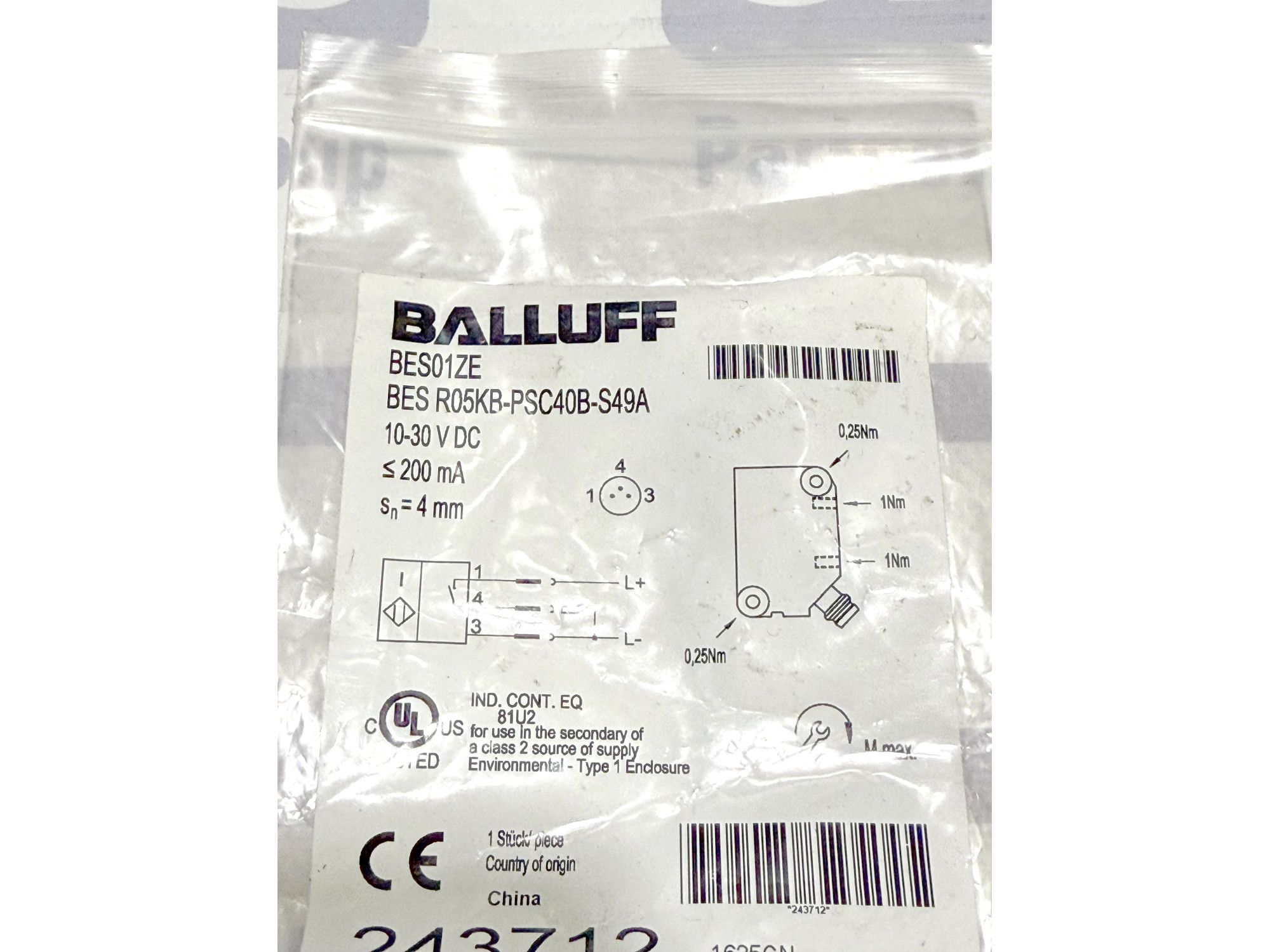

Balluff BES01ZE Inductive Proximity Sensor BES R05KB-PSC40B-S49A Rectangular

Balluff BES01ZE Inductive Proximity Sensor BES R05KB-PSC40B-S49A Rectangular

Description (SEO): The high-performance Balluff BES01ZE (model BES R05KB-PSC40B-S49A) inductive proximity sensor is engineered for precise metal target detection and position sensing in industrial automation systems. Housed in a compact, block-style rectangular plastic enclosure, this non-contact sensor is ideal for installation in space-restricted environments. Featuring a rugged design and robust protection, the Balluff inductive sensor provides exceptional reliability and longevity under harsh factory conditions. Operating within a 10-30 V DC supply voltage range, the device offers a PNP output with a Normally Open (NO) switching function and a convenient M8 3-pin circular connector interface. Upgrade your conveyor lines, CNC machinery, and robotic applications with genuine Balluff automation components to ensure seamless production processes.

Technical Specifications:

• Manufacturer: Balluff

• Order Code (Part Number): BES01ZE

• Factory Model: BES R05KB-PSC40B-S49A

• Sensor Type: Inductive Proximity

• Housing Shape: Rectangular (Block)

• Rated Operating Distance (Sn): 4 mm

• Installation: Flush mountable

• Supply Voltage: 10-30 V DC

• Rated Operational Current (Max): less than or equal to 200 mA

• Output Type: PNP

• Switching Function: NO (Normally Open)

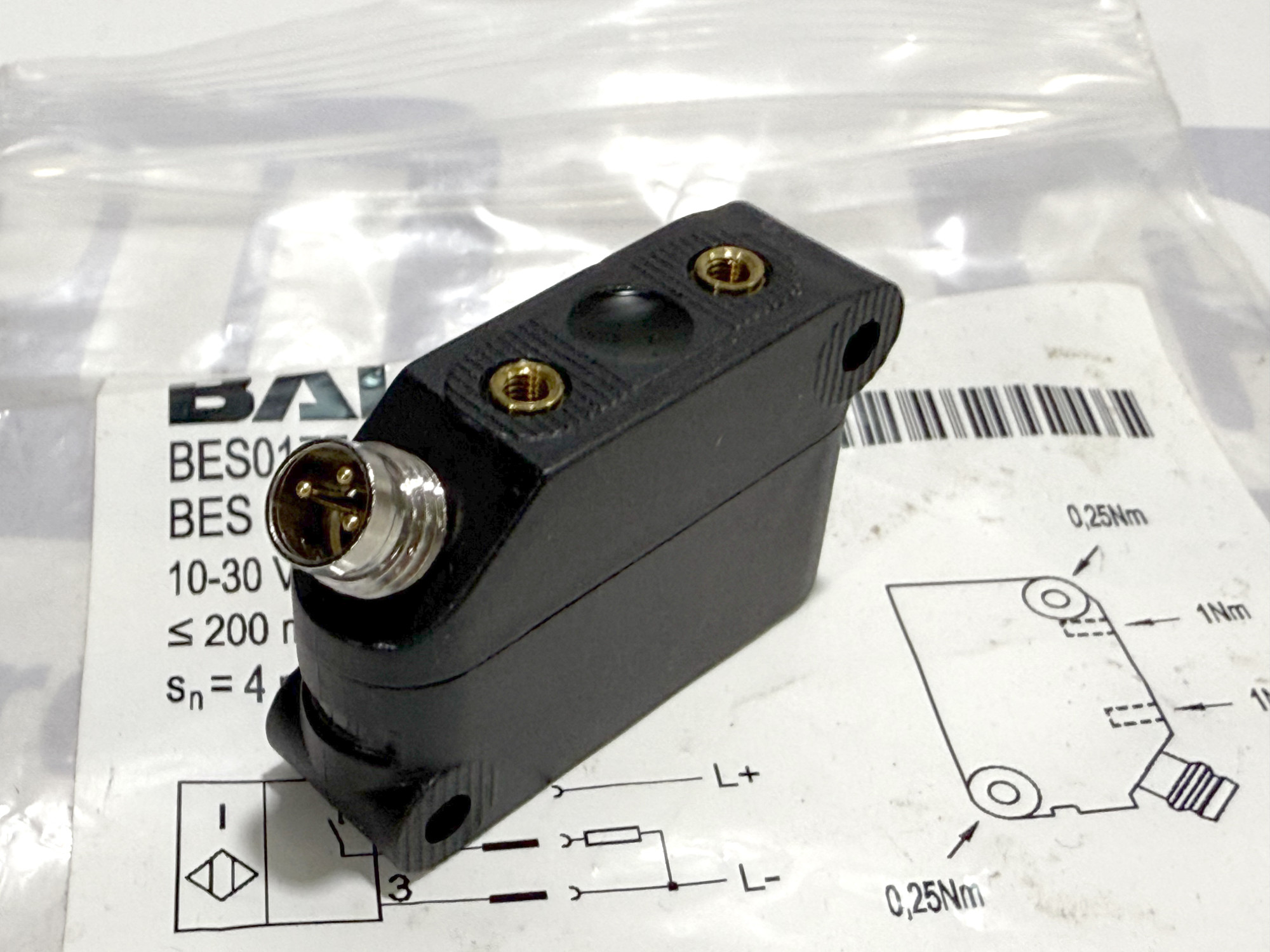

• Connection Type: M8 connector, 3-pin (wiring: 1-L+, 4-OUT, 3-L-)

• Housing Material: Plastic (PA12)

• Country of origin: China

Application: The Balluff BES01ZE inductive sensor is widely utilized across automated manufacturing lines, packaging machinery, printing presses, and conveyor distribution systems. It is primarily used to monitor the positioning of moving metallic mechanical components, detect the stroke end-points of pneumatic or hydraulic cylinders, count metal parts on a processing belt, and act as a reliable limit switch in metalworking and woodworking machine tools. Due to its miniature footprint, this block sensor perfectly integrates into assembly manipulators, robotic pick-and-place cells, and small-scale sub-assemblies of complex technological equipment
