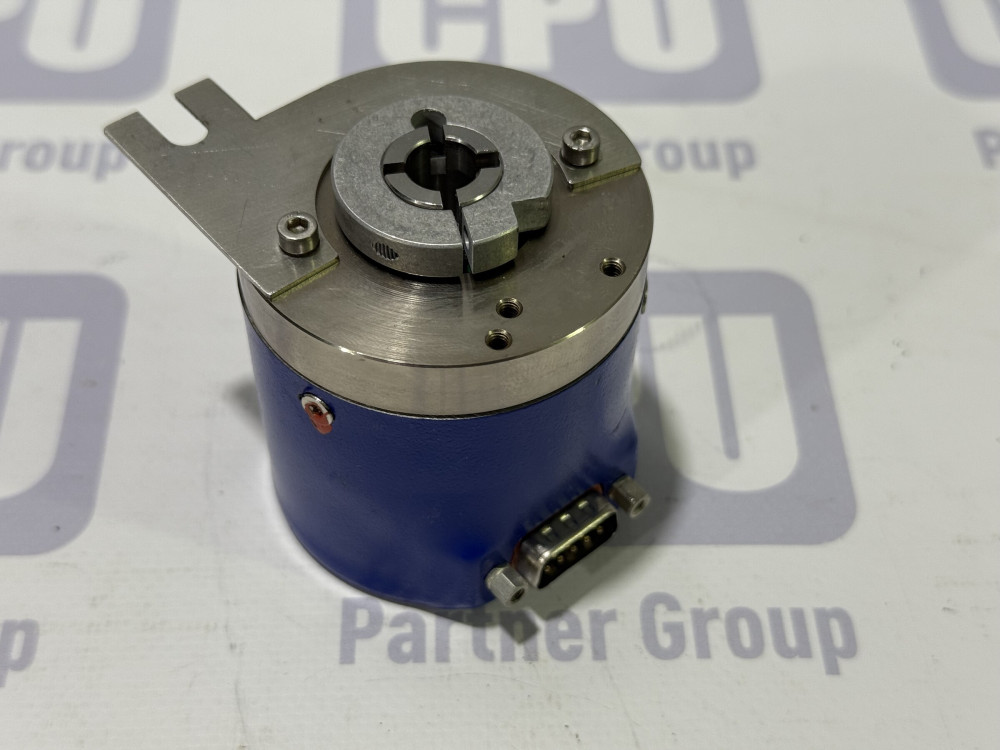

Baumer IVO GXM2S.Z20 SSI Absolute Encoder

Baumer IVO GXM2S.Z20 SSI Absolute Encoder – Description

The Baumer IVO GXM2S.Z20 is a high-precision absolute encoder designed for demanding industrial automation and motion control applications. It provides reliable absolute position feedback via an SSI interface, ensuring accurate and repeatable measurements even after power interruptions.

Built with a robust mechanical design and high-quality sensing technology, the encoder is suitable for harsh industrial environments where precision, durability, and long-term stability are required. The compact housing allows easy integration into machinery such as CNC systems, packaging machines, robotics, conveyors, and positioning systems.

The encoder delivers fast and stable data transmission, making it ideal for applications that require precise synchronization and accurate position monitoring. Its absolute measurement principle eliminates the need for homing procedures, improving system efficiency and reducing downtime.

Technical Specifications

Encoder Type:
Absolute encoder

Measurement Principle:
Singleturn absolute position sensing

Interface:
SSI (Synchronous Serial Interface)

Resolution:
High-resolution absolute output (model-dependent)

Power Supply:
Typically 10–30 V DC

Output Signal:
Digital SSI signal

Housing Type:
Compact industrial housing

Shaft Type:
Solid shaft

Mounting:
Flange mounting

Electrical Connection:
Cable or connector (depending on version)

Accuracy:
High positioning accuracy and repeatability

Protection Class:
Industrial-grade protection suitable for harsh environments

Operating Temperature:
Designed for standard industrial temperature ranges

Applications:
Industrial automation, motion control, CNC machinery, robotics, material handling, and positioning systems

On this page you will find the user manual for Baumer GXM2S. Get detailed technical specifications, installation and operating instructions to ensure optimum performance and reliability.

Manual for Baumer GXM2S
